X, Y east west antenna. More...

#include <Antenna_XYew.h>

Inheritance diagram for VieVS::Antenna_XYew:

Collaboration diagram for VieVS::Antenna_XYew:

Public Member Functions
	Antenna_XYew (double offset_m, double diam_m, double rateX_deg_per_min, unsigned int constantOverheadX_s, double rateY_deg_per_min, unsigned int constantOverheadY_s)
	constructor More...

unsigned int	slewTime (const PointingVector &old_pointingVector, const PointingVector &new_pointingVector) const noexceptoverride
	calculates slew time More...

unsigned int	slewTimeTracking (const PointingVector &old_pointingVector, const PointingVector &new_pointingVector) const noexceptoverride
	calculates the slewtime between azimuth and elevation of two pointing vectors in tracking mode More...

std::string	getMount () const noexceptoverride
	get mount name More...

Public Member Functions inherited from VieVS::AbstractAntenna
	AbstractAntenna (double offset_m, double diam_m, double rate1_deg_per_min, unsigned int constantOverhead1_s, double rate2_deg_per_min, unsigned int constantOverhead2_s)
	constructor More...

double	getDiam () const
	getter for antenna diameter More...

double	getOffset () const
	getter for antenna offset More...

double	getRate1 () const
	slew rate of first axis in rad/seconds More...

double	getCon1 () const
	getter for constant overhead for first axis slew time in seconds More...

double	getRate2 () const
	slew rate of second axis in rad/seconds More...

double	getCon2 () const
	getter for constant overhead for second axis slew time in seconds More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Additional Inherited Members
Protected Types inherited from VieVS::AbstractAntenna
enum	Axis { Axis::axis1, Axis::axis2 }
	enum to distinguish antenna axis More...

Protected Member Functions inherited from VieVS::AbstractAntenna
unsigned int	slewTimePerAxis (double delta, Axis axis) const noexcept
	calculates slew time per axis More...

Detailed Description

X, Y east west antenna.

Author: Matthias Schartner

Date: 12.04.2018

Constructor & Destructor Documentation

Antenna_XYew::Antenna_XYew	(	double	offset_m,
		double	diam_m,
		double	rateX_deg_per_min,
		unsigned int	constantOverheadX_s,
		double	rateY_deg_per_min,
		unsigned int	constantOverheadY_s
	)

constructor

Author: Matthias Schartner

Parameters

offset_m	offset of antenna axis intersection in meters
diam_m	diameter of antenna dish in meters
rateX_deg_per_min	slew rate of X in degrees/seconds
constantOverheadX_s	constant overhead for X slew time in seconds
rateY_deg_per_min	slew rate of Y in degrees/secondds
constantOverheadY_s	constant overhead for Y slew time in seconds

Member Function Documentation

std::string VieVS::Antenna_XYew::getMount ( ) const

inlineoverridevirtualnoexcept

get mount name

Author: Matthias Schartner

Returns: mount name

Implements VieVS::AbstractAntenna.

unsigned int Antenna_XYew::slewTime	(	const PointingVector &	old_pointingVector,
		const PointingVector &	new_pointingVector
	)		const

overridevirtualnoexcept

calculates slew time

Author: Matthias Schartner

Parameters

old_pointingVector	slew start point
new_pointingVector	slew end point

Returns: slew time in seconds

Implements VieVS::AbstractAntenna.

Here is the call graph for this function:

unsigned int Antenna_XYew::slewTimeTracking	(	const PointingVector &	old_pointingVector,
		const PointingVector &	new_pointingVector
	)		const

overridevirtualnoexcept

calculates the slewtime between azimuth and elevation of two pointing vectors in tracking mode

Author: Matthias Schartner

tracking mode means that the constant overhead time is not added

Parameters

old_pointingVector	start pointing vector
new_pointingVector	end pointing vector

Returns: slewtime between start pointing vector and end pointing vector in seconds

Implements VieVS::AbstractAntenna.

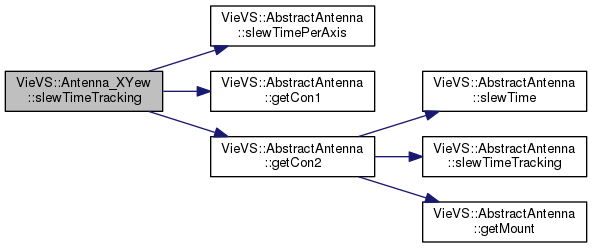

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Station/Antenna/Antenna_XYew.h
/home/travis/build/TUW-VieVS/VieSchedpp/Station/Antenna/Antenna_XYew.cpp
