VieVS::Equipment Class Reference

representation of VLBI equipment More...

#include <Equipment.h>

Inheritance diagram for VieVS::Equipment:

Collaboration diagram for VieVS::Equipment:

Public Member Functions
	Equipment (std::unordered_map< std::string, double > SEFDs)
	constructor More...
virtual double	getSEFD (const std::string &band, double el) const noexcept
	getter function for antenna SEFD information More...
const std::vector< std::string >	getBands () const noexcept
double	getMaxSEFD () const noexcept
	returns maximum SEFD of this antenna More...
virtual std::string	shortSummary (const std::string &band) const noexcept
	creates a short summary of SEFD parameters More...
Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...
const unsigned long	getId () const
	get object id More...
bool	hasValidId () const
	check if id is valid More...
bool	hasId (unsigned long id) const
	check if object has specific id More...
void	setId (unsigned long id)
	set object id More...
std::string	printId () const
	object id string More...

Private Attributes
std::unordered_map< std::string, double >	SEFD_
	SEFD information per band. More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of VLBI equipment

Author

Matthias Schartner

Date

27.06.2017

Constructor & Destructor Documentation

Equipment::Equipment ( std::unordered_map< std::string, double >  SEFDs )

explicit

constructor

Author

Matthias Schartner

Parameters

SEFDs

SEFD per band - key is band name, value is SEFD

Member Function Documentation

const std::vector<std::string> VieVS::Equipment::getBands ( ) const

inlinenoexcept

Here is the call graph for this function:

double Equipment::getMaxSEFD ( ) const

noexcept

returns maximum SEFD of this antenna

Author

Matthias Schartner

Returns

maximum SEFD of this antenna

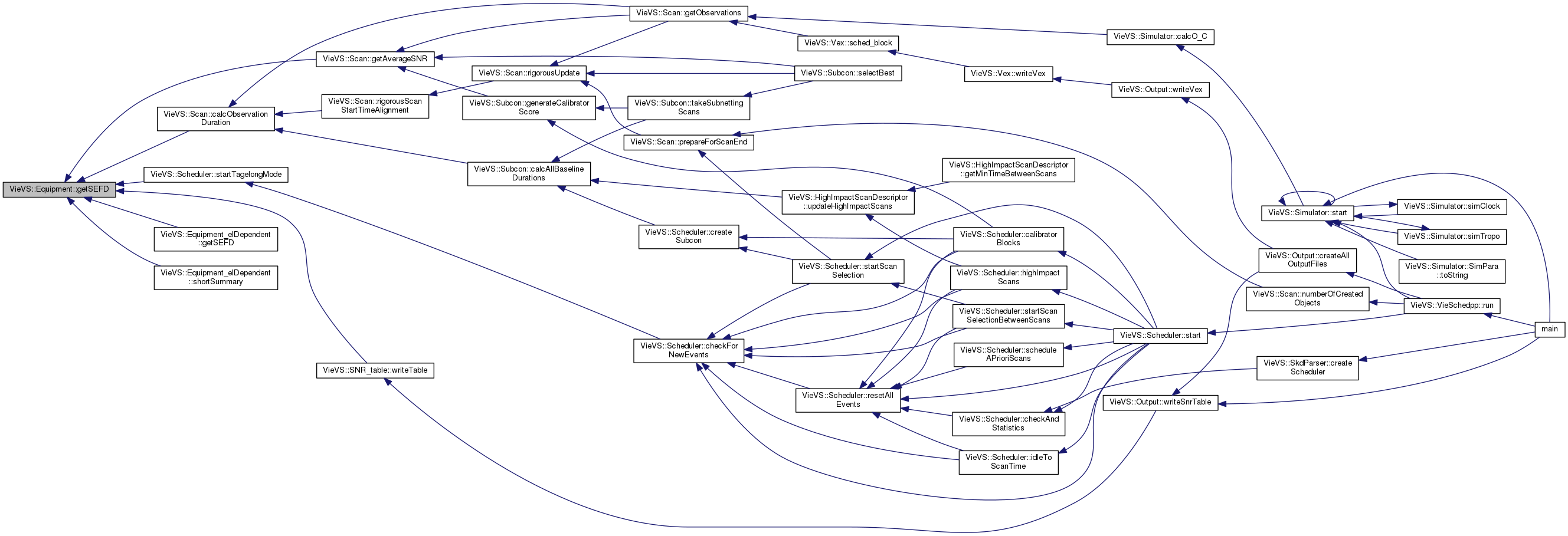

Here is the caller graph for this function:

virtual double VieVS::Equipment::getSEFD ( const std::string &  band, double  el  ) const

inlinevirtualnoexcept

getter function for antenna SEFD information

Author

Matthias Schartner

Parameters

band	name of band
el	elevation

Returns

SEFD of this band

Reimplemented in VieVS::Equipment_elDependent.

Here is the caller graph for this function:

std::string Equipment::shortSummary ( const std::string &  band ) const

virtualnoexcept

creates a short summary of SEFD parameters

Author

Matthis Schartner

Parameters

band

band name

Returns

short summary of SEFD parameters

Reimplemented in VieVS::Equipment_elDependent.

Here is the caller graph for this function:

Member Data Documentation

unsigned long Equipment::nextId = 0

staticprivate

next id for this object type

std::unordered_map<std::string, double> VieVS::Equipment::SEFD_

private

SEFD information per band.

---

The documentation for this class was generated from the following files:

• /home/travis/build/TUW-VieVS/VieSchedpp/Station/Equip/Equipment.h
• /home/travis/build/TUW-VieVS/VieSchedpp/Station/Equip/Equipment.cpp
