FREQ section of observing mode. More...

#include <Freq.h>

Inheritance diagram for VieVS::Freq:

Collaboration diagram for VieVS::Freq:

Classes
class	Chan_def
	Channel definition for observing mode. More...

Public Types
enum	Net_sideband { Net_sideband::U, Net_sideband::L, Net_sideband::UC, Net_sideband::LC, Net_sideband::undefined }
	net sideband types More...

Public Member Functions
	Freq (std::string name)
	constructor More...

	Freq (const boost::property_tree::ptree &tree)
	constructor More...

void	addChannel (std::string bandId, double sky_freq, Net_sideband net_sideband, double chan_bandwidth, std::string chan_id, std::string bbc_id, std::string phase_cal_id)
	add new channel More...

boost::property_tree::ptree	toPropertytree () const
	converts object to property tree More...

std::vector< double >	getFrequencies (const std::string &band) const
	get all frequencies for a specific band More...

void	setSampleRate (double sample_rate)
	set sample rate More...

const std::set< std::string > &	getBands () const
	get list of all bands More...

std::unordered_map< std::string, double >	observingRate (const std::shared_ptr< const Freq > &other, const std::map< std::string, int > &bitsPerChannel) const
	calculates observing rates for each band between two stations with potentially different FREQ blocks More...

void	toVexFreqDefinition (std::ofstream &of, const std::string &comment="") const
	writes FREQ block in vex format More...

const std::vector< Chan_def > &	getChan_defs () const
	get channel definitions More...

std::vector< Chan_def > &	refChan_defs ()
	reference channel definitions More...

double	totalBandwidth () const
	calculate total bandwidth for all channels More...

double	totalRate (const std::map< std::string, int > &bitsPerChannel) const
	calculate total observing rate More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Member Functions
static std::string	toString (Net_sideband n)
	converts Net_sidband to string More...

static Net_sideband	netSidebandFromString (const std::string &s)
	convert vex format string to net sideband type More...

Private Member Functions
std::pair< double, double >	lower_upper_bound (double skyFreq, double bandwidth, Net_sideband net_sideband) const
	calculate lower and upper frequency limit of particular channel More...

double	overlappingBandwidth (double low1, double up1, double low2, double up2) const
	calculate overlapping bandwidth More...

Private Attributes
double	sample_rate_
	sample frequency in MHz More...

std::vector< Chan_def >	chan_defs_
	list of channels More...

std::set< std::string >	bands_
	list of bands More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

FREQ section of observing mode.

following vex standard The $FREQ block describes the RF sky Frequency, net sideband, and bandwidth characteristics of the channels recorded, where a 'channel' is defined as a single USB or LSB output from a BBC. The $FREQ block does not attempt to describe the recording mode (including format, sample rate, bits per sample, and sample type), since the same set of channels may be recorded in different recording modes (or on different equipment) at different stations. Each frequency channel is defined by a chan_def statement with at least seven fields in each statement.

Author: Matthias Schartner

Date: 17.09.2018

Member Enumeration Documentation

enum VieVS::Freq::Net_sideband

strong

net sideband types

Author: Matthias Schartner

Enumerator
U	upper side band
L	lower side band
UC	upper side band I/Q encoding
LC	lower side band I/Q encoding
undefined	undefined

Constructor & Destructor Documentation

Freq::Freq ( std::string name )

explicit

constructor

Author: Matthias Schartner

Parameters

name FREQ name

Here is the caller graph for this function:

Freq::Freq ( const boost::property_tree::ptree & tree )

explicit

constructor

Author: Matthias Schartner

Parameters

tree	input property tree from xml file

Member Function Documentation

void Freq::addChannel	(	std::string	bandId,
		double	sky_freq,
		Freq::Net_sideband	net_sideband,
		double	chan_bandwidth,
		std::string	chan_id,
		std::string	bbc_id,
		std::string	phase_cal_id
	)

add new channel

Author: Matthias Schartner

Parameters

bandId	'Band_ID': RF band name
sky_freq	RF sky frequency at 0Hz in the BBC output
net_sideband	Net sideband of this BBC channel
chan_bandwidth	BBC Channel bandwidth
chan_id	'Chan_ID': Logical channel name
bbc_id	'BBC_ID': Logical BBC name
phase_cal_id	'Phase-cal_ID': Logical phase-cal name

Here is the caller graph for this function:

const std::set<std::string>& VieVS::Freq::getBands ( ) const

inline

get list of all bands

Author: Matthias Schartner

Returns: list of all bands

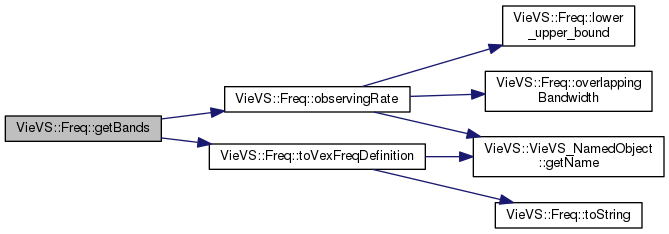

Here is the call graph for this function:

const std::vector<Chan_def>& VieVS::Freq::getChan_defs ( ) const

inline

get channel definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: all channel definitions

std::vector< double > Freq::getFrequencies ( const std::string & band ) const

get all frequencies for a specific band

Author: Matthias Schartner

Parameters

band	target band

Returns: list of all frequencies in this band

Here is the caller graph for this function:

std::pair< double, double > Freq::lower_upper_bound	(	double	skyFreq,
		double	bandwidth,
		Freq::Net_sideband	net_sideband
	)		const

private

calculate lower and upper frequency limit of particular channel

Author: Matthias Schartner

Parameters

skyFreq	sky frequency in MHz
bandwidth	bandwidth in MHz
net_sideband	net sideband

Returns: lower and upper limit

Here is the caller graph for this function:

static Net_sideband VieVS::Freq::netSidebandFromString ( const std::string & s )

inlinestatic

convert vex format string to net sideband type

Author: Matthias Schartner

Parameters

s	net sideband name in vex format

Returns: net sideband type

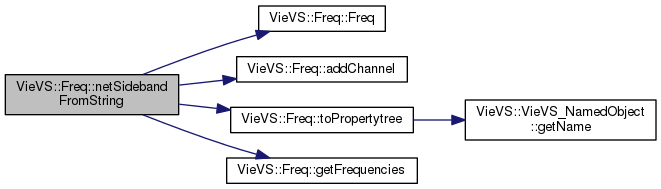

Here is the call graph for this function:

Here is the caller graph for this function:

std::unordered_map< std::string, double > Freq::observingRate	(	const std::shared_ptr< const Freq > &	other,
		const std::map< std::string, int > &	bitsPerChannel
	)		const

calculates observing rates for each band between two stations with potentially different FREQ blocks

Author: Matthias Schartner

Parameters

other	2nd FREQ block
bitsPerChannel	number of sampled bits per channel

Returns: total mutual observing rate per band

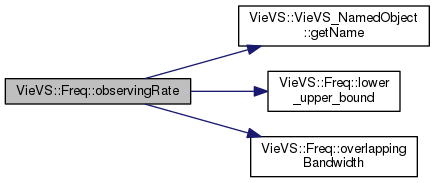

Here is the call graph for this function:

Here is the caller graph for this function:

double Freq::overlappingBandwidth	(	double	low1,
		double	up1,
		double	low2,
		double	up2
	)		const

private

calculate overlapping bandwidth

Author: Matthias Schartner

Parameters

low1	lower limit of first channel in MHz
up1	upper limit of first channel in MHz
low2	lower limit of second channel in MHz
up2	upper limit of second channel in MHz

Returns: overlapping bandwidth in MHz

Here is the caller graph for this function:

std::vector<Chan_def>& VieVS::Freq::refChan_defs ( )

inline

reference channel definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: reference to all channel definitions

Here is the call graph for this function:

void VieVS::Freq::setSampleRate ( double sample_rate )

inline

set sample rate

Author: Matthias Schartner

Parameters

sample_rate Sample frequency

boost::property_tree::ptree Freq::toPropertytree ( ) const

converts object to property tree

Author: Matthias Schartner

Returns: property tree

Here is the call graph for this function:

Here is the caller graph for this function:

static std::string VieVS::Freq::toString ( Net_sideband n )

inlinestatic

converts Net_sidband to string

Author: Matthias Schartner

Parameters

n	Net_sideband type

Returns: name in vex format

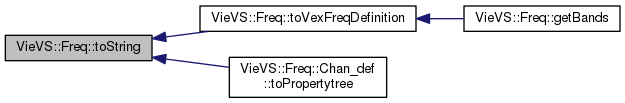

Here is the caller graph for this function:

double Freq::totalBandwidth ( ) const

calculate total bandwidth for all channels

Author: Matthias Schartner

Returns: total bandwidth in MHz

Here is the caller graph for this function:

double Freq::totalRate ( const std::map< std::string, int > & bitsPerChannel ) const

calculate total observing rate

Author: Matthias Schartner

Parameters

bitsPerChannel number of sampled bits per channel

Returns: total observing rate

Here is the caller graph for this function:

void Freq::toVexFreqDefinition	(	std::ofstream &	of,
		const std::string &	comment = `""`
	)		const

writes FREQ block in vex format

Author: Matthias Schartner

Parameters

of	vex file stream
comment	optional comment

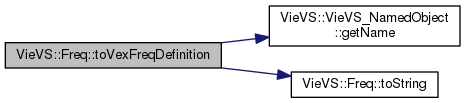

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::set<std::string> VieVS::Freq::bands_

private

list of bands

std::vector<Chan_def> VieVS::Freq::chan_defs_

private

list of channels

unsigned long VieVS::Freq::nextId = 0

staticprivate

next id for this object type

double VieVS::Freq::sample_rate_

private

sample frequency in MHz

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Freq.h
/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Freq.cpp
