IF section of observing mode. More...

#include <If.h>

Inheritance diagram for VieVS::If:

Collaboration diagram for VieVS::If:

Classes
class	If_def
	IF definition. More...

Public Types
enum	Polarization { Polarization::R, Polarization::L, Polarization::X, Polarization::Y, Polarization::H, Polarization::V, Polarization::undefined }
	polarization types More...

enum	Net_sidband { Net_sidband::U, Net_sidband::L, Net_sidband::D, Net_sidband::undefined }
	net sideband types More...

Public Member Functions
	If (std::string name)
	constructor More...

	If (const boost::property_tree::ptree &tree)
	constructor More...

void	addIf (std::string name, std::string physical_name, Polarization polarization, double total_lo, Net_sidband net_sidband, double phase_cal_freq_spacing, double phase_cal_base_freqency)
	define new IF More...

boost::property_tree::ptree	toPropertytree () const
	converts object to property tree More...

void	toVecIfDefinition (std::ofstream &of, const std::string &comment="") const
	writes If block in vex format More...

const std::vector< If_def > &	getIf_defs () const
	get IF definitions More...

std::vector< If_def > &	refIf_defs ()
	reference IF definitions More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Member Functions
static std::string	toString (Polarization p)
	converts polarization to vex format string More...

static Polarization	polarizationFromString (const std::string &s)
	convert vex format string to polarization type More...

static std::string	toString (Net_sidband n)
	converts net sideband type to vex format string More...

static Net_sidband	netSidebandFromString (const std::string &s)
	convert vex format string to net sideband type More...

Private Attributes
std::vector< If_def >	if_defs_
	list of IF definitions More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

IF section of observing mode.

following vex standard The $IF block defines the characteristics of the IF bands used in the observations and is linked to the $BBC block (which specifies the detailed BBC-to-IF connections). An if_def statement must be defined for each of the IF 'links' specified in the selected $BBC 'def'.

Author: Matthias Schartner

Date: 17.09.2018

Member Enumeration Documentation

enum VieVS::If::Net_sidband

strong

net sideband types

Author: Matthias Schartner

Enumerator
U	upper
L	lower
D	D?
undefined	undefined

enum VieVS::If::Polarization

strong

polarization types

Author: Matthias Schartner

Enumerator
R	right
L	left
X	x-axis
Y	y-axis
H	horizontal
V	vertical
undefined	undefined

Constructor & Destructor Documentation

If::If ( std::string name )

explicit

constructor

Author: Matthias Schartner

Parameters

name	IF block name

Here is the caller graph for this function:

If::If ( const boost::property_tree::ptree & tree )

explicit

constructor

Author: Matthias Schartner

Parameters

tree	input property tree from xml file

Member Function Documentation

void If::addIf	(	std::string	name,
		std::string	physical_name,
		If::Polarization	polarization,
		double	total_lo,
		If::Net_sidband	net_sidband,
		double	phase_cal_freq_spacing,
		double	phase_cal_base_freqency
	)

define new IF

Author: Matthias Schartner

Parameters

name	'IF_ID' link word
physical_name	Physical IF name
polarization	Polarization
total_lo	Total effective LO of IF (just before signal enters BBC or sampler)
net_sidband	Net sideband of IF
phase_cal_freq_spacing	Phase-cal frequency interval
phase_cal_base_freqency	Phase-cal base frequency

Here is the caller graph for this function:

const std::vector<If_def>& VieVS::If::getIf_defs ( ) const

inline

get IF definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: all IF definitions

static Net_sidband VieVS::If::netSidebandFromString ( const std::string & s )

inlinestatic

convert vex format string to net sideband type

Author: Matthias Schartner

Parameters

s	net sideband name in vex format

Returns: net sideband type

Here is the call graph for this function:

Here is the caller graph for this function:

static Polarization VieVS::If::polarizationFromString ( const std::string & s )

inlinestatic

convert vex format string to polarization type

Author: Matthias Schartner

Parameters

s	name in vex format

Returns: polarization type

Here is the caller graph for this function:

std::vector<If_def>& VieVS::If::refIf_defs ( )

inline

reference IF definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: reference to all IF definitions

boost::property_tree::ptree If::toPropertytree ( ) const

converts object to property tree

Author: Matthias Schartner

Returns: property tree

Here is the call graph for this function:

Here is the caller graph for this function:

static std::string VieVS::If::toString ( Polarization p )

inlinestatic

converts polarization to vex format string

Author: Matthias Schartner

Parameters

p	polarization type

Returns: string in vex format

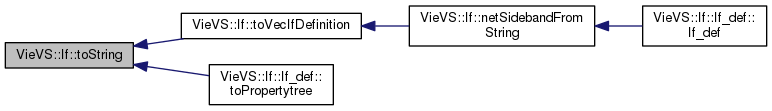

Here is the caller graph for this function:

static std::string VieVS::If::toString ( Net_sidband n )

inlinestatic

converts net sideband type to vex format string

Author: Matthias Schartner

Parameters

n	net sideband type

Returns: string in vex format

void If::toVecIfDefinition	(	std::ofstream &	of,
		const std::string &	comment = `""`
	)		const

writes If block in vex format

Author: Matthias Schartner

Parameters

of	vex file stream
comment	optional comment

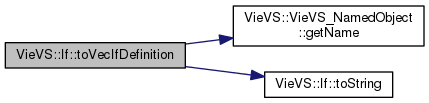

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::vector<If_def> VieVS::If::if_defs_

private

list of IF definitions

unsigned long VieVS::If::nextId = 0

staticprivate

next id for this object type

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/If.h
/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/If.cpp
