sked catalog reader class More...

#include <SkdCatalogReader.h>

Inheritance diagram for VieVS::SkdCatalogReader:

Collaboration diagram for VieVS::SkdCatalogReader:

Public Types
enum	CATALOG { CATALOG::source, CATALOG::flux, CATALOG::antenna, CATALOG::position, CATALOG::equip, CATALOG::mask }
	All available and read sked catalog files which can be read with the same return type. More...

Public Member Functions
	SkdCatalogReader ()
	default constructor More...

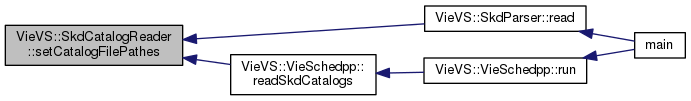

void	setCatalogFilePathes (const boost::property_tree::ptree &ptreeWithPathes)
	setter for catalog pathes More...

void	setCatalogFilePathes (const std::string &antenna, const std::string &equip, const std::string &flux, const std::string &freq, const std::string &hdpos, const std::string &loif, const std::string &mask, const std::string &modes, const std::string &position, const std::string &rec, const std::string &rx, const std::string &source, const std::string &tracks)
	set catalog file pathes More...

void	setCatalogFilePathes (const std::string &skdFile)

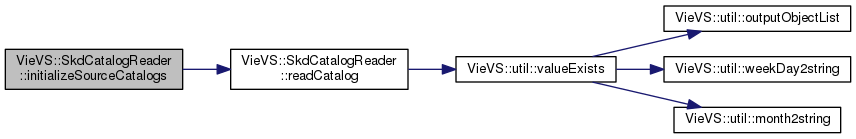

void	initializeSourceCatalogs ()
	reads all source specific catalogs More...

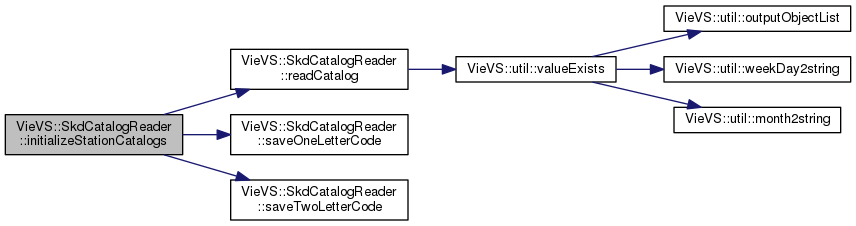

void	initializeStationCatalogs ()
	reads all station specific catalogs More...

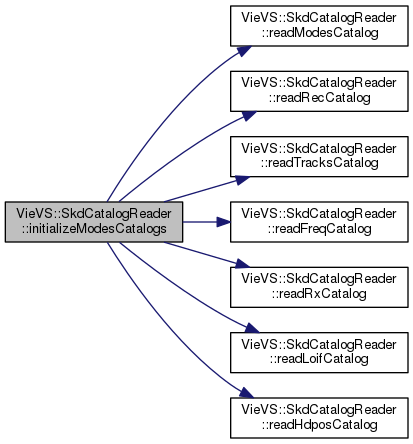

void	initializeModesCatalogs (const std::string &obsModeName)
	reads all modes specific catalogs More...

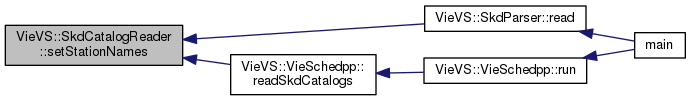

void	setStationNames (const std::vector< std::string > &staNames)
	set station names More...

const std::vector< std::string > &	getStaNames () const
	getter for all station names More...

const std::map< std::string, char > &	getOneLetterCode () const
	getter for station one letter code More...

const std::map< std::string, std::string > &	getTwoLetterCode () const
	getter for station two letter code More...

const std::map< std::string, std::vector< std::string > > &	getSourceCatalog () const
	getter for source catalog More...

const std::map< std::string, std::vector< std::string > > &	getFluxCatalog () const
	getter for flux catalog More...

const std::map< std::string, std::vector< std::string > > &	getAntennaCatalog () const
	getter for antenna catalog More...

const std::map< std::string, std::vector< std::string > > &	getPositionCatalog () const
	getter for position catalog More...

const std::map< std::string, std::vector< std::string > > &	getEquipCatalog () const
	getter for equipment catalog More...

const std::map< std::string, std::vector< std::string > > &	getMaskCatalog () const
	getter for mask catalog More...

const std::string &	getModeName () const
	getter for observing mode name More...

const std::string &	getFreqName () const
	getter for frequency sequence name More...

double	getBandWidth () const
	getter for bandwith More...

double	getSampleRate () const
	getter for sample rate More...

const std::map< std::string, std::string > &	getStaName2hdposMap () const
	getter for station hdpos More...

const std::map< std::string, std::string > &	getStaName2tracksMap () const
	getter for station tracks More...

const std::map< std::string, std::string > &	getStaName2recFormatMap () const
	getter for station rec format More...

const std::vector< std::string > &	getTracksIds () const
	getter for all track ids More...

const std::vector< std::string > &	getLoifIds () const
	getter for all loif ids More...

const std::map< std::string, int > &	getTracksId2fanoutMap () const
	getter for tracks fanout More...

const std::map< std::string, int > &	getTracksId2bits () const
	getter for tracks bit More...

const std::map< std::string, std::map< int, std::string > > &	getTracksId2channelNumber2tracksMap () const
	getter for channel tracks info More...

const std::string &	getFreqTwoLetterCode () const
	getter for frequency two letter code More...

const std::map< int, std::string > &	getChannelNumber2band () const
	getter for cannel band More...

const std::map< int, std::string > &	getChannelNumber2skyFreq () const
	getter for channel sky frequency More...

const std::map< int, std::string > &	getChannelNumber2phaseCalFrequency () const
	getter for channel phase cal frequency More...

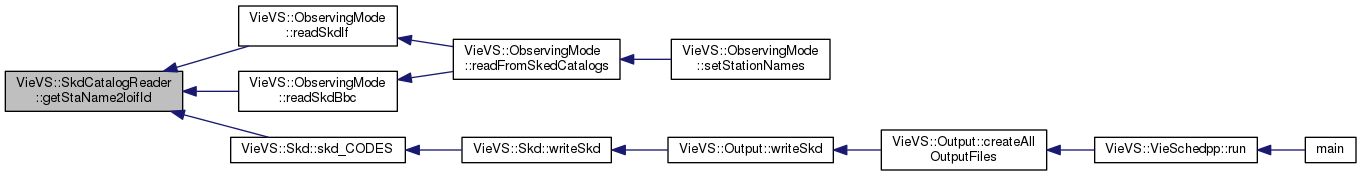

const std::map< std::string, std::string > &	getStaName2loifId () const
	getter for station local oscillator frequency setup name More...

const std::map< std::string, std::vector< std::string > > &	getLoifId2loifInfo () const
	getter for local oscillator frequency setup More...

const std::map< std::string, std::vector< std::string > > &	getHdposId2hdposLines () const
	getter for hdpos setup More...

const std::map< int, std::string > &	getChannelNumber2BBC () const
	getter for channel bbc number More...

unsigned int	getBits () const
	getter for recoreded bits More...

const std::string &	positionKey (const std::string &staName) const
	get position key More...

const std::string &	equipKey (const std::string &staName) const
	get equip key More...

const std::string &	maskKey (const std::string &staName) const
	get mask key More...

std::string	getVersion (const std::string &name) const
	get sked catalog version number More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Private Member Functions

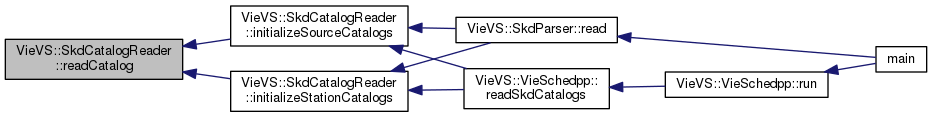

std::map< std::string, std::vector< std::string > >	readCatalog (CATALOG type) noexcept
	This function reads a specific sked catalog file and stores the data in a map. More...

void	readModesCatalog (const std::string &obsModeName)
	reads modes.cat More...

void	readRecCatalog ()
	read rec.cat More...

void	readTracksCatalog ()
	read tracks.cat More...

void	readFreqCatalog ()
	read freq.cat More...

void	readRxCatalog ()
	read rx.cat More...

void	readLoifCatalog ()
	read loif.cat More...

void	readHdposCatalog ()
	read hdpos.cat More...

void	saveOneLetterCode ()
	save one letter codes More...

void	saveTwoLetterCode ()
	save two letter codes More...

Private Attributes
std::vector< std::string >	staNames_
	list of all station More...

std::string	sourcePath_
	source catalog name More...

std::string	fluxPath_
	flux catalog name More...

std::string	antennaPath_
	antenna catalog name More...

std::string	positionPath_
	position catalog name More...

std::string	equipPath_
	equipment catalog name More...

std::string	maskPath_
	mask catalog name More...

std::string	modesPath_
	modes catalog name More...

std::string	recPath_
	rec catalog name More...

std::string	tracksPath_
	tracks catalog name More...

std::string	freqPath_
	frequency catalog name More...

std::string	rxPath_
	rx catalog name More...

std::string	loifPath_
	loif catalog name More...

std::string	hdposPath_
	hdpos catalog name More...

std::map< std::string, char >	oneLetterCode_
	map with station name as key and one letter codes as value More...

std::map< std::string, std::string >	twoLetterCode_
	map with station name as key and two letter code as value More...

std::map< std::string, std::vector< std::string > >	sourceCatalog_
	map with source name as key and catalog entry as value More...

std::map< std::string, std::vector< std::string > >	fluxCatalog_
	map with source name as key and flux catalog entry as value More...

std::map< std::string, std::vector< std::string > >	antennaCatalog_
	map with station name as key and catalog entry as value More...

std::map< std::string, std::string >	antennaKey2positionKey_
	antenna key to position key More...

std::map< std::string, std::vector< std::string > >	positionCatalog_
	map with position id as key and catalog entry as value More...

std::map< std::string, std::string >	antennaKey2equipKey_
	antenna key to equip key More...

std::map< std::string, std::vector< std::string > >	equipCatalog_
	map with equipment id + "\|" + station name as key and catalog entry as value More...

std::map< std::string, std::string >	antennaKey2maskKey_
	antenna key 2 mask key More...

std::map< std::string, std::vector< std::string > >	maskCatalog_
	map with mask id as key and catalog entry as value More...

std::string	modeName_
	observing mode name More...

std::string	freqName_
	frequency sequence name More...

std::string	recName_
	rec name More...

double	bandWidth_
	bandwith More...

double	sampleRate_
	sample rate More...

unsigned int	bits_
	sample bits More...

std::map< std::string, std::string >	staName2hdposMap_
	map with station name as key and hdpos name as value More...

std::map< std::string, std::string >	staName2tracksMap_
	map with station name as key and tracks name as value More...

std::vector< std::string >	tracksIds_
	list of all track names More...

std::map< std::string, std::string >	staName2recFormatMap_
	map with station name as key and rec format name as value More...

std::map< std::string, int >	tracksId2fanoutMap_
	map with track name as key and fanout as value More...

std::map< std::string, int >	tracksId2bitsMap_
	map with track name as key and number of sampled bits as value More...

std::map< std::string, std::map< int, std::string > >	tracksId2channelNumber2tracksMap_
	map with channel number as key and tracks info as value More...

std::string	freqTwoLetterCode_
	two letter frequency code More...

std::string	rxName_
	rx name More...

std::map< int, std::string >	channelNumber2band_
	map with channel number as key and band name as value More...

std::map< int, std::string >	channelNumber2polarization_
	map with channel number as key and polarization as value More...

std::map< int, std::string >	channelNumber2skyFreq_
	map with channel number as key and sky frequency as value More...

std::map< int, std::string >	channelNumber2sideBand_
	map with channel number as key and side band as value More...

std::map< int, std::string >	channelNumber2BBC_
	map with channel number as key and bbc number as value More...

std::map< int, std::string >	channelNumber2phaseCalFrequency_
	map with channel number as key and phase cal frequency as value More...

std::map< std::string, std::string >	staName2loifId_
	map with station name as key and local oscillator frequency setup name as value More...

std::vector< std::string >	loifIds_
	list of all local oscillator frequency setup names More...

std::map< std::string, std::vector< std::string > >	loifId2loifInfo_
	map with loif name as key and loif infos as value More...

std::map< std::string, std::vector< std::string > >	hdposId2hdposLines

std::map< std::string, std::string >	catalogsVersion_
	skd catalog versions More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

sked catalog reader class

Author: Matthias Schartner

Date: 07.12.2017

Member Enumeration Documentation

enum VieVS::SkdCatalogReader::CATALOG

strong

All available and read sked catalog files which can be read with the same return type.

Author: Matthias Schartner

Enumerator
source	source.cat file
flux	flux.cat file
antenna	antenna.cat file
position	position.cat file
equip	equip.cat file
mask	mask.cat file

Constructor & Destructor Documentation

SkdCatalogReader::SkdCatalogReader ( )

default constructor

Author: Matthias Schartner

Member Function Documentation

const std::string& VieVS::SkdCatalogReader::equipKey ( const std::string & staName ) const

inline

get equip key

Author: Matthias Schartner

Parameters

staName station name

Returns: equip key

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getAntennaCatalog ( ) const

inline

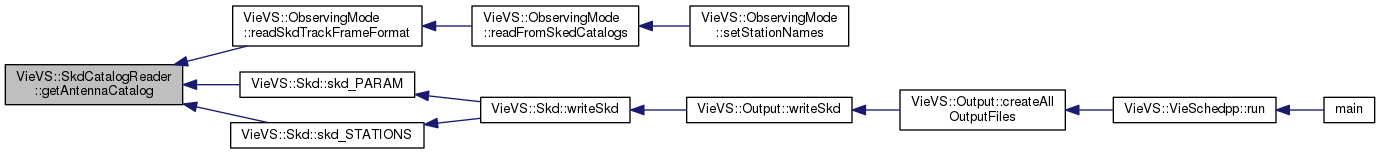

getter for antenna catalog

Author: Matthias Schartner

Returns: map with antenna name as key and the corresponding catalog line as value

Here is the caller graph for this function:

double VieVS::SkdCatalogReader::getBandWidth ( ) const

inline

getter for bandwith

Author: Matthias Schartner

Returns: bandwidth

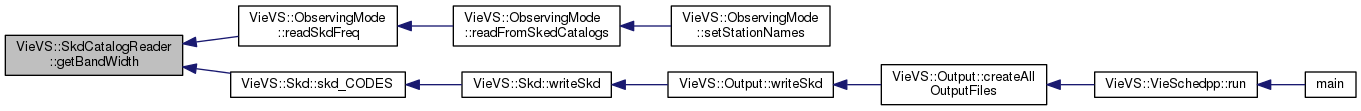

Here is the caller graph for this function:

unsigned int VieVS::SkdCatalogReader::getBits ( ) const

inline

getter for recoreded bits

Author: Matthias Schartner

Returns: number of recorded bits

const std::map<int, std::string>& VieVS::SkdCatalogReader::getChannelNumber2band ( ) const

inline

getter for cannel band

Author: Matthias Schartner

Returns: map with channel number as key and band name as value

Here is the caller graph for this function:

const std::map<int, std::string>& VieVS::SkdCatalogReader::getChannelNumber2BBC ( ) const

inline

getter for channel bbc number

Author: Matthias Schartner

Returns: map with channel number as key and bbc number as value

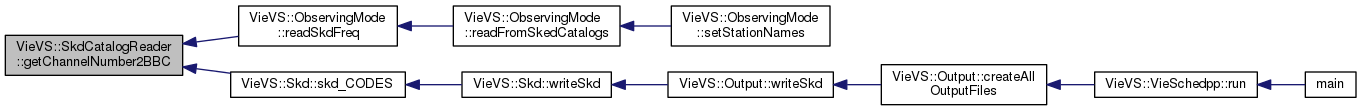

Here is the caller graph for this function:

const std::map<int, std::string>& VieVS::SkdCatalogReader::getChannelNumber2phaseCalFrequency ( ) const

inline

getter for channel phase cal frequency

Author: Matthias Schartner

Returns: map with channel number as key and phace cal frequency as value

Here is the caller graph for this function:

const std::map<int, std::string>& VieVS::SkdCatalogReader::getChannelNumber2skyFreq ( ) const

inline

getter for channel sky frequency

Author: Matthias Schartner

Returns: map with channel number as key and sky frequency as value

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getEquipCatalog ( ) const

inline

getter for equipment catalog

Author: Matthias Schartner

Returns: map with equipment id + "|" + station name as key and corresponding catalog line as value

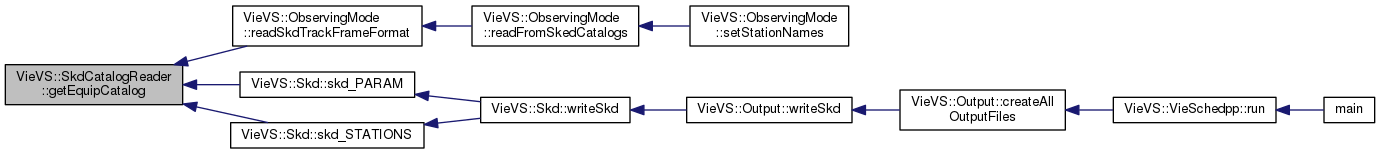

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getFluxCatalog ( ) const

inline

getter for flux catalog

Author: Matthias Schartner

Returns: map with source name as key and all flux infos as value

Here is the caller graph for this function:

const std::string& VieVS::SkdCatalogReader::getFreqName ( ) const

inline

getter for frequency sequence name

Author: Matthias Schartner

Returns: frequency sequence name

Here is the caller graph for this function:

const std::string& VieVS::SkdCatalogReader::getFreqTwoLetterCode ( ) const

inline

getter for frequency two letter code

Author: Matthias Schartner

Returns: frequency two letter code

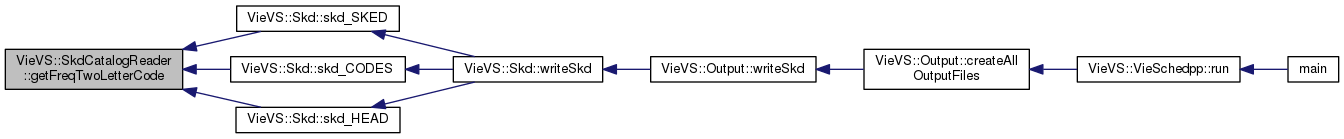

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getHdposId2hdposLines ( ) const

inline

getter for hdpos setup

Author: Matthias Schartner

Returns: map with hdpos name as key and hdpos info as value

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getLoifId2loifInfo ( ) const

inline

getter for local oscillator frequency setup

Author: Matthias Schartner

Returns: map with loif name as key and loif info as value

Here is the caller graph for this function:

const std::vector<std::string>& VieVS::SkdCatalogReader::getLoifIds ( ) const

inline

getter for all loif ids

Author: Matthias Schartner

Returns: vector of loif ids

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getMaskCatalog ( ) const

inline

getter for mask catalog

Author: Matthias Schartner

Returns: map with mask id as key and corresponding catalog line as value

Here is the caller graph for this function:

const std::string& VieVS::SkdCatalogReader::getModeName ( ) const

inline

getter for observing mode name

Author: Matthias Schartner

Returns: observing mode name

Here is the caller graph for this function:

const std::map<std::string, char>& VieVS::SkdCatalogReader::getOneLetterCode ( ) const

inline

getter for station one letter code

Author: Matthias Schartner

Returns: map with station name as key and one letter code as value

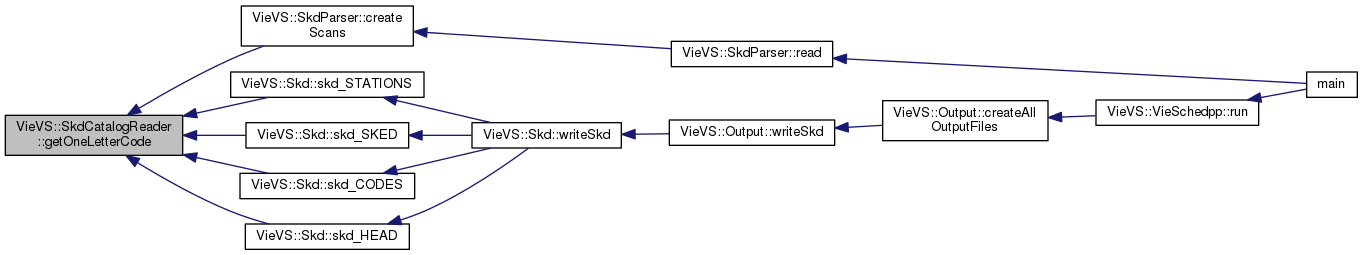

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getPositionCatalog ( ) const

inline

getter for position catalog

Author: Matthias Schartner

Returns: map with position id as key and the corresponding catalog line as value

Here is the caller graph for this function:

double VieVS::SkdCatalogReader::getSampleRate ( ) const

inline

getter for sample rate

Author: Matthias Schartner

Returns: sample rate

Here is the caller graph for this function:

const std::map<std::string, std::vector<std::string> >& VieVS::SkdCatalogReader::getSourceCatalog ( ) const

inline

getter for source catalog

Author: Matthias Schartner

Returns: map with source name id as key and the corresponding catalog line as value

Here is the caller graph for this function:

const std::map<std::string, std::string>& VieVS::SkdCatalogReader::getStaName2hdposMap ( ) const

inline

getter for station hdpos

Author: Matthias Schartner

Returns: map with station name as key and hdpos name as value

Here is the caller graph for this function:

const std::map<std::string, std::string>& VieVS::SkdCatalogReader::getStaName2loifId ( ) const

inline

getter for station local oscillator frequency setup name

Author: Matthias Schartner

Returns: map with station name as key and locas oscillator frequency setup name as value

Here is the caller graph for this function:

const std::map<std::string, std::string>& VieVS::SkdCatalogReader::getStaName2recFormatMap ( ) const

inline

getter for station rec format

Author: Matthias Schartner

Returns: map with station names as key and rec format as value

Here is the caller graph for this function:

const std::map<std::string, std::string>& VieVS::SkdCatalogReader::getStaName2tracksMap ( ) const

inline

getter for station tracks

Author: Matthias Schartner

Returns: map with station names as key and tracks name as value

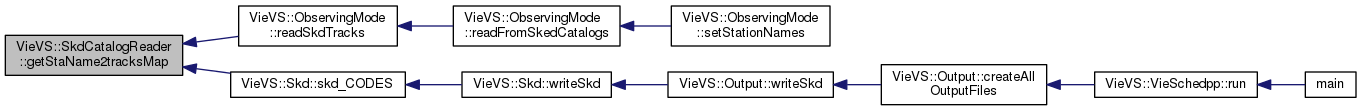

Here is the caller graph for this function:

const std::vector<std::string>& VieVS::SkdCatalogReader::getStaNames ( ) const

inline

getter for all station names

Author: Matthias Schartner

Returns: all station names

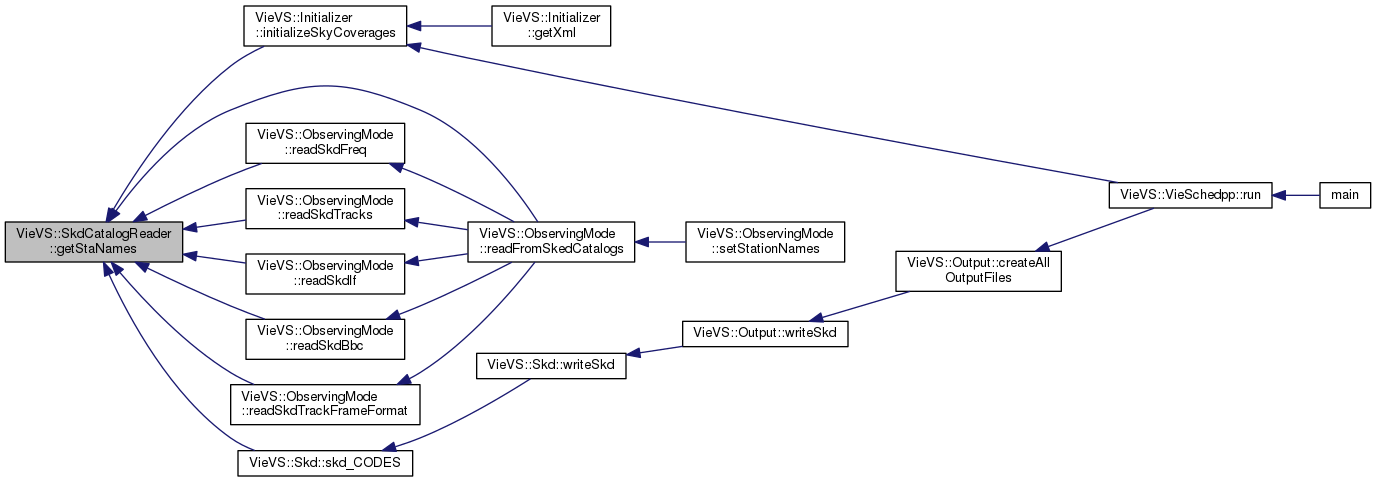

Here is the caller graph for this function:

const std::map<std::string, int>& VieVS::SkdCatalogReader::getTracksId2bits ( ) const

inline

getter for tracks bit

Author: Matthias Schartner

Returns: map with tracks name as key and number of sampled bits as value

Here is the caller graph for this function:

const std::map<std::string, std::map<int, std::string> >& VieVS::SkdCatalogReader::getTracksId2channelNumber2tracksMap ( ) const

inline

getter for channel tracks info

Author: Matthias Schartner

Returns: map with tracks name as key and map with channel number as key and tracks infor as value as value

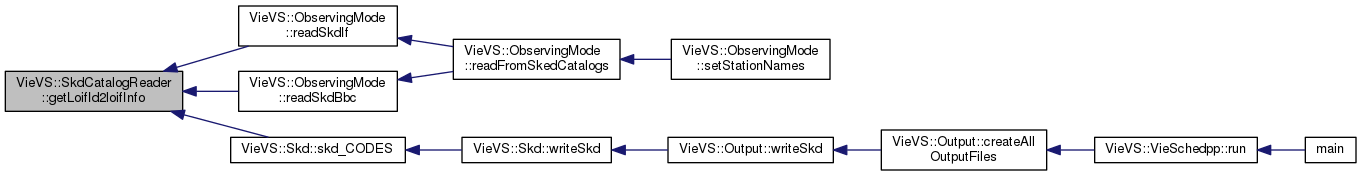

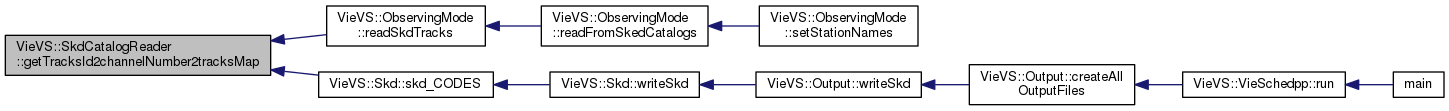

Here is the caller graph for this function:

const std::map<std::string, int>& VieVS::SkdCatalogReader::getTracksId2fanoutMap ( ) const

inline

getter for tracks fanout

Author: Matthias Schartner

Returns: map with tracks name as key and fanout as value

Here is the caller graph for this function:

const std::vector<std::string>& VieVS::SkdCatalogReader::getTracksIds ( ) const

inline

getter for all track ids

Author: Matthias Schartner

Returns: vector of track ids

Here is the caller graph for this function:

const std::map<std::string, std::string>& VieVS::SkdCatalogReader::getTwoLetterCode ( ) const

inline

getter for station two letter code

Author: Matthias Schartner

Returns: map with station name as key and two letter code as value

std::string SkdCatalogReader::getVersion ( const std::string & name ) const

get sked catalog version number

Author: Matthias Schartner

Parameters

name	sked catalog

Returns: version number

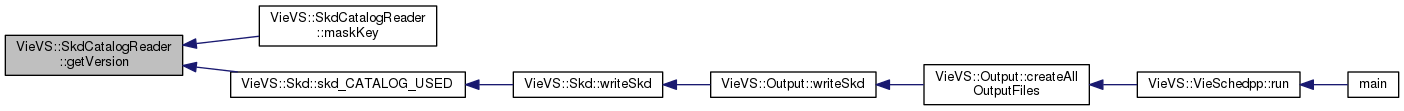

Here is the caller graph for this function:

void SkdCatalogReader::initializeModesCatalogs ( const std::string & obsModeName )

reads all modes specific catalogs

Author: Matthias Schartner

Parameters

obsModeName name of the observation mode

Here is the call graph for this function:

Here is the caller graph for this function:

void SkdCatalogReader::initializeSourceCatalogs ( )

reads all source specific catalogs

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void SkdCatalogReader::initializeStationCatalogs ( )

reads all station specific catalogs

Author: Matthias Schartner

Here is the call graph for this function:

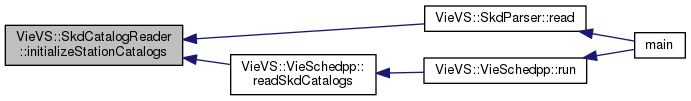

Here is the caller graph for this function:

const std::string& VieVS::SkdCatalogReader::maskKey ( const std::string & staName ) const

inline

get mask key

Author: Matthias Schartner

Parameters

staName station name

Returns: mask key

Here is the call graph for this function:

const std::string& VieVS::SkdCatalogReader::positionKey ( const std::string & staName ) const

inline

get position key

Author: Matthias Schartner

Parameters

staName station name

Returns: position key

std::map< std::string, std::vector< std::string > > SkdCatalogReader::readCatalog ( SkdCatalogReader::CATALOG type )

privatenoexcept

This function reads a specific sked catalog file and stores the data in a map.

Author: Matthias Schartner

Parameters

type	catalog file which should be read

Returns: key is list of all Ids, value is corresponding catalog entry

Here is the call graph for this function:

Here is the caller graph for this function:

void SkdCatalogReader::readFreqCatalog ( )

private

read freq.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::readHdposCatalog ( )

private

read hdpos.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::readLoifCatalog ( )

private

read loif.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::readModesCatalog ( const std::string & obsModeName )

private

reads modes.cat

Author: Matthias Schartner

Parameters

obsModeName mode name

Here is the caller graph for this function:

void SkdCatalogReader::readRecCatalog ( )

private

read rec.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::readRxCatalog ( )

private

read rx.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::readTracksCatalog ( )

private

read tracks.cat

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::saveOneLetterCode ( )

private

save one letter codes

Author: Matthias Schartner

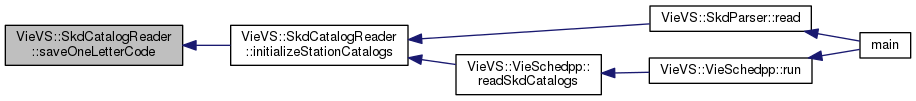

Here is the caller graph for this function:

void SkdCatalogReader::saveTwoLetterCode ( )

private

save two letter codes

Author: Matthias Schartner

Here is the caller graph for this function:

void SkdCatalogReader::setCatalogFilePathes ( const boost::property_tree::ptree & ptreeWithPathes )

setter for catalog pathes

Author: Matthias Schartner

Parameters

ptreeWithPathes property tree with catalog pathes from .xml file

Here is the caller graph for this function:

void SkdCatalogReader::setCatalogFilePathes	(	const std::string &	antenna,
		const std::string &	equip,
		const std::string &	flux,
		const std::string &	freq,
		const std::string &	hdpos,
		const std::string &	loif,
		const std::string &	mask,
		const std::string &	modes,
		const std::string &	position,
		const std::string &	rec,
		const std::string &	rx,
		const std::string &	source,
		const std::string &	tracks
	)

set catalog file pathes

Author: Matthias Schartner

Parameters

antenna	antenna catalog name
equip	equip catalog name
flux	flux catalog name
freq	freq catalog name
hdpos	hdpos catalog name
loif	loif catalog name
mask	mask catalog name
modes	modes catalog name
position	position catalog name
rec	rec catalog name
rx	rx catalog name
source	source catalog name
tracks	tracks catalog name

void SkdCatalogReader::setCatalogFilePathes ( const std::string & skdFile )

Author: Matthias Schartner

Parameters

skdFile skd file name

void VieVS::SkdCatalogReader::setStationNames ( const std::vector< std::string > & staNames )

inline

set station names

Author: Matthias Schartner

Parameters

staNames all participating stations

Here is the caller graph for this function:

Member Data Documentation

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::antennaCatalog_

private

map with station name as key and catalog entry as value

std::map<std::string, std::string> VieVS::SkdCatalogReader::antennaKey2equipKey_

private

antenna key to equip key

std::map<std::string, std::string> VieVS::SkdCatalogReader::antennaKey2maskKey_

private

antenna key 2 mask key

std::map<std::string, std::string> VieVS::SkdCatalogReader::antennaKey2positionKey_

private

antenna key to position key

std::string VieVS::SkdCatalogReader::antennaPath_

private

antenna catalog name

double VieVS::SkdCatalogReader::bandWidth_

private

bandwith

unsigned int VieVS::SkdCatalogReader::bits_

private

sample bits

std::map<std::string, std::string> VieVS::SkdCatalogReader::catalogsVersion_

private

skd catalog versions

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2band_

private

map with channel number as key and band name as value

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2BBC_

private

map with channel number as key and bbc number as value

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2phaseCalFrequency_

private

map with channel number as key and phase cal frequency as value

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2polarization_

private

map with channel number as key and polarization as value

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2sideBand_

private

map with channel number as key and side band as value

std::map<int, std::string> VieVS::SkdCatalogReader::channelNumber2skyFreq_

private

map with channel number as key and sky frequency as value

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::equipCatalog_

private

map with equipment id + "|" + station name as key and catalog entry as value

std::string VieVS::SkdCatalogReader::equipPath_

private

equipment catalog name

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::fluxCatalog_

private

map with source name as key and flux catalog entry as value

std::string VieVS::SkdCatalogReader::fluxPath_

private

flux catalog name

std::string VieVS::SkdCatalogReader::freqName_

private

frequency sequence name

std::string VieVS::SkdCatalogReader::freqPath_

private

frequency catalog name

std::string VieVS::SkdCatalogReader::freqTwoLetterCode_

private

two letter frequency code

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::hdposId2hdposLines

private

std::string VieVS::SkdCatalogReader::hdposPath_

private

hdpos catalog name

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::loifId2loifInfo_

private

map with loif name as key and loif infos as value

std::vector<std::string> VieVS::SkdCatalogReader::loifIds_

private

list of all local oscillator frequency setup names

std::string VieVS::SkdCatalogReader::loifPath_

private

loif catalog name

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::maskCatalog_

private

map with mask id as key and catalog entry as value

std::string VieVS::SkdCatalogReader::maskPath_

private

mask catalog name

std::string VieVS::SkdCatalogReader::modeName_

private

observing mode name

std::string VieVS::SkdCatalogReader::modesPath_

private

modes catalog name

unsigned long SkdCatalogReader::nextId = 0

staticprivate

next id for this object type

std::map<std::string, char> VieVS::SkdCatalogReader::oneLetterCode_

private

map with station name as key and one letter codes as value

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::positionCatalog_

private

map with position id as key and catalog entry as value

std::string VieVS::SkdCatalogReader::positionPath_

private

position catalog name

std::string VieVS::SkdCatalogReader::recName_

private

rec name

std::string VieVS::SkdCatalogReader::recPath_

private

rec catalog name

std::string VieVS::SkdCatalogReader::rxName_

private

rx name

std::string VieVS::SkdCatalogReader::rxPath_

private

rx catalog name

double VieVS::SkdCatalogReader::sampleRate_

private

sample rate

std::map<std::string, std::vector<std::string> > VieVS::SkdCatalogReader::sourceCatalog_

private

map with source name as key and catalog entry as value

std::string VieVS::SkdCatalogReader::sourcePath_

private

source catalog name

std::map<std::string, std::string> VieVS::SkdCatalogReader::staName2hdposMap_

private

map with station name as key and hdpos name as value

std::map<std::string, std::string> VieVS::SkdCatalogReader::staName2loifId_

private

map with station name as key and local oscillator frequency setup name as value

std::map<std::string, std::string> VieVS::SkdCatalogReader::staName2recFormatMap_

private

map with station name as key and rec format name as value

std::map<std::string, std::string> VieVS::SkdCatalogReader::staName2tracksMap_

private

map with station name as key and tracks name as value

std::vector<std::string> VieVS::SkdCatalogReader::staNames_

private

list of all station

std::map<std::string, int> VieVS::SkdCatalogReader::tracksId2bitsMap_

private

map with track name as key and number of sampled bits as value

std::map<std::string, std::map<int, std::string> > VieVS::SkdCatalogReader::tracksId2channelNumber2tracksMap_

private

map with channel number as key and tracks info as value

std::map<std::string, int> VieVS::SkdCatalogReader::tracksId2fanoutMap_

private

map with track name as key and fanout as value

std::vector<std::string> VieVS::SkdCatalogReader::tracksIds_

private

list of all track names

std::string VieVS::SkdCatalogReader::tracksPath_

private

tracks catalog name

std::map<std::string, std::string> VieVS::SkdCatalogReader::twoLetterCode_

private

map with station name as key and two letter code as value

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Input/SkdCatalogReader.h
/home/travis/build/TUW-VieVS/VieSchedpp/Input/SkdCatalogReader.cpp

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
