representation of the VLBI sky coverage object More...

#include <SkyCoverage.h>

Inheritance diagram for VieVS::SkyCoverage:

Collaboration diagram for VieVS::SkyCoverage:

Public Types
enum	Interpolation { Interpolation::constant, Interpolation::linear, Interpolation::cosine }
	sky coverage functions More...

Public Member Functions
	SkyCoverage ()
	constructor More...

double	calcScore (const PointingVector &pv) const
	calc score per station More...

double	scorePerPointingVector (const PointingVector &pv_new, const PointingVector &pv_old) const noexcept
	calculates the influence of the score between two pointing vectors More...

void	clearObservations ()
	clear all observations More...

void	update (const PointingVector &pv) noexcept
	updates the pointing vectors More...

const std::vector< PointingVector > &	getPointingVectors () const noexcept
	get all pointing vectors More...

void	calculateSkyCoverageScores ()
	calculate sky coverage scores More...

double	getSkyCoverageScore_a13m30 () const
	get total sky coverage score More...

double	getSkyCoverageScore_a25m30 () const
	get total sky coverage score More...

double	getSkyCoverageScore_a37m30 () const
	get total sky coverage score More...

double	getSkyCoverageScore_a13m60 () const
	get total sky coverage score More...

double	getSkyCoverageScore_a25m60 () const
	get total sky coverage score More...

double	getSkyCoverageScore_a37m60 () const
	get total sky coverage score More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Attributes
static thread_local double	maxInfluenceTime = 3600
	maximum angular distance of influence on the sky coverage More...

static thread_local double	maxInfluenceDistance = 30 * deg2rad
	maximum time influence on the sky coverage More...

static thread_local Interpolation	interpolationDistance = Interpolation::linear
	function for distance More...

static thread_local Interpolation	interpolationTime = Interpolation::linear
	function for time More...

Private Member Functions
double	skyCoverageScore_13 (unsigned int deltaTime) const
	calculate total sky coverage score of all observations over schedule session More...

double	skyCoverageScore_25 (unsigned int deltaTime) const
	calculate total sky coverage score of all observations over schedule session More...

double	skyCoverageScore_37 (unsigned int deltaTime) const
	calculate total sky coverage score of all observations over schedule session More...

Static Private Member Functions
static int	areaIndex13_v1 (const PointingVector &pv) noexcept
	area index of observation More...

static int	areaIndex13_v2 (const PointingVector &pv) noexcept
	area index of observation More...

static int	areaIndex25_v1 (const PointingVector &pv) noexcept
	area index of observation More...

static int	areaIndex25_v2 (const PointingVector &pv) noexcept
	area index of observation More...

static int	areaIndex37_v1 (const PointingVector &pv) noexcept
	area index of observation More...

static int	areaIndex37_v2 (const PointingVector &pv) noexcept
	area index of observation More...

Private Attributes
std::vector< PointingVector >	pointingVectors_
	all pointing vectors More...

double	a13m30_ { 0 }
	sky coverage score with 13 areas over 30 minutes More...

double	a25m30_ { 0 }
	sky coverage score with 25 areas over 30 minutes More...

double	a37m30_ { 0 }
	sky coverage score with 37 areas over 30 minutes More...

double	a13m60_ { 0 }
	sky coverage score with 13 areas over 60 minutes More...

double	a25m60_ { 0 }
	sky coverage score with 25 areas over 60 minutes More...

double	a37m60_ { 0 }
	sky coverage score with 37 areas over 60 minutes More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of the VLBI sky coverage object

Author: Matthias Schartner

Date: 29.06.2017

Member Enumeration Documentation

enum VieVS::SkyCoverage::Interpolation

strong

sky coverage functions

Author: Matthias Schartner

Enumerator
constant	constant function
linear	linear function
cosine	cosine function

Constructor & Destructor Documentation

SkyCoverage::SkyCoverage ( )

constructor

Author: Matthias Schartner

Member Function Documentation

int SkyCoverage::areaIndex13_v1 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 13 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

int SkyCoverage::areaIndex13_v2 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 13 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

int SkyCoverage::areaIndex25_v1 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 25 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

int SkyCoverage::areaIndex25_v2 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 25 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

int SkyCoverage::areaIndex37_v1 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 37 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

int SkyCoverage::areaIndex37_v2 ( const PointingVector & pv )

staticprivatenoexcept

area index of observation

Author: Matthias Schartner

Sky is distributed in 37 areas. An index is given to each area. This function returns the index of the area where the observation is located.

Parameters

pv	pointing vector containing azimuth and elevation

Returns: area index

Here is the call graph for this function:

Here is the caller graph for this function:

double SkyCoverage::calcScore ( const PointingVector & pv ) const

calc score per station

Author: Matthias Schartner

Parameters

pv	pointing vector

Returns: score

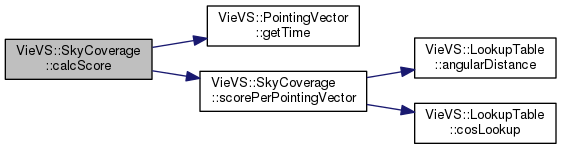

Here is the call graph for this function:

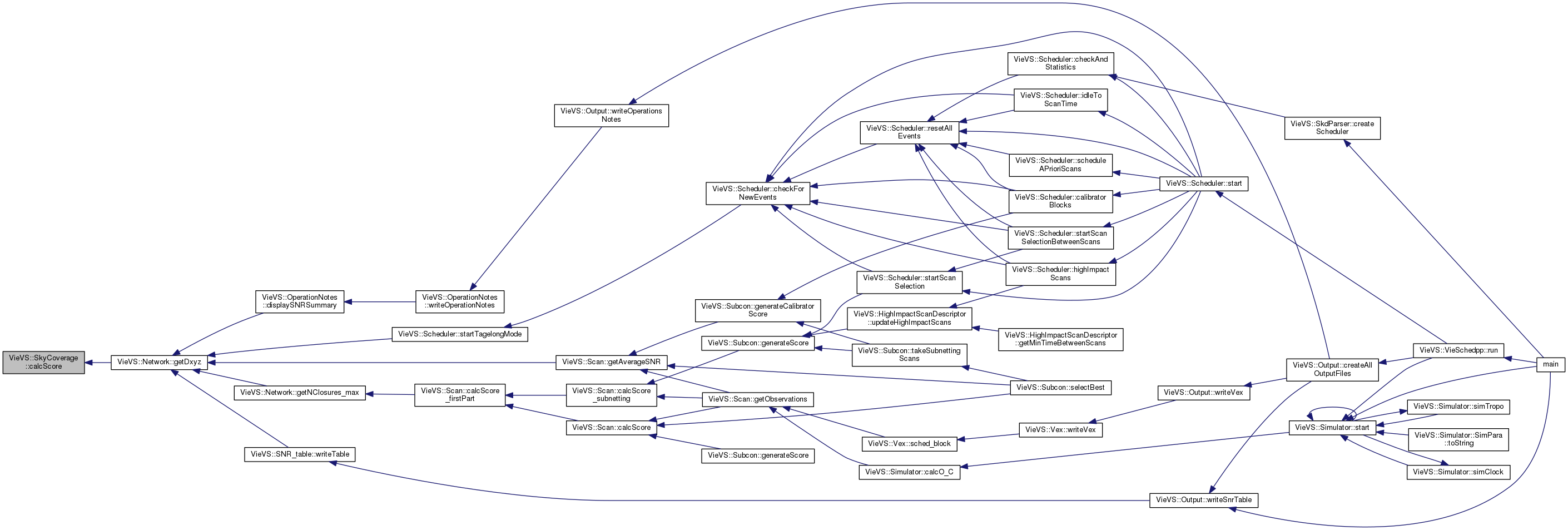

Here is the caller graph for this function:

void SkyCoverage::calculateSkyCoverageScores ( )

calculate sky coverage scores

Author: Matthias Schartner

with 13, 25 and 37 areas over 30 and 60 minutes.

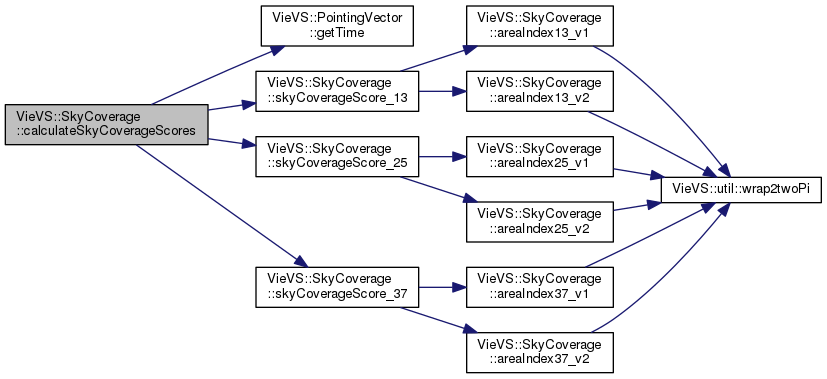

Here is the call graph for this function:

Here is the caller graph for this function:

void SkyCoverage::clearObservations ( )

clear all observations

Author: Matthias Schartner

const std::vector<PointingVector>& VieVS::SkyCoverage::getPointingVectors ( ) const

inlinenoexcept

get all pointing vectors

Author: Matthias Schartner

Returns: all pointing vectors

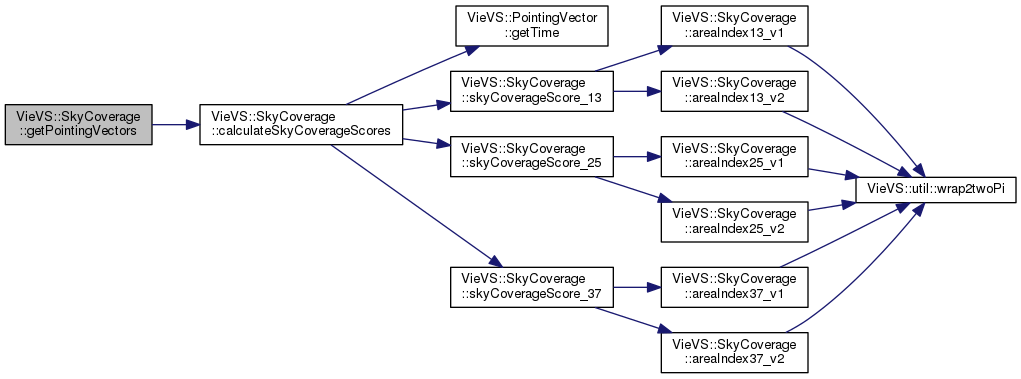

Here is the call graph for this function:

double VieVS::SkyCoverage::getSkyCoverageScore_a13m30 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 13 areas over 30 minutes

double VieVS::SkyCoverage::getSkyCoverageScore_a13m60 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 13 areas over 60 minutes

double VieVS::SkyCoverage::getSkyCoverageScore_a25m30 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 25 areas over 30 minutes

double VieVS::SkyCoverage::getSkyCoverageScore_a25m60 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 25 areas over 60 minutes

double VieVS::SkyCoverage::getSkyCoverageScore_a37m30 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 37 areas over 30 minutes

double VieVS::SkyCoverage::getSkyCoverageScore_a37m60 ( ) const

inline

get total sky coverage score

Author: Matthias Schartner

Returns: sky coverage score with 37 areas over 60 minutes

double SkyCoverage::scorePerPointingVector	(	const PointingVector &	pv_new,
		const PointingVector &	pv_old
	)		const

noexcept

calculates the influence of the score between two pointing vectors

Author: Matthias Schartner

Parameters

pv_new	new observation pointing vector
pv_old	already observed pointing vector

Returns: score

Here is the call graph for this function:

Here is the caller graph for this function:

double SkyCoverage::skyCoverageScore_13 ( unsigned int deltaTime ) const

private

calculate total sky coverage score of all observations over schedule session

Author: Matthias Schartner

The sky is distributed in 13 areas

Parameters

deltaTime time increment

Returns: sky coverage score. Maximum score is 1, minimum score is 0.

Here is the call graph for this function:

Here is the caller graph for this function:

double SkyCoverage::skyCoverageScore_25 ( unsigned int deltaTime ) const

private

calculate total sky coverage score of all observations over schedule session

Author: Matthias Schartner

The sky is distributed in 25 areas

Parameters

deltaTime time increment

Returns: sky coverage score. Maximum score is 1, minimum score is 0.

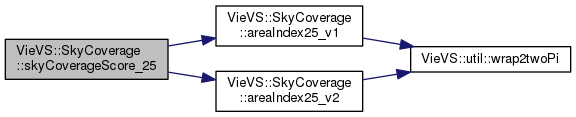

Here is the call graph for this function:

Here is the caller graph for this function:

double SkyCoverage::skyCoverageScore_37 ( unsigned int deltaTime ) const

private

calculate total sky coverage score of all observations over schedule session

Author: Matthias Schartner

The sky is distributed in 37 areas

Parameters

deltaTime time increment

Returns: sky coverage score. Maximum score is 1, minimum score is 0.

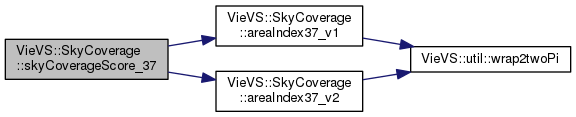

Here is the call graph for this function:

Here is the caller graph for this function:

void SkyCoverage::update ( const PointingVector & pv )

noexcept

updates the pointing vectors

Author: Matthias Schartner

Parameters

pv	pointing vector at start of scan

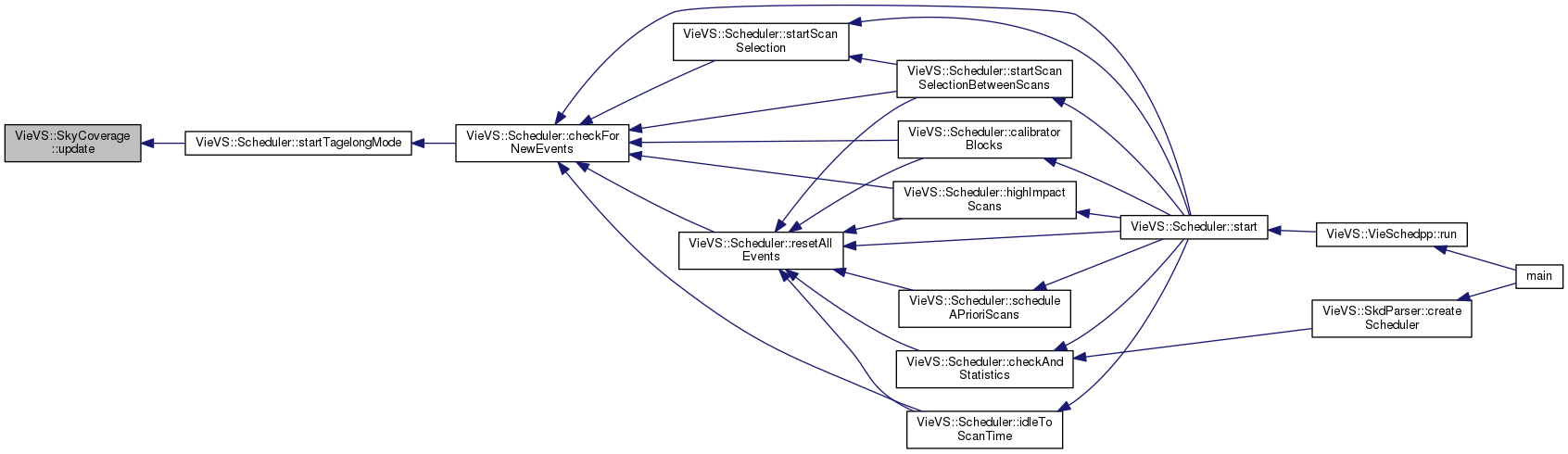

Here is the caller graph for this function:

Member Data Documentation

double VieVS::SkyCoverage::a13m30_ { 0 }

private

sky coverage score with 13 areas over 30 minutes

double VieVS::SkyCoverage::a13m60_ { 0 }

private

sky coverage score with 13 areas over 60 minutes

double VieVS::SkyCoverage::a25m30_ { 0 }

private

sky coverage score with 25 areas over 30 minutes

double VieVS::SkyCoverage::a25m60_ { 0 }

private

sky coverage score with 25 areas over 60 minutes

double VieVS::SkyCoverage::a37m30_ { 0 }

private

sky coverage score with 37 areas over 30 minutes

double VieVS::SkyCoverage::a37m60_ { 0 }

private

sky coverage score with 37 areas over 60 minutes

SkyCoverage::Interpolation thread_local SkyCoverage::interpolationDistance = Interpolation::linear

static

function for distance

SkyCoverage::Interpolation thread_local SkyCoverage::interpolationTime = Interpolation::linear

static

function for time

double thread_local SkyCoverage::maxInfluenceDistance = 30 * deg2rad

static

maximum time influence on the sky coverage

double thread_local SkyCoverage::maxInfluenceTime = 3600

static

maximum angular distance of influence on the sky coverage

unsigned long VieVS::SkyCoverage::nextId = 0

staticprivate

next id for this object type

std::vector<PointingVector> VieVS::SkyCoverage::pointingVectors_

private

all pointing vectors

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Station/SkyCoverage.h
/home/travis/build/TUW-VieVS/VieSchedpp/Station/SkyCoverage.cpp

Public Types

Public Member Functions

Static Public Attributes

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
