track section of observing mode More...

#include <Track.h>

Inheritance diagram for VieVS::Track:

Collaboration diagram for VieVS::Track:

Classes
class	Fanout_definition
	Fanout definition. More...

Public Types
enum	Bitstream { Bitstream::sign, Bitstream::mag }
	bitstream types More...

Public Member Functions
	Track (std::string name)
	constructor More...

	Track (const boost::property_tree::ptree &tree)
	constructor More...

std::map< std::string, int >	numberOfBitsPerChannel (const std::shared_ptr< const Track > &other) const
	get number of recording bits between two TRACKS blocks More...

std::map< std::string, int >	numberOfBitsPerChannel () const
	get number of recording bits More...

int	numberOfTracks () const
	number of tracks More...

void	addFanout (std::string subpass, std::string trksId, Bitstream bitstream, int headstack_number, int first_multiplex_track, int second_multiplex_track=-999, int third_multiplex_track=-999, int fourth_multiplex_track=-999)
	add new fanout More...

void	toVexTracksDefinition (std::ofstream &of, const std::string &comment="") const
	writes TRACKS block in vex format More...

boost::property_tree::ptree	toPropertytree () const
	converts object to property tree More...

const std::vector< Fanout_definition > &	getFanout_defs () const
	get fanout definitions More...

std::vector< Fanout_definition > &	refFanout_defs ()
	reference fanout definitions More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Member Functions
static std::string	toString (Bitstream b)
	convert bitstream type to vex format string More...

static Bitstream	bitstreamFromString (const std::string &name)
	convert vex format string to bitstream type More...

Private Attributes
std::vector< Fanout_definition >	fanout_definitions_
	list of fanout definitions More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

track section of observing mode

following vex standard The $TRACKS block defines the various multiplex (fan-in and fan-out) modes that can be used to record data with Mark 5A recorders. For purposes of multiplex definitions, the sample data from each channel are separated into a 'sign' bitstream and (for 2-bit sampling) a 'magnitude' bitstream. The fan-out modes (single bitstream to 1, 2 or 4 tracks) are defined with a set of fanout_def statements, one such statement for each bitstream, which defines the destination tracks and bit ordering among the tracks. In this way a complete definition of the multiplex format is specified. The 'ChanID' linkword in each fanout_def statement connects a particular bitstream to the selected 'def' in the $FREQ block.

Author: Matthias Schartner

Date: 17.09.2018

Member Enumeration Documentation

enum VieVS::Track::Bitstream

strong

bitstream types

Author: Matthias Schartner

Enumerator
sign	sign
mag	magnitude

Constructor & Destructor Documentation

Track::Track ( std::string name )

explicit

constructor

Author: Matthias Schartner

Parameters

name	tracks name

Here is the caller graph for this function:

Track::Track ( const boost::property_tree::ptree & tree )

explicit

constructor

Author: Matthias Schartner

Parameters

tree	input property tree from xml file

Member Function Documentation

void Track::addFanout	(	std::string	subpass,
		std::string	trksId,
		Bitstream	bitstream,
		int	headstack_number,
		int	first_multiplex_track,
		int	second_multiplex_track = `-999`,
		int	third_multiplex_track = `-999`,
		int	fourth_multiplex_track = `-999`
	)

add new fanout

Author: Matthias Schartner

Parameters

subpass	Sub-pass ID
trksId	'Chan_ID' linkword
bitstream	Sign or magnitude bitstream
headstack_number	Headstack number
first_multiplex_track	First multiplex track
second_multiplex_track	Second multiplex track
third_multiplex_track	Third multiplex track
fourth_multiplex_track	Fourth multiplex track

Here is the caller graph for this function:

static Bitstream VieVS::Track::bitstreamFromString ( const std::string & name )

inlinestatic

convert vex format string to bitstream type

Author: Matthias Schartner

Parameters

name	name in vex format

Returns: bitsream type

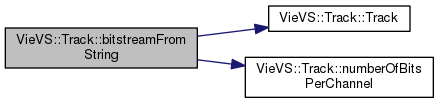

Here is the call graph for this function:

Here is the caller graph for this function:

const std::vector<Fanout_definition>& VieVS::Track::getFanout_defs ( ) const

inline

get fanout definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: all fanout definitions

map< string, int > Track::numberOfBitsPerChannel ( const std::shared_ptr< const Track > & other ) const

get number of recording bits between two TRACKS blocks

Author: Matthias Schartner

Parameters

other other TRACKS block

Returns: number of recording bits per channel

map< string, int > Track::numberOfBitsPerChannel ( ) const

get number of recording bits

Author: Matthias Schartner

Returns: number of recording bits per channel

Here is the caller graph for this function:

int VieVS::Track::numberOfTracks ( ) const

inline

number of tracks

Author: Matthias Schartner

Returns: number of track definitions

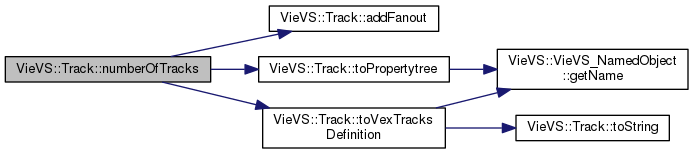

Here is the call graph for this function:

std::vector<Fanout_definition>& VieVS::Track::refFanout_defs ( )

inline

reference fanout definitions

Author: Matthias schartner

necessary for custom observing mode in GUI

Returns: reference to all fanout definitions

boost::property_tree::ptree Track::toPropertytree ( ) const

converts object to property tree

Author: Matthias Schartner

Returns: property tree

Here is the call graph for this function:

Here is the caller graph for this function:

static std::string VieVS::Track::toString ( Bitstream b )

inlinestatic

convert bitstream type to vex format string

Author: Matthias Schartner

Parameters

b	bitsream type

Returns: name in vex format

Here is the caller graph for this function:

void Track::toVexTracksDefinition	(	std::ofstream &	of,
		const std::string &	comment = `""`
	)		const

writes TRACKS block in vex format

Author: Matthias Schartner

Parameters

of	vex file stream
comment	optional comment

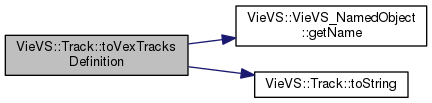

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::vector<Fanout_definition> VieVS::Track::fanout_definitions_

private

list of fanout definitions

unsigned long VieVS::Track::nextId = 0

staticprivate

next id for this object type

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Track.h
/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Track.cpp
