VieVS::AbstractHorizonMask Class Reference

representation of VLBI horizon mask More...

#include <AbstractHorizonMask.h>

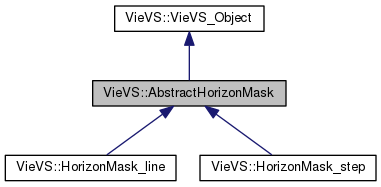

Inheritance diagram for VieVS::AbstractHorizonMask:

Collaboration diagram for VieVS::AbstractHorizonMask:

Public Member Functions
	AbstractHorizonMask ()
	constructor More...
virtual bool	visible (const PointingVector &pv) const noexcept=0
	checks if a pointing vector is visible More...
virtual std::string	vexOutput () const noexcept=0
	horizon mask string in .vex format More...
virtual std::pair< std::vector< double >, std::vector< double > >	getHorizonMask () const noexcept=0
	getter for horizon mask More...
Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...
const unsigned long	getId () const
	get object id More...
bool	hasValidId () const
	check if id is valid More...
bool	hasId (unsigned long id) const
	check if object has specific id More...
void	setId (unsigned long id)
	set object id More...
std::string	printId () const
	object id string More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of VLBI horizon mask

Author

Matthias Schartner

Date

27.06.2017

This class serves as the base class for all horizon mask implementations.

Constructor & Destructor Documentation

AbstractHorizonMask::AbstractHorizonMask

(

)

constructor

Author

Matthias Schartner

Member Function Documentation

virtual std::pair<std::vector<double>, std::vector<double> > VieVS::AbstractHorizonMask::getHorizonMask ( ) const

pure virtualnoexcept

getter for horizon mask

Author

Matthias Schartner

Returns

first vector is azimuth in radinas, second vector is elevation in radians

Implemented in VieVS::HorizonMask_line, and VieVS::HorizonMask_step.

virtual std::string VieVS::AbstractHorizonMask::vexOutput ( ) const

pure virtualnoexcept

horizon mask string in .vex format

Author

Matthias Schartner

Returns

horizon mask string in .vex format

Implemented in VieVS::HorizonMask_line, and VieVS::HorizonMask_step.

virtual bool VieVS::AbstractHorizonMask::visible ( const PointingVector &  pv ) const

pure virtualnoexcept

checks if a pointing vector is visible

Author

Matthias Schartner

Parameters

pv	pointing vector whose azimuth and elevation should be checked

Returns

true if target is visible, otherwise false

Implemented in VieVS::HorizonMask_line, and VieVS::HorizonMask_step.

Member Data Documentation

unsigned long AbstractHorizonMask::nextId = 0

staticprivate

next id for this object type

---

The documentation for this class was generated from the following files:

• /home/travis/build/TUW-VieVS/VieSchedpp/Station/HorizonMask/AbstractHorizonMask.h
• /home/travis/build/TUW-VieVS/VieSchedpp/Station/HorizonMask/AbstractHorizonMask.cpp
