VieVS::HorizonMask_step Class Reference

step based horizon mask More...

#include <HorizonMask_step.h>

Inheritance diagram for VieVS::HorizonMask_step:

Collaboration diagram for VieVS::HorizonMask_step:

Public Member Functions
	HorizonMask_step (const std::vector< double > &azimuths, const std::vector< double > &elevations)
	constructor More...
bool	visible (const PointingVector &pv) const noexceptoverride
	checks if a pointing vector is visible More...
std::string	vexOutput () const noexceptoverride
	horizon mask string in .vex format More...
std::pair< std::vector< double >, std::vector< double > >	getHorizonMask () const noexceptoverride
	getter for horizon mask More...
Public Member Functions inherited from VieVS::AbstractHorizonMask
	AbstractHorizonMask ()
	constructor More...
Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...
const unsigned long	getId () const
	get object id More...
bool	hasValidId () const
	check if id is valid More...
bool	hasId (unsigned long id) const
	check if object has specific id More...
void	setId (unsigned long id)
	set object id More...
std::string	printId () const
	object id string More...

Private Member Functions
double	az2el (double az) const noexcept
	minimum elevation per azimuth More...

Private Attributes
std::vector< double >	azimuth_
	horizon mask knots in radians More...
std::vector< double >	elevation_
	minimum elevation values in radians More...

Detailed Description

step based horizon mask

Author

Matthias Schartner

Date

12.04.2018

Constructor & Destructor Documentation

HorizonMask_step::HorizonMask_step	(	const std::vector< double > &	azimuths,
		const std::vector< double > &	elevations
	)

constructor

Author

Matthias Schartner

Parameters

azimuths	horizon mask step azimuths
elevations	horizon mask step elevations

Member Function Documentation

double HorizonMask_step::az2el ( double  az ) const

privatenoexcept

minimum elevation per azimuth

Author

Matthias Schartner

Parameters

az	azimuth in radians

Returns

minimum elevation in radians

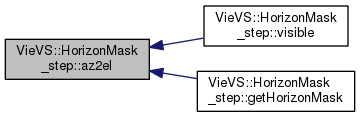

Here is the caller graph for this function:

pair< vector< double >, vector< double > > HorizonMask_step::getHorizonMask ( ) const

overridevirtualnoexcept

getter for horizon mask

Author

Matthias Schartner

Returns

first vector is azimuth in radians, second vector is elevation in radians

Implements VieVS::AbstractHorizonMask.

Here is the call graph for this function:

std::string HorizonMask_step::vexOutput ( ) const

overridevirtualnoexcept

horizon mask string in .vex format

Author

Matthias Schartner

Returns

horizon mask string in .vex format

Implements VieVS::AbstractHorizonMask.

bool HorizonMask_step::visible ( const PointingVector &  pv ) const

overridevirtualnoexcept

checks if a pointing vector is visible

Author

Matthias Schartner

Parameters

pv	pointing vector whose azimuth and elevation should be checked

Returns

true if target is visible, otherwise false

Implements VieVS::AbstractHorizonMask.

Here is the call graph for this function:

Member Data Documentation

std::vector<double> VieVS::HorizonMask_step::azimuth_

private

horizon mask knots in radians

std::vector<double> VieVS::HorizonMask_step::elevation_

private

minimum elevation values in radians

---

The documentation for this class was generated from the following files:

• /home/travis/build/TUW-VieVS/VieSchedpp/Station/HorizonMask/HorizonMask_step.h
• /home/travis/build/TUW-VieVS/VieSchedpp/Station/HorizonMask/HorizonMask_step.cpp
