station parameters More...

#include <Station.h>

Inheritance diagram for VieVS::Station::Parameters:

Collaboration diagram for VieVS::Station::Parameters:

Public Member Functions
	Parameters (const std::string &name)
	constructor More...

void	setParameters (const Parameters &other)
	set parameters from other More...

void	output (std::ofstream &of) const
	output of the curren parameters to out stream More...

void	overheadTimeDueToDataWriteSpeed (unsigned int observingTime)
	set overhead time due to custom data write speed More...

unsigned int	minSlewTimeDueToDataWriteSpeed (unsigned int observingTime) const
	calculate minimum slew time due to custom data write speed More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Public Attributes
bool	firstScan = false
	if set to true: no time is spend for setup, source, tape, calibration, and slewing More...

bool	available = true
	if set to true: this station is available for a scan More...

bool	tagalong = false
	if set to true: station is in tagalong mode More...

bool	availableForFillinmode = true
	if set to true: station is available for fillin modes More...

double	weight = 1
	multiplicative factor of score for scans with this station More...

double	minElevation = 5 * deg2rad

std::unordered_map< std::string, double >	minSNR
	minimum elevation in radians More...

unsigned int	minSlewtime = 0
	minimum required slew time More...

unsigned int	maxSlewtime = 600
	maximum allowed slewtime in seconds More...

double	maxSlewDistance = 175 * deg2rad
	maximum allowed slew distance in radians More...

double	minSlewDistance = 0
	minimum allowed slew distance in radians More...

unsigned int	maxWait = 600
	maximum allowed wait time for slow antennas in seconds More...

unsigned int	maxScan = 600
	maximum allowed scan time in seconds More...

unsigned int	minScan = 30
	minimum required scan time in seconds More...

unsigned int	maxNumberOfScans = 9999
	maximum allowed number of scans More...

unsigned int	maxTotalObsTime = 999999
	maximum allowed total observing time in seconds More...

double	totalRecordingRate = 0
	total recording rate More...

boost::optional< double >	dataWriteRate
	maximum data write speed to disk More...

unsigned int	minSlewtimeDataWriteRate = 0
	minimum required slew time due to data rate More...

std::vector< unsigned long >	ignoreSources
	list of all source ids which should be ignored More...

unsigned int	preob = 10
	time required for field system commands in seconds More...

unsigned int	midob = 3
	time required for calibration in seconds More...

unsigned int	systemDelay = 6
	extra observing time for correlator synchronization in seconds More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

station parameters

Author: Matthias Schartner

Constructor & Destructor Documentation

VieVS::Station::Parameters::Parameters ( const std::string & name )

inlineexplicit

constructor

Author: Matthias Schartner

Parameters

name	parameter name

Member Function Documentation

unsigned int VieVS::Station::Parameters::minSlewTimeDueToDataWriteSpeed ( unsigned int observingTime ) const

inline

calculate minimum slew time due to custom data write speed

Author: Matthias Schartner

Parameters

observingTime observation duration in seconds

Returns: minimum slew time in seconds

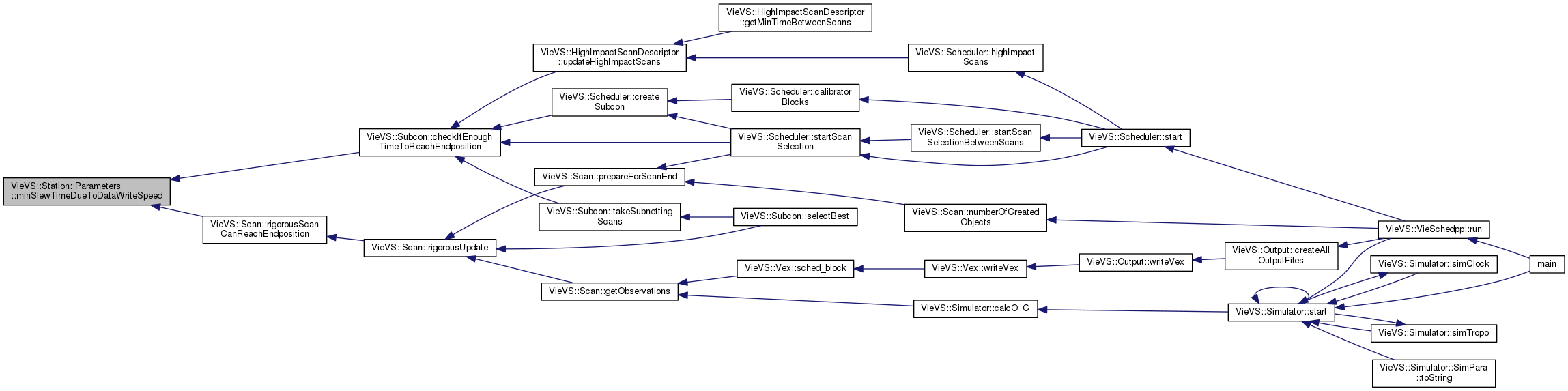

Here is the caller graph for this function:

void VieVS::Station::Parameters::output ( std::ofstream & of ) const

inline

output of the curren parameters to out stream

Author: Matthias Schartner

Parameters

of	out stream object

void VieVS::Station::Parameters::overheadTimeDueToDataWriteSpeed ( unsigned int observingTime )

inline

set overhead time due to custom data write speed

Author: Matthias Schartner

Parameters

observingTime observation duration in seconds

void Station::Parameters::setParameters ( const Parameters & other )

set parameters from other

Author: Matthias Schartner

Parameters

other source parameters

Member Data Documentation

bool VieVS::Station::Parameters::available = true

if set to true: this station is available for a scan

bool VieVS::Station::Parameters::availableForFillinmode = true

if set to true: station is available for fillin modes

boost::optional<double> VieVS::Station::Parameters::dataWriteRate

maximum data write speed to disk

bool VieVS::Station::Parameters::firstScan = false

if set to true: no time is spend for setup, source, tape, calibration, and slewing

std::vector<unsigned long> VieVS::Station::Parameters::ignoreSources

list of all source ids which should be ignored

unsigned int VieVS::Station::Parameters::maxNumberOfScans = 9999

maximum allowed number of scans

unsigned int VieVS::Station::Parameters::maxScan = 600

maximum allowed scan time in seconds

double VieVS::Station::Parameters::maxSlewDistance = 175 * deg2rad

maximum allowed slew distance in radians

unsigned int VieVS::Station::Parameters::maxSlewtime = 600

maximum allowed slewtime in seconds

unsigned int VieVS::Station::Parameters::maxTotalObsTime = 999999

maximum allowed total observing time in seconds

unsigned int VieVS::Station::Parameters::maxWait = 600

maximum allowed wait time for slow antennas in seconds

unsigned int VieVS::Station::Parameters::midob = 3

time required for calibration in seconds

double VieVS::Station::Parameters::minElevation = 5 * deg2rad

unsigned int VieVS::Station::Parameters::minScan = 30

minimum required scan time in seconds

double VieVS::Station::Parameters::minSlewDistance = 0

minimum allowed slew distance in radians

unsigned int VieVS::Station::Parameters::minSlewtime = 0

minimum required slew time

unsigned int VieVS::Station::Parameters::minSlewtimeDataWriteRate = 0

minimum required slew time due to data rate

std::unordered_map<std::string, double> VieVS::Station::Parameters::minSNR

minimum elevation in radians

minimum required signal to noise ration for each band

unsigned long VieVS::Station::Parameters::nextId = 0

staticprivate

next id for this object type

unsigned int VieVS::Station::Parameters::preob = 10

time required for field system commands in seconds

unsigned int VieVS::Station::Parameters::systemDelay = 6

extra observing time for correlator synchronization in seconds

bool VieVS::Station::Parameters::tagalong = false

if set to true: station is in tagalong mode

double VieVS::Station::Parameters::totalRecordingRate = 0

total recording rate

double VieVS::Station::Parameters::weight = 1

multiplicative factor of score for scans with this station

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Station/Station.h
/home/travis/build/TUW-VieVS/VieSchedpp/Station/Station.cpp
