representation of a VLBI station More...

#include <Station.h>

Inheritance diagram for VieVS::Station:

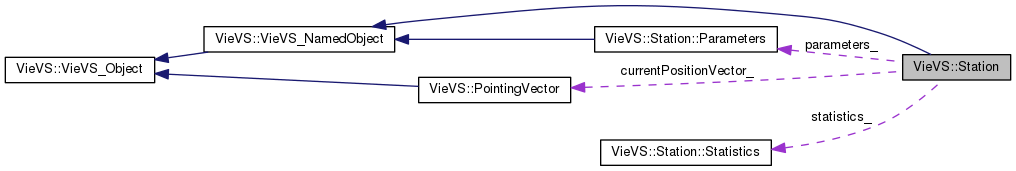

Collaboration diagram for VieVS::Station:

[legend]

Classes
struct	Event
	changes in parameters More...

class	Parameters
	station parameters More...

struct	Statistics
	statistics More...

Public Types
enum	AzelModel { AzelModel::simple, AzelModel::rigorous }
	azimuth elevation calculation model More...

Public Member Functions
	Station (std::string sta_name, std::string tlc, std::shared_ptr< AbstractAntenna > sta_antenna, std::shared_ptr< AbstractCableWrap > sta_cableWrap, std::shared_ptr< Position > sta_position, std::shared_ptr< Equipment > sta_equip, std::shared_ptr< AbstractHorizonMask > sta_mask, unsigned long nSources)
	constructor More...

const Parameters &	getPARA () const
	getter for parameters More...

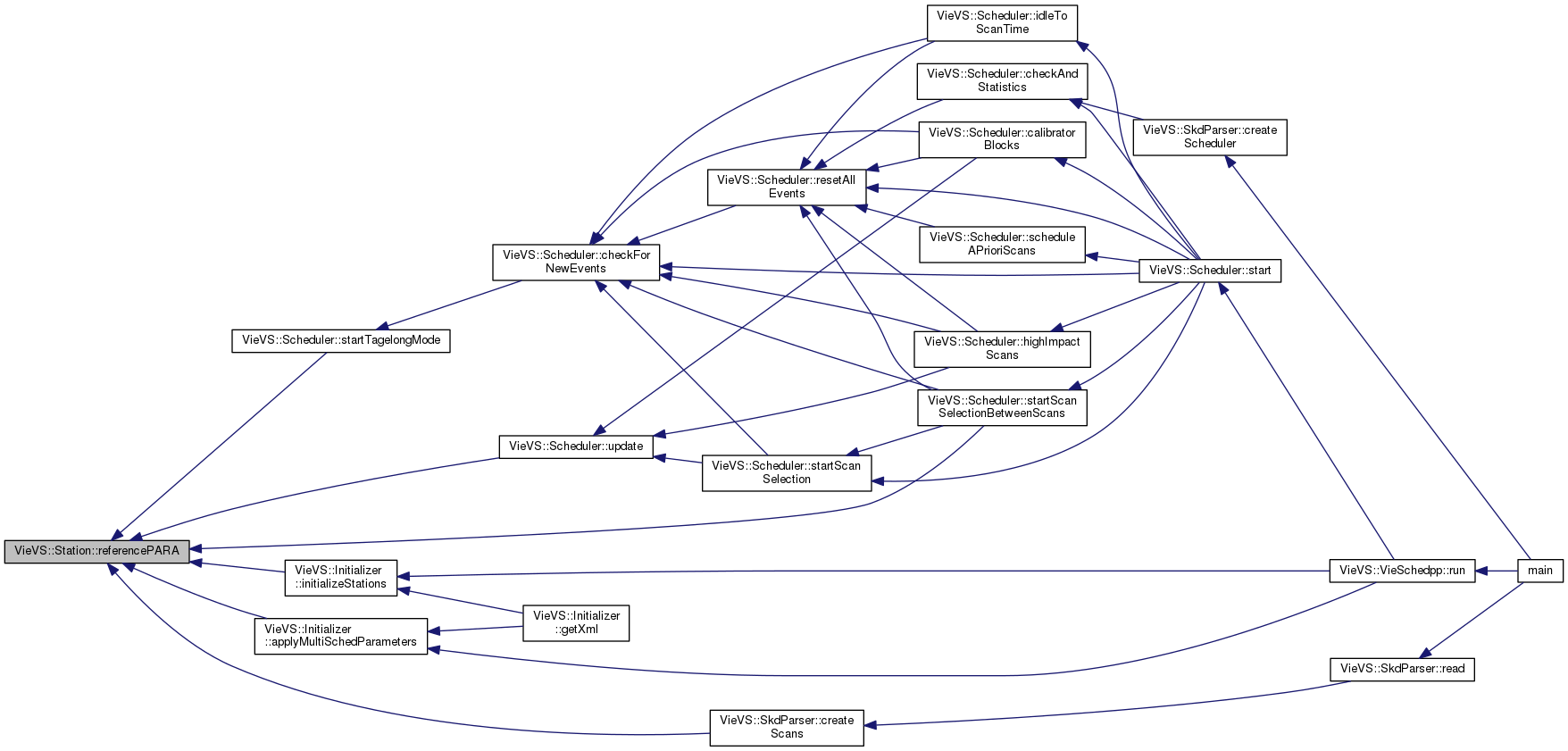

Parameters &	referencePARA ()
	reference to current parameters More...

const AbstractCableWrap &	getCableWrap () const noexcept
	getter for cable wrap More...

AbstractCableWrap &	referenceCableWrap () noexcept
	reference to cable wrap More...

unsigned int	getCurrentTime () const noexcept
	getter for last time this antenna was mentioned in scheduling More...

const Equipment &	getEquip () const noexcept
	getter for equipment information More...

bool	hasHorizonMask () const
	check if station has horizon mask More...

const AbstractHorizonMask &	getMask () const
	getter for horizon mask More...

const AbstractAntenna &	getAntenna () const noexcept
	getter for antenna More...

std::shared_ptr< const Position >	getPosition () const noexcept
	getter for position More...

int	getNObs () const noexcept
	getter for number of baselines which were already observed with this station More...

void	increaseNObs () noexcept
	increase number of observations by one More...

int	getNScans () const noexcept
	get number of scans More...

int	getNTotalScans () const noexcept
	get number of total scans More...

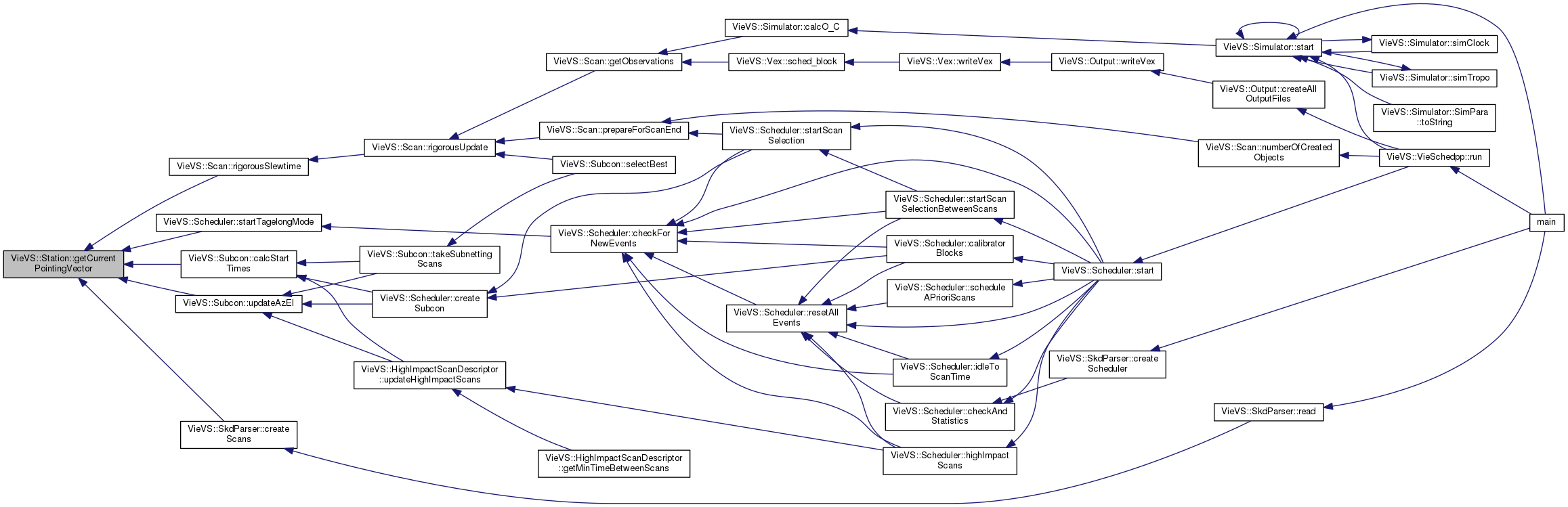

const PointingVector &	getCurrentPointingVector () const noexcept
	getter for current pointing vector More...

double	distance (const Station &other) const noexcept
	distance between two stations More...

bool	isVisible (const PointingVector &p, double minElevationSource=0) const noexcept
	checks if a source is visible for this station More...

boost::optional< unsigned int >	slewTime (const PointingVector &pointingVector) const noexcept
	calculate slew time between current pointing vector and this pointing vector More...

void	calcAzEl_rigorous (const std::shared_ptr< const AbstractSource > &source, PointingVector &p) noexcept
	calculation of azimuth, elevation, hour angle and declination with rigorouse model More...

void	calcAzEl_simple (std::shared_ptr< const AbstractSource > source, PointingVector &p) const noexcept
	calculation of azimuth, elevation, hour angle and declination with lookup tables More...

void	setCurrentPointingVector (const PointingVector &pointingVector) noexcept
	change current pointing vector More...

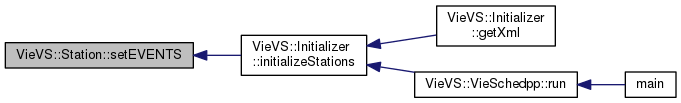

void	setEVENTS (std::vector< Event > &EVENTS) noexcept
	sets all upcoming events More...

Parameters &	refParaForMultiScheduling ()
	reference parameters to add multi-scheduling setup More...

bool	checkForTagalongMode (unsigned int time) const noexcept
	check for tagalong mode More...

bool	checkForNewEvent (unsigned int time, bool &hardBreak) noexcept
	this function checks if it is time to change the parameters More...

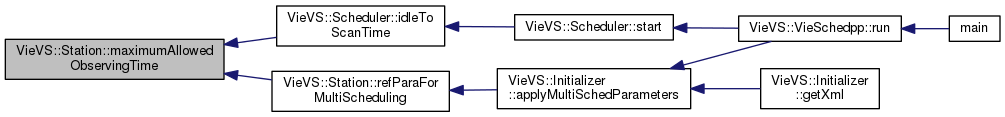

unsigned int	maximumAllowedObservingTime (Timestamp ts) const noexcept
	maxium allowed observing time More...

void	applyNextEvent (std::ofstream &of) noexcept
	changes parameters to next setup More...

void	setNextEvent (unsigned int idx) noexcept
	set next event index More...

void	update (unsigned long nbl, const PointingVector &end, bool addToStatistics) noexcept
	update station if used for a scan More...

void	clearObservations ()
	clear all observations More...

void	setStatistics (const Statistics &stat)
	set station statistics More...

const Statistics &	getStatistics () const
	get station statistics More...

std::pair< std::vector< double >, std::vector< double > >	getHorizonMask () const noexcept
	get horizon mask More...

void	toVexStationBlock (std::ofstream &of) const
	writes station defining block in vex format More...

void	toVexSiteBlock (std::ofstream &of) const
	writes site defining block in vex format More...

void	toVexAntennaBlock (std::ofstream &of) const
	writes antenna defining block in vex format More...

const std::string &	getElectronics_rack_type_ () const
	getter for electronics rack type_ More...

const std::string &	getRecord_transport_type () const
	getter for record transport type More...

const std::string &	getRecording_system_id () const
	getter for recording system id More...

void	addAdditionalParameters (std::string occupation_code, std::string record_transport_type, std::string electronics_rack_type, std::string recording_system_ID)
	adds additional parameters such as hardware names and occupation code More...

bool	listDownTimes (std::ofstream &of, bool skdFormat=false) const
	lists downtime for this station More...

bool	listTagalongTimes (std::ofstream &of, bool skdFormat=false) const
	lists tagalong for this station More...

unsigned int	getTotalObservingTime () const
	get total scheduled observing time up to this point More...

void	addObservingTime (unsigned int additionalTime)
	adds observing time to counter More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Private Attributes
std::shared_ptr< AbstractAntenna >	antenna_
	station antenna More...

std::shared_ptr< AbstractCableWrap >	cableWrap_
	station cable wrap More...

std::shared_ptr< Position >	position_
	station position More...

std::shared_ptr< Equipment >	equip_
	station equipment More...

std::shared_ptr< AbstractHorizonMask >	mask_
	station horizon mask More...

std::vector< Event >	events_
	list of all events More...

std::string	oneLetterCode_ = "_"
	one letter code for skd file More...

std::string	electronics_rack_type_ = "unknown"
	electronics rack type (e.g.: "DBBC") More...

std::string	record_transport_type_ = "unknown"
	record transport_type (e.g.: "MARK5B") More...

std::string	recording_system_id_ = "unknown"
	recoring system id (e.g.: "Ke") More...

std::string	occupation_code_ = "unknown"
	occupation code (e.g.: "72425901") More...

Statistics	statistics_
	station statistics More...

std::vector< std::vector< PointingVector > >	azelPrecalc_
	pre calculated azimuth elevation lookup table More...

Parameters	parameters_
	station parameters More...

PointingVector	currentPositionVector_
	current pointing vector More...

unsigned int	nextEvent_ { 0 }
	index of next event More...

int	nScans_ { 0 }
	number of participated scans More...

int	nTotalScans_ { 0 }
	number of total scans More...

int	nObs_ { 0 }
	number of observed baselines More...

unsigned int	totalObsTime_ { 0 }
	total observing time in seconds More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of a VLBI station

First all station objects must be created, usually via the VLBI_initializer::createStationsFromCatalogs() Afterwards stations need to be initialized via VLBI_initializer::initializeStations()

Author: Matthias Schartner

Date: 21.06.2017

Member Enumeration Documentation

enum VieVS::Station::AzelModel

strong

azimuth elevation calculation model

Author: Matthias Schartner

Enumerator
simple	simple model without nutation
rigorous	rigorous model

Constructor & Destructor Documentation

Station::Station	(	std::string	sta_name,
		std::string	tlc,
		std::shared_ptr< AbstractAntenna >	sta_antenna,
		std::shared_ptr< AbstractCableWrap >	sta_cableWrap,
		std::shared_ptr< Position >	sta_position,
		std::shared_ptr< Equipment >	sta_equip,
		std::shared_ptr< AbstractHorizonMask >	sta_mask,
		unsigned long	nSources
	)

constructor

Author: Matthias Schartner

Parameters

sta_name	station name
tlc	two letter code
sta_antenna	station antenna
sta_cableWrap	station cable wrap
sta_position	station position
sta_equip	station equipment
sta_mask	station horizon mask
nSources	number of sources

Member Function Documentation

void Station::addAdditionalParameters	(	std::string	occupation_code,
		std::string	record_transport_type,
		std::string	electronics_rack_type,
		std::string	recording_system_ID
	)

adds additional parameters such as hardware names and occupation code

Author: Matthias Schartner

Parameters

occupation_code	occupation code
record_transport_type	record transport type
electronics_rack_type	electronics rack type
recording_system_ID	recording system ID

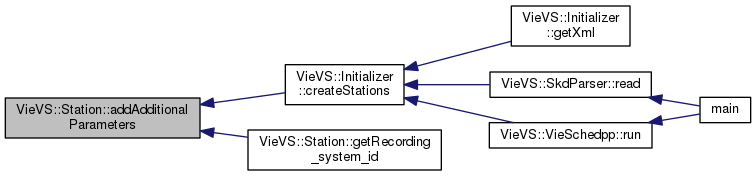

Here is the caller graph for this function:

void VieVS::Station::addObservingTime ( unsigned int additionalTime )

inline

adds observing time to counter

Author: Matthias Schartner

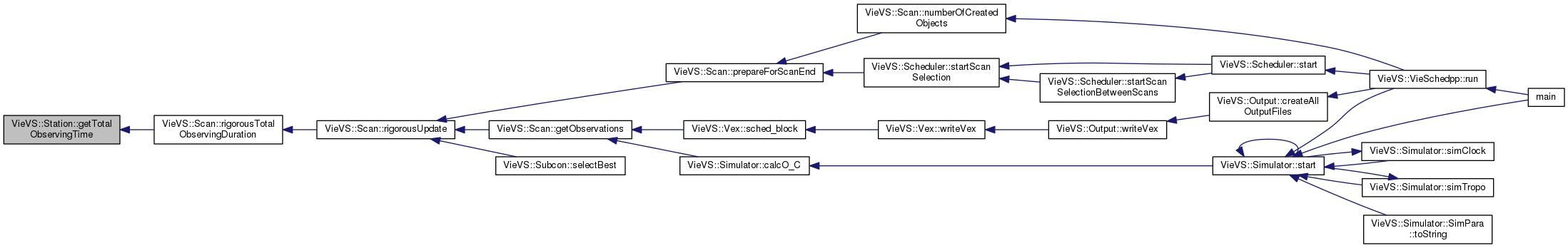

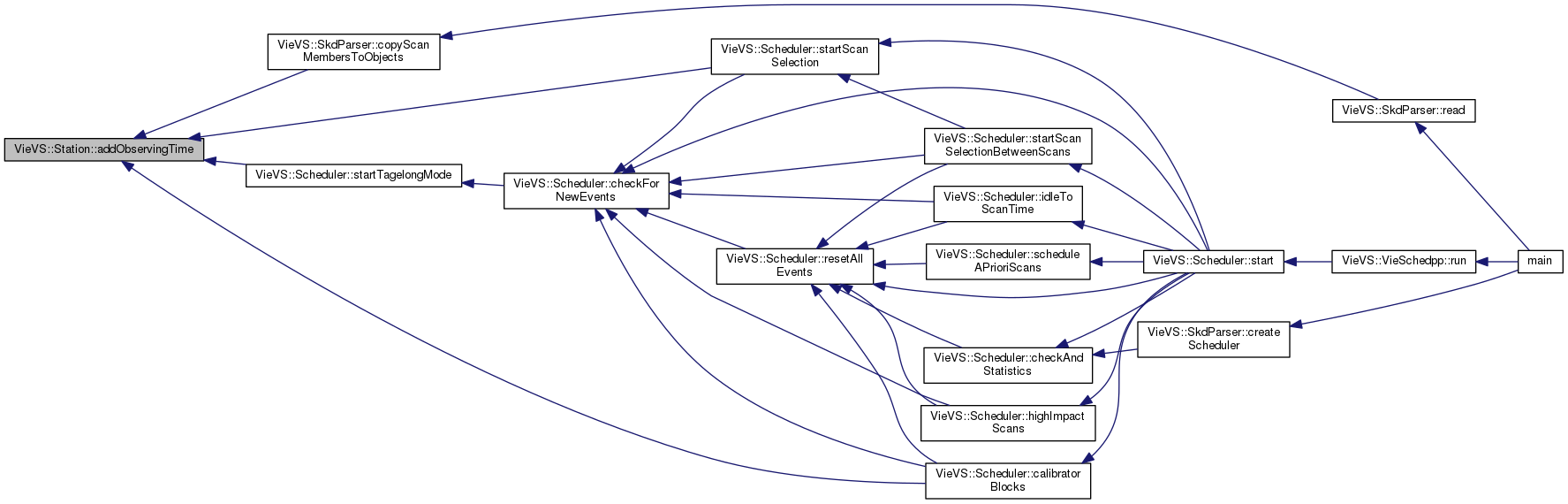

Here is the caller graph for this function:

void Station::applyNextEvent ( std::ofstream & of )

noexcept

changes parameters to next setup

Author: Matthias Schartner

Parameters

of	output stream object

Here is the call graph for this function:

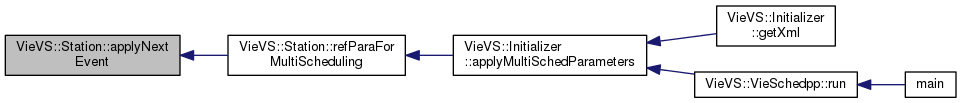

Here is the caller graph for this function:

void Station::calcAzEl_rigorous	(	const std::shared_ptr< const AbstractSource > &	source,
		PointingVector &	p
	)

noexcept

calculation of azimuth, elevation, hour angle and declination with rigorouse model

Author: Matthias Schartner

Parameters

source	observed source
p	pointing vector

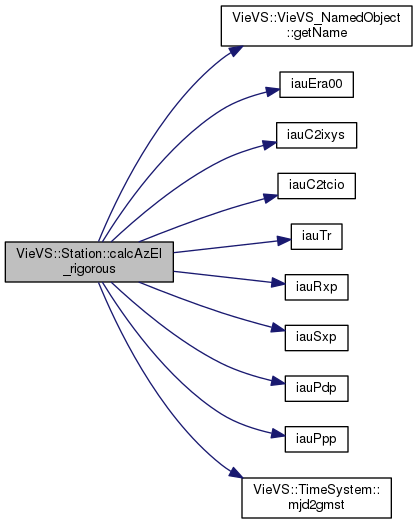

Here is the call graph for this function:

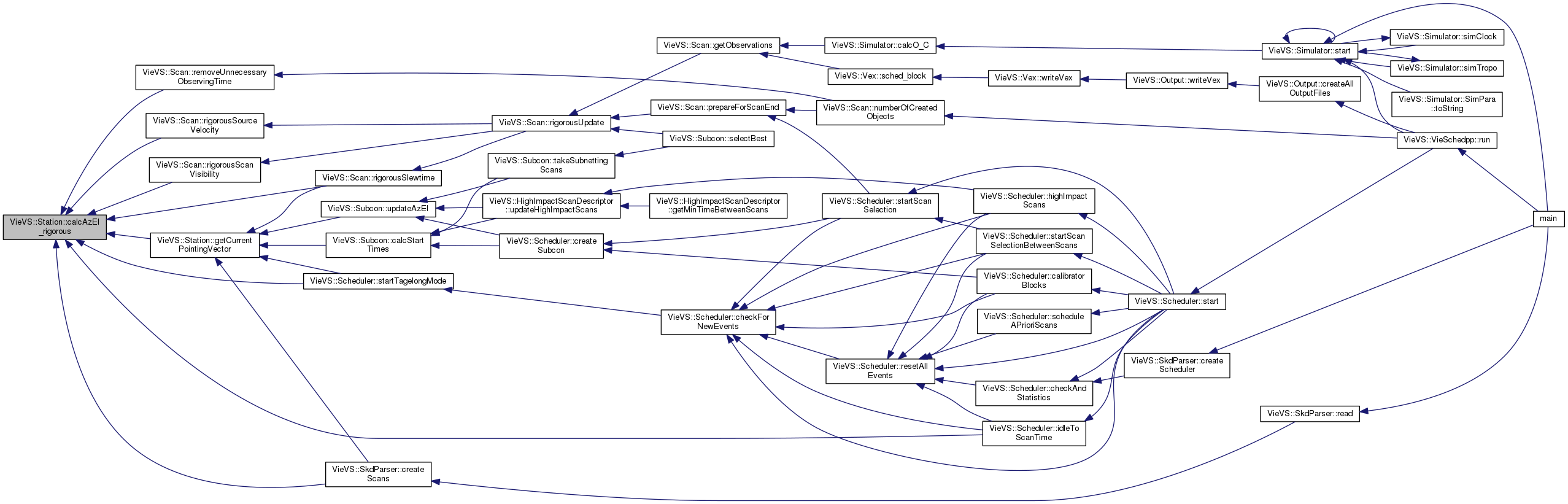

Here is the caller graph for this function:

void Station::calcAzEl_simple	(	std::shared_ptr< const AbstractSource >	source,
		PointingVector &	p
	)		const

noexcept

calculation of azimuth, elevation, hour angle and declination with lookup tables

Author: Matthias Schartner

Parameters

source	observed source
p	pointing vector

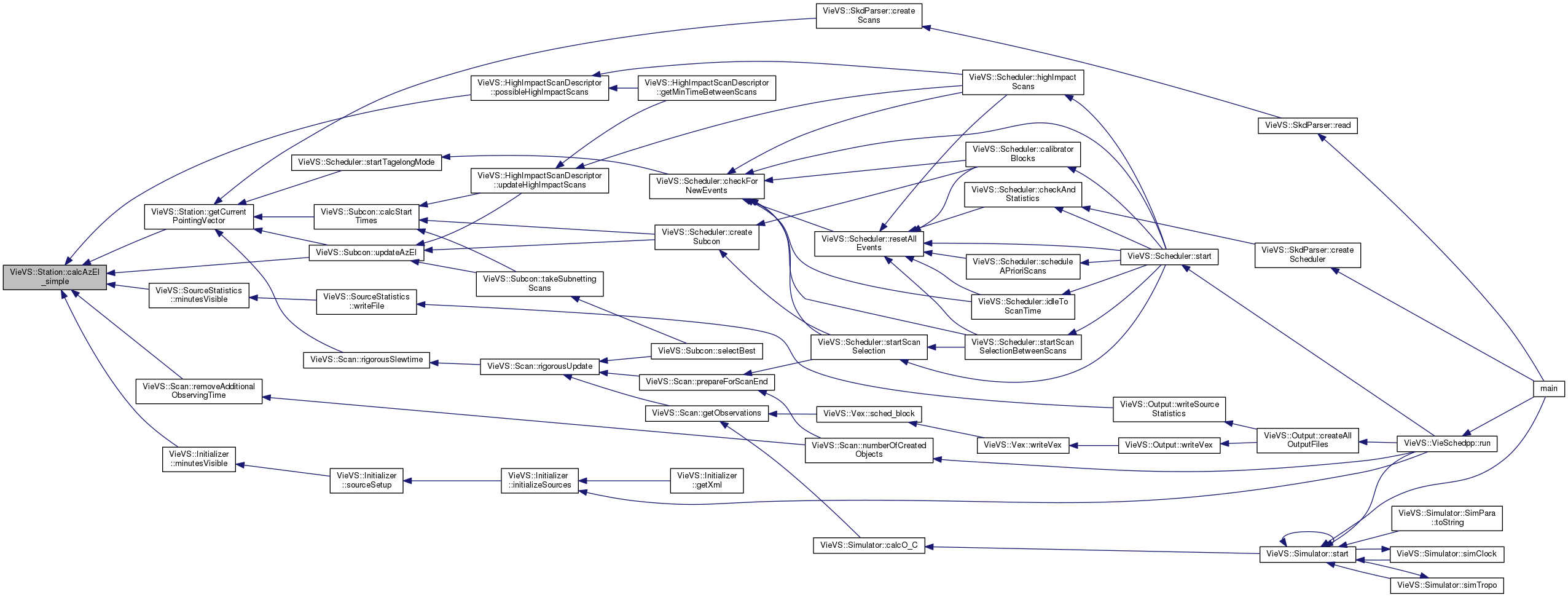

Here is the caller graph for this function:

bool Station::checkForNewEvent	(	unsigned int	time,
		bool &	hardBreak
	)

noexcept

this function checks if it is time to change the parameters

Parameters

time	current time in seconds since start
hardBreak	flag if a hard break was found

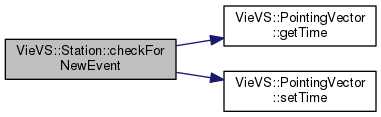

Here is the call graph for this function:

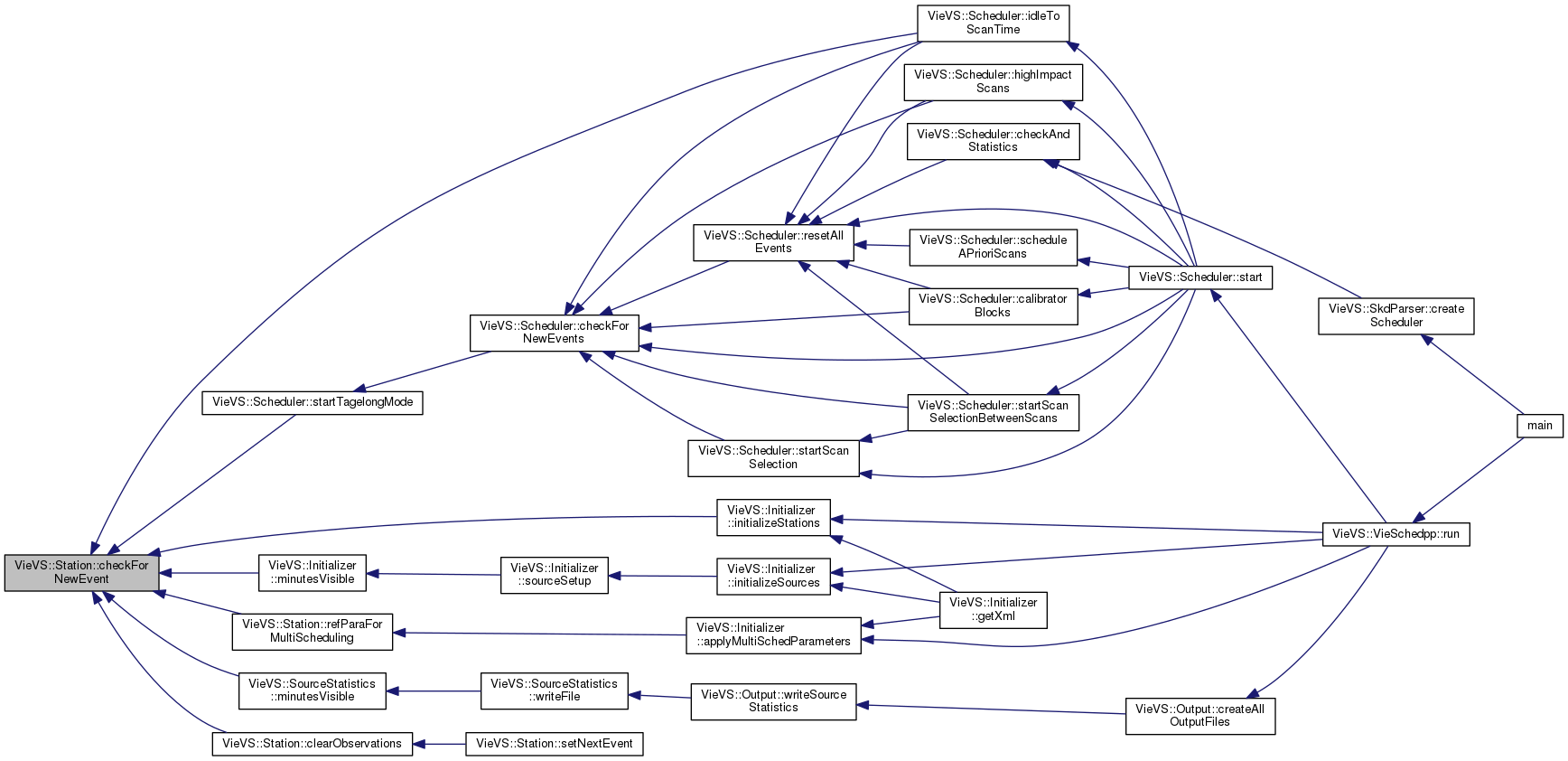

Here is the caller graph for this function:

bool Station::checkForTagalongMode ( unsigned int time ) const

noexcept

check for tagalong mode

Author: Matthias Schartner

Parameters

time time

Returns: true if tagalong mode required

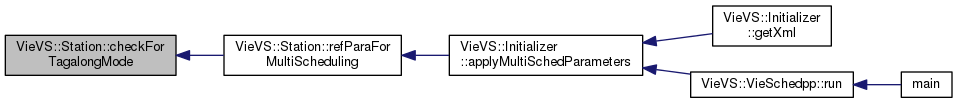

Here is the caller graph for this function:

void Station::clearObservations ( )

clear all observations

Author: Matthias Schartner

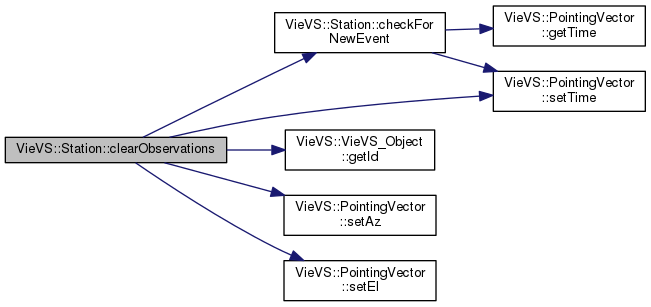

Here is the call graph for this function:

Here is the caller graph for this function:

double Station::distance ( const Station & other ) const

noexcept

distance between two stations

Author: Matthias Schartner

Parameters

other other station

Returns: distance between this two stations

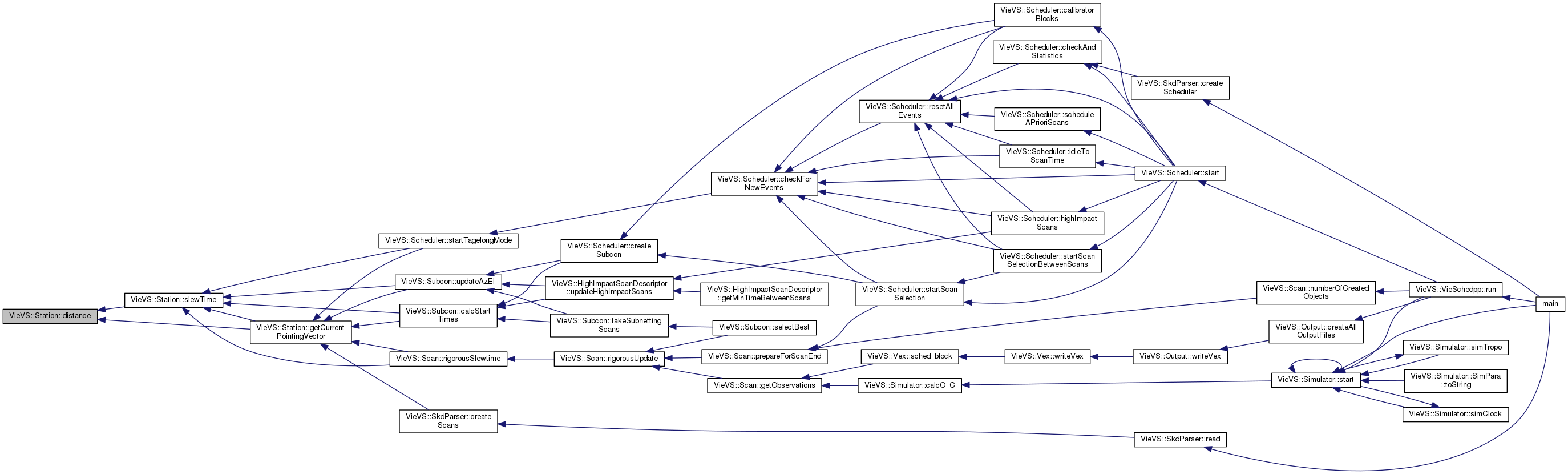

Here is the caller graph for this function:

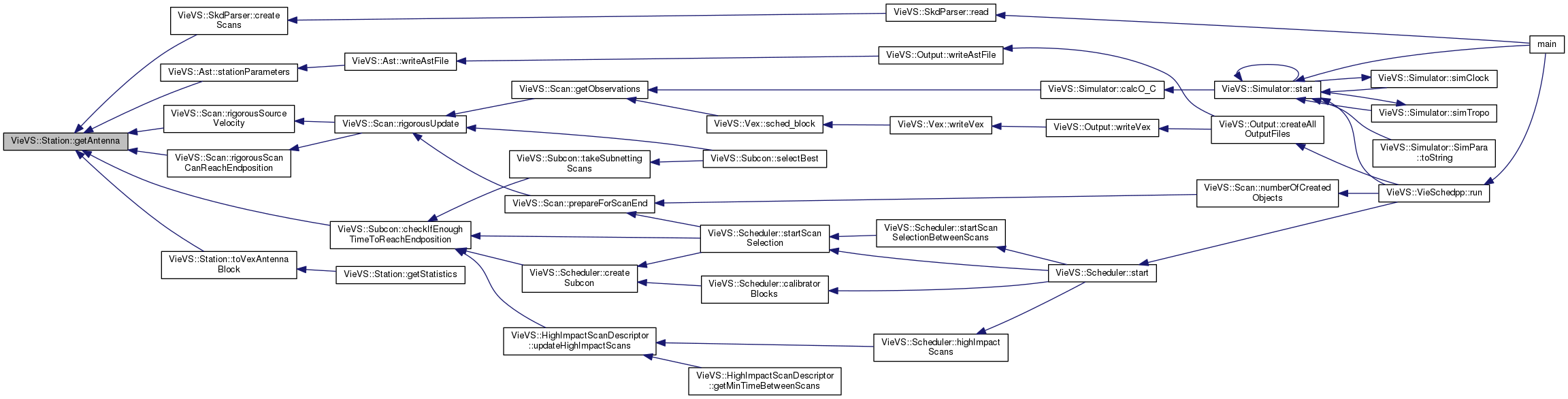

const AbstractAntenna& VieVS::Station::getAntenna ( ) const

inlinenoexcept

getter for antenna

Author: Matthias Schartner

Returns: antenna object

Here is the caller graph for this function:

const AbstractCableWrap& VieVS::Station::getCableWrap ( ) const

inlinenoexcept

getter for cable wrap

Author: Matthias Schartner

Returns: cable wrap of this station

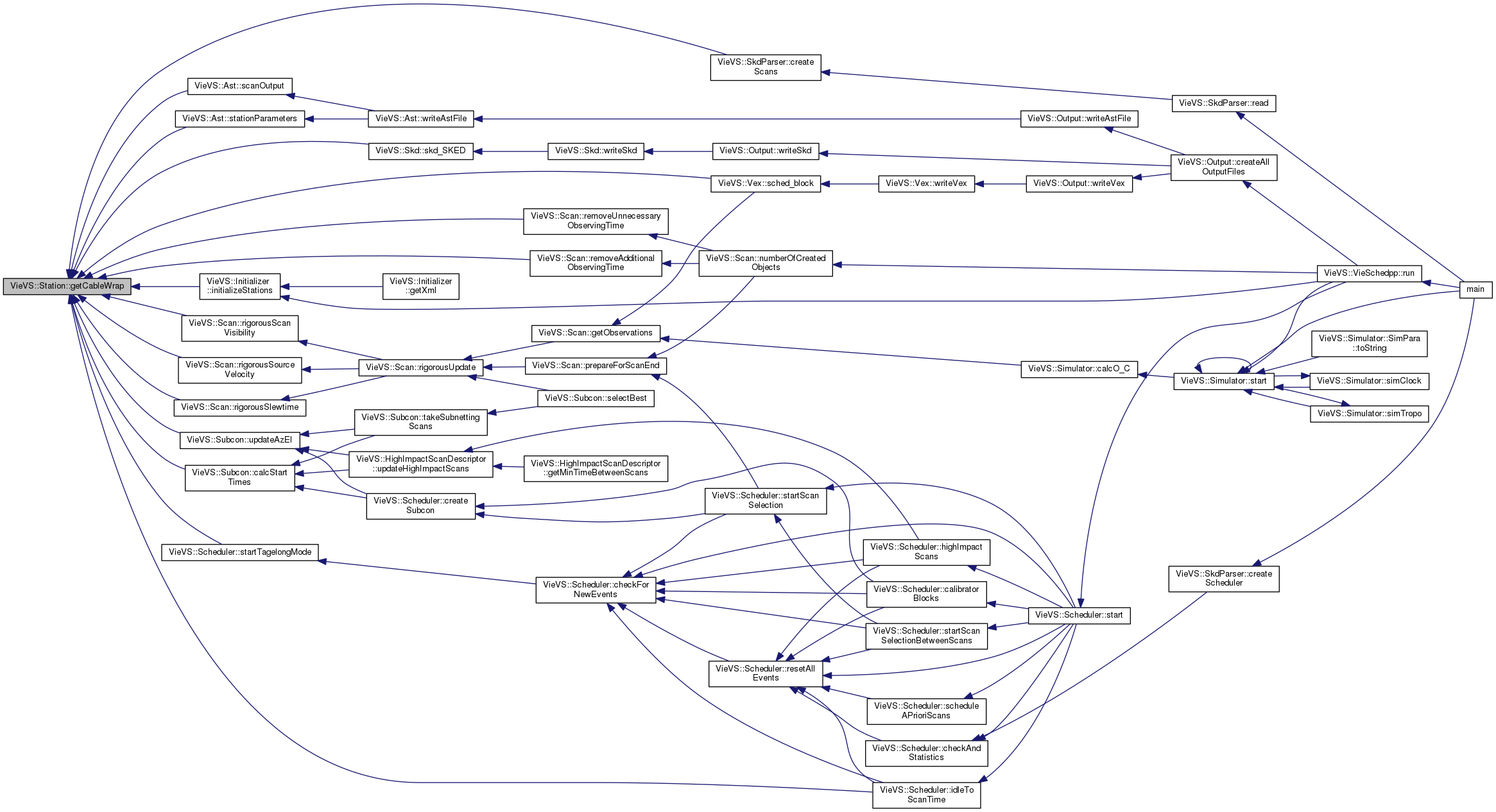

Here is the caller graph for this function:

const PointingVector& VieVS::Station::getCurrentPointingVector ( ) const

inlinenoexcept

getter for current pointing vector

Author: Matthias Schartner

Returns: current pointing vector

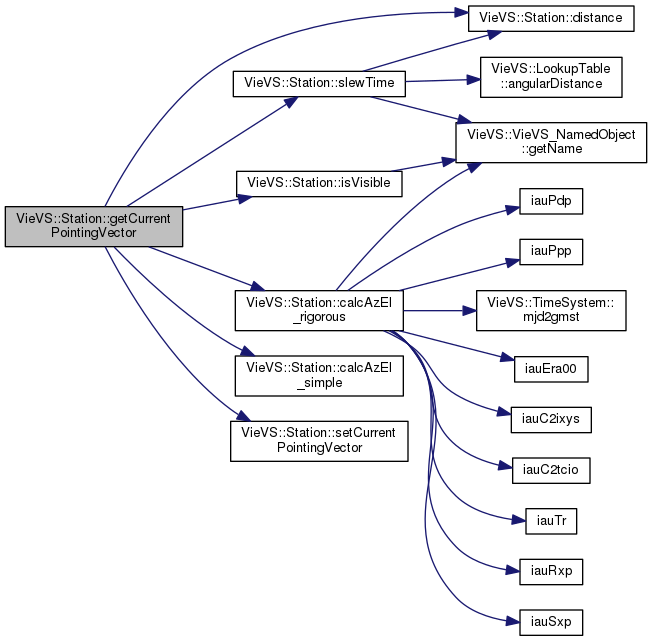

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int VieVS::Station::getCurrentTime ( ) const

inlinenoexcept

getter for last time this antenna was mentioned in scheduling

Author: Matthias Schartner

Returns: last station usage time in seconds since session start

Here is the call graph for this function:

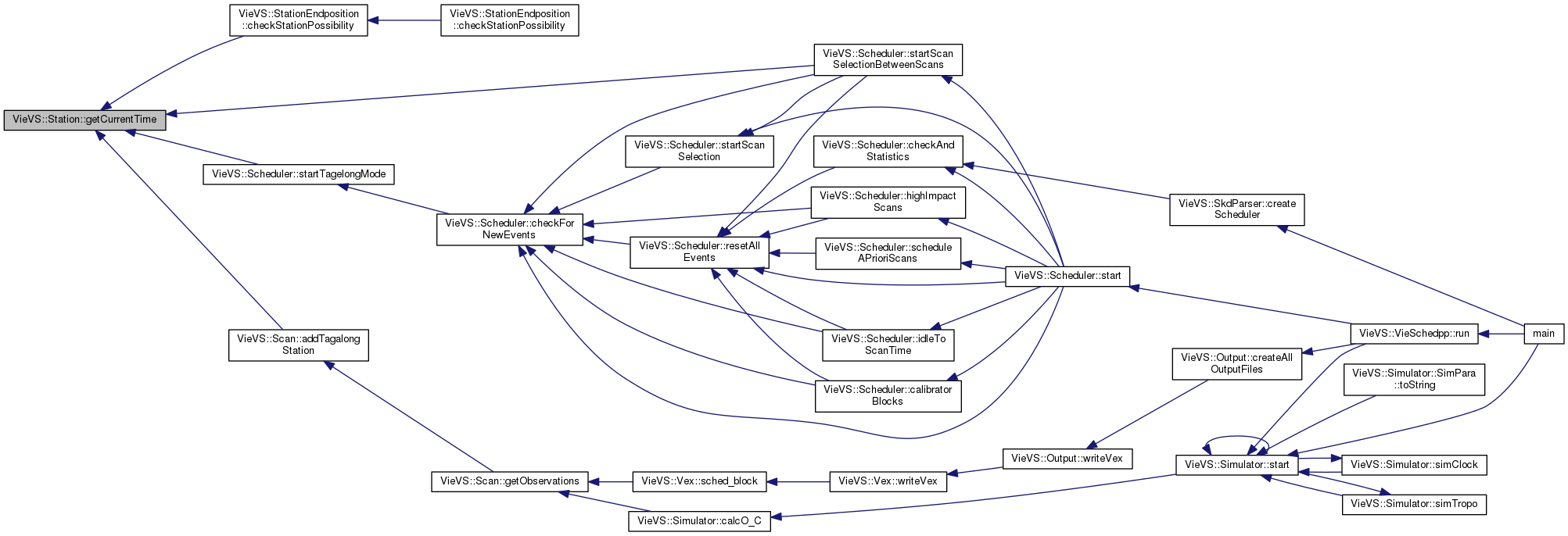

Here is the caller graph for this function:

const std::string& VieVS::Station::getElectronics_rack_type_ ( ) const

inline

getter for electronics rack type_

Author: Matthias Schartner

const Equipment& VieVS::Station::getEquip ( ) const

inlinenoexcept

getter for equipment information

Author: Matthias Schartner

Returns: equipment objecct

Here is the caller graph for this function:

std::pair< std::vector< double >, std::vector< double > > Station::getHorizonMask ( ) const

noexcept

get horizon mask

Author: Matthias Schartner

Returns: horizon mask

Here is the caller graph for this function:

const AbstractHorizonMask& VieVS::Station::getMask ( ) const

inline

getter for horizon mask

Author: Matthias Schartner

Returns: horizon mask object

int VieVS::Station::getNObs ( ) const

inlinenoexcept

getter for number of baselines which were already observed with this station

Author: Matthias Schartner

Returns: number of already observed baselines

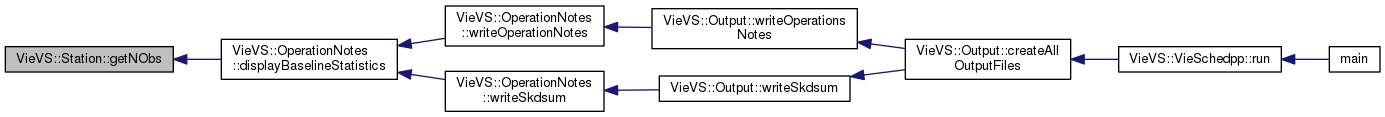

Here is the caller graph for this function:

int VieVS::Station::getNScans ( ) const

inlinenoexcept

get number of scans

Author: Matthias Schartner

Returns: number of scans

int VieVS::Station::getNTotalScans ( ) const

inlinenoexcept

get number of total scans

Author: Matthias Schartner

Returns: number of total scans

const Parameters& VieVS::Station::getPARA ( ) const

inline

getter for parameters

Author: Matthias Schartner

Returns: currently used parameters

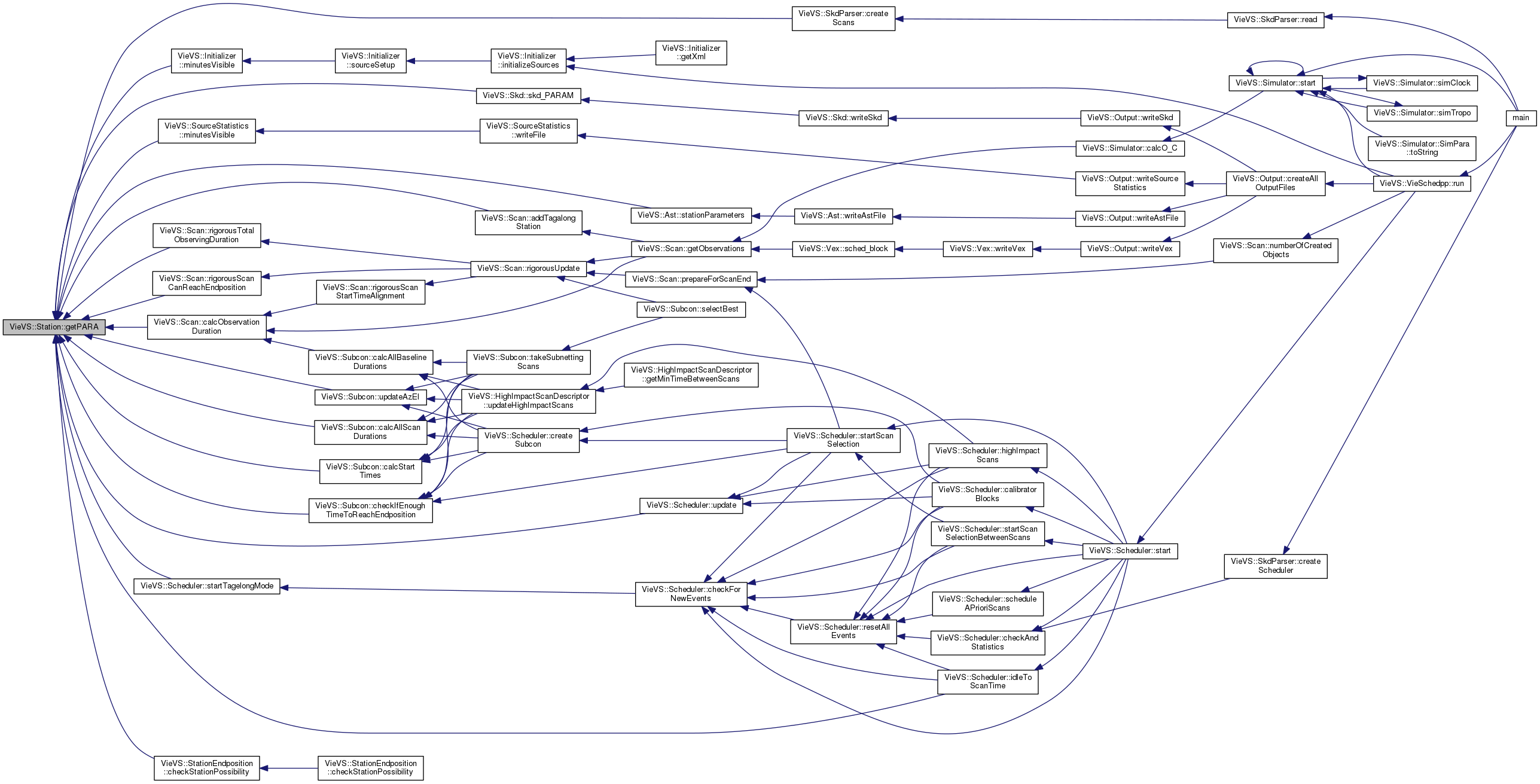

Here is the caller graph for this function:

std::shared_ptr<const Position> VieVS::Station::getPosition ( ) const

inlinenoexcept

getter for position

Author: Matthias Schartner

Returns: position object

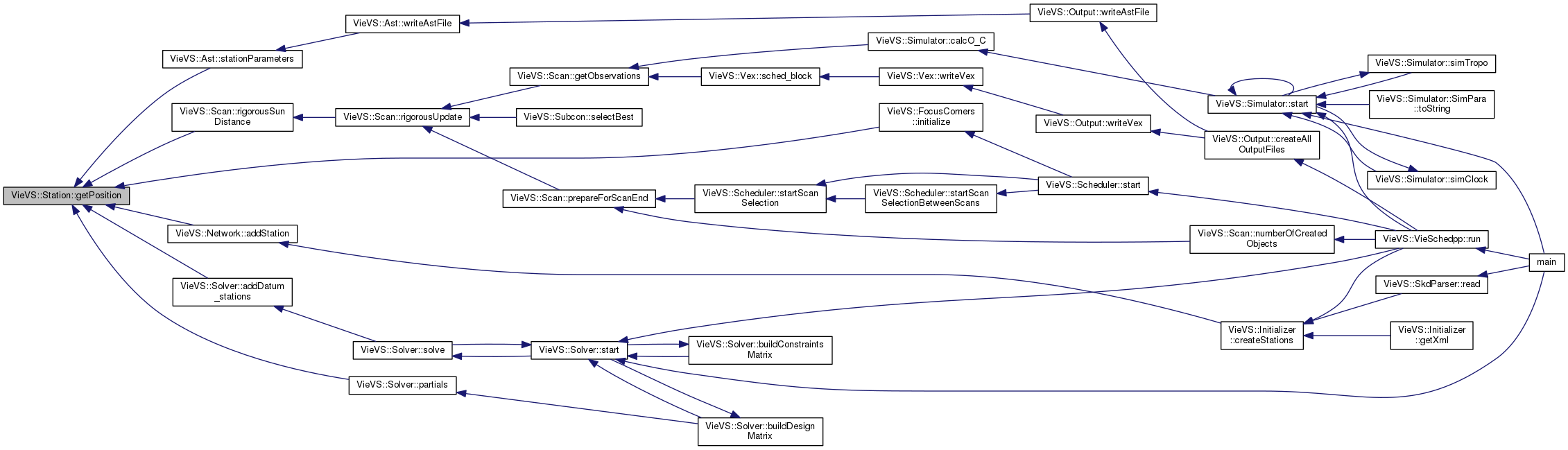

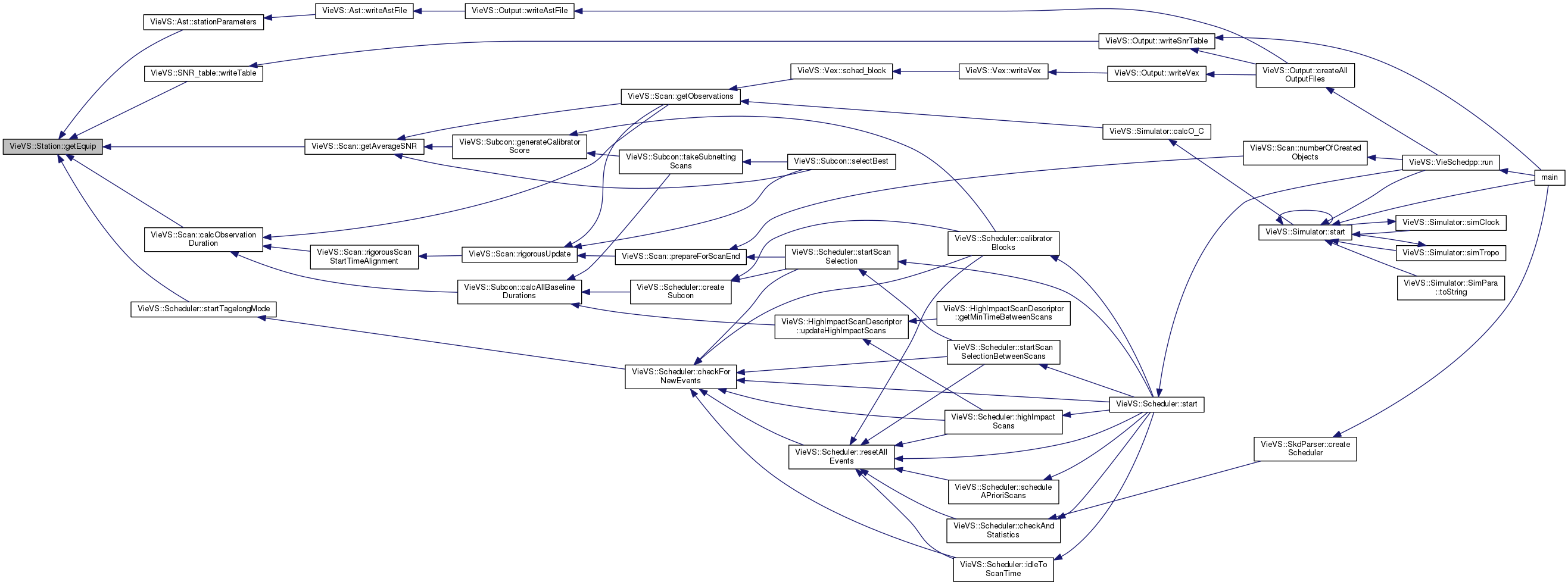

Here is the caller graph for this function:

const std::string& VieVS::Station::getRecord_transport_type ( ) const

inline

getter for record transport type

Author: Matthias Schartner

Here is the caller graph for this function:

const std::string& VieVS::Station::getRecording_system_id ( ) const

inline

getter for recording system id

Author: Matthias Schartner

Here is the call graph for this function:

const Statistics& VieVS::Station::getStatistics ( ) const

inline

get station statistics

Author: Matthias Schartner

Returns: station statistics

Here is the call graph for this function:

unsigned int VieVS::Station::getTotalObservingTime ( ) const

inline

get total scheduled observing time up to this point

Author: Matthias Schartner

Returns: total scheduled observing time

Here is the caller graph for this function:

bool VieVS::Station::hasHorizonMask ( ) const

inline

check if station has horizon mask

Author: Matthias Schartner

Returns: flag if horizon mask is defined

Here is the caller graph for this function:

void VieVS::Station::increaseNObs ( )

inlinenoexcept

increase number of observations by one

Author: Matthias Schartner

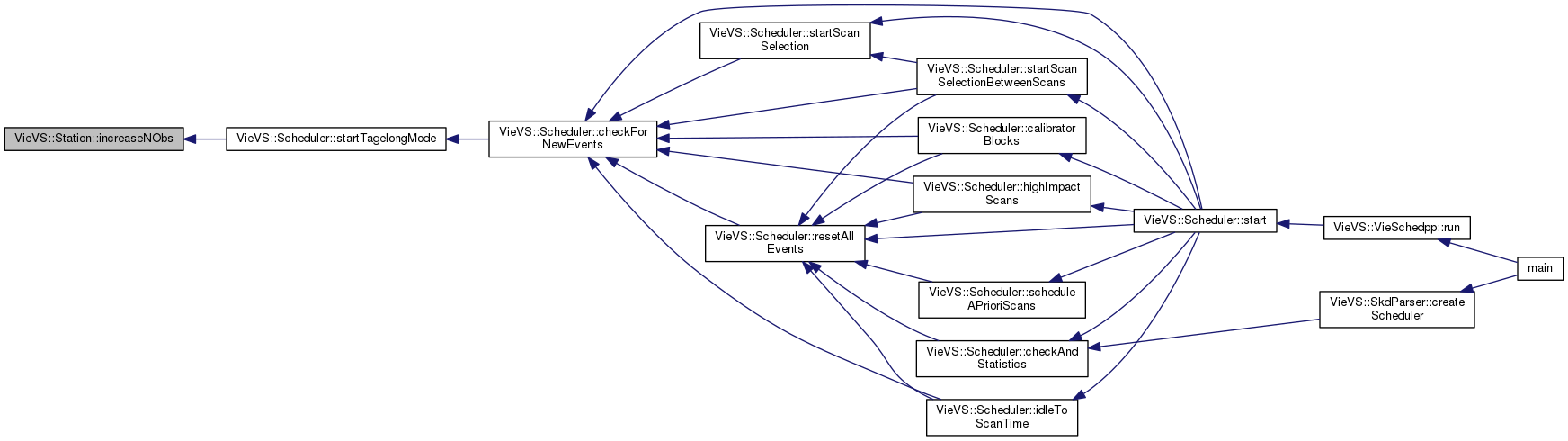

Here is the caller graph for this function:

bool Station::isVisible	(	const PointingVector &	p,
		double	minElevationSource = `0`
	)		const

noexcept

checks if a source is visible for this station

Author: Matthias Schartner

Parameters

p	pointing vector which holds time information and will be filled with azimuth and elevation information
minElevationSource	minimum elevation for this source

Returns: true if station is visible

Here is the call graph for this function:

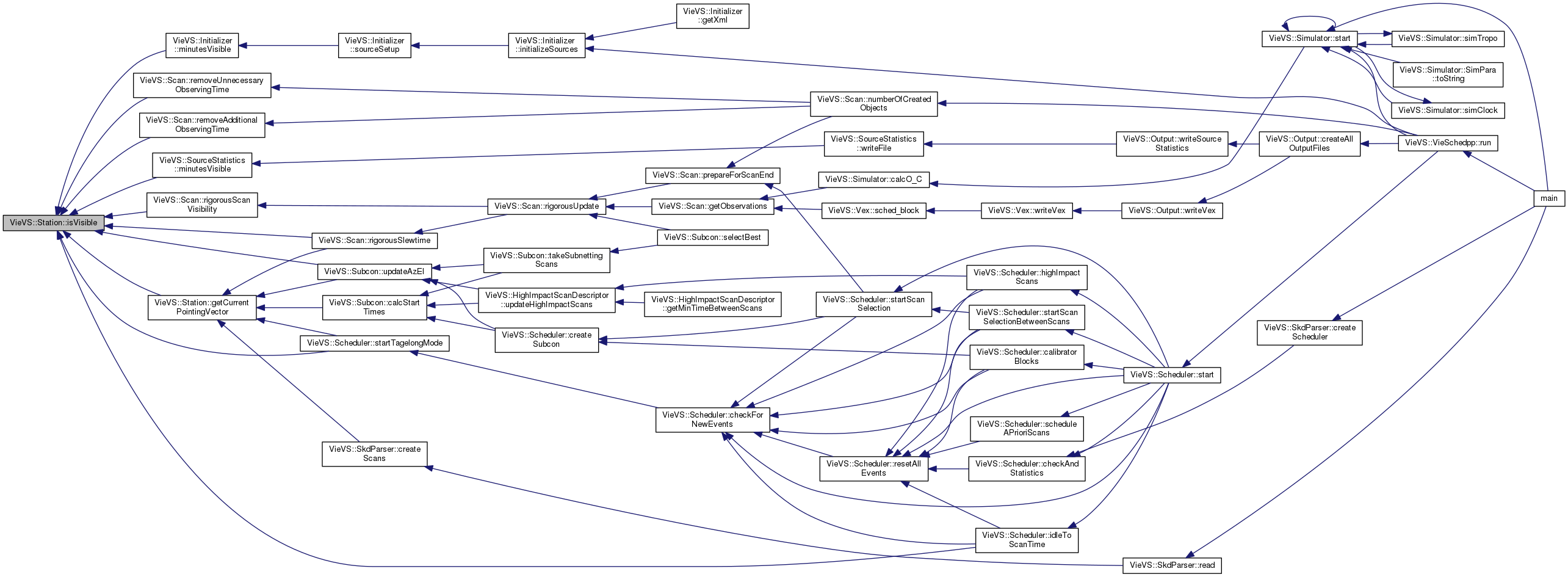

Here is the caller graph for this function:

bool Station::listDownTimes	(	std::ofstream &	of,
		bool	skdFormat = `false`
	)		const

lists downtime for this station

Author: Matthias Schartner

Parameters

of	output file
skdFormat	display output in skd format

Returns: true if there are down times

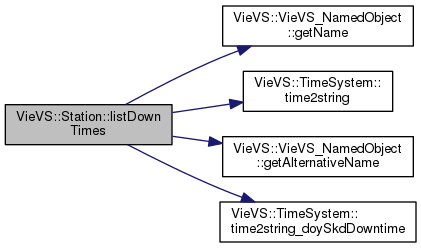

Here is the call graph for this function:

Here is the caller graph for this function:

bool Station::listTagalongTimes	(	std::ofstream &	of,
		bool	skdFormat = `false`
	)		const

lists tagalong for this station

Author: Matthias Schartner

Parameters

of	output file
skdFormat	display output in skd format

Returns: true if tagalong mode was used

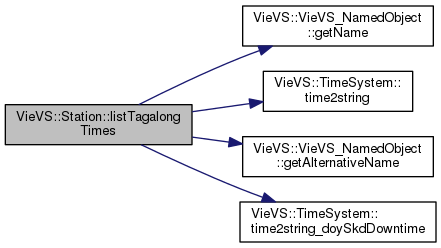

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned int Station::maximumAllowedObservingTime ( Timestamp ts ) const

noexcept

maxium allowed observing time

Author: Matthias Schartner

Parameters

ts	time stamp

Returns: maxium allowed observing time

Here is the caller graph for this function:

AbstractCableWrap& VieVS::Station::referenceCableWrap ( )

inlinenoexcept

reference to cable wrap

Author: Matthias Schartner

Returns: cable wrap of this station

Parameters& VieVS::Station::referencePARA ( )

inline

reference to current parameters

Author: Matthias Schartner

Returns: reference of current parameters

Here is the caller graph for this function:

Parameters& VieVS::Station::refParaForMultiScheduling ( )

inline

reference parameters to add multi-scheduling setup

Author: Matthias Schartner

Returns: reference to parameters object

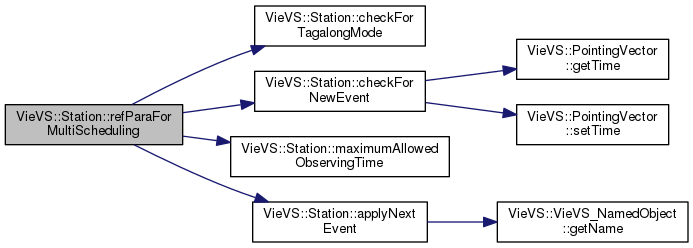

Here is the call graph for this function:

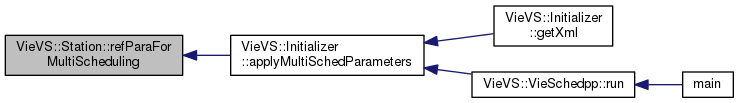

Here is the caller graph for this function:

void Station::setCurrentPointingVector ( const PointingVector & pointingVector )

noexcept

change current pointing vector

Author: Matthias Schartner

Parameters

pointingVector new current pointing vector

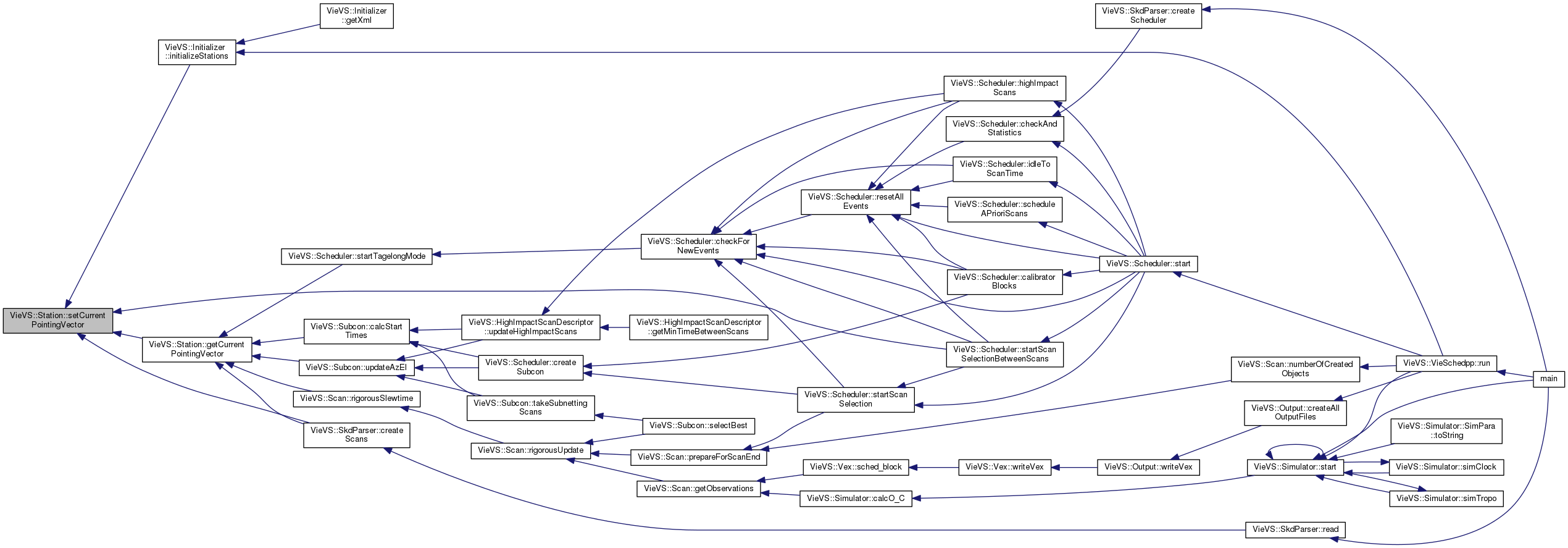

Here is the caller graph for this function:

void VieVS::Station::setEVENTS ( std::vector< Event > & EVENTS )

inlinenoexcept

sets all upcoming events

Author: Matthias Schartner

Parameters

EVENTS all upcoming events

Here is the caller graph for this function:

void VieVS::Station::setNextEvent ( unsigned int idx )

inlinenoexcept

set next event index

Author: Matthias Schartner

Parameters

idx	next event index

Here is the call graph for this function:

void VieVS::Station::setStatistics ( const Statistics & stat )

inline

set station statistics

Author: Matthias Schartner

Parameters

stat	station statistics

boost::optional< unsigned int > Station::slewTime ( const PointingVector & pointingVector ) const

noexcept

calculate slew time between current pointing vector and this pointing vector

Author: Matthias Schartner

If this is the first scan of this station the slew time is zero.

Parameters

pointingVector slew end position

Returns: slew time in seconds

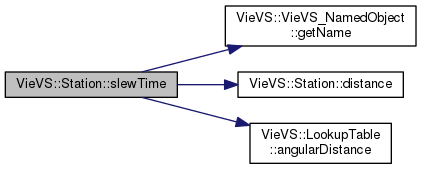

Here is the call graph for this function:

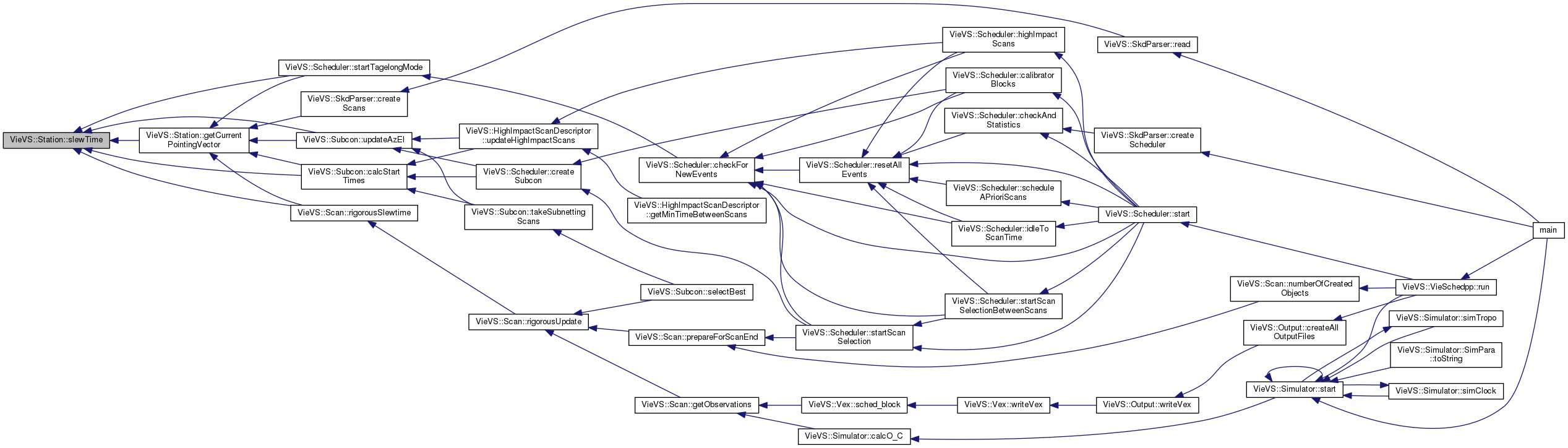

Here is the caller graph for this function:

void Station::toVexAntennaBlock ( std::ofstream & of ) const

writes antenna defining block in vex format

Author: Matthias Schartner

Parameters

of vex file

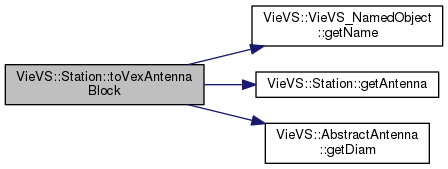

Here is the call graph for this function:

Here is the caller graph for this function:

void Station::toVexSiteBlock ( std::ofstream & of ) const

writes site defining block in vex format

Author: Matthias Schartner

Parameters

of vex file

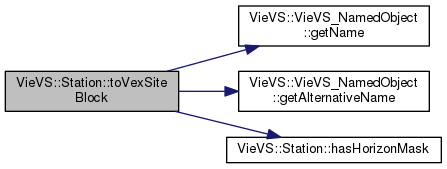

Here is the call graph for this function:

Here is the caller graph for this function:

void Station::toVexStationBlock ( std::ofstream & of ) const

writes station defining block in vex format

Author: Matthias Schartner

Parameters

of vex file

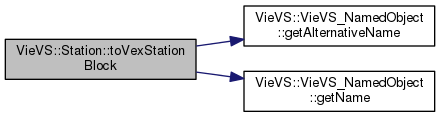

Here is the call graph for this function:

Here is the caller graph for this function:

void Station::update	(	unsigned long	nbl,
		const PointingVector &	end,
		bool	addToStatistics
	)

noexcept

update station if used for a scan

Author: Matthias Schartner

Parameters

nbl	number of observed baselines
end	pointing vector at end time
addToStatistics	flag if scan should have an influence on the further scheduling process

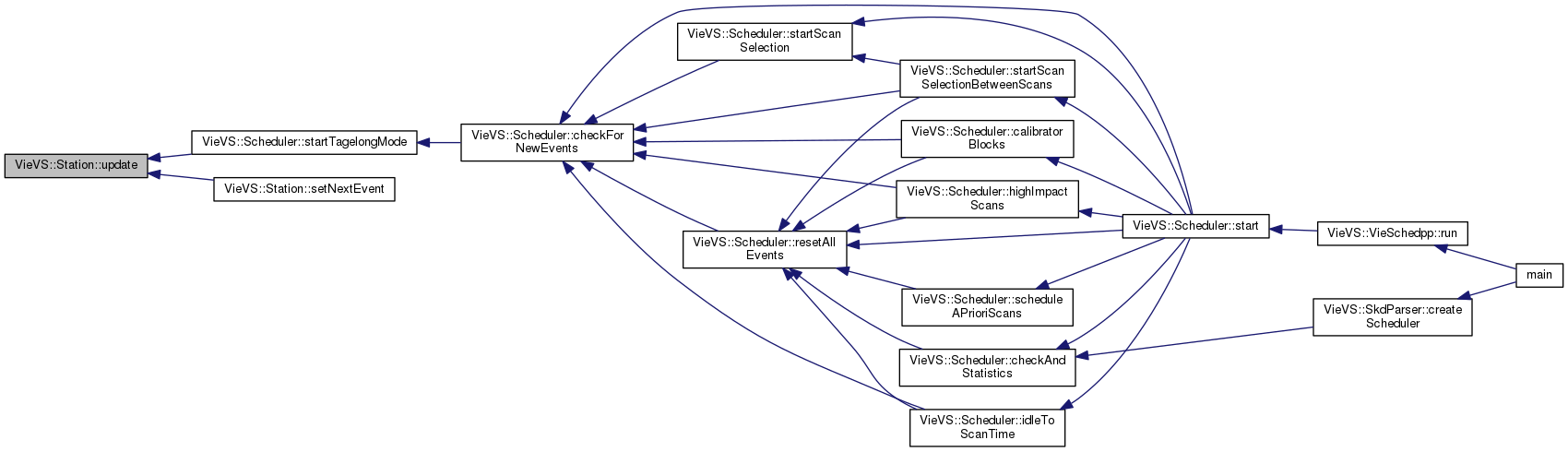

Here is the caller graph for this function:

Member Data Documentation

std::shared_ptr<AbstractAntenna> VieVS::Station::antenna_

private

station antenna

std::vector<std::vector<PointingVector> > VieVS::Station::azelPrecalc_

private

pre calculated azimuth elevation lookup table

std::shared_ptr<AbstractCableWrap> VieVS::Station::cableWrap_

private

station cable wrap

PointingVector VieVS::Station::currentPositionVector_

private

current pointing vector

std::string VieVS::Station::electronics_rack_type_ = "unknown"

private

electronics rack type (e.g.: "DBBC")

std::shared_ptr<Equipment> VieVS::Station::equip_

private

station equipment

std::vector<Event> VieVS::Station::events_

private

list of all events

std::shared_ptr<AbstractHorizonMask> VieVS::Station::mask_

private

station horizon mask

unsigned int VieVS::Station::nextEvent_ { 0 }

private

index of next event

unsigned long VieVS::Station::nextId = 0

staticprivate

next id for this object type

int VieVS::Station::nObs_ { 0 }

private

number of observed baselines

int VieVS::Station::nScans_ { 0 }

private

number of participated scans

int VieVS::Station::nTotalScans_ { 0 }

private

number of total scans

std::string VieVS::Station::occupation_code_ = "unknown"

private

occupation code (e.g.: "72425901")

std::string VieVS::Station::oneLetterCode_ = "_"

private

one letter code for skd file

Parameters VieVS::Station::parameters_

private

station parameters

std::shared_ptr<Position> VieVS::Station::position_

private

station position

std::string VieVS::Station::record_transport_type_ = "unknown"

private

record transport_type (e.g.: "MARK5B")

std::string VieVS::Station::recording_system_id_ = "unknown"

private

recoring system id (e.g.: "Ke")

Statistics VieVS::Station::statistics_

private

station statistics

unsigned int VieVS::Station::totalObsTime_ { 0 }

private

total observing time in seconds

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Station/Station.h
/home/travis/build/TUW-VieVS/VieSchedpp/Station/Station.cpp

Classes

Public Types

Public Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
