representation of an VLBI cable wrap More...

#include <AbstractCableWrap.h>

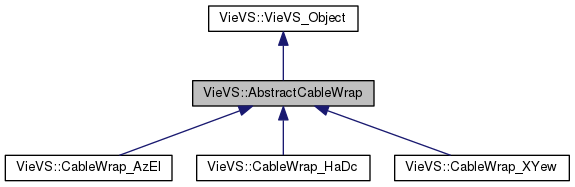

Inheritance diagram for VieVS::AbstractCableWrap:

[legend]

Collaboration diagram for VieVS::AbstractCableWrap:

Public Types
enum	CableWrapFlag { CableWrapFlag::ccw, CableWrapFlag::n, CableWrapFlag::cw }
	enum to distinguish cable wraps More...

Public Member Functions
	AbstractCableWrap (double axis1_low_deg, double axis1_up_deg, double axis2_low_deg, double axis2_up_deg)
	constructor More...

void	setMinimumOffsets (double axis1_low_offset, double axis1_up_offset, double axis2_low_offset, double axis2_up_offset) noexcept
	sets safety margins for axis limits More...

double	getNLow () const
	getter for lower neutral cable wrap limit in radians More...

double	getNUp () const
	getter for upper neutral cable wrap limit in radians More...

double	getCLow () const
	getter for lower clock wise cable wrap limit in radians More...

double	getCUp () const
	getter for upper clock wise cable wrap limit in radians More...

double	getWLow () const
	getter for lower counter clock wise cable wrap limit in radians More...

double	getWUp () const
	getter for upper counter clock wise cable wrap limit in radians More...

std::pair< double, double >	getLimits (char section) const
	getter for limits of cable wrap section in radians More...

virtual bool	anglesInside (const PointingVector &p) const noexcept=0
	checks if this pointing vectors azimuth and elevation are inside the axis limits More...

virtual void	unwrapAzNearAz (PointingVector &new_pointingVector, double az_old) const noexcept=0
	unwraps the current azimuth of pointing vector More...

void	calcUnwrappedAz (const PointingVector &old_pointingVector, PointingVector &new_pointingVector) const noexcept
	unwraps the current azimuth of pointing vector More...

virtual bool	unwrapAzInSection (PointingVector &pv, char section) const noexcept=0
	unwraps the current azimuth of pointing vector in specific cable wrap section More...

CableWrapFlag	cableWrapFlag (const PointingVector &pointingVector) const noexcept
	cable wrap section based on unwrapped azimuth from pointing vector More...

virtual CableWrapFlag	cableWrapFlag (double unaz) const noexcept=0
	cable wrap section based on unwrapped azimuth More...

virtual std::pair< std::string, std::string >	getMotions () const noexcept=0
	antenna motion names in .vex format More...

virtual std::string	vexPointingSectors () const noexcept=0
	cable wrap sections in .vex format More...

double	getAxis2Low () const
	getter for lowest possible value of 2nd axis More...

double	getAxis2Up () const
	getter for highest possible value of 2nd axis More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Protected Types
enum	Axis { Axis::axis1, Axis::axis2 }
	enum to distinguish antenna axis More...

Protected Member Functions
bool	axisInsideCableWrap (double ax1, double ax2) const noexcept
	checks if axis values are inside of possible value range More...

std::string	pointingSector (const std::string &motion1, const std::string &motion2, char section) const noexcept
	pointing sector in vex format for one axis More...

double	minLow (Axis axis) const
	getter for lowest possible value for this antenna axis More...

double	maxUp (Axis axis) const
	getter for uppermost possible value for this antenna axis More...

Private Attributes
double	axis1Low_
	lower limit of first axis in radians More...

double	axis1Up_
	upper limit of first axis in radians More...

double	axis2Low_
	lower limit of second axis in radians More...

double	axis2Up_
	upper limit of second axis in radians More...

double	axis1LowOffset_ = 0
	safety margin for lower limit for first axis in radians More...

double	axis1UpOffset_ = 0
	safety margin for upper limit for first axis in radians More...

double	axis2LowOffset_ = 0
	safety margin for lower limit for second axis in radians More...

double	axis2UpOffset_ = 0
	safety margin for upper limit for second axis in radians More...

double	nLow_
	lower limit for neutral cable wrap range More...

double	nUp_
	upper limit for neutral cable wrap range More...

double	cLow_
	lower limit for clockwise cable wrap range More...

double	cUp_
	upper limit for clockwise cable wrap range More...

double	wLow_
	lower limit for counter clockwise cable wrap range More...

double	wUp_
	upper limit for counter clockwise cable wrap range More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of an VLBI cable wrap

Author: Matthias Schartner

Date: 27.06.2017

This class serves as the base class for all cable wrap implementations.

Member Enumeration Documentation

enum VieVS::AbstractCableWrap::Axis

strongprotected

enum to distinguish antenna axis

Author: Matthias Schartner

Enumerator
axis1	first antenna axis
axis2	second antenna axis

enum VieVS::AbstractCableWrap::CableWrapFlag

strong

enum to distinguish cable wraps

Author: Matthias Schartner

Enumerator
ccw	counter clock wise
n	neutral
cw	clock wise

Constructor & Destructor Documentation

AbstractCableWrap::AbstractCableWrap	(	double	axis1_low_deg,
		double	axis1_up_deg,
		double	axis2_low_deg,
		double	axis2_up_deg
	)

constructor

Author: Matthias Schartner

Parameters

axis1_low_deg	lower limit for first axis in degrees
axis1_up_deg	upper limit for first axis in degrees
axis2_low_deg	lower limit for second axis in degrees
axis2_up_deg	upper limit for second axis in degrees

Member Function Documentation

virtual bool VieVS::AbstractCableWrap::anglesInside ( const PointingVector & p ) const

pure virtualnoexcept

checks if this pointing vectors azimuth and elevation are inside the axis limits

Author: Matthias Schartner

Parameters

p	pointing vector which should be tested

Returns: true if inside, otherwise false

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

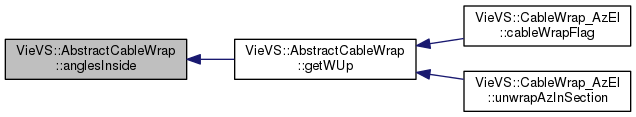

Here is the caller graph for this function:

bool AbstractCableWrap::axisInsideCableWrap	(	double	ax1,
		double	ax2
	)		const

protectednoexcept

checks if axis values are inside of possible value range

Author: Matthias Schartner

checks if value ax1 is inside the allowed first axis range and if value ax2 is inside the allowed second axis range. basically checks if target at postion (ax1, ax2) can be observed.

Parameters

ax1	value for first axis
ax2	value for second axis

Returns: all cable wrap sections in .vex format

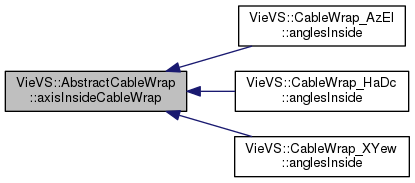

Here is the caller graph for this function:

CableWrapFlag VieVS::AbstractCableWrap::cableWrapFlag ( const PointingVector & pointingVector ) const

inlinenoexcept

cable wrap section based on unwrapped azimuth from pointing vector

Author: Matthias Schartner

Parameters

pointingVector pointing vector whose azimuth is taken for calculation

Returns: cable wrap section

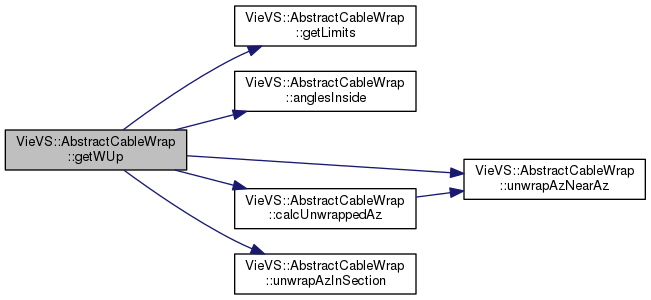

Here is the call graph for this function:

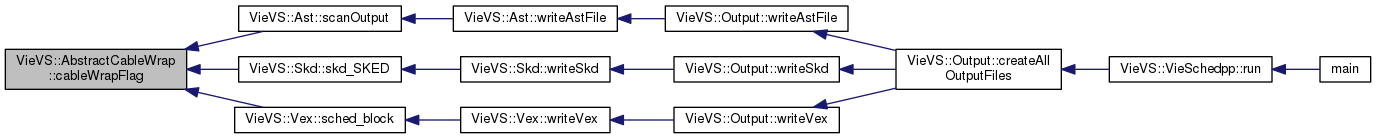

Here is the caller graph for this function:

virtual CableWrapFlag VieVS::AbstractCableWrap::cableWrapFlag ( double unaz ) const

pure virtualnoexcept

cable wrap section based on unwrapped azimuth

Author: Matthias Schartner

Parameters

unaz	unwrapped azimuth in radians

Returns: cable wrap section

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

void AbstractCableWrap::calcUnwrappedAz	(	const PointingVector &	old_pointingVector,
		PointingVector &	new_pointingVector
	)		const

noexcept

unwraps the current azimuth of pointing vector

Author: Matthias Schartner

The azimuth of one pointing vector is first calculated in the range between [-pi,pi]. This function adds an factor of 2*pi so that the azimuth is inside the axis limits. If there are possible ambiguities, for example if the azimuth axis range is bigger than 360 degrees, the value, which is closest to the old pointing vector is used.

Parameters

old_pointingVector	closest target antenna pointing vector
new_pointingVector	pointing vector whose azimuth should be unwrapped

Here is the call graph for this function:

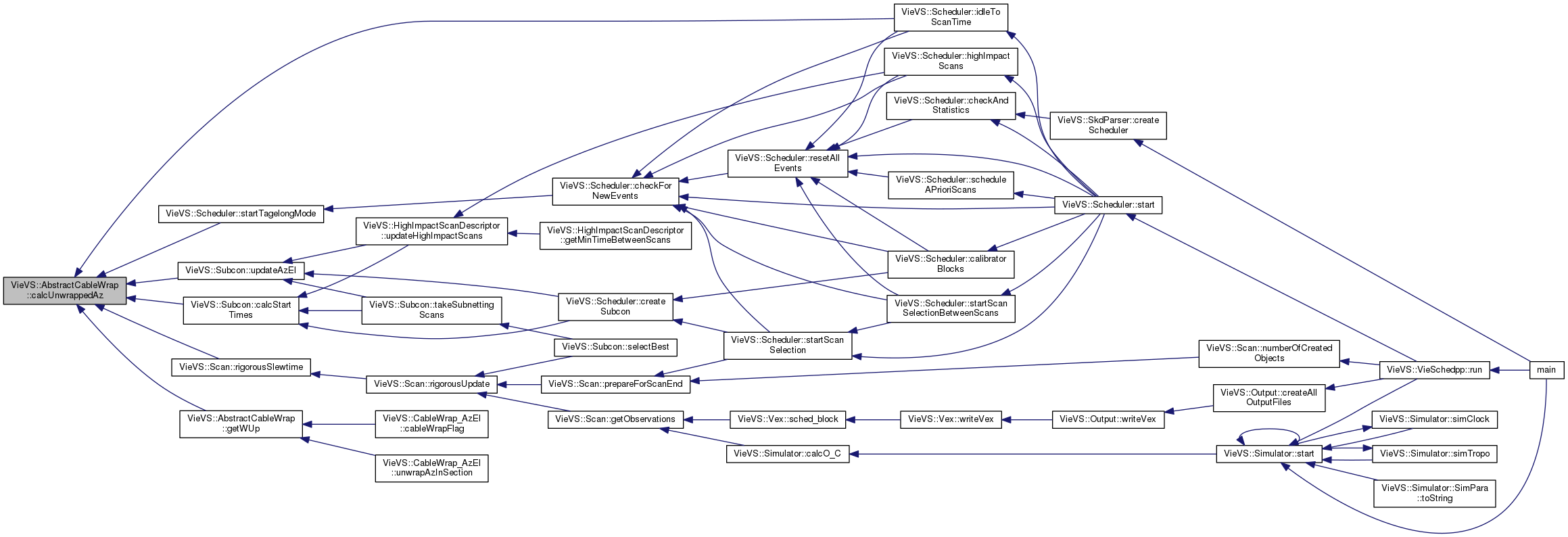

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getAxis2Low ( ) const

inline

getter for lowest possible value of 2nd axis

Author: Matthias Schartner

Returns: lowest possible value of 2nd axis

double VieVS::AbstractCableWrap::getAxis2Up ( ) const

inline

getter for highest possible value of 2nd axis

Author: Matthias Schartner

Returns: highest possible value of 2nd axis

double VieVS::AbstractCableWrap::getCLow ( ) const

inline

getter for lower clock wise cable wrap limit in radians

Author: Matthias Schartner

Returns: lower clock wise cable wrap limit in radians

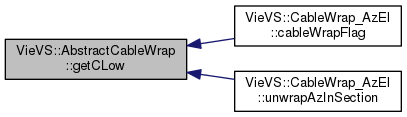

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getCUp ( ) const

inline

getter for upper clock wise cable wrap limit in radians

Author: Matthias Schartner

Returns: upper clock wise cable wrap limit in radians

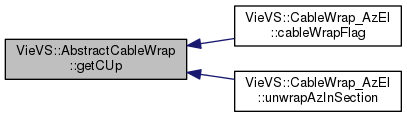

Here is the caller graph for this function:

pair< double, double > AbstractCableWrap::getLimits ( char section ) const

getter for limits of cable wrap section in radians

Author: Matthias Schartner

This function takes cable wrap section in sked format.

'C': clock wise
'-': neutral
'W': counter clock wise

Parameters

section cable wrap section in sked format

Returns: pair with lower and upper limit for cable wrap section in radians

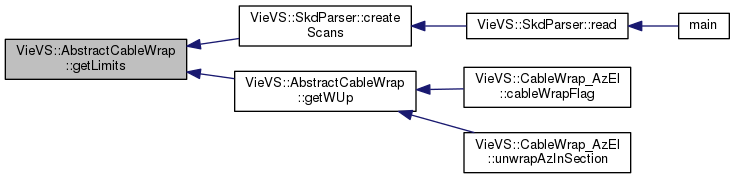

Here is the caller graph for this function:

virtual std::pair<std::string, std::string> VieVS::AbstractCableWrap::getMotions ( ) const

pure virtualnoexcept

antenna motion names in .vex format

Author: Matthias Schartner

Returns: antenna motion name for first and second axis (e.g.: {"az", "el"})

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

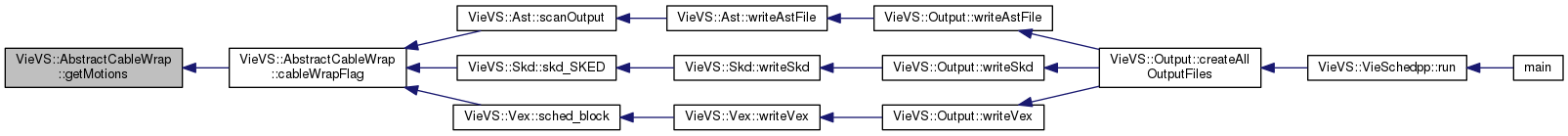

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getNLow ( ) const

inline

getter for lower neutral cable wrap limit in radians

Author: Matthias Schartner

Returns: lower neutral cable wrap limit in radians

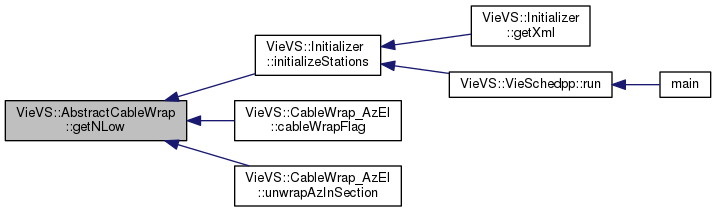

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getNUp ( ) const

inline

getter for upper neutral cable wrap limit in radians

Author: Matthias Schartner

Returns: upper neutral cable wrap limit in radians

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getWLow ( ) const

inline

getter for lower counter clock wise cable wrap limit in radians

Author: Matthias Schartner

Returns: lower counter clock wise cable wrap limit in radians

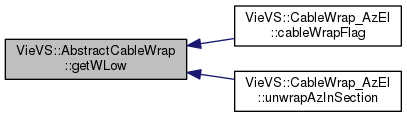

Here is the caller graph for this function:

double VieVS::AbstractCableWrap::getWUp ( ) const

inline

getter for upper counter clock wise cable wrap limit in radians

Author: Matthias Schartner

Returns: upper counter clock wise cable wrap limit in radians

Here is the call graph for this function:

Here is the caller graph for this function:

double AbstractCableWrap::maxUp ( AbstractCableWrap::Axis axis ) const

protected

getter for uppermost possible value for this antenna axis

Author: Matthias Schartner

Parameters

axis	antenna axis

Returns: uppermost possible value for this antenna axis in radians

Here is the caller graph for this function:

double AbstractCableWrap::minLow ( AbstractCableWrap::Axis axis ) const

protected

getter for lowest possible value for this antenna axis

Author: Matthias Schartner

Parameters

axis	antenna axis

Returns: lowest possible value for this antenna axis in radians

Here is the caller graph for this function:

std::string AbstractCableWrap::pointingSector	(	const std::string &	motion1,
		const std::string &	motion2,
		char	section
	)		const

protectednoexcept

pointing sector in vex format for one axis

Author: Matthias Schartner

This function takes cable wrap section in sked format.

'C': clock wise
'-': neutral
'W': counter clock wise

Parameters

motion1	motion type name for first axis (e.g.: "az")
motion2	motion type name for second axis (e.g.: "el")
section	section name in sked format

Returns: pointing sector string in vex format for one axis

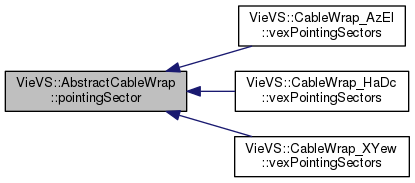

Here is the caller graph for this function:

void AbstractCableWrap::setMinimumOffsets	(	double	axis1_low_offset,
		double	axis1_up_offset,
		double	axis2_low_offset,
		double	axis2_up_offset
	)

noexcept

sets safety margins for axis limits

Parameters

axis1_low_offset	safety margin for lower limit for first axis in degrees
axis1_up_offset	safety margin for upper limit for first axis in degrees
axis2_low_offset	safety margin for lower limit for second axis in degrees
axis2_up_offset	safety margin for upper limit for second axis in degrees

virtual bool VieVS::AbstractCableWrap::unwrapAzInSection	(	PointingVector &	pv,
		char	section
	)		const

pure virtualnoexcept

unwraps the current azimuth of pointing vector in specific cable wrap section

Author: Matthias Schartner

The azimuth of one pointing vector is first calculated in the range between [-pi,pi]. This function adds an factor of 2*pi so that the azimuth is inside the cable wrap section limits.

This function takes cable wrap section in sked format.

'C': clock wise
'-': neutral
'W': counter clock wise

Parameters

pv	pointing vector whose azimuth should be unwrapped
section	cable wrap section in sked format

Returns: true if unwrapping was possible, otherwise false

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

Here is the caller graph for this function:

virtual void VieVS::AbstractCableWrap::unwrapAzNearAz	(	PointingVector &	new_pointingVector,
		double	az_old
	)		const

pure virtualnoexcept

unwraps the current azimuth of pointing vector

Author: Matthias Schartner

The azimuth of one pointing vector is first calculated in the range between [-pi,pi]. This function adds an factor of 2*pi so that the azimuth is inside the axis limits. If there are possible ambiguities, for example if the azimuth axis range is bigger than 360 degrees, the value, which is closest to the second input parameter value (az_old) is used.

Parameters

new_pointingVector	pointing vector whose azimuth should be unwrapped
az_old	closest target antenna azimuth in radians

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

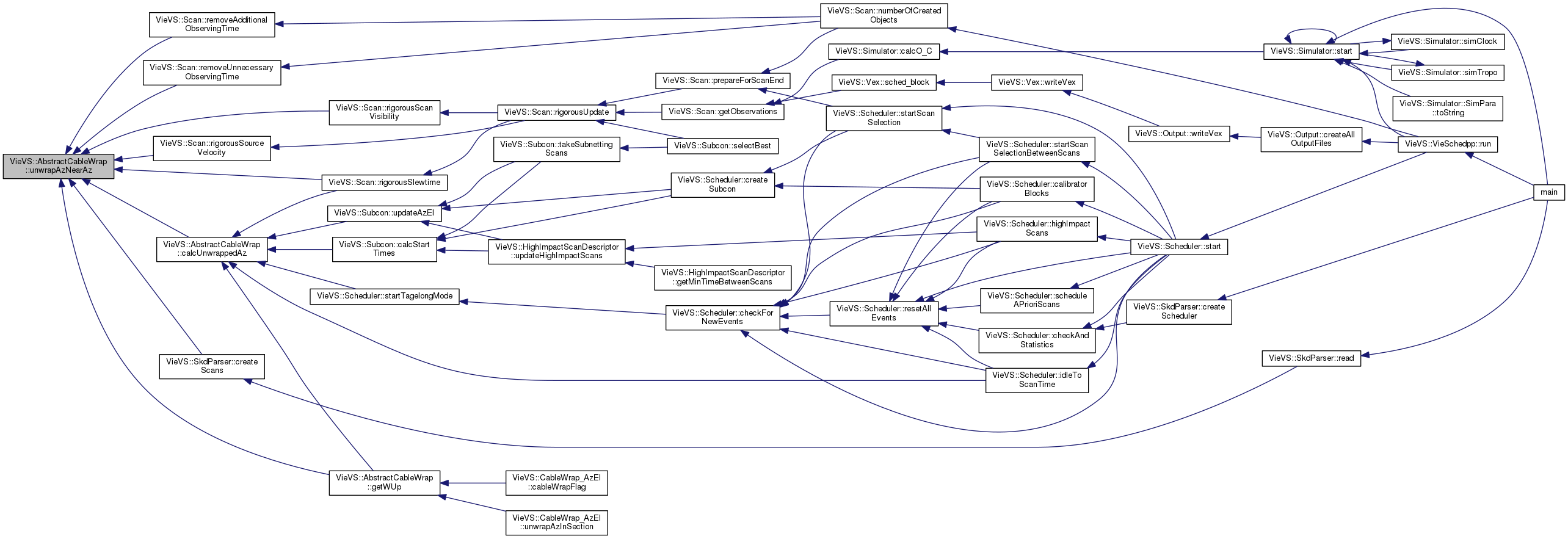

Here is the caller graph for this function:

virtual std::string VieVS::AbstractCableWrap::vexPointingSectors ( ) const

pure virtualnoexcept

cable wrap sections in .vex format

Author: Matthias Schartner

Returns: all cable wrap sections in .vex format

Implemented in VieVS::CableWrap_AzEl, VieVS::CableWrap_HaDc, and VieVS::CableWrap_XYew.

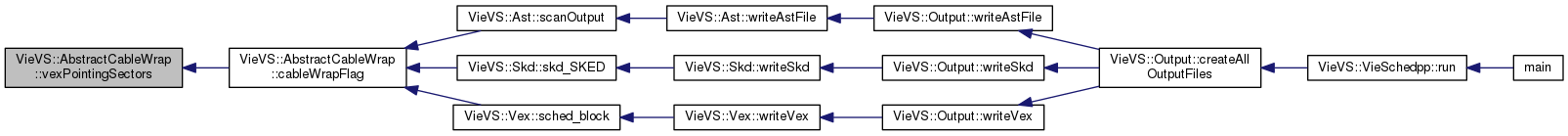

Here is the caller graph for this function:

Member Data Documentation

double VieVS::AbstractCableWrap::axis1Low_

private

lower limit of first axis in radians

double VieVS::AbstractCableWrap::axis1LowOffset_ = 0

private

safety margin for lower limit for first axis in radians

double VieVS::AbstractCableWrap::axis1Up_

private

upper limit of first axis in radians

double VieVS::AbstractCableWrap::axis1UpOffset_ = 0

private

safety margin for upper limit for first axis in radians

double VieVS::AbstractCableWrap::axis2Low_

private

lower limit of second axis in radians

double VieVS::AbstractCableWrap::axis2LowOffset_ = 0

private

safety margin for lower limit for second axis in radians

double VieVS::AbstractCableWrap::axis2Up_

private

upper limit of second axis in radians

double VieVS::AbstractCableWrap::axis2UpOffset_ = 0

private

safety margin for upper limit for second axis in radians

double VieVS::AbstractCableWrap::cLow_

private

lower limit for clockwise cable wrap range

double VieVS::AbstractCableWrap::cUp_

private

upper limit for clockwise cable wrap range

unsigned long AbstractCableWrap::nextId = 0

staticprivate

next id for this object type

double VieVS::AbstractCableWrap::nLow_

private

lower limit for neutral cable wrap range

double VieVS::AbstractCableWrap::nUp_

private

upper limit for neutral cable wrap range

double VieVS::AbstractCableWrap::wLow_

private

lower limit for counter clockwise cable wrap range

double VieVS::AbstractCableWrap::wUp_

private

upper limit for counter clockwise cable wrap range

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Station/CableWrap/AbstractCableWrap.h
/home/travis/build/TUW-VieVS/VieSchedpp/Station/CableWrap/AbstractCableWrap.cpp

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
