azimuth, elevation cable wrap More...

#include <CableWrap_AzEl.h>

Inheritance diagram for VieVS::CableWrap_AzEl:

Collaboration diagram for VieVS::CableWrap_AzEl:

Public Member Functions
	CableWrap_AzEl (double axis1_low_deg, double axis1_up_deg, double axis2_low_deg, double axis2_up_deg)
	constructor More...

bool	anglesInside (const PointingVector &p) const noexceptoverride
	checks if this pointing vectors azimuth and elevation are inside the axis limits More...

void	unwrapAzNearAz (PointingVector &new_pointingVector, double az_old) const noexceptoverride
	unwraps the current azimuth of pointing vector More...

bool	unwrapAzInSection (PointingVector &pv, char section) const noexceptoverride
	unwraps the current azimuth of pointing vector in specific cable wrap section More...

AbstractCableWrap::CableWrapFlag	cableWrapFlag (double unaz) const noexceptoverride
	cable wrap section based on unwrapped azimuth More...

std::pair< std::string, std::string >	getMotions () const noexceptoverride
	antenna motion names in .vex format More...

std::string	vexPointingSectors () const noexceptoverride
	cable wrap sections in .vex format More...

Public Member Functions inherited from VieVS::AbstractCableWrap
	AbstractCableWrap (double axis1_low_deg, double axis1_up_deg, double axis2_low_deg, double axis2_up_deg)
	constructor More...

void	setMinimumOffsets (double axis1_low_offset, double axis1_up_offset, double axis2_low_offset, double axis2_up_offset) noexcept
	sets safety margins for axis limits More...

double	getNLow () const
	getter for lower neutral cable wrap limit in radians More...

double	getNUp () const
	getter for upper neutral cable wrap limit in radians More...

double	getCLow () const
	getter for lower clock wise cable wrap limit in radians More...

double	getCUp () const
	getter for upper clock wise cable wrap limit in radians More...

double	getWLow () const
	getter for lower counter clock wise cable wrap limit in radians More...

double	getWUp () const
	getter for upper counter clock wise cable wrap limit in radians More...

std::pair< double, double >	getLimits (char section) const
	getter for limits of cable wrap section in radians More...

void	calcUnwrappedAz (const PointingVector &old_pointingVector, PointingVector &new_pointingVector) const noexcept
	unwraps the current azimuth of pointing vector More...

CableWrapFlag	cableWrapFlag (const PointingVector &pointingVector) const noexcept
	cable wrap section based on unwrapped azimuth from pointing vector More...

double	getAxis2Low () const
	getter for lowest possible value of 2nd axis More...

double	getAxis2Up () const
	getter for highest possible value of 2nd axis More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Additional Inherited Members
Public Types inherited from VieVS::AbstractCableWrap
enum	CableWrapFlag { CableWrapFlag::ccw, CableWrapFlag::n, CableWrapFlag::cw }
	enum to distinguish cable wraps More...

Protected Types inherited from VieVS::AbstractCableWrap
enum	Axis { Axis::axis1, Axis::axis2 }
	enum to distinguish antenna axis More...

Protected Member Functions inherited from VieVS::AbstractCableWrap
bool	axisInsideCableWrap (double ax1, double ax2) const noexcept
	checks if axis values are inside of possible value range More...

std::string	pointingSector (const std::string &motion1, const std::string &motion2, char section) const noexcept
	pointing sector in vex format for one axis More...

double	minLow (Axis axis) const
	getter for lowest possible value for this antenna axis More...

double	maxUp (Axis axis) const
	getter for uppermost possible value for this antenna axis More...

Detailed Description

azimuth, elevation cable wrap

Author: Matthias Schartner

Date: 12.04.2018

Constructor & Destructor Documentation

CableWrap_AzEl::CableWrap_AzEl	(	double	axis1_low_deg,
		double	axis1_up_deg,
		double	axis2_low_deg,
		double	axis2_up_deg
	)

constructor

Author: Matthias Schartner

Parameters

axis1_low_deg	azimuth lower limit in degrees
axis1_up_deg	azimuth upper limit in degrees
axis2_low_deg	elevation lower limit in degrees
axis2_up_deg	elevation upper limit in degrees

Member Function Documentation

bool CableWrap_AzEl::anglesInside ( const PointingVector & p ) const

overridevirtualnoexcept

checks if this pointing vectors azimuth and elevation are inside the axis limits

Author: Matthias Schartner

Parameters

p	pointing vector which should be tested

Returns: true if inside, otherwise false

Implements VieVS::AbstractCableWrap.

Here is the call graph for this function:

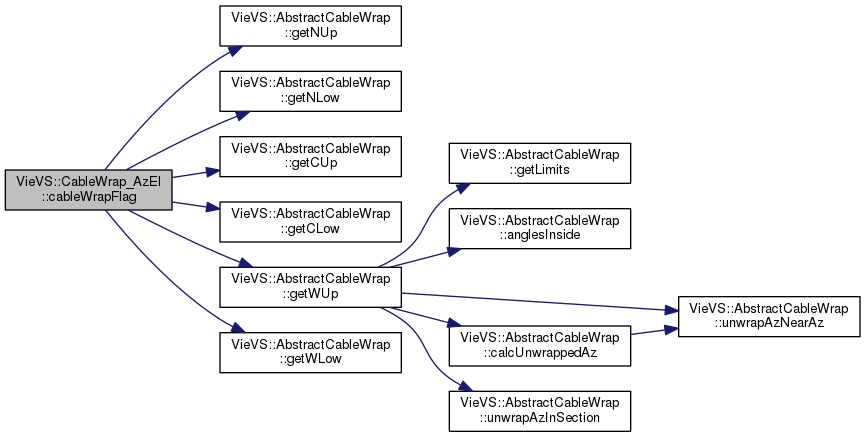

AbstractCableWrap::CableWrapFlag CableWrap_AzEl::cableWrapFlag ( double unaz ) const

overridevirtualnoexcept

cable wrap section based on unwrapped azimuth

Author: Matthias Schartner

Parameters

unaz	unwrapped azimuth in radians

Returns: cable wrap section

Implements VieVS::AbstractCableWrap.

Here is the call graph for this function:

std::pair< std::string, std::string > CableWrap_AzEl::getMotions ( ) const

overridevirtualnoexcept

antenna motion names in .vex format

Author: Matthias Schartner

Returns: antenna motion name for first and second axis (e.g.: {"az", "el"})

Implements VieVS::AbstractCableWrap.

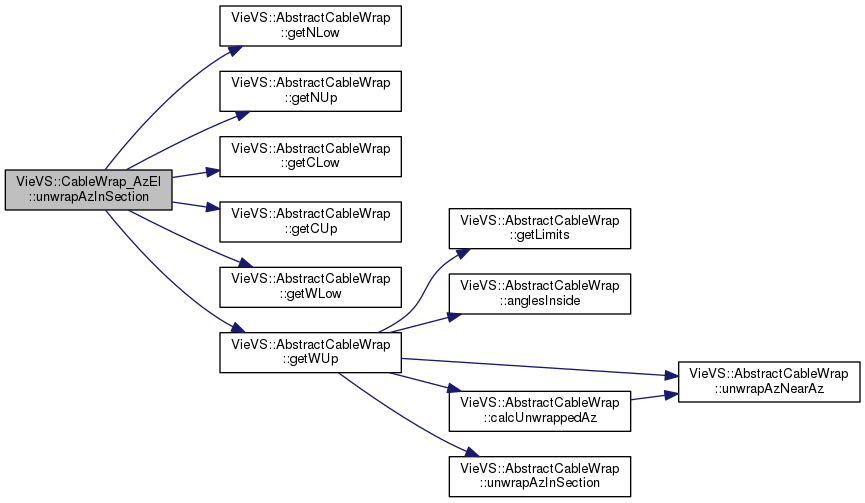

bool CableWrap_AzEl::unwrapAzInSection	(	PointingVector &	pv,
		char	section
	)		const

overridevirtualnoexcept

unwraps the current azimuth of pointing vector in specific cable wrap section

Author: Matthias Schartner

The azimuth of one pointing vector is first calculated in the range between [-pi,pi]. This function adds an factor of 2*pi so that the azimuth is inside the cable wrap section limits.

This function takes cable wrap section in sked format.

'C': clock wise
'-': neutral
'W': counter clock wise

Parameters

pv	pointing vector whose azimuth should be unwrapped
section	cable wrap section in sked format

Returns: true if unwrapping was possible, otherwise false

Implements VieVS::AbstractCableWrap.

Here is the call graph for this function:

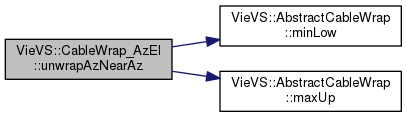

void CableWrap_AzEl::unwrapAzNearAz	(	PointingVector &	new_pointingVector,
		double	az_old
	)		const

overridevirtualnoexcept

unwraps the current azimuth of pointing vector

Author: Matthias Schartner

The azimuth of one pointing vector is first calculated in the range between [-pi,pi]. This function adds an factor of 2*pi so that the azimuth is inside the axis limits. If there are possible ambiguities, for example if the azimuth axis range is bigger than 360 degrees, the value, which is closest to the second input parameter value (az_old) is used.

Parameters
