this is the VieSched++ core class More...

#include <VieSchedpp.h>

Collaboration diagram for VieVS::VieSchedpp:

Public Member Functions
	VieSchedpp ()=default
	constructor More...

	VieSchedpp (const std::string &inputFile)
	constructor More...

void	run ()
	start VieSched++ More...

Private Member Functions
void	readSkdCatalogs ()
	read sked catalogs More...

void	multiCoreSetup ()
	initialize parallel processing More...

void	init_log ()
	initialize log files More...

std::map< int, double >	summarizeSimulationResult (bool output=true)
	summarize simulation result More...

std::vector< std::tuple< std::string, int, double > >	getPriorityCoefficients (const std::string &type, const std::vector< std::string > &header)
	get priority values from xml file More...

std::map< int, double >	listBest (std::ofstream &of, const std::string &type, const std::map< int, std::vector< double >> &storage, const std::vector< std::tuple< std::string, int, double >> &priorityLookup)
	list best schedules based on simulations More...

std::map< int, double >	printRecommendation (const std::map< int, double > &mfe_costs, const std::map< int, double > &rep_costs, const std::map< int, std::vector< double >> &storage, bool output=true)
	output best schedules based on simulations More...

Private Attributes
std::string	inputFile_
	VieSchedpp.xml file. More...

std::string	path_
	path to VieSchedpp.xml file More...

std::string	sessionName_
	session name More...

boost::property_tree::ptree	xml_
	content of VieSchedpp.xml file More...

SkdCatalogReader	skdCatalogs_
	sked catalogs More...

std::vector< VieVS::MultiScheduling::Parameters >	multiSchedParameters_
	list of all multi scheduling parameters More...

Detailed Description

this is the VieSched++ core class

this class starts the scheduling process. It monitores the creation of all schedules and all threads.

Author: Matthias Schartner

Date: 02.07.2018

Constructor & Destructor Documentation

VieVS::VieSchedpp::VieSchedpp ( )

default

constructor

Author: Matthias Schartner

VieSchedpp::VieSchedpp ( const std::string & inputFile )

explicit

constructor

Author: Matthias Schartner

Parameters

inputFile path and name of input file (usually called VieSchedpp.xml)

Member Function Documentation

vector< tuple< string, int, double > > VieSchedpp::getPriorityCoefficients	(	const std::string &	type,
		const std::vector< std::string > &	header
	)

private

get priority values from xml file

Author: Matthias Schartner

Parameters

type	output type (mfe or rep)
header	list of header file entries

Returns: list of tuples (first = name, second = index, third = priority value) of priority elements

Here is the caller graph for this function:

void VieSchedpp::init_log ( )

private

initialize log files

Author: Matthias Schartner

Here is the caller graph for this function:

map< int, double > VieSchedpp::listBest	(	std::ofstream &	of,
		const std::string &	type,
		const std::map< int, std::vector< double >> &	storage,
		const std::vector< std::tuple< std::string, int, double >> &	priorityLookup
	)

private

list best schedules based on simulations

Author: Matthias Schartner

Parameters

of	out file stream
type	output type (mfe or rep)
storage	values per schedule (first = version, second = list of values)
priorityLookup	list of tuples (first = name, second = index, third = priority value) of priority elements

Returns: list of scores per session (key = version number, value = score)

Here is the call graph for this function:

Here is the caller graph for this function:

void VieSchedpp::multiCoreSetup ( )

private

initialize parallel processing

Author: Matthias Schartner

Here is the caller graph for this function:

map< int, double > VieSchedpp::printRecommendation	(	const std::map< int, double > &	mfe_costs,
		const std::map< int, double > &	rep_costs,
		const std::map< int, std::vector< double >> &	storage,
		bool	output = `true`
	)

private

output best schedules based on simulations

Author: Matthias Schartner

Parameters

mfe_costs	mean formal error costs
rep_costs	repeatability costs
storage	values per schedule (first = version, second = list of values)
output	flag if output should be printed to console

Returns: score per version

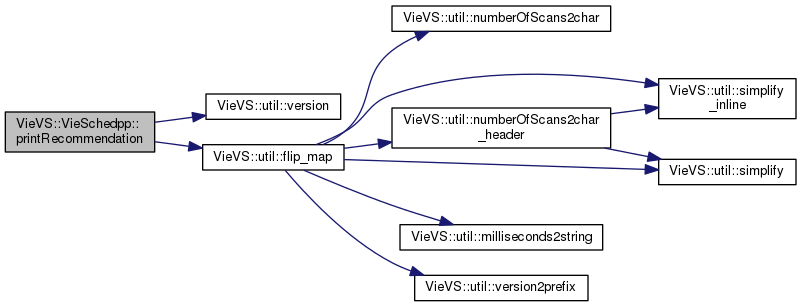

Here is the call graph for this function:

Here is the caller graph for this function:

void VieSchedpp::readSkdCatalogs ( )

private

read sked catalogs

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void VieSchedpp::run ( )

start VieSched++

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

std::map< int, double > VieSchedpp::summarizeSimulationResult ( bool output = true )

private

summarize simulation result

Author: Matthias Schartner

Parameters

output flag if output should be printed to console

Returns: score per version

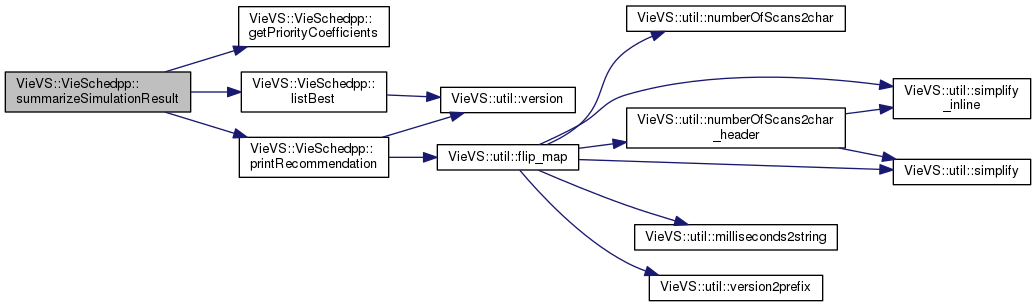

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::string VieVS::VieSchedpp::inputFile_

private

VieSchedpp.xml file.

std::vector<VieVS::MultiScheduling::Parameters> VieVS::VieSchedpp::multiSchedParameters_

private

list of all multi scheduling parameters

std::string VieVS::VieSchedpp::path_

private

path to VieSchedpp.xml file

std::string VieVS::VieSchedpp::sessionName_

private

session name

SkdCatalogReader VieVS::VieSchedpp::skdCatalogs_

private

sked catalogs

boost::property_tree::ptree VieVS::VieSchedpp::xml_

private

content of VieSchedpp.xml file

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/VieSchedpp.h
/home/travis/build/TUW-VieVS/VieSchedpp/VieSchedpp.cpp
