define high impact scans More...

#include <HighImpactScanDescriptor.h>

Inheritance diagram for VieVS::HighImpactScanDescriptor:

Collaboration diagram for VieVS::HighImpactScanDescriptor:

Classes
class	AzElDescriptor
	azimuth elevation based high impact scan descriptor More...

Public Member Functions
	HighImpactScanDescriptor (unsigned int interval, unsigned int minTimeBetweenScans)
	constructor More...

void	addAzElDescriptor (double az, double el, double margin, const std::vector< unsigned long > &staids)
	add azimuth elevation based high impact scan selection More...

double	highImpactScore (const PointingVector &pv) const
	calc high impact score per station More...

double	highImpactScore (const Scan &scan) const
	calc high impact score per scan More...

unsigned int	getInterval () const
	get target interval More...

unsigned int	getMinTimeBetweenScans () const
	get minimum time between high impact scans More...

std::vector< unsigned long >	getStationIds () const
	list of stations with high impact descriptions More...

void	possibleHighImpactScans (unsigned int time, const Network &network, const SourceList &sourceList)
	calc possible high impact scans More...

void	updateHighImpactScans (const Network &network, const SourceList &sourceList, const std::shared_ptr< const Mode > &mode, const std::shared_ptr< Subnetting > &subnetting)
	update high impact scans More...

std::vector< Scan >	highestImpactScans (Network &network, const SourceList &sourceList, const std::shared_ptr< const Mode > &mode)
	get highest impact scans More...

bool	isCorrectHighImpactScan (const Scan &target, const std::vector< Scan > &scans, std::shared_ptr< const AbstractSource > source)
	check if target scan is valid high impact scans More...

bool	hasMoreScans ()
	checks if there are more possible high impact scans More...

void	updateLogfile (std::ofstream &of)
	update log file for new high impact scans More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Private Attributes
unsigned int	interval_
	test interval in seconds More...

unsigned int	minTimeBetweenScans_
	minimum time between high impact scans in seconds More...

std::vector< AzElDescriptor >	azElDescritors_
	list of azimuth elevation descriptors More...

std::vector< std::map< unsigned long, double > >	scores_
	list of scores by high impact scans More...

Subcon	highImpactScans_
	high impact scan subcon More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

define high impact scans

Author: Matthias Schartner

Date: 27.04.2018

Constructor & Destructor Documentation

HighImpactScanDescriptor::HighImpactScanDescriptor	(	unsigned int	interval,
		unsigned int	minTimeBetweenScans
	)

constructor

Author: Matthias Schartner

Parameters

interval	test interval in seconds
minTimeBetweenScans	minimum time between high impact scans in seconds

Member Function Documentation

void HighImpactScanDescriptor::addAzElDescriptor	(	double	az,
		double	el,
		double	margin,
		const std::vector< unsigned long > &	staids
	)

add azimuth elevation based high impact scan selection

Author: Matthias Schartner

Parameters

az	target azimuth in radians
el	target elevation in radians
margin	azimuth elevation margin in radians
staids	list of stations with high impact descriptions

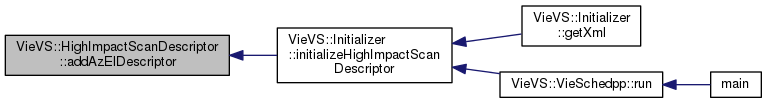

Here is the caller graph for this function:

unsigned int VieVS::HighImpactScanDescriptor::getInterval ( ) const

inline

get target interval

Author: Matthias Schartner

Returns: interval in seconds

Here is the caller graph for this function:

unsigned int VieVS::HighImpactScanDescriptor::getMinTimeBetweenScans ( ) const

inline

get minimum time between high impact scans

Author: Matthias Schartner

Returns: minimum time between high impact scans in seconds

Here is the call graph for this function:

std::vector< unsigned long > HighImpactScanDescriptor::getStationIds ( ) const

list of stations with high impact descriptions

Author: Matthias Schartner

Returns: list of stations

Here is the caller graph for this function:

bool VieVS::HighImpactScanDescriptor::hasMoreScans ( )

inline

checks if there are more possible high impact scans

Author: Matthias Schartner

Returns: true if there are more possible high impact scans, otherwise false

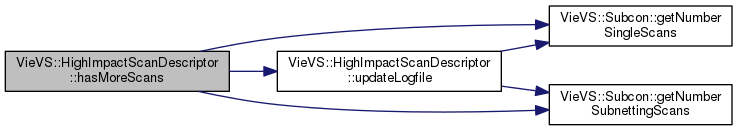

Here is the call graph for this function:

Here is the caller graph for this function:

vector< Scan > HighImpactScanDescriptor::highestImpactScans	(	Network &	network,
		const SourceList &	sourceList,
		const std::shared_ptr< const Mode > &	mode
	)

get highest impact scans

Author: Matthias Schartner

Parameters

network	station network
sourceList	source list
mode	observing mode

Returns: list of scans with highest impact score

Here is the call graph for this function:

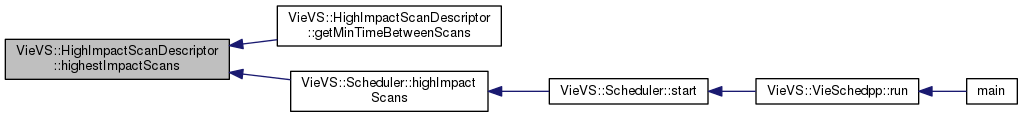

Here is the caller graph for this function:

double HighImpactScanDescriptor::highImpactScore ( const PointingVector & pv ) const

calc high impact score per station

Author: Matthias Schartner

Parameters

pv	target pointing vector

Returns: high impact score per station

double HighImpactScanDescriptor::highImpactScore ( const Scan & scan ) const

calc high impact score per scan

Author: Matthias Schartner

Parameters

scan	target scan

Returns: high impact score per scan

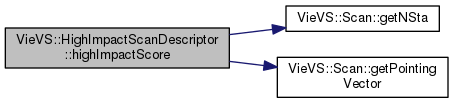

Here is the call graph for this function:

bool HighImpactScanDescriptor::isCorrectHighImpactScan	(	const Scan &	target,
		const std::vector< Scan > &	scans,
		std::shared_ptr< const AbstractSource >	source
	)

check if target scan is valid high impact scans

Author: Matthias Schartner

based on minimum time between high impact scans

Parameters

target	target scan
scans	already scheduled scans
source	target source

Returns: true if target scan is valid high impact scan, otherwise false

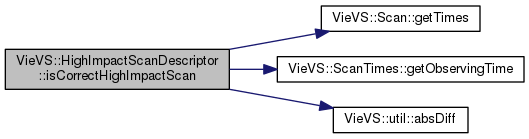

Here is the call graph for this function:

Here is the caller graph for this function:

void HighImpactScanDescriptor::possibleHighImpactScans	(	unsigned int	time,
		const Network &	network,
		const SourceList &	sourceList
	)

calc possible high impact scans

Author: Matthias Schartner

Parameters

time	target time
network	station network
sourceList	source list

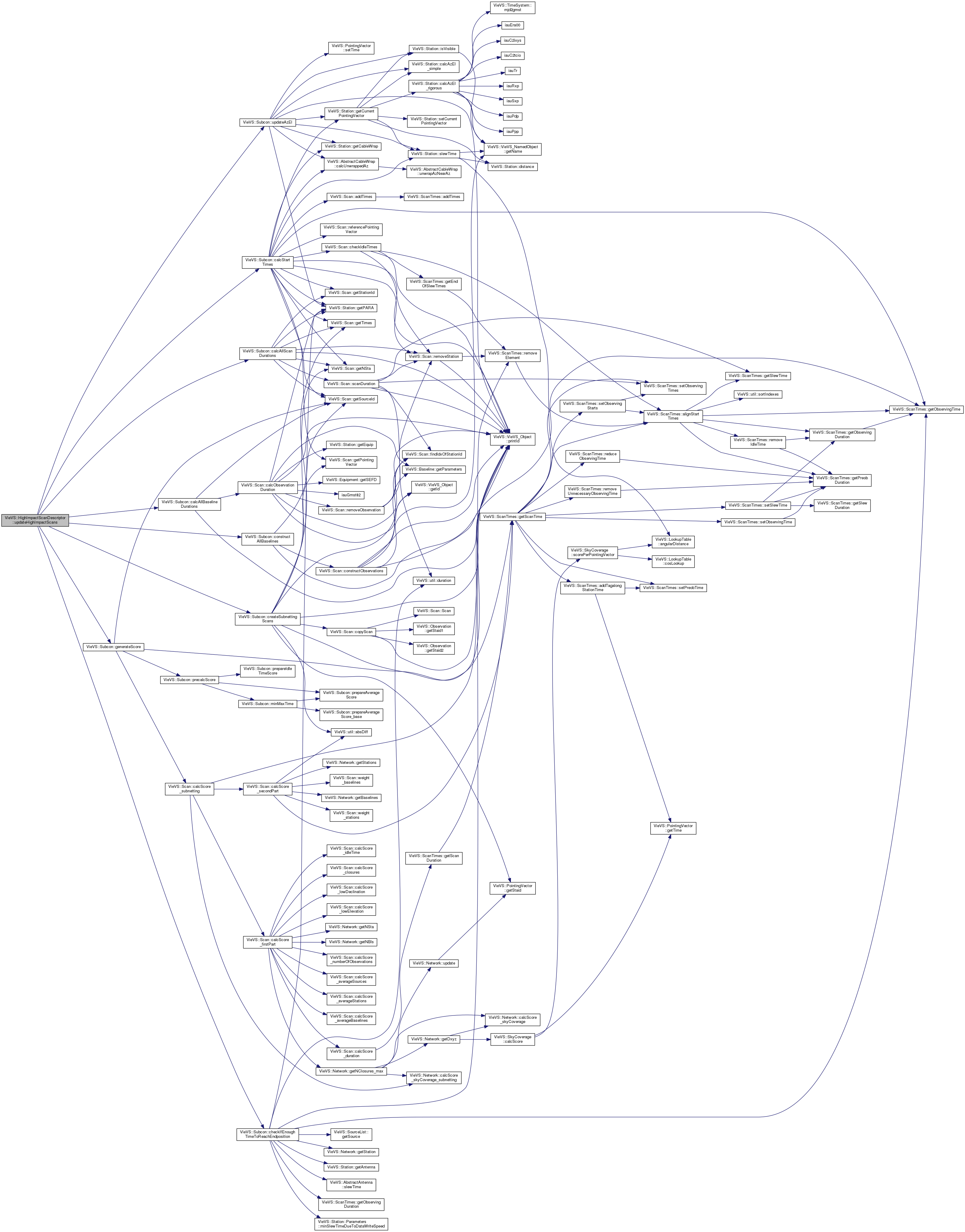

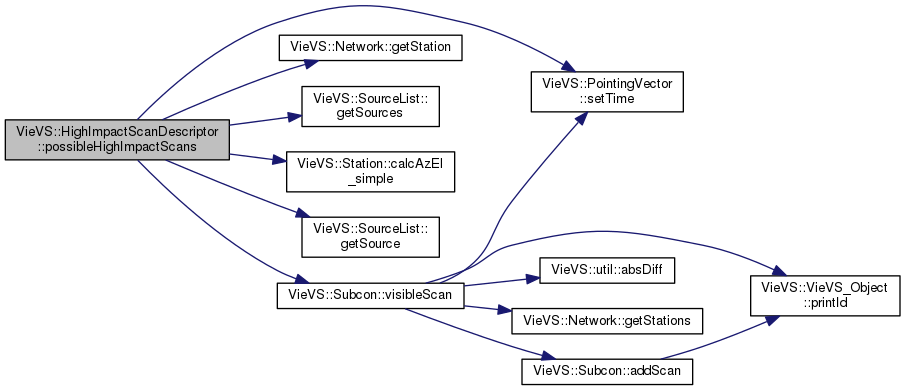

Here is the call graph for this function:

Here is the caller graph for this function:

void HighImpactScanDescriptor::updateHighImpactScans	(	const Network &	network,
		const SourceList &	sourceList,
		const std::shared_ptr< const Mode > &	mode,
		const std::shared_ptr< Subnetting > &	subnetting
	)

update high impact scans

Author: Matthias Schartner

Parameters

network	station network
sourceList	source list
mode	observing mode
subnetting	subnetting information

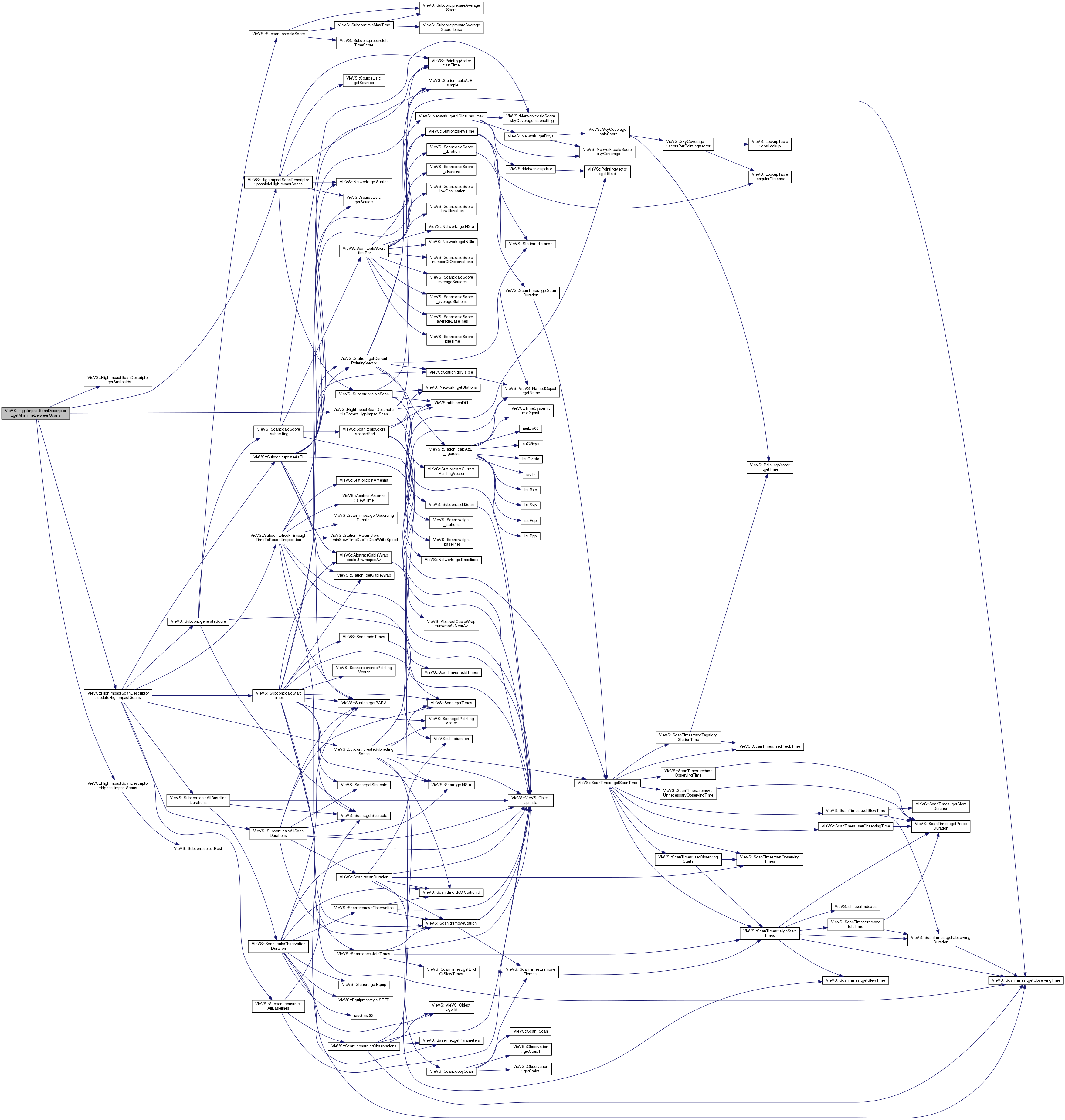

Here is the call graph for this function:

Here is the caller graph for this function:

void HighImpactScanDescriptor::updateLogfile ( std::ofstream & of )

update log file for new high impact scans

Author: Matthias Schartner

Parameters

of	out file stream

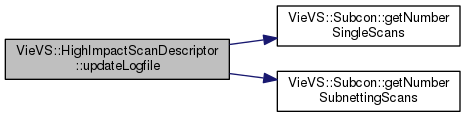

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::vector<AzElDescriptor> VieVS::HighImpactScanDescriptor::azElDescritors_

private

list of azimuth elevation descriptors

Subcon VieVS::HighImpactScanDescriptor::highImpactScans_

private

high impact scan subcon

unsigned int VieVS::HighImpactScanDescriptor::interval_

private

test interval in seconds

unsigned int VieVS::HighImpactScanDescriptor::minTimeBetweenScans_

private

minimum time between high impact scans in seconds

unsigned long HighImpactScanDescriptor::nextId = 0

staticprivate

next id for this object type

std::vector<std::map<unsigned long, double> > VieVS::HighImpactScanDescriptor::scores_

private

list of scores by high impact scans

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Misc/HighImpactScanDescriptor.h
/home/travis/build/TUW-VieVS/VieSchedpp/Misc/HighImpactScanDescriptor.cpp
