MODE block. More...

#include <Mode.h>

Inheritance diagram for VieVS::Mode:

Collaboration diagram for VieVS::Mode:

Public Member Functions
	Mode (std::string name, unsigned long nsta)
	constructor More...

boost::property_tree::ptree	toPropertytree (const std::vector< std::string > &stations) const
	converts object to property tree More...

void	addBlock (const std::shared_ptr< const If > &newIf, const std::vector< unsigned long > &staids)
	add new ID block More...

void	addBlock (const std::shared_ptr< const Bbc > &newBbc, const std::vector< unsigned long > &staids)
	add new BBC block More...

void	addBlock (const std::shared_ptr< const Freq > &newFreq, const std::vector< unsigned long > &staids)
	add new FREQ block More...

void	addBlock (const std::shared_ptr< const Track > &newTrack, const std::vector< unsigned long > &staids)
	add new Tracks block More...

void	addBlock (const std::shared_ptr< const std::string > &newTrackFrameFormat, const std::vector< unsigned long > &staids)
	add new track frame format block More...

void	calcRecordingRates ()
	calculate recording rates More...

void	setRecordingRates (const std::string &band, double recRate)
	set recording rates for simple manual model More...

void	setEfficiencyFactor (double eff)
	set efficiency factor for simple manual model More...

void	setBands (const std::set< std::string > &bands)
	set band names for simple manual model More...

double	recordingRate (unsigned long staid1, unsigned long staid2, const std::string &band) const
	recording rate for observation More...

double	efficiency (unsigned long staid1, unsigned long staid2) const
	efficiency factor between stations More...

boost::optional< const std::shared_ptr< const If > & >	getIf (unsigned long staid) const
	get IF block per station More...

boost::optional< const std::shared_ptr< const Bbc > & >	getBbc (unsigned long staid) const
	get BBC block per station More...

boost::optional< const std::shared_ptr< const Freq > & >	getFreq (unsigned long staid) const
	get FREQ block per station More...

boost::optional< const std::shared_ptr< const Track > & >	getTracks (unsigned long staid) const
	get TRACKS block per station More...

boost::optional< const std::shared_ptr< const std::string > & >	getTrackFrameFormat (unsigned long staid) const
	get track frame format block per station More...

boost::optional< const std::vector< unsigned long > & >	getAllStationsWithBlock (const std::shared_ptr< const If > &this_if) const
	get list of all station per IF block More...

boost::optional< const std::vector< unsigned long > & >	getAllStationsWithBlock (const std::shared_ptr< const Bbc > &bbc) const
	get list of all station per BBC block More...

boost::optional< const std::vector< unsigned long > & >	getAllStationsWithBlock (const std::shared_ptr< const Freq > &freq) const
	get list of all station per FREQ block More...

boost::optional< const std::vector< unsigned long > & >	getAllStationsWithBlock (const std::shared_ptr< const Track > &track) const
	get list of all station per TRACKS block More...

boost::optional< const std::vector< unsigned long > & >	getAllStationsWithBlock (const std::shared_ptr< const std::string > &trackFrameFormat) const
	get list of all station per track frame format More...

void	summary (std::ofstream &of, const std::vector< std::string > &stations) const
	create summary More...

void	operationNotesSummary (std::ofstream &of, const std::vector< std::string > &stations) const
	create summary for operation notes More...

double	recordingRate (unsigned long staid) const
	get recording rate per station More...

void	toVexModeDefiniton (std::ofstream &of, const std::vector< std::string > &stations) const
	writes MODE block in vex format More...

const std::set< std::string > &	getAllBands () const
	get list of all bands More...

unsigned long	getNSta () const
	getter for number of stations More...

void	changeIf (int idx, unsigned long staid)
	change IF for station More...

void	changeBbc (int idx, unsigned long staid)
	change BBC for station More...

void	changeTracks (int idx, unsigned long staid)
	change TRACK for station More...

void	changeTrackFrameFormat (int idx, unsigned long staid)
	change track frame format for station More...

void	changeFreq (int idx, unsigned long staid)
	change FREQ for station More...

void	removeFreq (int idx)
	remove FREQ block More...

void	removeBbc (int idx)
	remove BBC block More...

void	removeIf (int idx)
	remove IF block More...

void	removeTracks (int idx)
	remove TRACKS block More...

void	removeTrackFrameFormats (int idx)
	remove track frame format More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Private Member Functions
boost::property_tree::ptree	staids2propertyTree (const std::string &name, const std::vector< unsigned long > &ids, const std::vector< std::string > &staNames) const
	station ids to property tree More...

Private Attributes
unsigned long	nsta_
	number of stations More...

std::vector< std::pair< std::shared_ptr< const If >, std::vector< unsigned long > > >	ifs_
	all IF blocks with corresponding station ids More...

std::vector< std::pair< std::shared_ptr< const Bbc >, std::vector< unsigned long > > >	bbcs_
	all BBC blocks with corresponding station ids More...

std::vector< std::pair< std::shared_ptr< const Freq >, std::vector< unsigned long > > >	freqs_
	all FREQ blocks with corresponding station ids More...

std::vector< std::pair< std::shared_ptr< const Track >, std::vector< unsigned long > > >	tracks_
	all TRACKS blocks with corresponding station ids More...

std::vector< std::pair< std::shared_ptr< const std::string >, std::vector< unsigned long > > >	track_frame_formats_
	all track frame format blocks with corresponding station ids More...

std::unordered_map< std::pair< unsigned long, unsigned long >, std::unordered_map< std::string, double >, boost::hash< std::pair< unsigned long, unsigned long > > >	staids2recordingRate_
	recording rate per station ids and band More...

std::unordered_map< std::pair< unsigned long, unsigned long >, double, boost::hash< std::pair< unsigned long, unsigned long > > >	staids2efficiency_
	efficiency per station ids More...

std::unordered_map< unsigned long, double >	staid2totalRecordingRate_
	total recording rate per station id More...

std::set< std::string >	bands_
	list of all bands More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

MODE block.

following vex standard

Author: Matthias Schartner

Date: 17.09.2018

Constructor & Destructor Documentation

Mode::Mode	(	std::string	name,
		unsigned long	nsta
	)

constructor

Author: Matthias Schartner

Parameters

name	observing mode name
nsta	number of stations

Member Function Documentation

void VieVS::Mode::addBlock	(	const std::shared_ptr< const If > &	newIf,
		const std::vector< unsigned long > &	staids
	)

inline

add new ID block

Author: Matthias Schartner

Parameters

newIf	new IF block
staids	corresponding station Ids

void VieVS::Mode::addBlock	(	const std::shared_ptr< const Bbc > &	newBbc,
		const std::vector< unsigned long > &	staids
	)

inline

add new BBC block

Author: Matthias Schartner

Parameters

newBbc	new BBC block
staids	corresponding station Ids

void VieVS::Mode::addBlock	(	const std::shared_ptr< const Freq > &	newFreq,
		const std::vector< unsigned long > &	staids
	)

inline

add new FREQ block

Author: Matthias Schartner

Parameters

newFreq	new FREQ block
staids	corresponding station Ids

void VieVS::Mode::addBlock	(	const std::shared_ptr< const Track > &	newTrack,
		const std::vector< unsigned long > &	staids
	)

inline

add new Tracks block

Author: Matthias Schartner

Parameters

newTrack	new Tracks block
staids	corresponding station Ids

void VieVS::Mode::addBlock	(	const std::shared_ptr< const std::string > &	newTrackFrameFormat,
		const std::vector< unsigned long > &	staids
	)

inline

add new track frame format block

Author: Matthias Schartner

Parameters

newTrackFrameFormat	new track frame format block
staids	corresponding station Ids

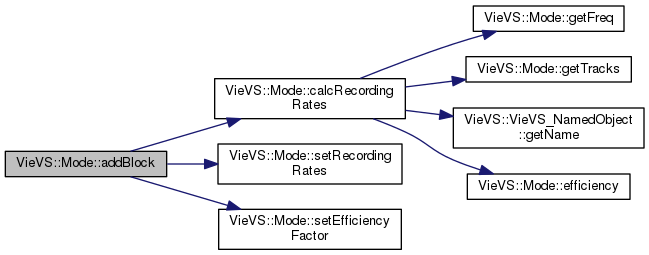

Here is the call graph for this function:

void Mode::calcRecordingRates ( )

calculate recording rates

Author: Matthias Schartner

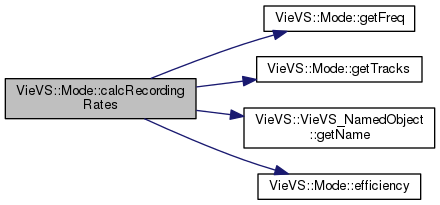

Here is the call graph for this function:

Here is the caller graph for this function:

void Mode::changeBbc	(	int	idx,
		unsigned long	staid
	)

change BBC for station

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI It changes the BBC for station staid

Parameters

idx	index of new BBC
staid	target station

Here is the caller graph for this function:

void Mode::changeFreq	(	int	idx,
		unsigned long	staid
	)

change FREQ for station

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI It changes the FREQ for station staid

Parameters

idx	index of new FREQ
staid	target station

Here is the caller graph for this function:

void Mode::changeIf	(	int	idx,
		unsigned long	staid
	)

change IF for station

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI It changes the IF for station staid

Parameters

idx	index of new IF
staid	target station

Here is the caller graph for this function:

void Mode::changeTrackFrameFormat	(	int	idx,
		unsigned long	staid
	)

change track frame format for station

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI It changes the track frame format for station staid

Parameters

idx	index of new track frame format
staid	target station

Here is the caller graph for this function:

void Mode::changeTracks	(	int	idx,
		unsigned long	staid
	)

change TRACK for station

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI It changes the TRACK for station staid

Parameters

idx	index of new TRACK
staid	target station

Here is the caller graph for this function:

double Mode::efficiency	(	unsigned long	staid1,
		unsigned long	staid2
	)		const

efficiency factor between stations

Author: Matthias Schartner

efficiency is based on bit efficiency and correlator efficiency Bit efficiency: 1-bit: 0.5715 2-bit: 0.6366 Correlator efficiency: DiFX: 0.97

Parameters

staid1	station 1
staid2	station 2

Returns: efficiency factor

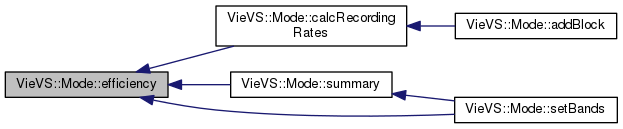

Here is the caller graph for this function:

const std::set<std::string>& VieVS::Mode::getAllBands ( ) const

inline

get list of all bands

Author: Matthias Schartner

Returns: list of all bands

boost::optional< const std::vector< unsigned long > & > Mode::getAllStationsWithBlock ( const std::shared_ptr< const If > & this_if ) const

get list of all station per IF block

Author: Matthias Schartner

Parameters

this_if target IF block

Returns: list of stations

Here is the caller graph for this function:

boost::optional< const std::vector< unsigned long > & > Mode::getAllStationsWithBlock ( const std::shared_ptr< const Bbc > & bbc ) const

get list of all station per BBC block

Author: Matthias Schartner

Parameters

bbc	target BBC block

Returns: list of stations

boost::optional< const std::vector< unsigned long > & > Mode::getAllStationsWithBlock ( const std::shared_ptr< const Freq > & freq ) const

get list of all station per FREQ block

Author: Matthias Schartner

Parameters

freq	target FREQ block

Returns: list of stations

boost::optional< const std::vector< unsigned long > & > Mode::getAllStationsWithBlock ( const std::shared_ptr< const Track > & track ) const

get list of all station per TRACKS block

Author: Matthias Schartner

Parameters

track target TRACKS block

Returns: list of stations

boost::optional< const std::vector< unsigned long > & > Mode::getAllStationsWithBlock ( const std::shared_ptr< const std::string > & trackFrameFormat ) const

get list of all station per track frame format

Author: Matthias Schartner

Parameters

trackFrameFormat target track frame format

Returns: list of stations

boost::optional< const std::shared_ptr< const Bbc > & > Mode::getBbc ( unsigned long staid ) const

get BBC block per station

Author: Matthias Schartner

Parameters

staid station id

Returns: BBC block

Here is the caller graph for this function:

boost::optional< const std::shared_ptr< const Freq > & > Mode::getFreq ( unsigned long staid ) const

get FREQ block per station

Author: Matthias Schartner

Parameters

staid station id

Returns: FREQ block

Here is the caller graph for this function:

boost::optional< const std::shared_ptr< const If > & > Mode::getIf ( unsigned long staid ) const

get IF block per station

Author: Matthias Schartner

Parameters

staid station id

Returns: IF block

Here is the caller graph for this function:

unsigned long VieVS::Mode::getNSta ( ) const

inline

getter for number of stations

Author: Matthias Schartner

Returns: number of stations

Here is the call graph for this function:

boost::optional< const std::shared_ptr< const std::string > & > Mode::getTrackFrameFormat ( unsigned long staid ) const

get track frame format block per station

Author: Matthias Schartner

Parameters

staid station id

Returns: track frame format

Here is the caller graph for this function:

boost::optional< const std::shared_ptr< const Track > & > Mode::getTracks ( unsigned long staid ) const

get TRACKS block per station

Author: Matthias Schartner

Parameters

staid station id

Returns: TRACKS block

Here is the caller graph for this function:

void Mode::operationNotesSummary	(	std::ofstream &	of,
		const std::vector< std::string > &	stations
	)		const

create summary for operation notes

Author: Matthias Schartner

Parameters

of	outstream
stations	station names

Here is the call graph for this function:

Here is the caller graph for this function:

double Mode::recordingRate	(	unsigned long	staid1,
		unsigned long	staid2,
		const std::string &	band
	)		const

recording rate for observation

Author: Matthias Schartner

Parameters

staid1	station 1
staid2	station 2
band	observed band

Returns: recording rate

Here is the caller graph for this function:

double Mode::recordingRate ( unsigned long staid ) const

get recording rate per station

Author: Matthias Schartner

Parameters

staid station id

Returns: recording rate

void VieVS::Mode::removeBbc ( int idx )

inline

remove BBC block

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI

Parameters

idx	index of block which whould be removed

void VieVS::Mode::removeFreq ( int idx )

inline

remove FREQ block

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI

Parameters

idx	index of block which whould be removed

void VieVS::Mode::removeIf ( int idx )

inline

remove IF block

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI

Parameters

idx	index of block which whould be removed

void VieVS::Mode::removeTrackFrameFormats ( int idx )

inline

remove track frame format

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI

Parameters

idx	index of block which whould be removed

void VieVS::Mode::removeTracks ( int idx )

inline

remove TRACKS block

Author: Matthias Schartner

This function is used for setting up manual observing mode in the GUI

Parameters

idx	index of block which whould be removed

void VieVS::Mode::setBands ( const std::set< std::string > & bands )

inline

set band names for simple manual model

Author: Matthias Schartner

Parameters

bands list of all bands

Here is the call graph for this function:

void Mode::setEfficiencyFactor ( double eff )

set efficiency factor for simple manual model

Author: Matthias Schartner

Parameters

eff	efficiency factor

Here is the caller graph for this function:

void Mode::setRecordingRates	(	const std::string &	band,
		double	recRate
	)

set recording rates for simple manual model

Author: Matthias Schartner

Parameters

band	band name
recRate	recording rate

Here is the caller graph for this function:

boost::property_tree::ptree Mode::staids2propertyTree	(	const std::string &	name,
		const std::vector< unsigned long > &	ids,
		const std::vector< std::string > &	staNames
	)		const

private

station ids to property tree

Author: Matthias Schartner

Parameters

name	block name
ids	station ids
staNames	station names

Returns: property tree

Here is the caller graph for this function:

void Mode::summary	(	std::ofstream &	of,
		const std::vector< std::string > &	stations
	)		const

create summary

Author: Matthias Schartner

Parameters

of	outstream
stations	station names

Here is the call graph for this function:

Here is the caller graph for this function:

boost::property_tree::ptree Mode::toPropertytree ( const std::vector< std::string > & stations ) const

converts object to property tree

Author: Matthias Schartner

Parameters

stations station names

Returns: property tree

Here is the call graph for this function:

void Mode::toVexModeDefiniton	(	std::ofstream &	of,
		const std::vector< std::string > &	stations
	)		const

writes MODE block in vex format

Author: Matthias Schartner

Parameters

of	vex file stream
stations	station names

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

std::set<std::string> VieVS::Mode::bands_

private

list of all bands

std::vector<std::pair<std::shared_ptr<const Bbc>, std::vector<unsigned long> > > VieVS::Mode::bbcs_

private

all BBC blocks with corresponding station ids

std::vector<std::pair<std::shared_ptr<const Freq>, std::vector<unsigned long> > > VieVS::Mode::freqs_

private

all FREQ blocks with corresponding station ids

std::vector<std::pair<std::shared_ptr<const If>, std::vector<unsigned long> > > VieVS::Mode::ifs_

private

all IF blocks with corresponding station ids

unsigned long VieVS::Mode::nextId = 0

staticprivate

next id for this object type

unsigned long VieVS::Mode::nsta_

private

number of stations

std::unordered_map<unsigned long, double> VieVS::Mode::staid2totalRecordingRate_

private

total recording rate per station id

std::unordered_map<std::pair<unsigned long, unsigned long>, double, boost::hash<std::pair<unsigned long, unsigned long> > > VieVS::Mode::staids2efficiency_

private

efficiency per station ids

std::unordered_map<std::pair<unsigned long, unsigned long>, std::unordered_map<std::string, double>, boost::hash<std::pair<unsigned long, unsigned long> > > VieVS::Mode::staids2recordingRate_

private

recording rate per station ids and band

std::vector<std::pair<std::shared_ptr<const std::string>, std::vector<unsigned long> > > VieVS::Mode::track_frame_formats_

private

all track frame format blocks with corresponding station ids

std::vector<std::pair<std::shared_ptr<const Track>, std::vector<unsigned long> > > VieVS::Mode::tracks_

private

all TRACKS blocks with corresponding station ids

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Mode.h
/home/travis/build/TUW-VieVS/VieSchedpp/ObservingMode/Mode.cpp

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
