representation of a VLBI scan More...

#include <Scan.h>

Inheritance diagram for VieVS::Scan:

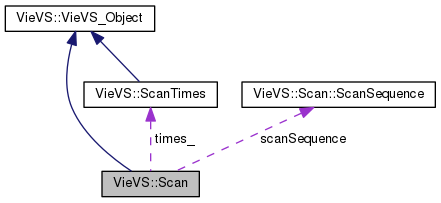

Collaboration diagram for VieVS::Scan:

Classes
struct	ScanSequence
	specify custom scan sequence rules More...

Public Types
enum	ScanConstellation { ScanConstellation::single, ScanConstellation::subnetting }
	scan constellation type More...

enum	ScanType { ScanType::highImpact, ScanType::standard, ScanType::fillin, ScanType::astroCalibrator, ScanType::calibrator }
	scan type More...

Public Member Functions
bool	check ()
	internal debugging function that checks if the number of pointing vectors is equal to nsta More...

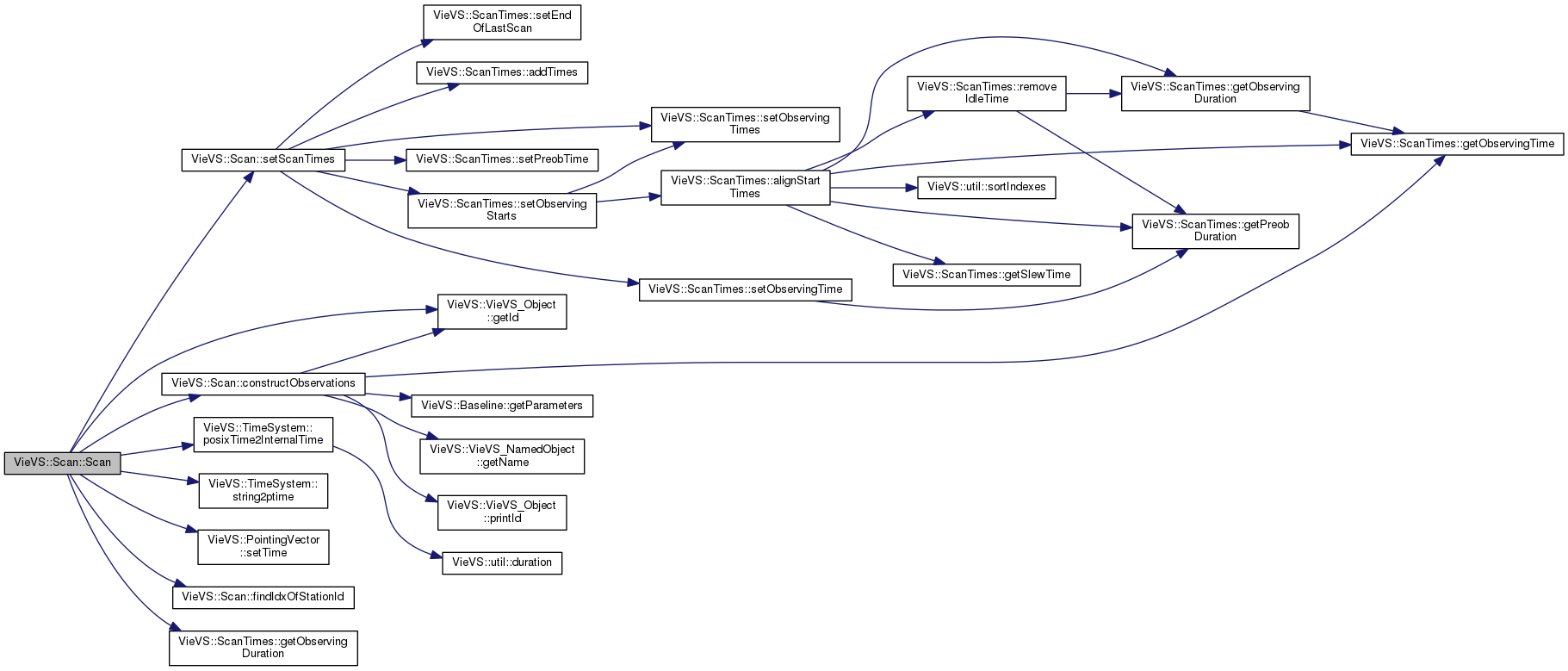

	Scan (std::vector< PointingVector > &pointingVectors, std::vector< unsigned int > &endOfLastScan, ScanType type)
	constructor More...

	Scan (std::vector< PointingVector > pv, ScanTimes times, std::vector< Observation > obs, ScanType type=Scan::ScanType::standard)
	constructor More...

	Scan (const boost::property_tree::ptree &ptree, Network &network, const SourceList &sourceList, ScanType type=Scan::ScanType::standard)
	constructor based on property tree More...

void	setType (ScanType type) noexcept
	sets the scan type More...

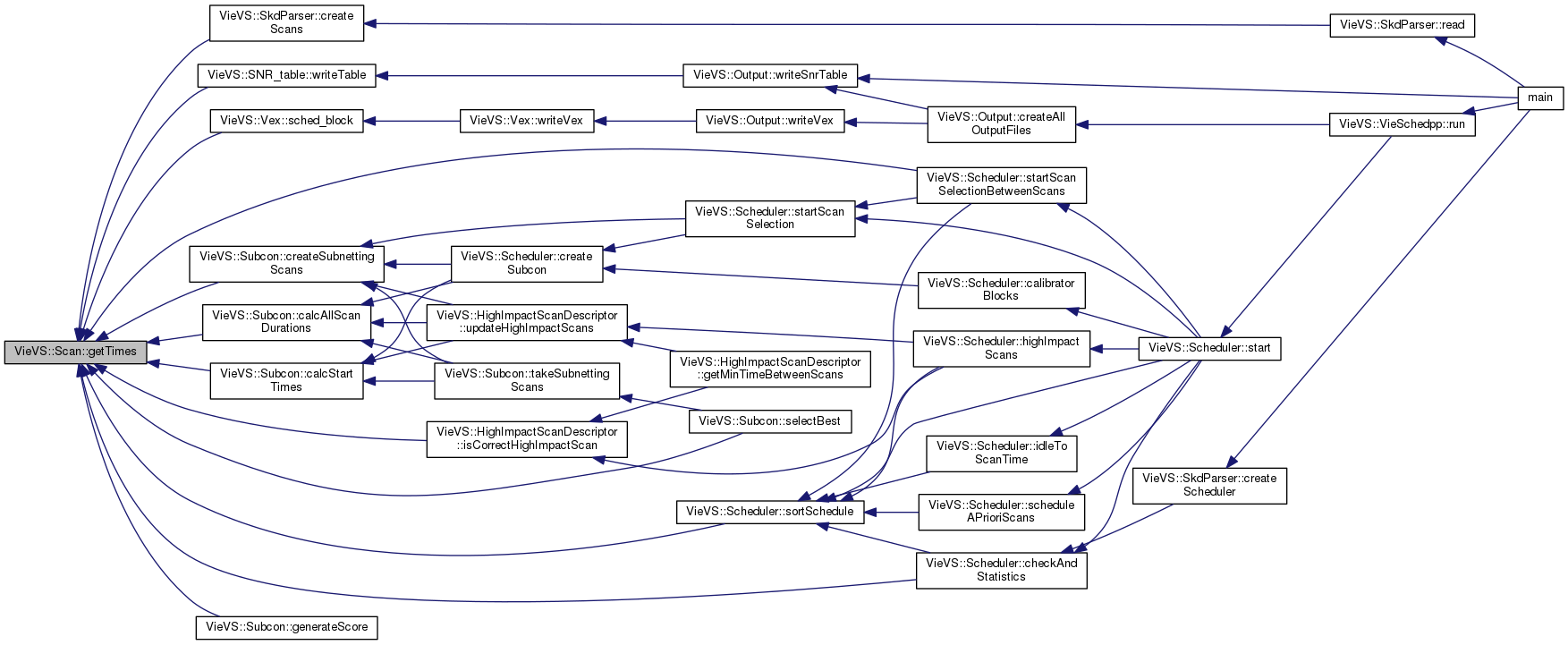

const ScanTimes &	getTimes () const noexcept
	getter to get all scan times More...

ScanTimes &	referenceTime () noexcept
	referenct to all scan times More...

unsigned long	getNSta () const noexcept
	getter for number of stations More...

unsigned long	getStationId (int idx) const noexcept
	getter for station id for one index More...

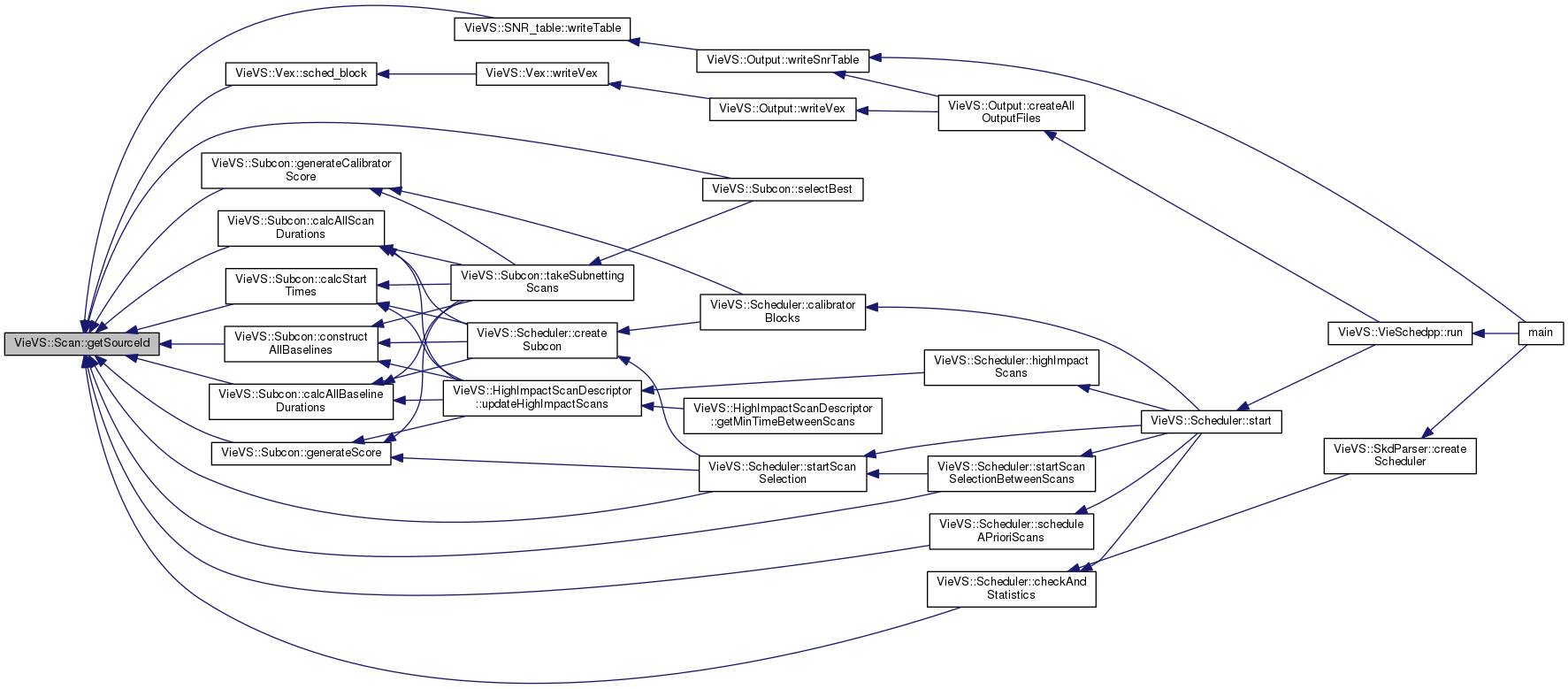

unsigned long	getSourceId () const noexcept
	getter for source id More...

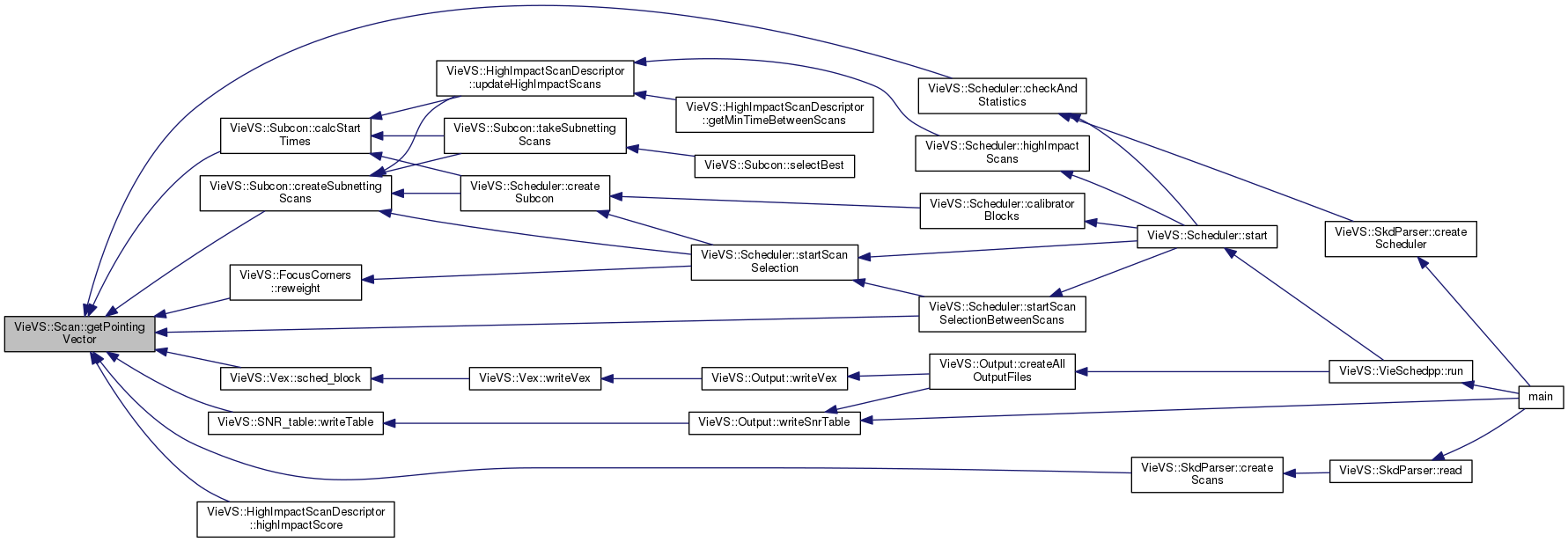

const PointingVector &	getPointingVector (int idx, Timestamp ts=Timestamp::start) const noexcept
	getter for pointing vector for an index More...

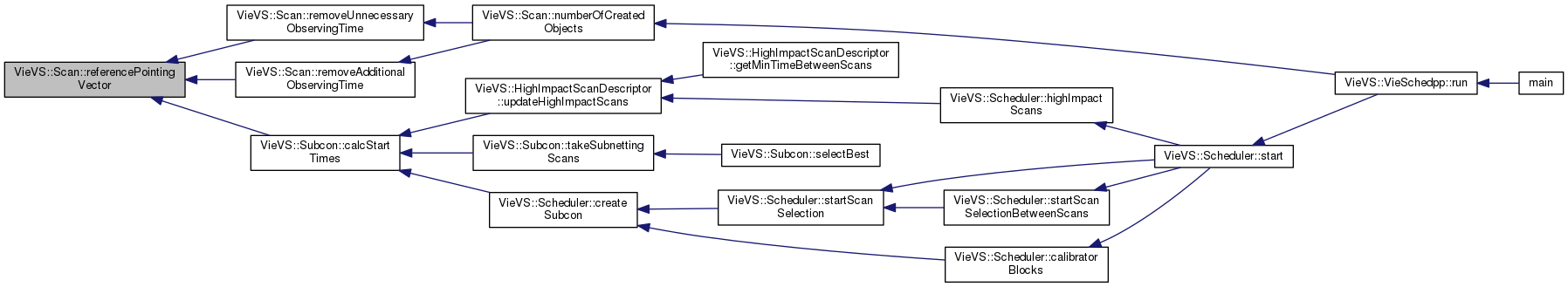

PointingVector &	referencePointingVector (int idx, Timestamp ts=Timestamp::start) noexcept
	reference to pointing vector for an index More...

double	getScore () const noexcept
	getter for the total score of this scan More...

ScanType	getType () const noexcept
	getter for scan type More...

ScanConstellation	getScanConstellation () const noexcept
	getter for scan constellation type More...

const Observation &	getObservation (int idx) const noexcept
	getter for a single observations More...

Observation &	refObservation (int idx) noexcept
	referemce to a single observations More...

Observation &	refObservation (unsigned long staid1, unsigned long staid2)
	referemce to a single observations More...

std::vector< Observation > &	refObservations ()
	referemces to all observations More...

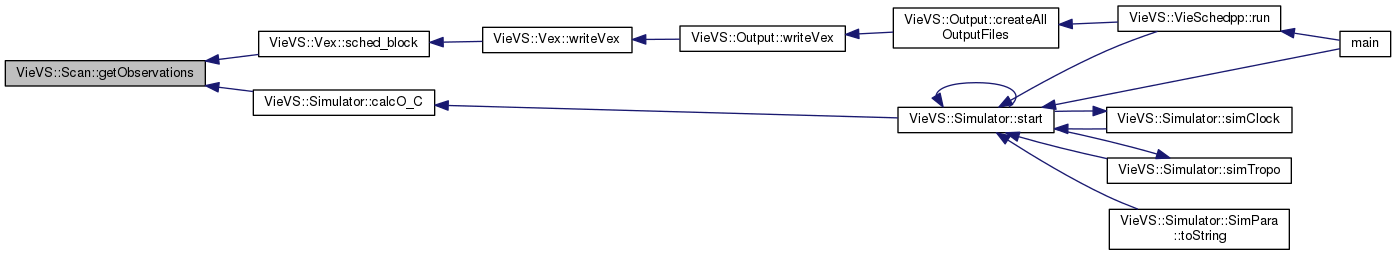

const std::vector< Observation > &	getObservations () const noexcept
	get all observations More...

bool	removeStation (int idx, const std::shared_ptr< const AbstractSource > &source) noexcept
	delete the pointing vector at position idx and all its corresponding times and observations More...

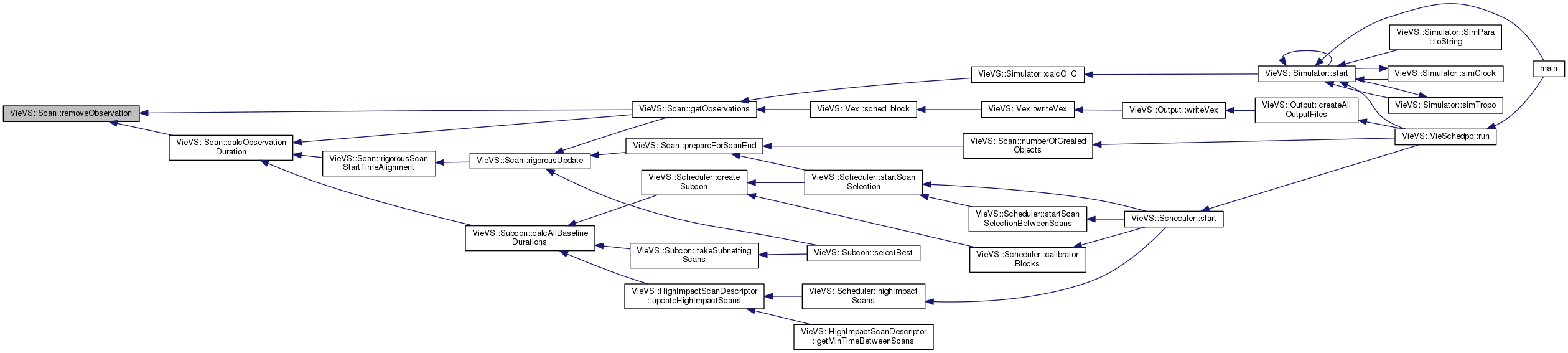

bool	removeObservation (int iobs, const std::shared_ptr< const AbstractSource > &source) noexcept
	delete the observation at position iobs from scan More...

boost::optional< unsigned long >	findIdxOfStationId (unsigned long id) const noexcept
	finds the index of an station id More...

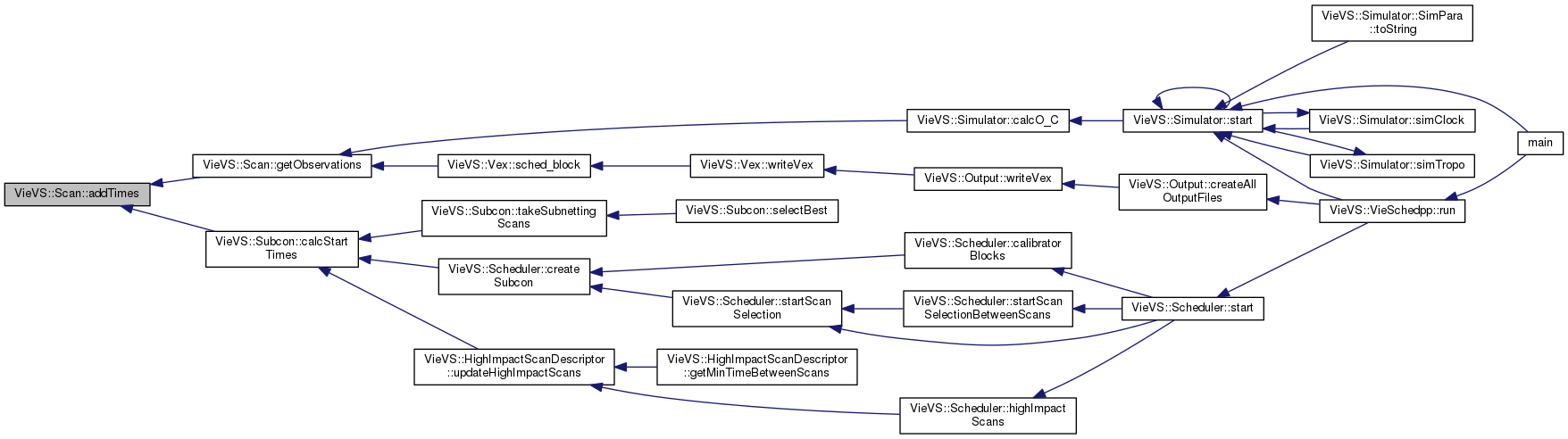

void	addTimes (int idx, unsigned int fieldSystem, unsigned int slew, unsigned int preob) noexcept
	adds scan times More...

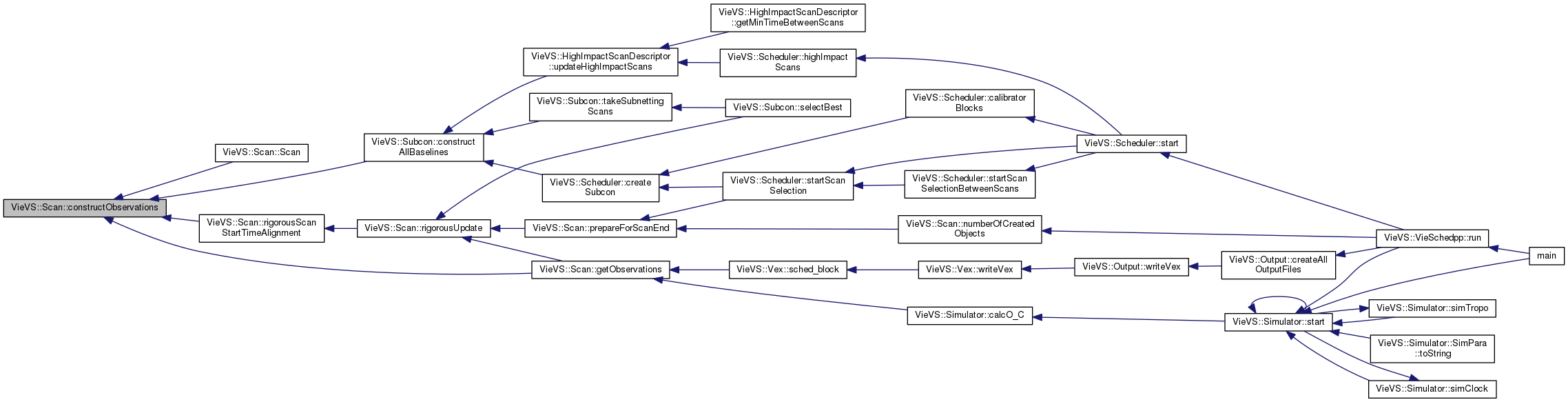

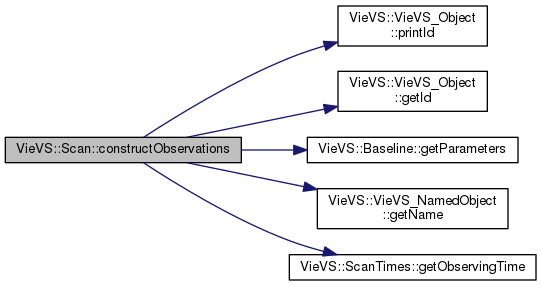

bool	constructObservations (const Network &network, const std::shared_ptr< const AbstractSource > &source) noexcept
	constructs all possible observations More...

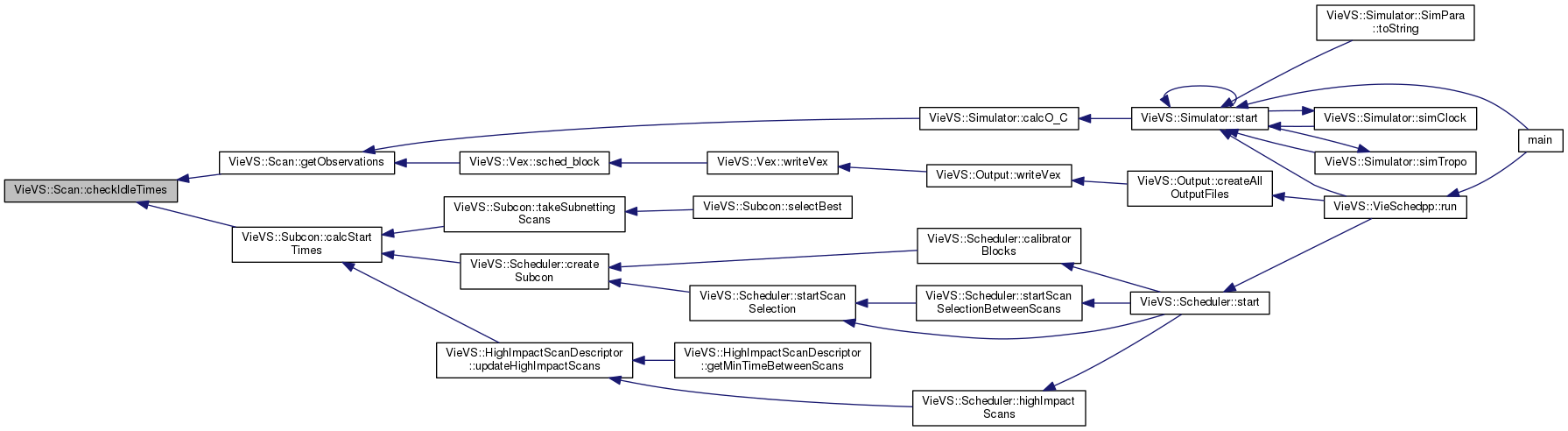

bool	checkIdleTimes (std::vector< unsigned int > &maxIdle, const std::shared_ptr< const AbstractSource > &source) noexcept
	checks if the idle time is not too long More...

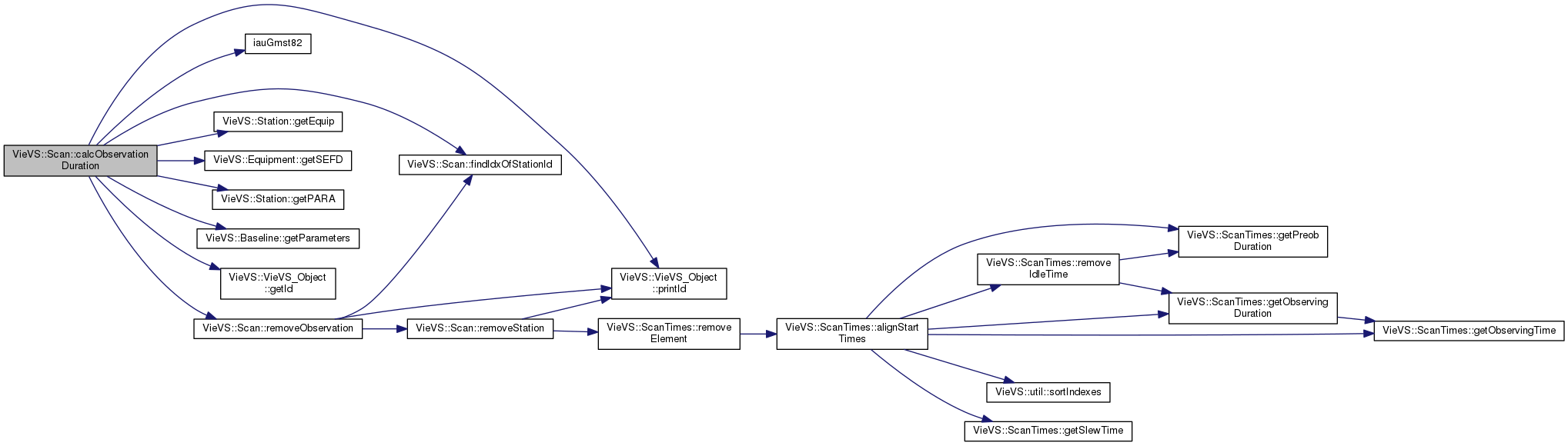

bool	calcObservationDuration (const Network &network, const std::shared_ptr< const AbstractSource > &source, const std::shared_ptr< const Mode > &mode) noexcept
	calculates the scan durations per observation More...

double	getAverageSNR (const Network &network, const std::shared_ptr< const AbstractSource > &source, const std::shared_ptr< const Mode > &mode)
	calculates the average SNR of all observations in this scan More...

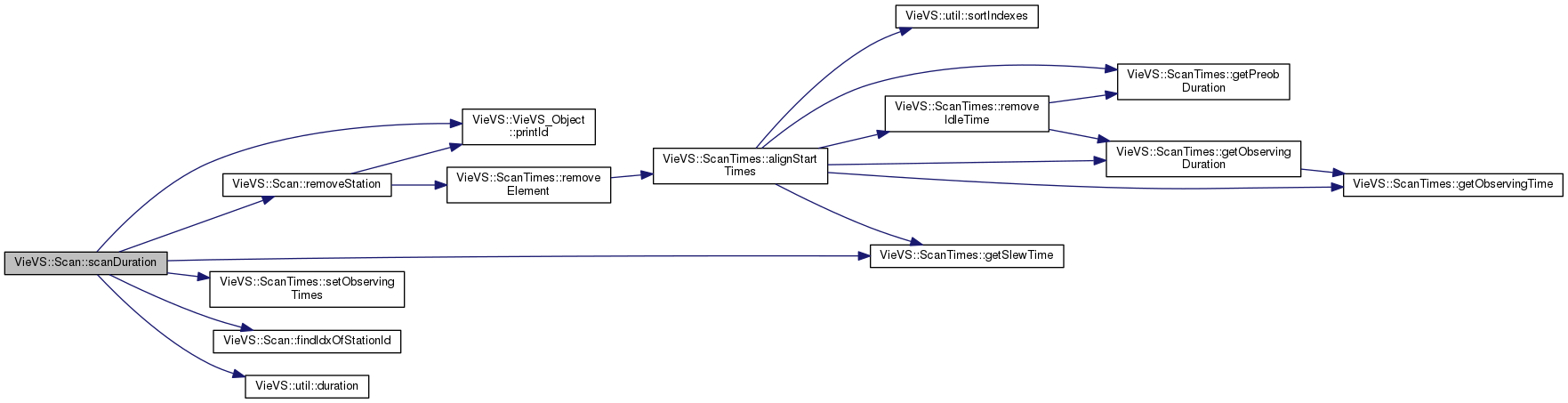

bool	scanDuration (const Network &network, const std::shared_ptr< const AbstractSource > &source) noexcept
	calculates the total scan duration per station More...

std::vector< unsigned long >	getStationIds () const noexcept
	getter for all station ids More...

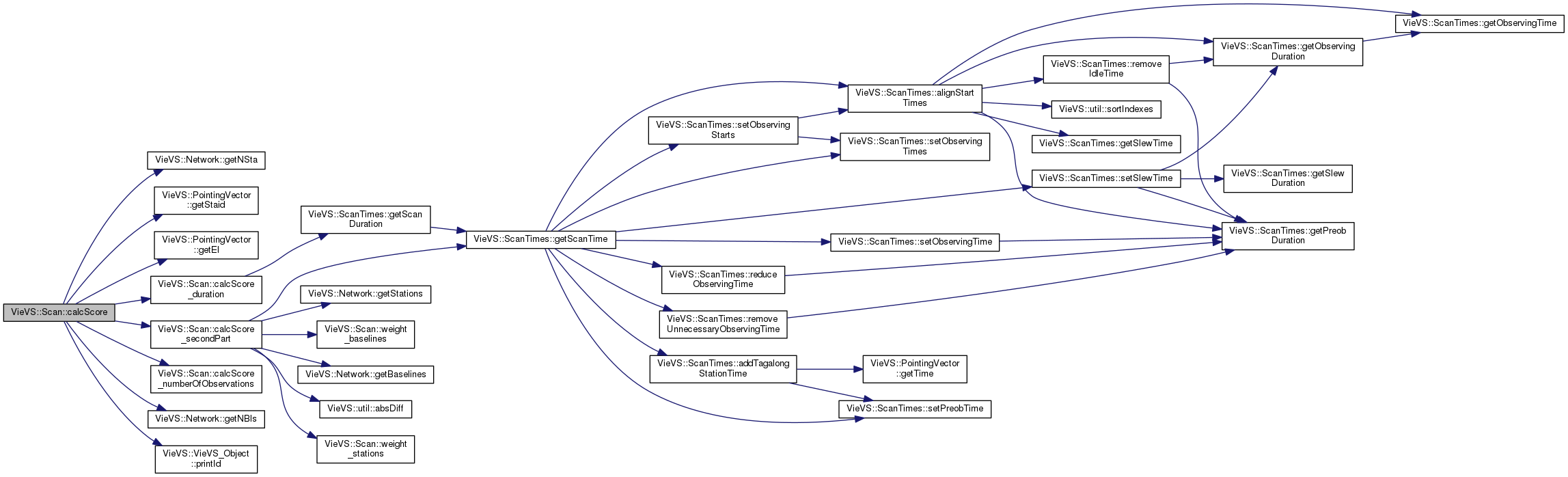

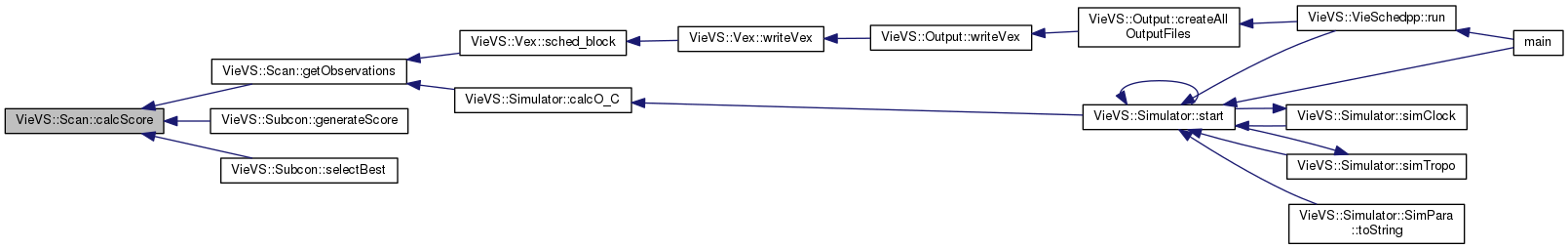

void	calcScore (const std::vector< double > &astas, const std::vector< double > &asrcs, const std::vector< double > &abls, unsigned int minTime, unsigned int maxTime, const Network &network, const std::shared_ptr< const AbstractSource > &source, bool subnetting, const std::vector< double > &idleScore) noexcept
	calculates the score of a scan More...

void	calcScore (const std::vector< double > &astas, const std::vector< double > &asrcs, const std::vector< double > &abls, unsigned int minTime, unsigned int maxTime, const Network &network, const std::shared_ptr< const AbstractSource > &source, std::unordered_map< unsigned long, double > &staids2skyCoverageScore, const std::vector< double > &idleScore) noexcept
	calculates the score of a scan More...

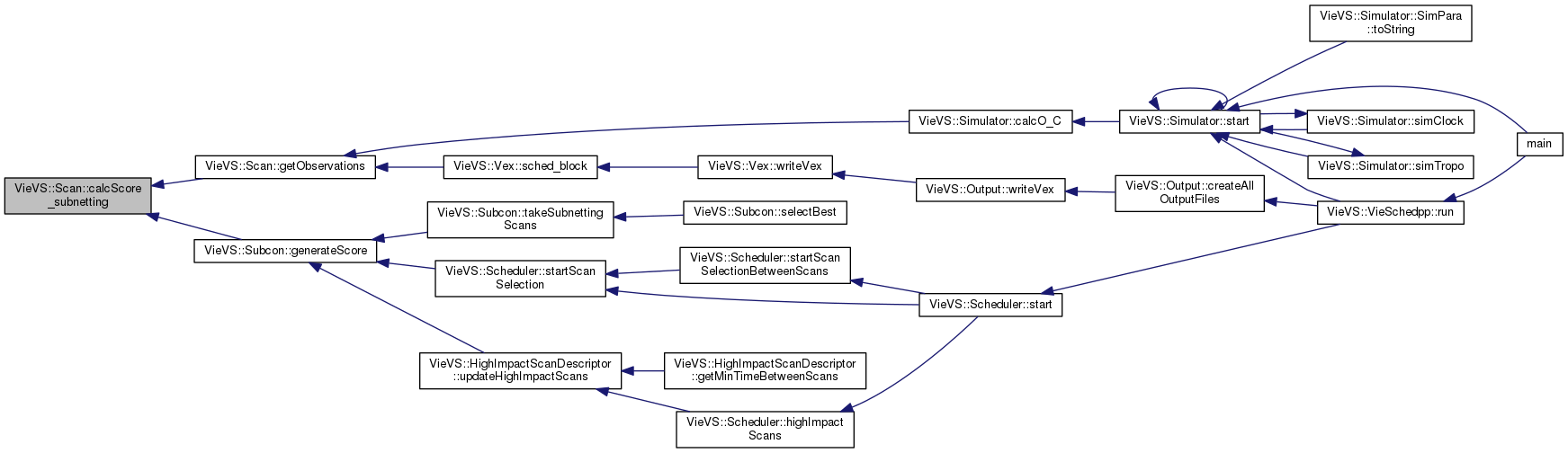

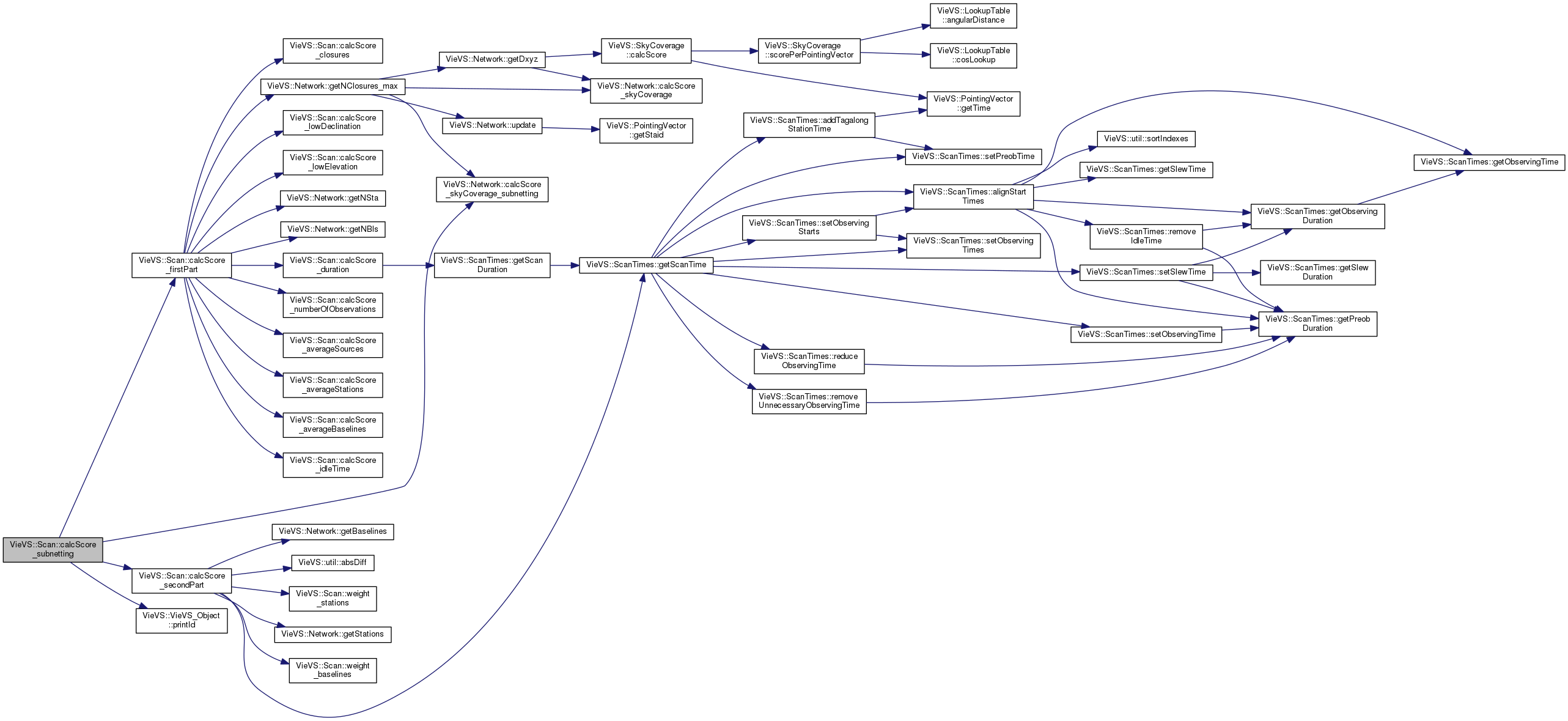

void	calcScore_subnetting (const std::vector< double > &astas, const std::vector< double > &asrcs, const std::vector< double > &abls, unsigned int minTime, unsigned int maxTime, const Network &network, const std::shared_ptr< const AbstractSource > &source, const std::unordered_map< unsigned long, double > &staids2skyCoverageScore, const std::vector< double > &idleScore) noexcept
	calculates the score of a scan More...

void	calcScore (unsigned int minTime, unsigned int maxTime, const Network &network, const std::shared_ptr< const AbstractSource > &source, double hiscore, bool subnetting)
	calc score for high impact scans More...

bool	calcScore (const std::vector< double > &prevLowElevationScores, const std::vector< double > &prevHighElevationScores, const Network &network, unsigned int minRequiredTime, unsigned int maxRequiredTime, const std::shared_ptr< const AbstractSource > &source, bool subnetting)
	calculates the score for a astrometric calibrator block scan More...

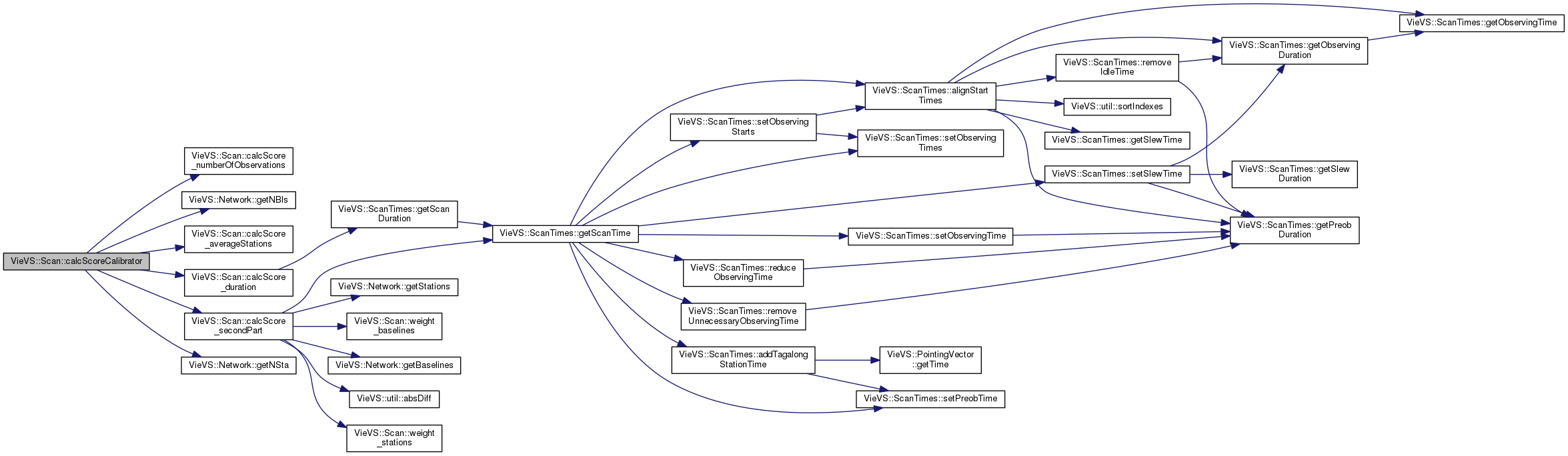

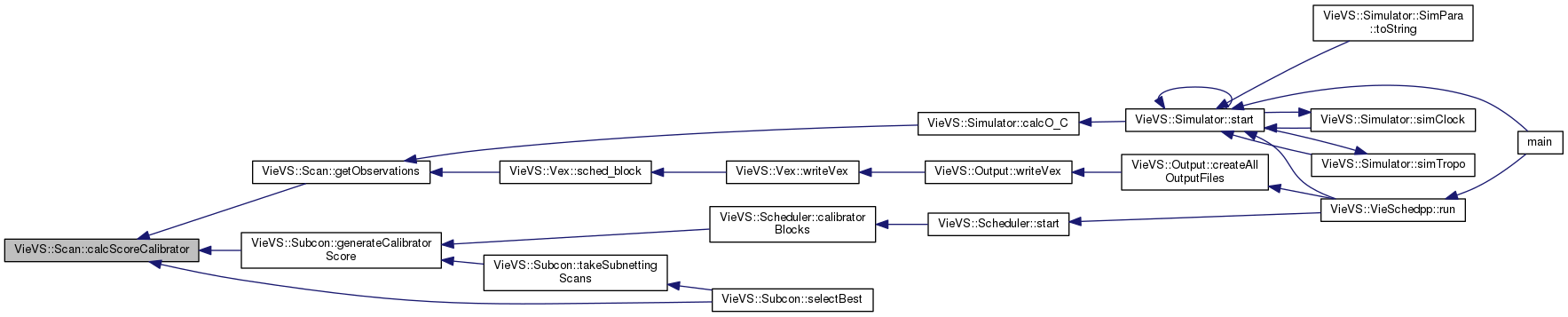

void	calcScoreCalibrator (const Network &network, const std::shared_ptr< const AbstractSource > &source, const std::vector< double > &astas, double meanSNR, unsigned int minRequiredTime, unsigned int maxRequiredTime)
	calculates the score for a calibrator block scan More...

bool	rigorousUpdate (Network &network, const std::shared_ptr< const AbstractSource > &source, const std::shared_ptr< const Mode > &mode, const boost::optional< StationEndposition > &endposition=boost::none) noexcept
	checks a scan with rigorous models More...

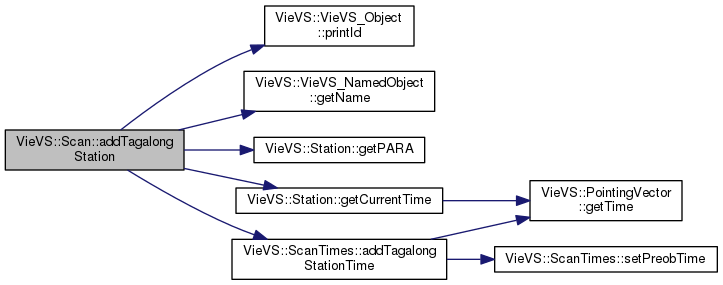

void	addTagalongStation (const PointingVector &pv_start, const PointingVector &pv_end, const std::vector< Observation > &observations, unsigned int slewtime, const Station &station)
	adds observation to scan in tagalong mode More...

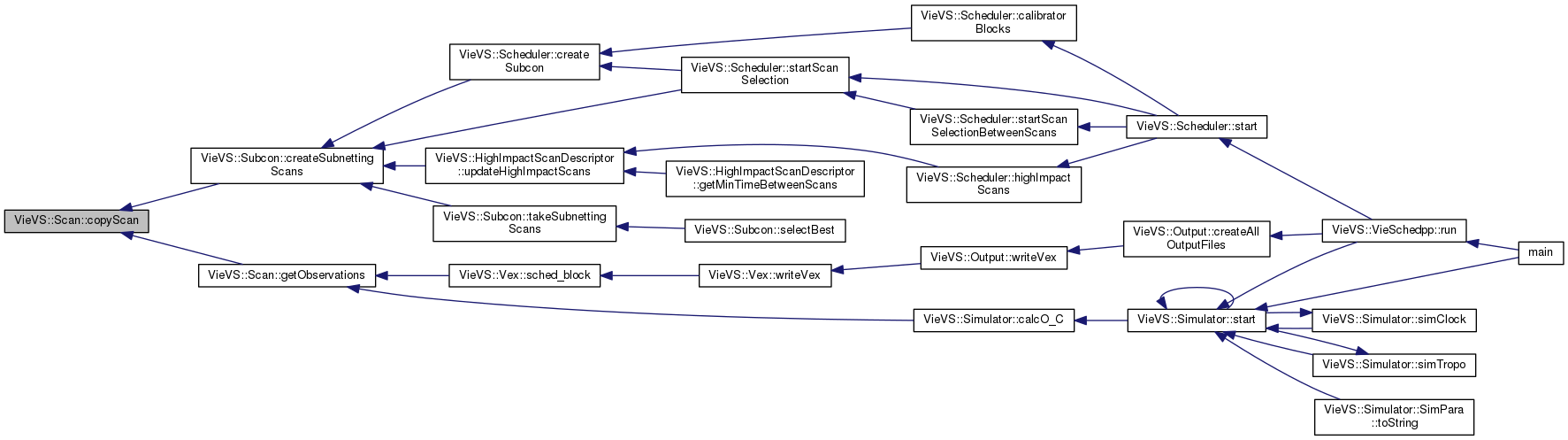

boost::optional< Scan >	copyScan (const std::vector< unsigned long > &ids, const std::shared_ptr< const AbstractSource > &source) const noexcept
	makes a hard copy of a scan with all stations from parameter ids More...

unsigned long	getNObs () const noexcept
	getter for number of observations More...

unsigned long	getNObs (unsigned long staid) const noexcept
	getter for number of observations per station More...

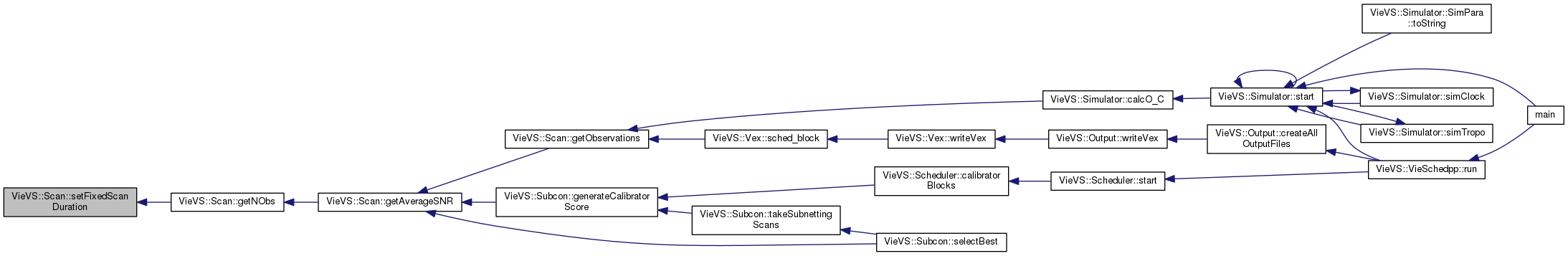

void	setFixedScanDuration (unsigned int scanDuration) noexcept
	set fixed scan duration More...

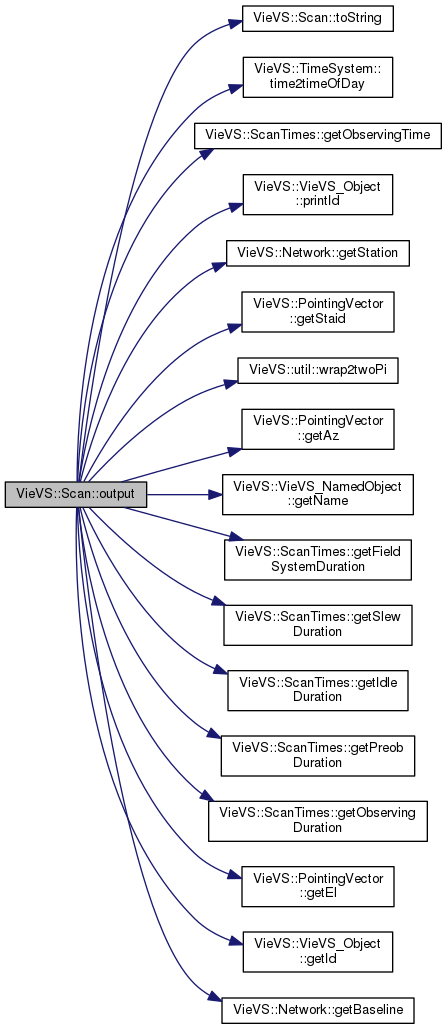

void	output (unsigned long observed_scan_nr, const Network &network, const std::shared_ptr< const AbstractSource > &source, std::ofstream &of) const noexcept
	outputs information of this scan to the current console More...

bool	setScanTimes (const std::vector< unsigned int > &eols, const std::vector< unsigned int > &fieldSystemTime, const std::vector< unsigned int > &slewTime, const std::vector< unsigned int > &preob, unsigned int scanStart, const std::vector< unsigned int > &observingTimes)
	set scan times More...

bool	setScanTimes (const std::vector< unsigned int > &eols, const std::vector< unsigned int > &fieldSystemTime, const std::vector< unsigned int > &slewTime, const std::vector< unsigned int > &preob, const std::vector< unsigned int > &scanStart, const std::vector< unsigned int > &observingTimes)
	set scan times More...

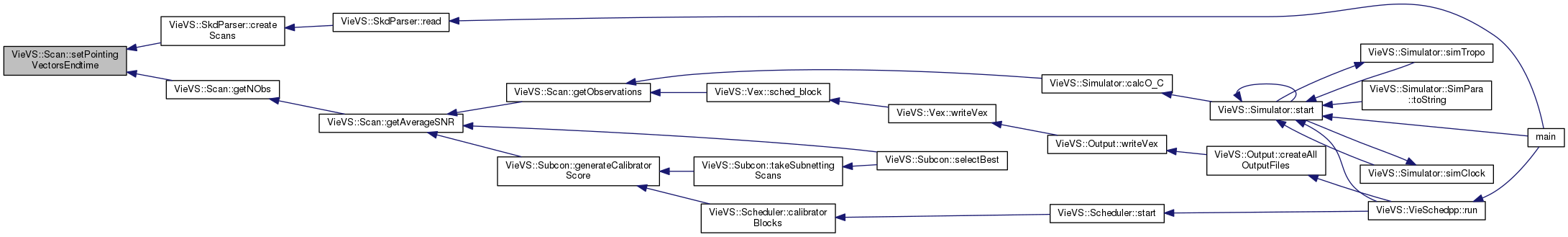

void	setPointingVectorsEndtime (std::vector< PointingVector > pv_end)
	set pointing vector at scan end time More...

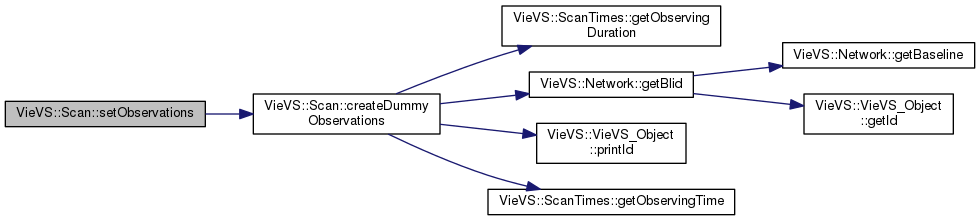

void	setObservations (std::vector< Observation > obs)
	sets observation vector More...

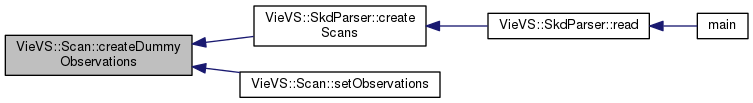

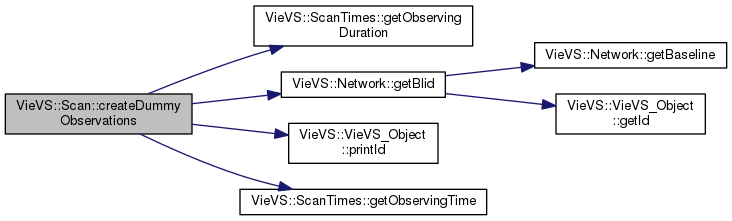

void	createDummyObservations (const Network &network)
	create dummy observations More...

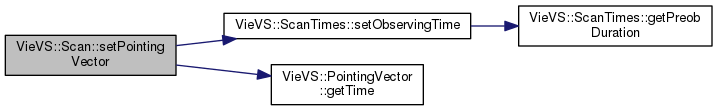

void	setPointingVector (int idx, PointingVector pv, Timestamp ts)
	set pointing vector More...

void	removeUnnecessaryObservingTime (Network &network, const std::shared_ptr< const AbstractSource > &thisSource, std::ofstream &of, Timestamp ts)
	remove unnecessary observing time More...

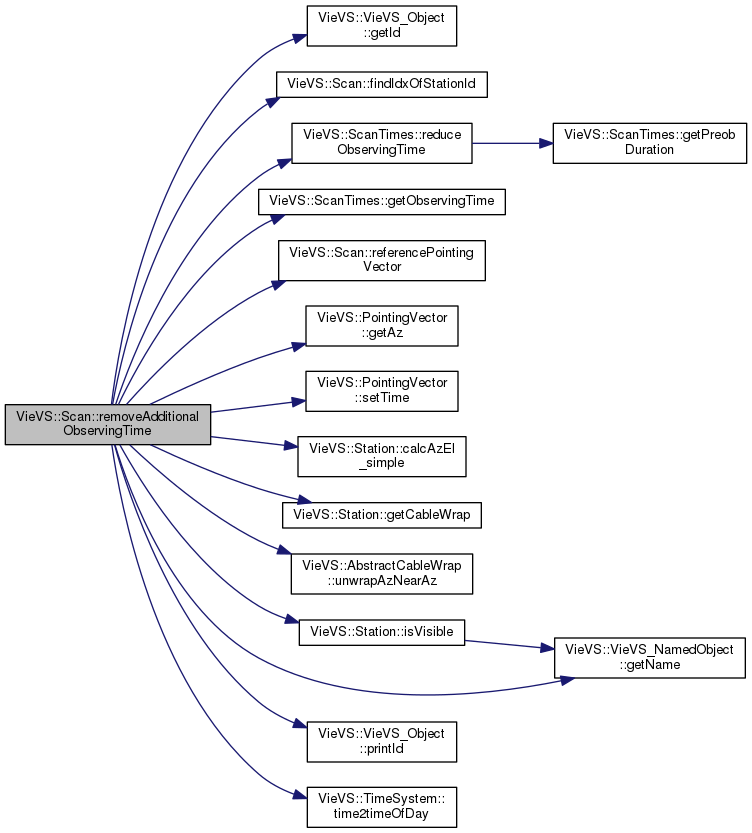

void	removeAdditionalObservingTime (unsigned int time, const Station &thisSta, const std::shared_ptr< const AbstractSource > &thisSource, std::ofstream &of, Timestamp ts)
	remove additional observing time More...

void	updateObservingTime ()
	updates the time of each observation according to the observing times of the station More...

bool	prepareForScanEnd (Network &network, const std::shared_ptr< const AbstractSource > &source, const std::shared_ptr< const Mode > &mode, unsigned int endTime)
	remove stations from scan whose observations last longer then session More...

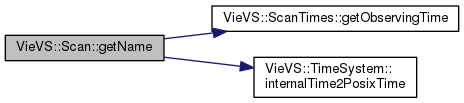

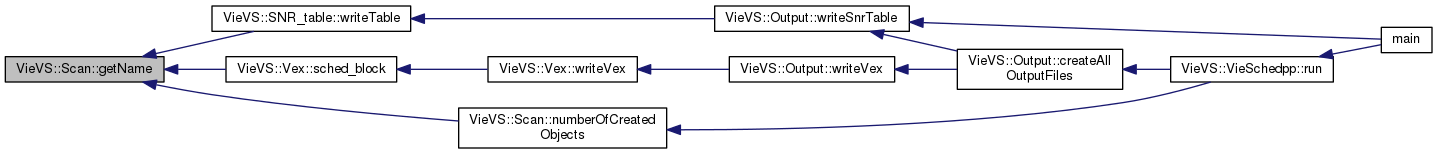

std::string	getName (unsigned long indexOfThisScanInList, const std::vector< Scan > &otherScans) const
	get scan name in vex format More...

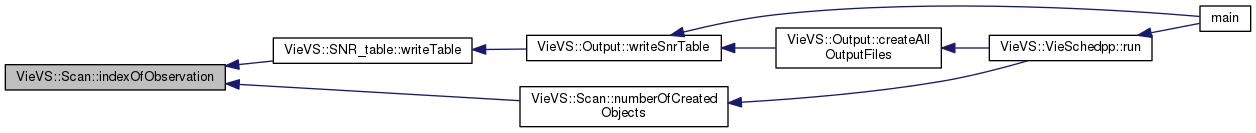

unsigned long	indexOfObservation (unsigned long staid1, unsigned long staid2) const
	check if a obseration betwen two stations is scheduled More...

std::string	toSkedOutputTimes (const std::shared_ptr< const AbstractSource > &source, unsigned long nMaxSta) const
	output observing duration in sked output format More...

void	includesStations (std::vector< char > &flag) const
	checks if station is participating and notes it in flag vector More...

boost::property_tree::ptree	toPropertyTree (const Network &network, const std::string &sourceName) const
	convert scan to property tree More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Member Functions
static std::string	toString (ScanType type_)
	translates ScanType to string More...

static std::string	toString (ScanConstellation type_)
	translates ScanConstellation to string More...

static unsigned long	numberOfCreatedObjects ()
	get total number of created scans More...

Static Public Attributes
static unsigned int	nScanSelections { 0 }
	number of selected main scans More...

static ScanSequence	scanSequence
	scan sequence rules More...

Private Member Functions

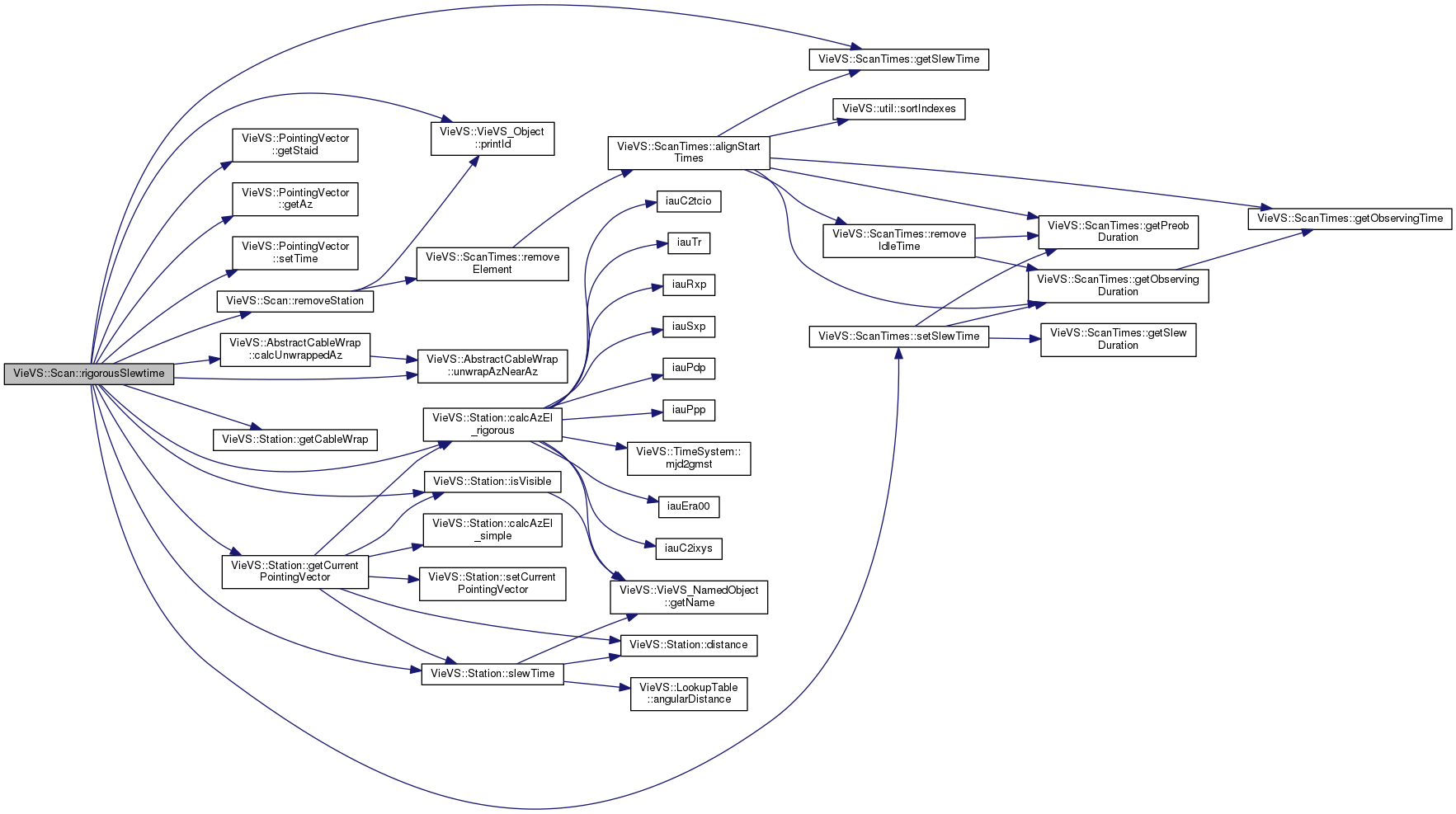

bool	rigorousSlewtime (Network &network, const std::shared_ptr< const AbstractSource > &source) noexcept
	scan constellation type More...

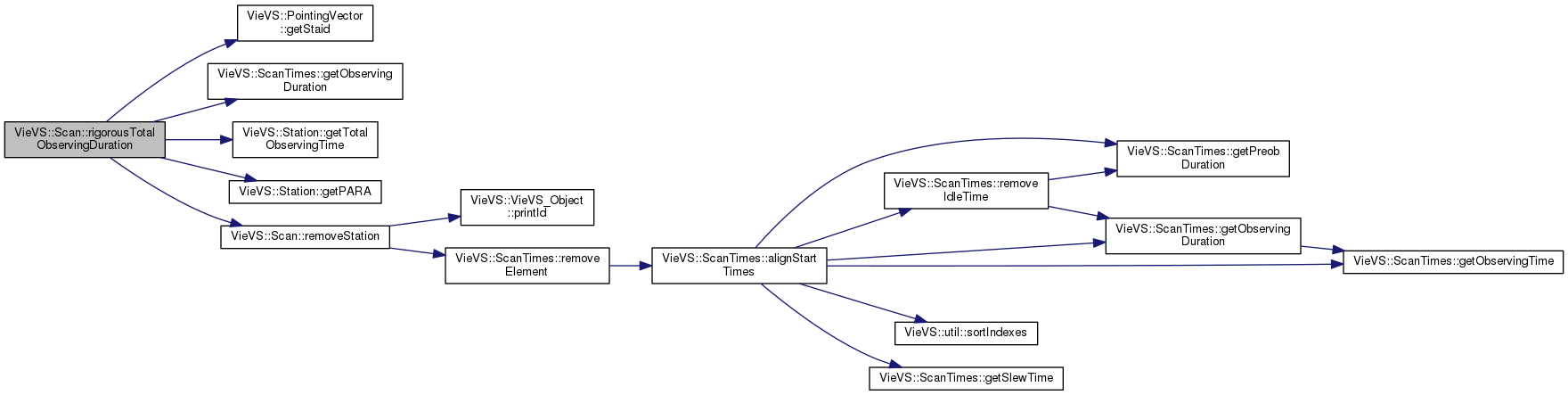

bool	rigorousTotalObservingDuration (Network &network, const std::shared_ptr< const AbstractSource > &source) noexcept
	rigorous total observing duration calculation More...

bool	rigorousScanStartTimeAlignment (Network &network, const std::shared_ptr< const AbstractSource > &source, const std::shared_ptr< const Mode > &mode) noexcept
	rigorous scan alignment More...

bool	rigorousScanVisibility (Network &network, const std::shared_ptr< const AbstractSource > &source, bool &stationRemoved) noexcept
	rigorous scan visibility More...

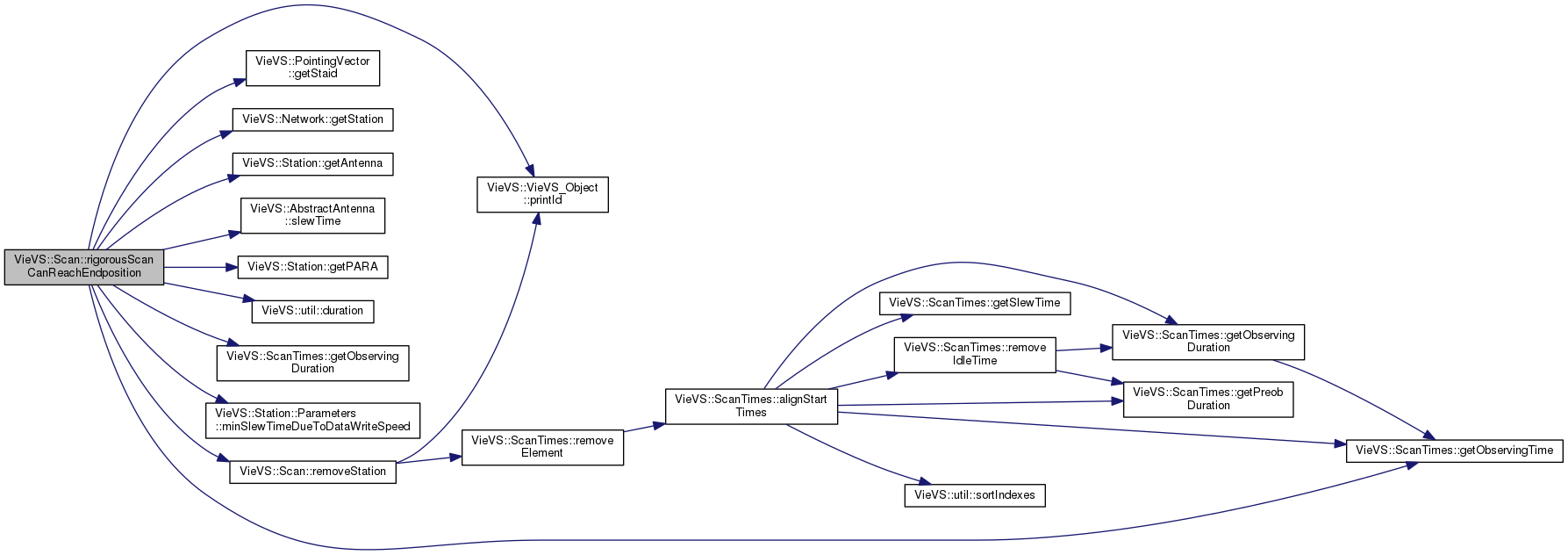

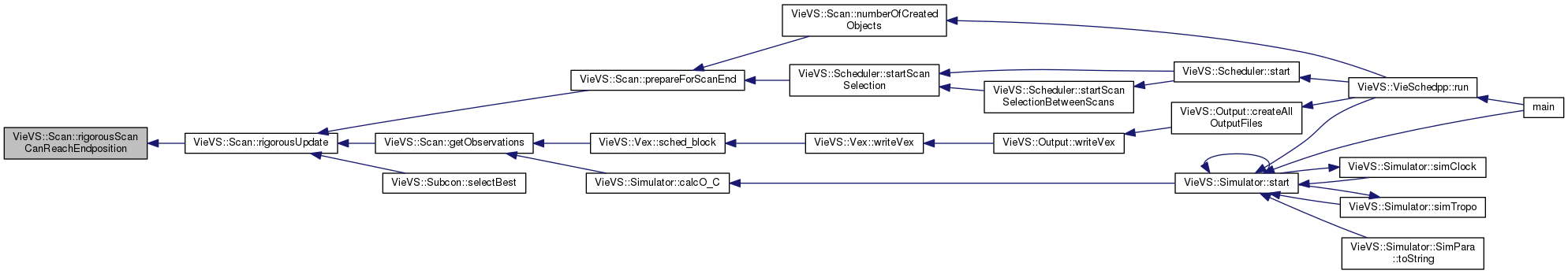

bool	rigorousScanCanReachEndposition (const Network &network, const std::shared_ptr< const AbstractSource > &thisSource, const boost::optional< StationEndposition > &endposition, bool &stationRemoved)
	rigorous check if scan can reach required endposition More...

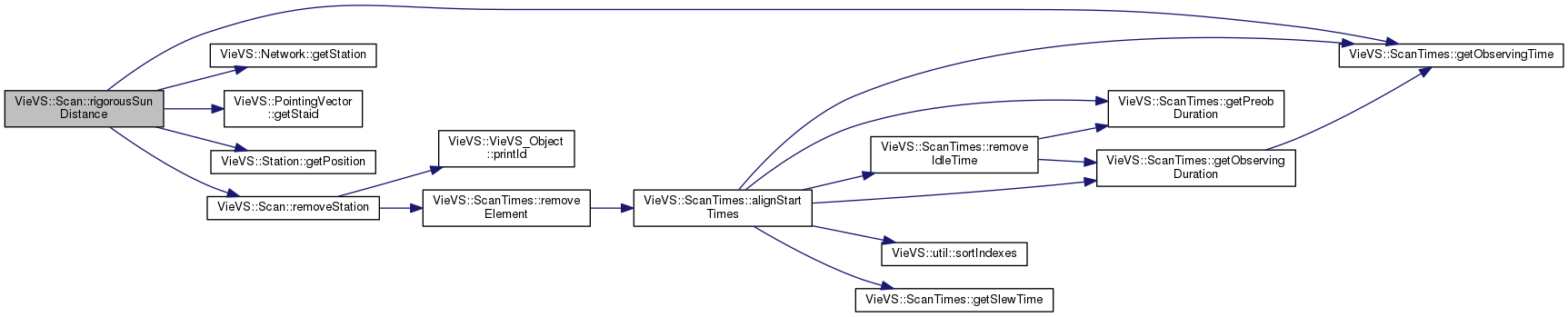

bool	rigorousSunDistance (const Network &network, const std::shared_ptr< const AbstractSource > &thisSource)
	rigorous check if sun distance is large enough More...

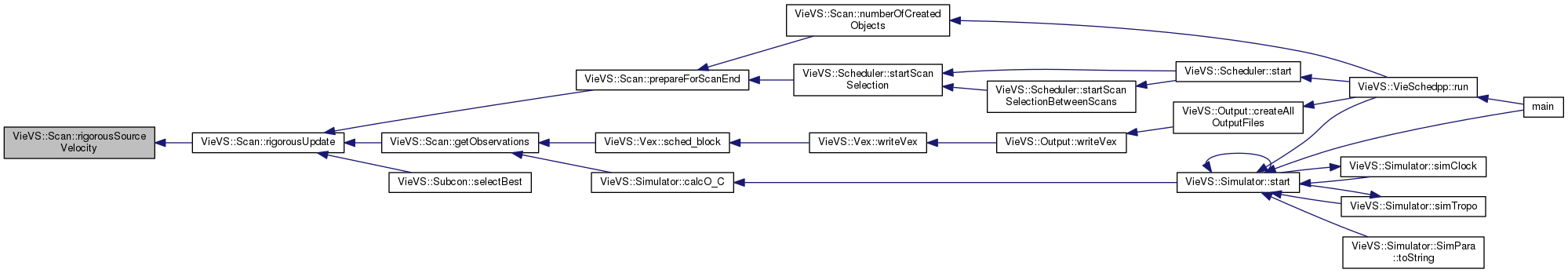

bool	rigorousSourceVelocity (Network &network, const std::shared_ptr< const AbstractSource > &thisSource)
	rigorous check that source is not moving faster than antenna slew speed More...

double	calcScore_numberOfObservations (unsigned long maxObs) const noexcept
	calculates the score for number of observations More...

double	calcScore_averageBaselines (const std::vector< double > &abls) const noexcept
	calculates score for average baseline observations More...

double	calcScore_averageStations (const std::vector< double > &astas, unsigned long nMaxBls) const noexcept
	calculates score for average station observations More...

double	calcScore_averageSources (const std::vector< double > &asrcs, unsigned long nMaxBls) const noexcept
	calculates score for average source observations More...

double	calcScore_duration (unsigned long nMaxSta, unsigned int minTime, unsigned int maxTime) const noexcept
	calculates score for duration More...

double	calcScore_idleTime (const std::vector< double > &idleScore) const noexcept
	calculates score based on idle time More...

double	calcScore_closures (unsigned long nclosures_max, const std::shared_ptr< const AbstractSource > &source) const noexcept
	calculte score based on number of independent closure phases and amplitudes More...

double	weight_stations (const std::vector< Station > &stations)
	mean of the weight factors for each participating station More...

double	weight_baselines (const std::vector< Baseline > &baselines)
	mean of the weight factors for each participating baselines More...

double	calcScore_lowElevation (unsigned long nmaxsta)
	calculate score for low elevation scans More...

double	calcScore_lowDeclination (unsigned long nMaxObs)
	calculate score for low declination scans More...

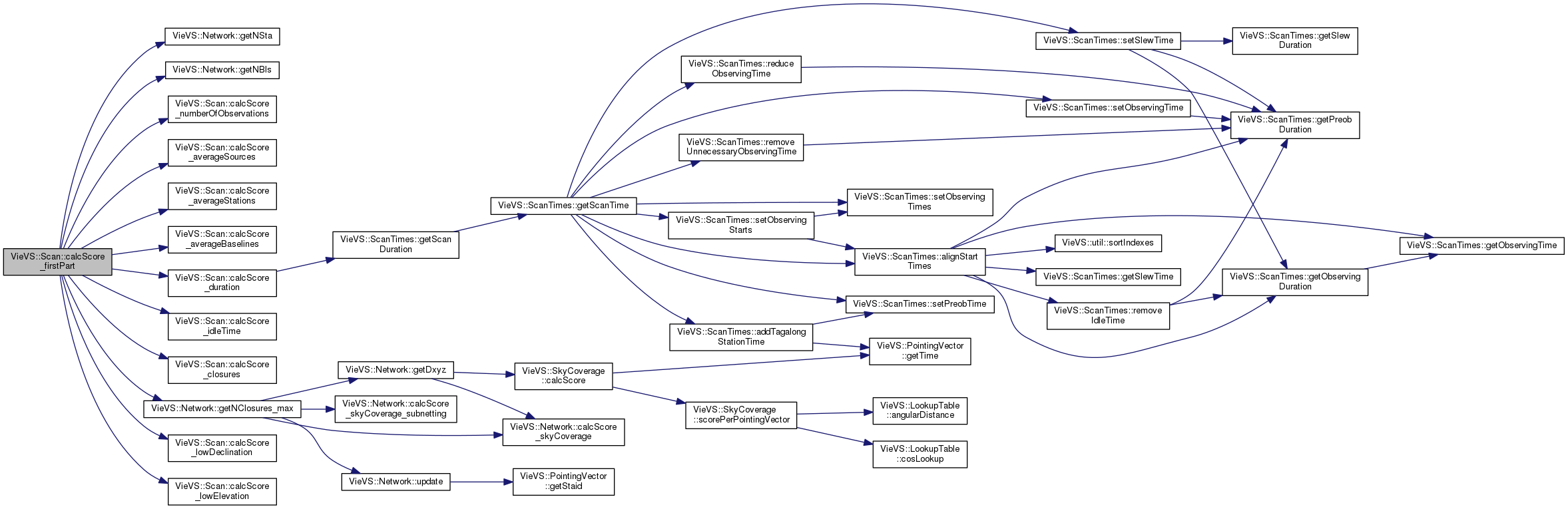

double	calcScore_firstPart (const std::vector< double > &astas, const std::vector< double > &asrcs, const std::vector< double > &abls, unsigned int minTime, unsigned int maxTime, const Network &network, const std::shared_ptr< const AbstractSource > &source, bool subnetting, const std::vector< double > &idleScore)
	first part of score calculation More...

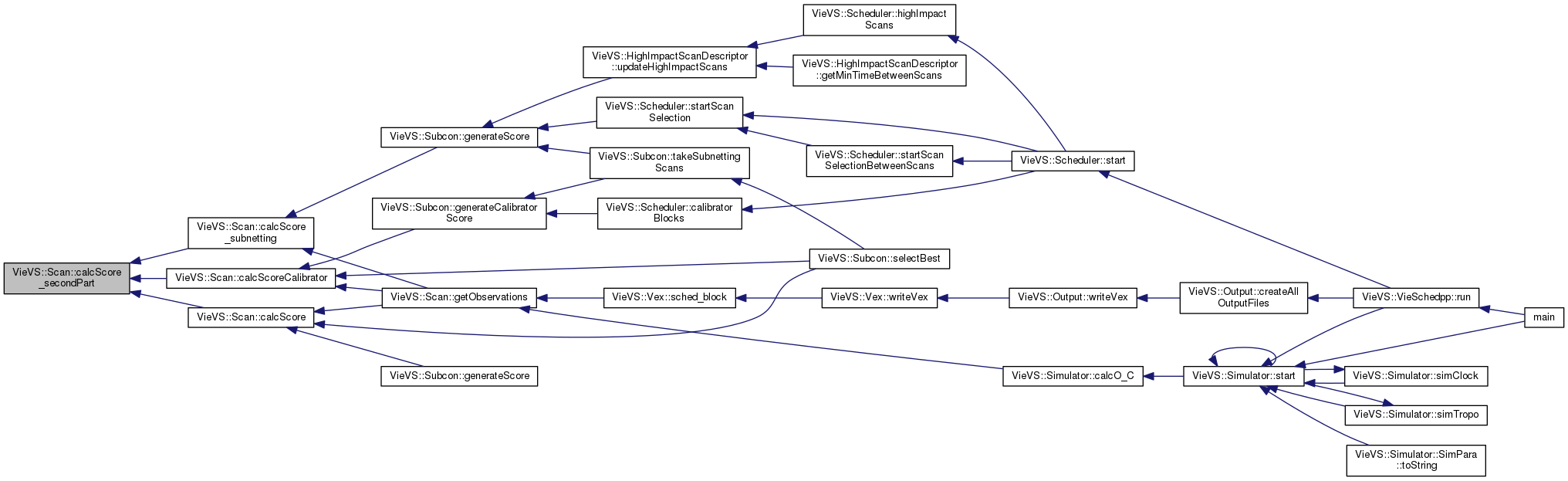

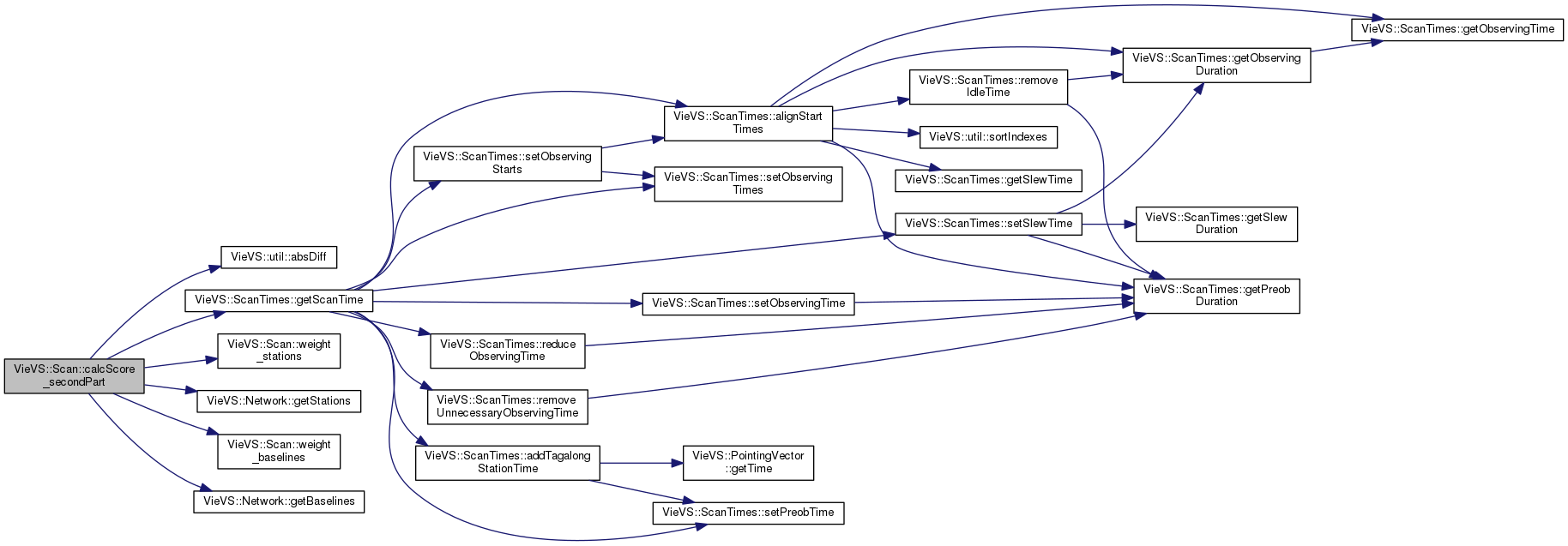

double	calcScore_secondPart (double this_score, const Network &network, const std::shared_ptr< const AbstractSource > &source, bool ignoreScanSequence=false)
	second part of score calculations More...

Private Attributes
unsigned long	nsta_
	number of stations in this scan More...

unsigned long	srcid_
	observed source id More...

double	score_
	total score More...

ScanTimes	times_
	time information More...

std::vector< PointingVector >	pointingVectorsStart_
	pointing vectors at start of the scan More...

std::vector< PointingVector >	pointingVectorsEnd_
	pointing vectors at end of the scan More...

std::vector< Observation >	observations_
	all observed baselines More...

ScanType	type_
	type of the scan More...

ScanConstellation	constellation_

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Detailed Description

representation of a VLBI scan

Author: Matthias Schartner

Date: 29.06.2017

Member Enumeration Documentation

enum VieVS::Scan::ScanConstellation

strong

scan constellation type

Author: Matthias Schartner

Enumerator
single	single source scan
subnetting	subnetting scan

enum VieVS::Scan::ScanType

strong

scan type

Author: Matthias Schartner

Enumerator
highImpact	high impact scan
standard	standard scan
fillin	fillin mode scan
astroCalibrator	astrometric calibrator scan
calibrator	fringe finder

Constructor & Destructor Documentation

VieVS::Scan::Scan	(	std::vector< PointingVector > &	pointingVectors,
		std::vector< unsigned int > &	endOfLastScan,
		ScanType	type
	)

constructor

Author: Matthias Schartner

This constructor is used to create all single source scans

Parameters

pointingVectors	all pointing vectors
endOfLastScan	time information for endtime of last scan for each station in seconds since session start
type	scan type

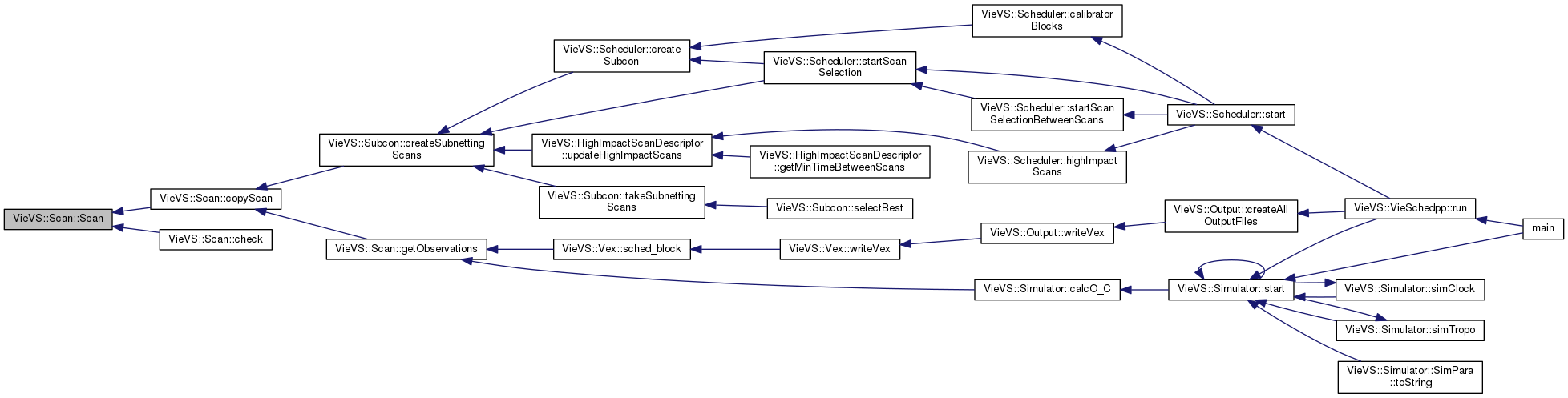

Here is the caller graph for this function:

VieVS::Scan::Scan	(	std::vector< PointingVector >	pv,
		ScanTimes	times,
		std::vector< Observation >	obs,
		ScanType	type = `Scan::ScanType::standard`
	)

constructor

Author: Matthias Schartner

This constructor is used to create subnetting scans if the information for each single source scan is already available

Parameters

pv	all pointing vectors
times	all scan times
obs	all observations
type	scan type (default = Scan::ScanType::standard)

Scan::Scan	(	const boost::property_tree::ptree &	ptree,
		Network &	network,
		const SourceList &	sourceList,
		Scan::ScanType	type = `Scan::ScanType::standard`
	)

constructor based on property tree

Author: Matthias Schartner

Here is the call graph for this function:

Member Function Documentation

void Scan::addTagalongStation	(	const PointingVector &	pv_start,
		const PointingVector &	pv_end,
		const std::vector< Observation > &	observations,
		unsigned int	slewtime,
		const Station &	station
	)

adds observation to scan in tagalong mode

Author: Matthias Schartner

Parameters

pv_start	pointing vector at start time
pv_end	pointing vector at end time
observations	all observations
slewtime	slew time in seconds
station	tagalong station

Here is the call graph for this function:

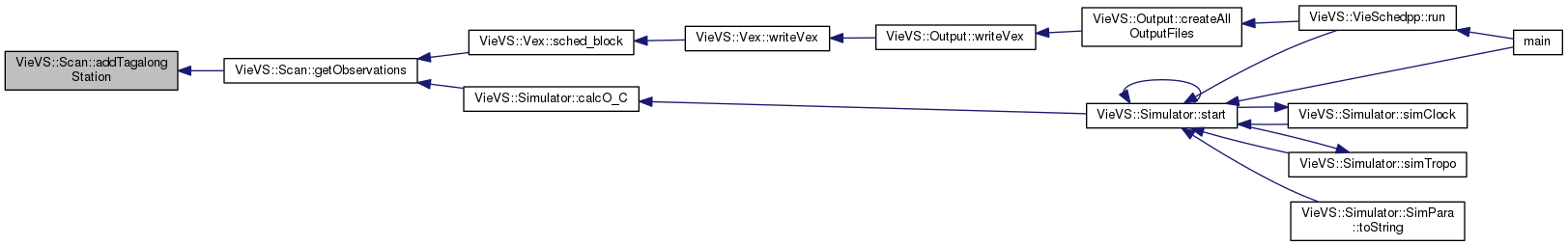

Here is the caller graph for this function:

void Scan::addTimes	(	int	idx,
		unsigned int	fieldSystem,
		unsigned int	slew,
		unsigned int	preob
	)

noexcept

adds scan times

Author: Matthias Schartner

Parameters

idx	index of element
fieldSystem	field system time in seconds
slew	slew time in seconds
preob	calibration time in secons

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::calcObservationDuration	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::shared_ptr< const Mode > &	mode
	)

noexcept

calculates the scan durations per observation

Author: Matthias Schartner

Parameters

network	station network
source	observed source
mode	observing mode

Returns: true is scan is still valid, otherwise false

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::calcScore	(	const std::vector< double > &	astas,
		const std::vector< double > &	asrcs,
		const std::vector< double > &	abls,
		unsigned int	minTime,
		unsigned int	maxTime,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		bool	subnetting,
		const std::vector< double > &	idleScore
	)

noexcept

calculates the score of a scan

Author: Matthias Schartner

usually used for single scan sources

Parameters

astas	precalculated vector of average station score
asrcs	precalculated vector of average source score
abls	precalculated vector of average baseline score
minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds
network	station network
source	observed source
subnetting	subnetting flag
idleScore	precalculated vector of extra scores due to long idle time

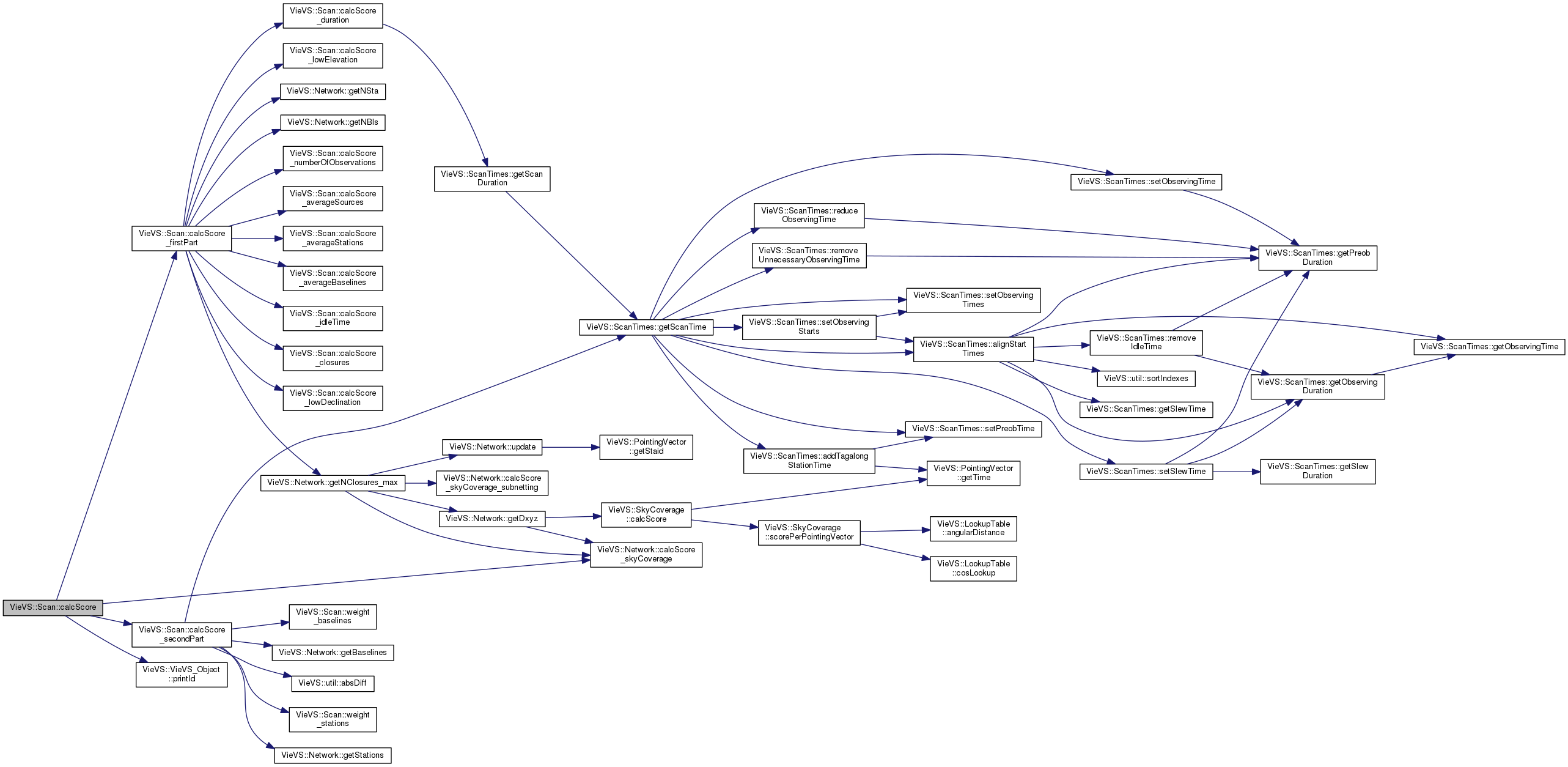

Here is the call graph for this function:

Here is the caller graph for this function:

void VieVS::Scan::calcScore	(	const std::vector< double > &	astas,
		const std::vector< double > &	asrcs,
		const std::vector< double > &	abls,
		unsigned int	minTime,
		unsigned int	maxTime,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		std::unordered_map< unsigned long, double > &	staids2skyCoverageScore,
		const std::vector< double > &	idleScore
	)

noexcept

calculates the score of a scan

Author: Matthias Schartner

usually used for single scan sources

Parameters

astas	precalculated vector of average station score
asrcs	precalculated vector of average source score
abls	precalculated vector of average baselines score
minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds
network	station network
source	observed source
staids2skyCoverageScore	stores the score of each pointing vector
idleScore	precalculated vector of extra scores due to long idle time

void Scan::calcScore	(	unsigned int	minTime,
		unsigned int	maxTime,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		double	hiscore,
		bool	subnetting
	)

calc score for high impact scans

Author: Matthias Schartner

Parameters

minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds
network	station network
source	observed source
hiscore	high impact score
subnetting	subnetting flag

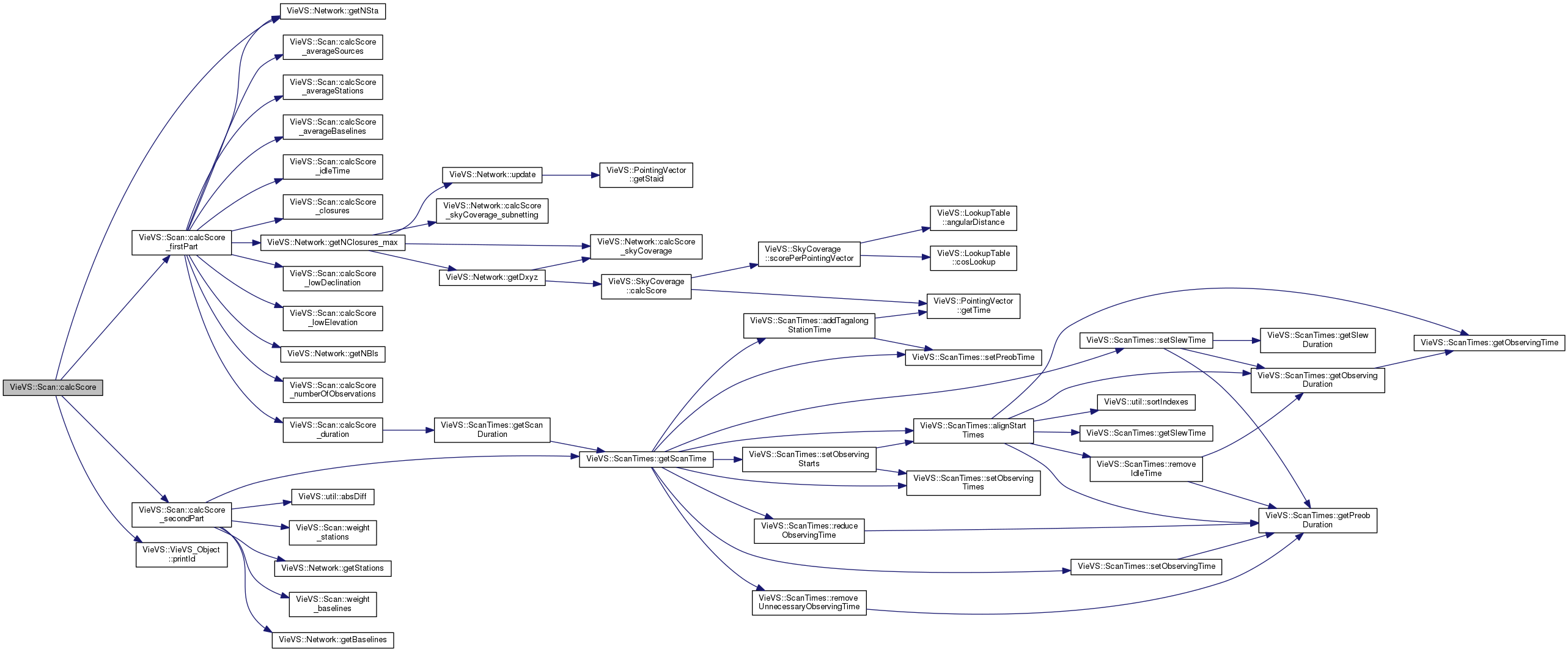

Here is the call graph for this function:

bool Scan::calcScore	(	const std::vector< double > &	prevLowElevationScores,
		const std::vector< double > &	prevHighElevationScores,
		const Network &	network,
		unsigned int	minRequiredTime,
		unsigned int	maxRequiredTime,
		const std::shared_ptr< const AbstractSource > &	source,
		bool	subnetting
	)

calculates the score for a astrometric calibrator block scan

Author: Matthias Schartner

Parameters

prevLowElevationScores	score for previouse low elevation scans
prevHighElevationScores	score for previouse high elevation scans
network	station network
minRequiredTime	minimum time required for a scan in seconds
maxRequiredTime	maximum time required for a scan in seconds
source	observed source
subnetting	subnetting flag

Here is the call graph for this function:

double Scan::calcScore_averageBaselines ( const std::vector< double > & abls ) const

privatenoexcept

calculates score for average baseline observations

Author: Matthias Schartner

Parameters

abls	precalculated vector of average baseline observations

Returns: score

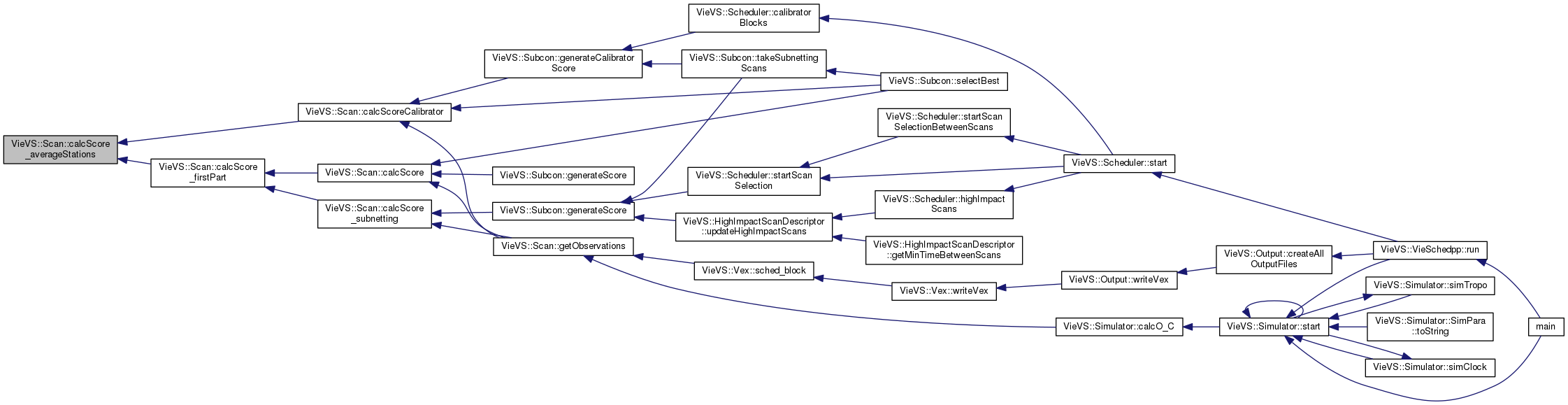

Here is the caller graph for this function:

double Scan::calcScore_averageSources	(	const std::vector< double > &	asrcs,
		unsigned long	nMaxBls
	)		const

privatenoexcept

calculates score for average source observations

Author: Matthias Schartner

Parameters

asrcs	precalculated vector of average source observations
nMaxBls	maximum possible number of baselines

Returns: score

Here is the caller graph for this function:

double Scan::calcScore_averageStations	(	const std::vector< double > &	astas,
		unsigned long	nMaxBls
	)		const

privatenoexcept

calculates score for average station observations

Author: Matthias Schartner

Parameters

astas	precalculated vector of average station observations
nMaxBls	maximum possible number of baselines

Returns: score

Here is the caller graph for this function:

double Scan::calcScore_closures	(	unsigned long	nclosures_max,
		const std::shared_ptr< const AbstractSource > &	source
	)		const

privatenoexcept

calculte score based on number of independent closure phases and amplitudes

Author: Matthias Schartner

Parameters

nclosures_max	number of theoretically possible independent closure phases and amplitudes
source	observed source

Returns: score based on number of independent closure phases and amplitudes

Here is the caller graph for this function:

double Scan::calcScore_duration	(	unsigned long	nMaxSta,
		unsigned int	minTime,
		unsigned int	maxTime
	)		const

privatenoexcept

calculates score for duration

Author: Matthias Schartner

Parameters

nMaxSta	number of stations in network
minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds

Returns: score

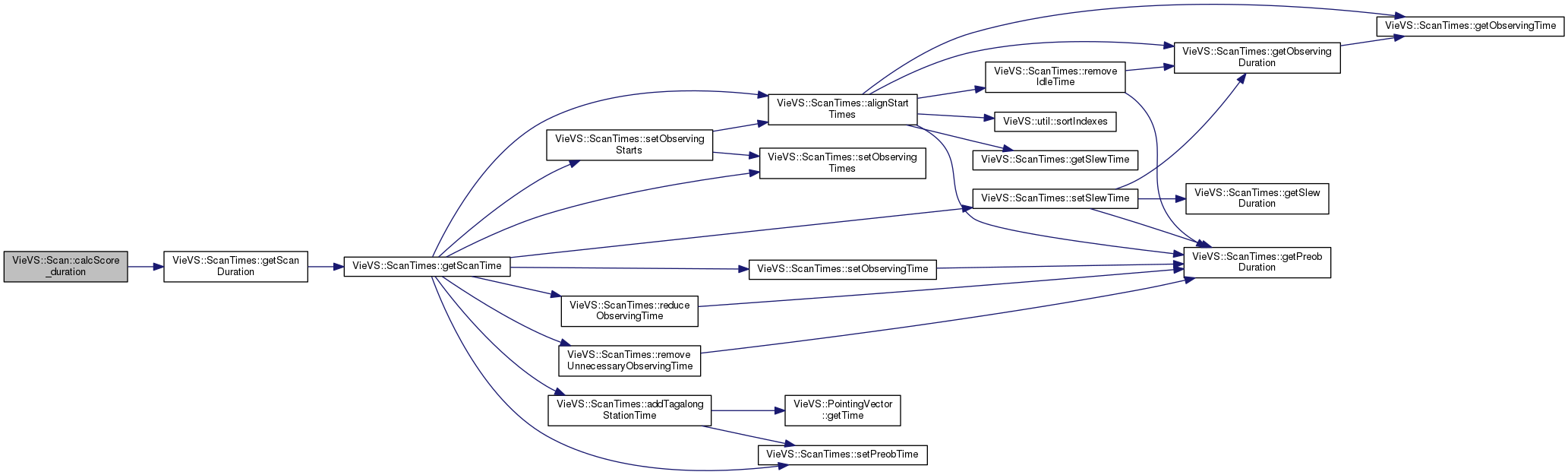

Here is the call graph for this function:

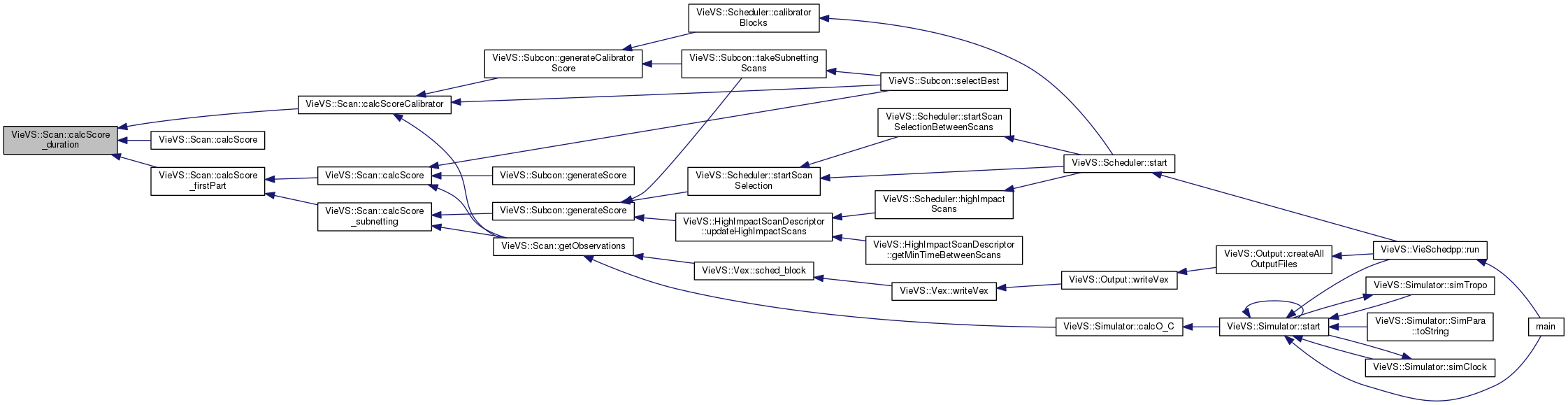

Here is the caller graph for this function:

double Scan::calcScore_firstPart	(	const std::vector< double > &	astas,
		const std::vector< double > &	asrcs,
		const std::vector< double > &	abls,
		unsigned int	minTime,
		unsigned int	maxTime,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		bool	subnetting,
		const std::vector< double > &	idleScore
	)

private

first part of score calculation

Author: Matthias Schartner

mainly additive scores

Parameters

astas	precalculated vector of average station observations
asrcs	precalculated vector of average source observations
abls	precalculated vector of average baseline observations
minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds
network	station network
source	observed source
subnetting	subnetting flag
idleScore	precalculated vector of extra scores due to long idle time

Returns: score

Here is the call graph for this function:

Here is the caller graph for this function:

double Scan::calcScore_idleTime ( const std::vector< double > & idleScore ) const

privatenoexcept

calculates score based on idle time

Author: Matthias Schartner

Parameters

idleScore precalculated vector of extra scores due to long idle time

Returns: score

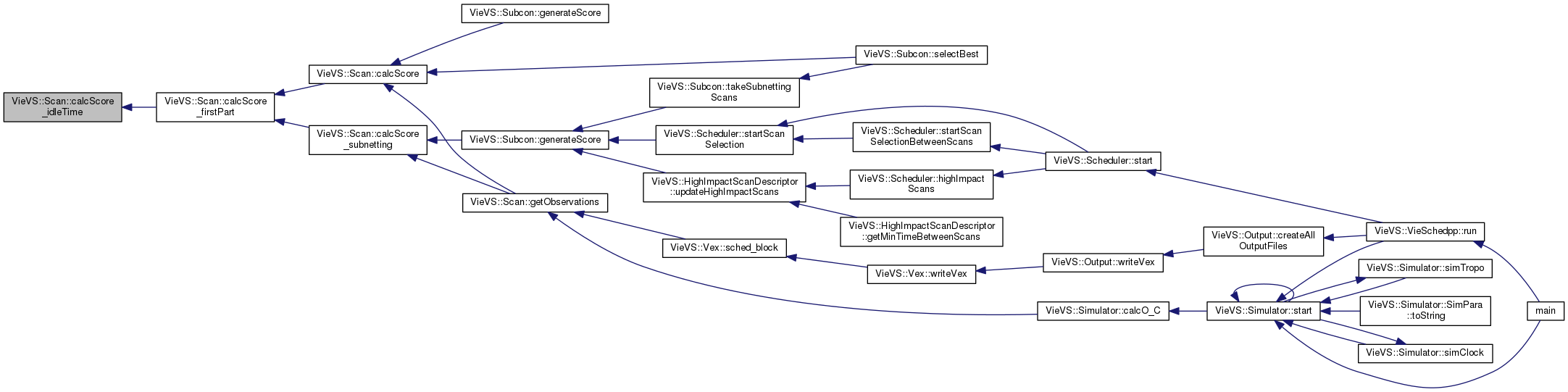

Here is the caller graph for this function:

double Scan::calcScore_lowDeclination ( unsigned long nMaxObs )

private

calculate score for low declination scans

Author: Matthias Schartner

Parameters

nMaxObs maximum number of possible observations in network

Returns: score for low declination scans

Here is the caller graph for this function:

double Scan::calcScore_lowElevation ( unsigned long nmaxsta )

private

calculate score for low elevation scans

Author: Matthias Schartner

Parameters

nmaxsta number of stations in network

Returns: score for low elevation scans

Here is the caller graph for this function:

double Scan::calcScore_numberOfObservations ( unsigned long maxObs ) const

privatenoexcept

calculates the score for number of observations

Author: Matthias Schartner

Parameters

maxObs maximum possible number of observations

Returns: score

Here is the caller graph for this function:

double Scan::calcScore_secondPart	(	double	this_score,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		bool	ignoreScanSequence = `false`
	)

private

second part of score calculations

Author: Matthias Schartner

mainly multiplicative scores

Parameters

this_score	current score
network	station network
source	observed source
ignoreScanSequence	ignore scan sequence in score calculation

Returns: total score

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::calcScore_subnetting	(	const std::vector< double > &	astas,
		const std::vector< double > &	asrcs,
		const std::vector< double > &	abls,
		unsigned int	minTime,
		unsigned int	maxTime,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::unordered_map< unsigned long, double > &	staids2skyCoverageScore,
		const std::vector< double > &	idleScore
	)

noexcept

calculates the score of a scan

Author: Matthias Schartner

usually used for subnetting sources. This is for improved runtime because the skyCoverage score for each pointing vector already exists.

Parameters

astas	precalculated vector of average station score
asrcs	precalculated vector of average source score
abls	precalculated vector of average baseline score
minTime	minimum time required for a scan in seconds
maxTime	maximum time required for a scan in seconds
network	station network
source	observed source
staids2skyCoverageScore	stored score for each pointing vector
idleScore	precalculated vector of extra scores due to long idle time

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::calcScoreCalibrator	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::vector< double > &	astas,
		double	meanSNR,
		unsigned int	minRequiredTime,
		unsigned int	maxRequiredTime
	)

calculates the score for a calibrator block scan

Author: Matthias Schartner

Parameters

network	station network
source	observed source
astas	precalculated vector of average station score
meanSNR	average SNR
minRequiredTime	minimum time required for a scan in seconds
maxRequiredTime	maximum time required for a scan in seconds

Here is the call graph for this function:

Here is the caller graph for this function:

bool VieVS::Scan::check ( )

inline

internal debugging function that checks if the number of pointing vectors is equal to nsta

Author: Matthias Schartner

Usually unused

Returns: true if everything is ok

Here is the call graph for this function:

bool Scan::checkIdleTimes	(	std::vector< unsigned int > &	maxIdle,
		const std::shared_ptr< const AbstractSource > &	source
	)

noexcept

checks if the idle time is not too long

Author: Matthias Schartner

this function removes stations whichs idle times is too long. The order of the station pointing vectors must be the same as the order of the max Idle parameter.

Parameters

maxIdle	maximum allowed idle time
source	observed source

Returns: true if scan is still valid, false if scan is no longer valid

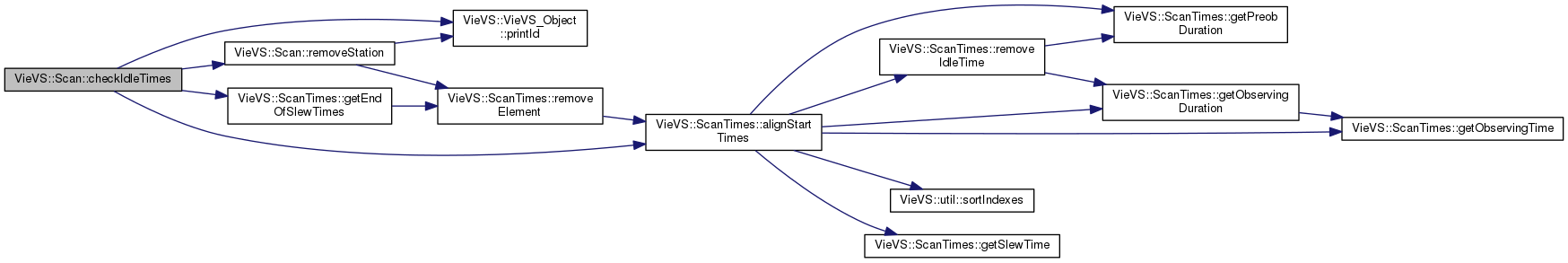

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::constructObservations	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source
	)

noexcept

constructs all possible observations

Author: Matthias Schartner

Parameters

source observed source

Here is the call graph for this function:

Here is the caller graph for this function:

boost::optional< Scan > Scan::copyScan	(	const std::vector< unsigned long > &	ids,
		const std::shared_ptr< const AbstractSource > &	source
	)		const

noexcept

makes a hard copy of a scan with all stations from parameter ids

Author: Matthias Schartner

Parameters

ids	ids of all stations which should be copied
source	observed source

Returns: copy of scan with the stations from ids parameter or none if no valid scan can be created

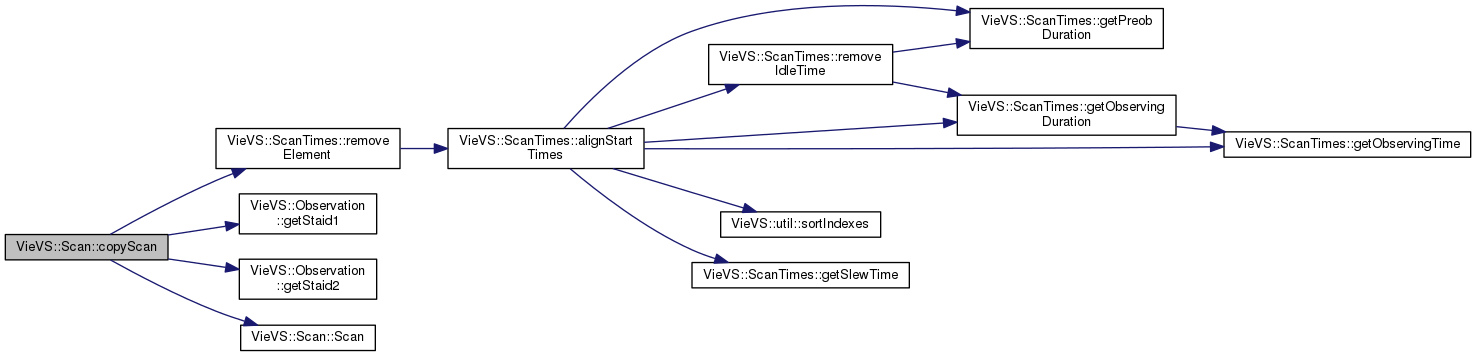

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::createDummyObservations ( const Network & network )

create dummy observations

Author: Matthias Schartner

Parameters

network station network

Here is the call graph for this function:

Here is the caller graph for this function:

boost::optional< unsigned long > Scan::findIdxOfStationId ( unsigned long id ) const

noexcept

finds the index of an station id

Author: Matthias Schartner

Parameters

id	station id

Returns: index

Here is the caller graph for this function:

double Scan::getAverageSNR	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::shared_ptr< const Mode > &	mode
	)

calculates the average SNR of all observations in this scan

Author: Matthias Schartner

Parameters

network	station network
source	observed source
mode	observing mode

Returns: average SNR of all observations in this scan

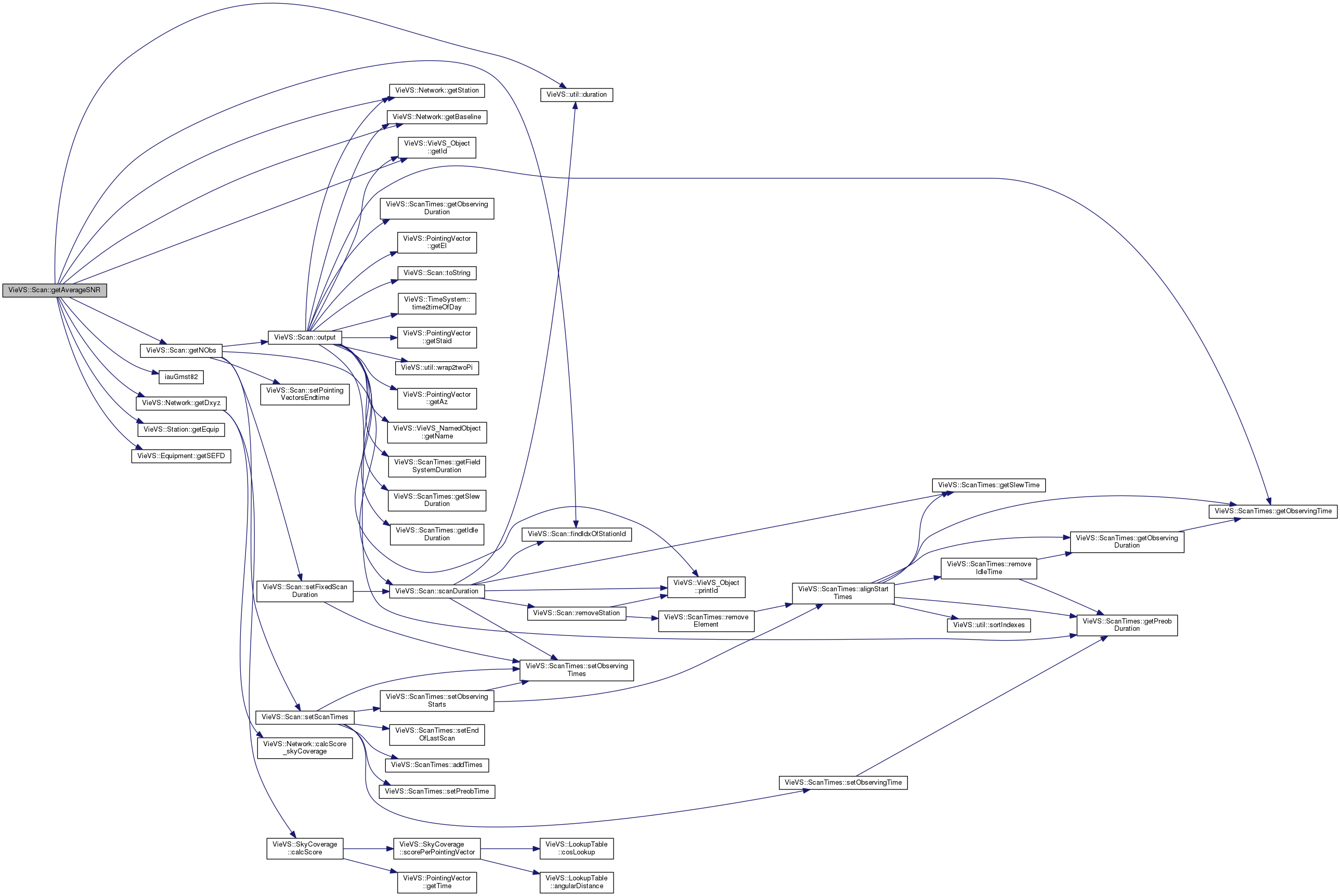

Here is the call graph for this function:

Here is the caller graph for this function:

string Scan::getName	(	unsigned long	indexOfThisScanInList,
		const std::vector< Scan > &	otherScans
	)		const

get scan name in vex format

Author: Matthias Schartner

Scan name is based on observation start. If two scans start at same time a suffix is added to distinguish the scans.

Parameters

indexOfThisScanInList	index of this scan in scan list
otherScans	list of all other scans

Returns: name of this scan

Here is the call graph for this function:

Here is the caller graph for this function:

unsigned long VieVS::Scan::getNObs ( ) const

inlinenoexcept

getter for number of observations

Author: Matthias Schartner

Returns: number of baselines

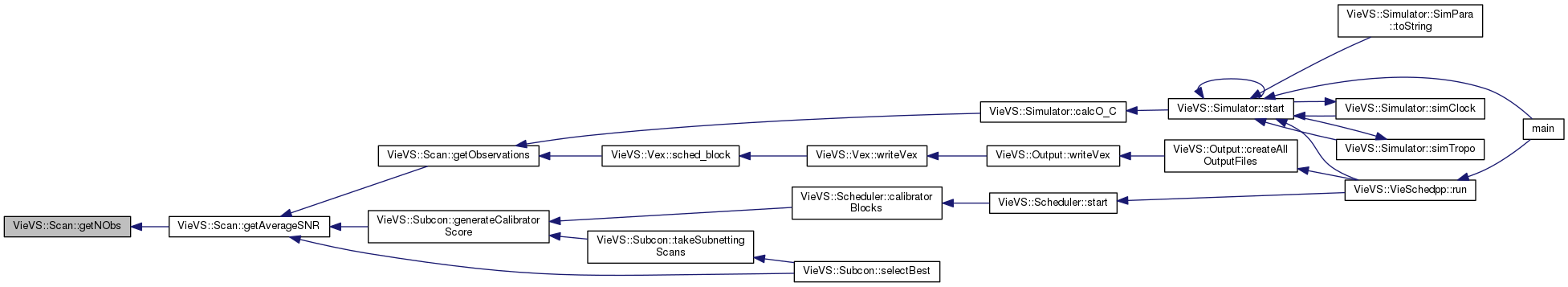

Here is the call graph for this function:

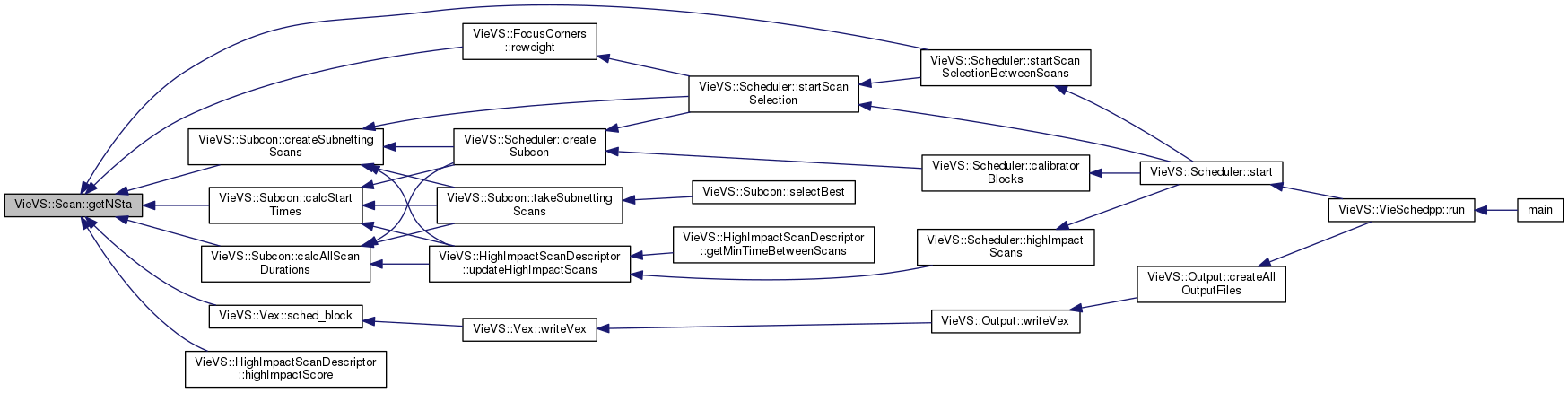

Here is the caller graph for this function:

unsigned long Scan::getNObs ( unsigned long staid ) const

noexcept

getter for number of observations per station

Author: Matthias Schartner

Parameters

staid station id

Returns: number of observations with this station

unsigned long VieVS::Scan::getNSta ( ) const

inlinenoexcept

getter for number of stations

Author: Matthias Schartner

Returns: number of stations

Here is the caller graph for this function:

const Observation& VieVS::Scan::getObservation ( int idx ) const

inlinenoexcept

getter for a single observations

Author: Matthias Schartner

Parameters

idx	index of observation

Returns: observation

const std::vector<Observation>& VieVS::Scan::getObservations ( ) const

inlinenoexcept

get all observations

Author: Matthias Schartner

Returns: all observations

Here is the call graph for this function:

Here is the caller graph for this function:

const PointingVector& VieVS::Scan::getPointingVector	(	int	idx,
		Timestamp	ts = `Timestamp::start`
	)		const

inlinenoexcept

getter for pointing vector for an index

Author: Matthias Schartner

Parameters

idx	index of required pointing vector
ts	time stamp flag

Returns: pointing vector

Here is the caller graph for this function:

ScanConstellation VieVS::Scan::getScanConstellation ( ) const

inlinenoexcept

getter for scan constellation type

Author: Matthias Schartner

Returns: scan constellation type

double VieVS::Scan::getScore ( ) const

inlinenoexcept

getter for the total score of this scan

Author: Matthias Schartner

Returns: score of this scan

Here is the caller graph for this function:

unsigned long VieVS::Scan::getSourceId ( ) const

inlinenoexcept

getter for source id

Author: Matthias Schartner

Returns: source id

Here is the caller graph for this function:

unsigned long VieVS::Scan::getStationId ( int idx ) const

inlinenoexcept

getter for station id for one index

Author: Matthias Schartner

Parameters

idx	index of required station id

Returns: id of station

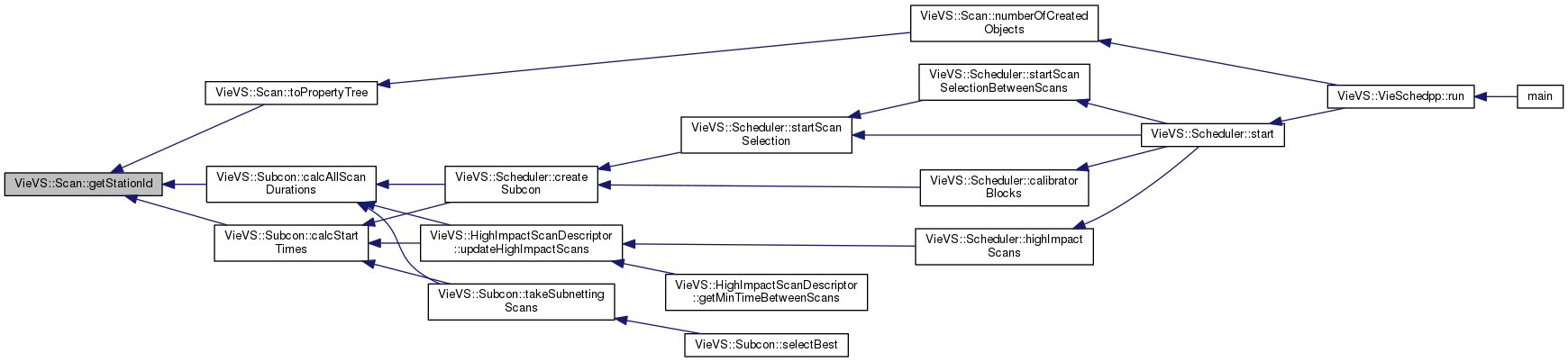

Here is the caller graph for this function:

vector< unsigned long > Scan::getStationIds ( ) const

noexcept

getter for all station ids

Author: Matthias Schartner

Returns: all station ids

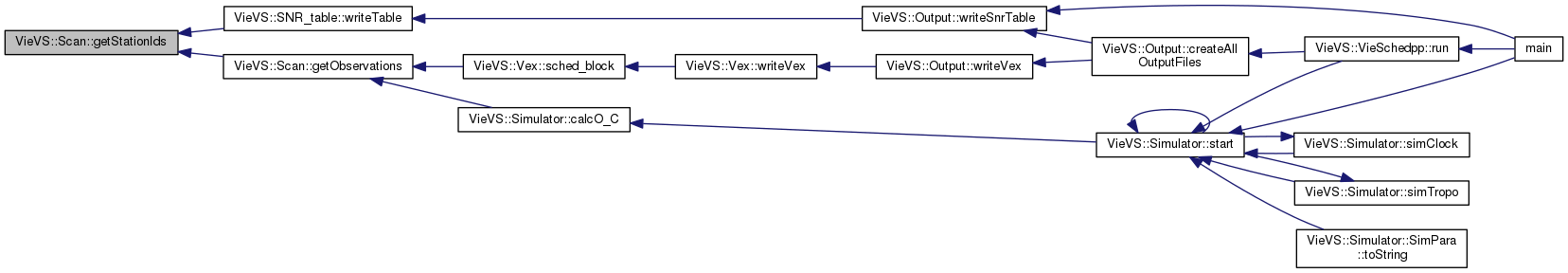

Here is the caller graph for this function:

const ScanTimes& VieVS::Scan::getTimes ( ) const

inlinenoexcept

getter to get all scan times

Author: Matthias Schartner

Returns: all scan times

Here is the caller graph for this function:

ScanType VieVS::Scan::getType ( ) const

inlinenoexcept

getter for scan type

Author: Matthias Schartner

Returns: scan type

Here is the caller graph for this function:

void Scan::includesStations ( std::vector< char > & flag ) const

checks if station is participating and notes it in flag vector

Author: Matthias Schartner

Parameters

flag	flag lists which stations were found

Here is the caller graph for this function:

unsigned long Scan::indexOfObservation	(	unsigned long	staid1,
		unsigned long	staid2
	)		const

check if a obseration betwen two stations is scheduled

Author: Matthias Schartner

Parameters

staid1	first station id
staid2	second station id

Returns: index of observation between these two stations or -1 in case observation is not scheduled

Here is the caller graph for this function:

static unsigned long VieVS::Scan::numberOfCreatedObjects ( )

inlinestatic

get total number of created scans

Author: Matthias Schartner

Returns: total number of created scans

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::output	(	unsigned long	observed_scan_nr,
		const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		std::ofstream &	of
	)		const

noexcept

outputs information of this scan to the current console

Author: Matthias Schartner

Parameters

observed_scan_nr	scan number
network	station network
source	observed source
of	outstream file object

Here is the call graph for this function:

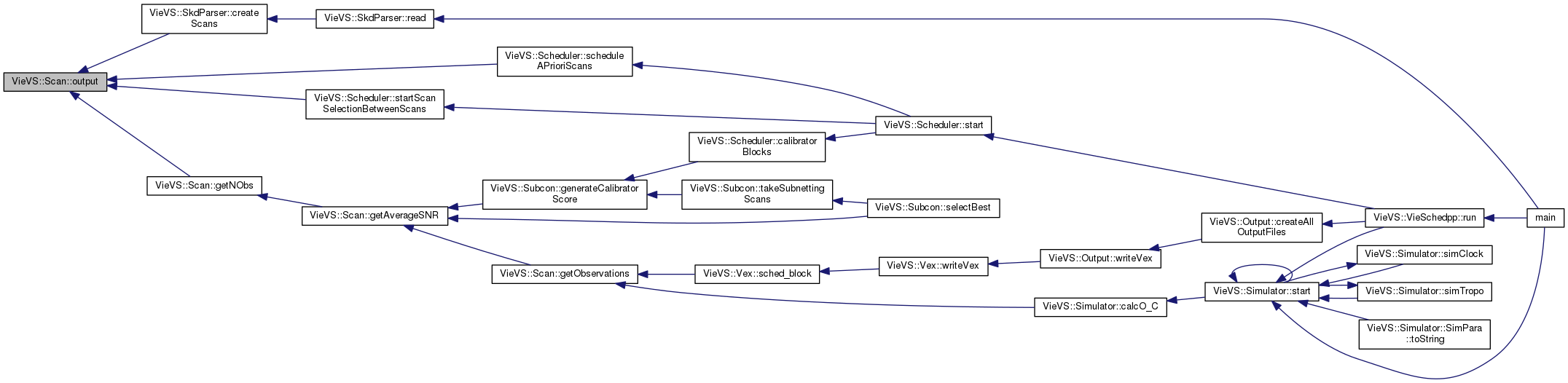

Here is the caller graph for this function:

bool Scan::prepareForScanEnd	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::shared_ptr< const Mode > &	mode,
		unsigned int	endTime
	)

remove stations from scan whose observations last longer then session

Author: Matthias Schartner

Parameters

network	station network
source	observed source
mode	observing mode
endTime	session end time

Returns: flag if scan is still valid

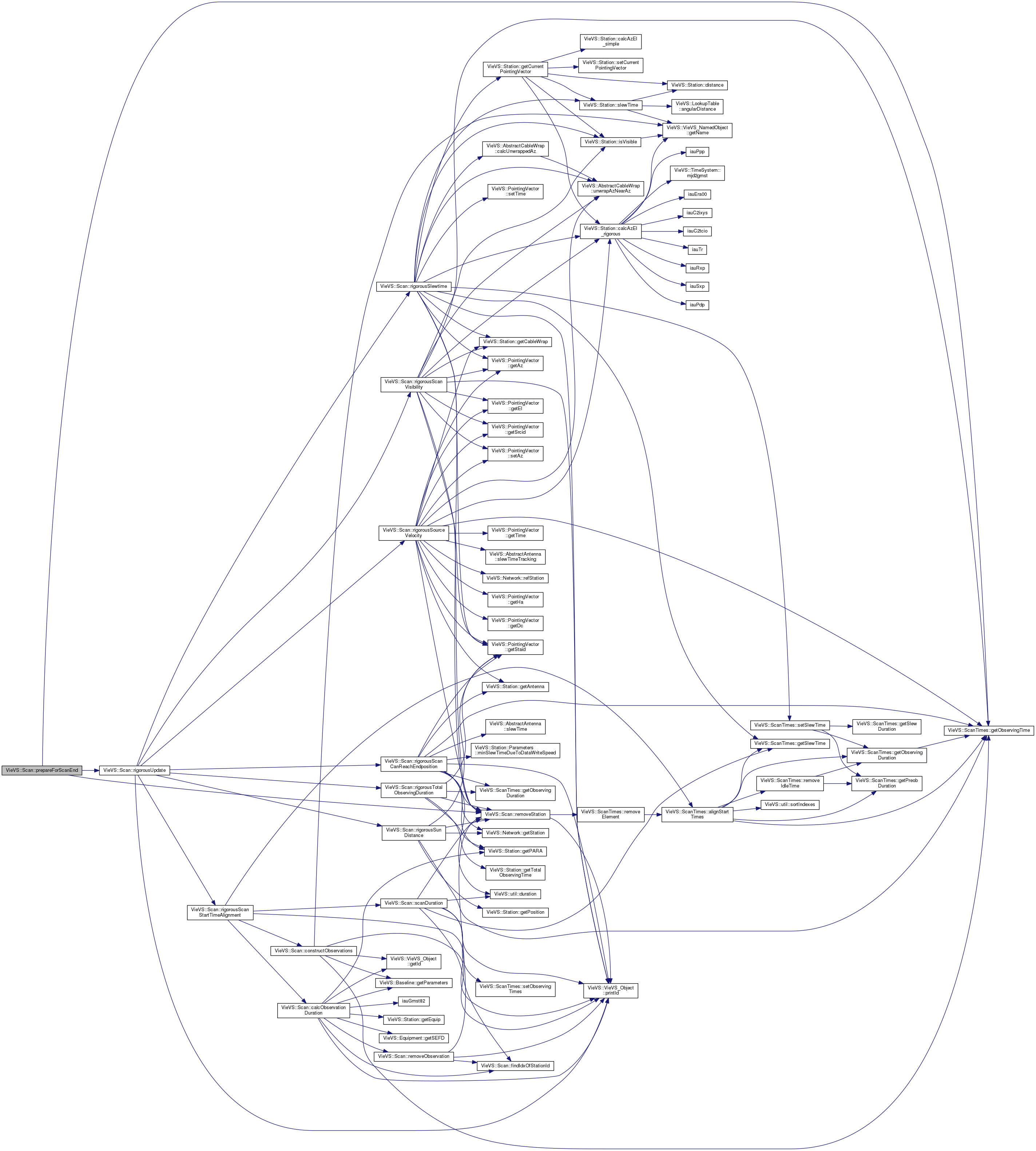

Here is the call graph for this function:

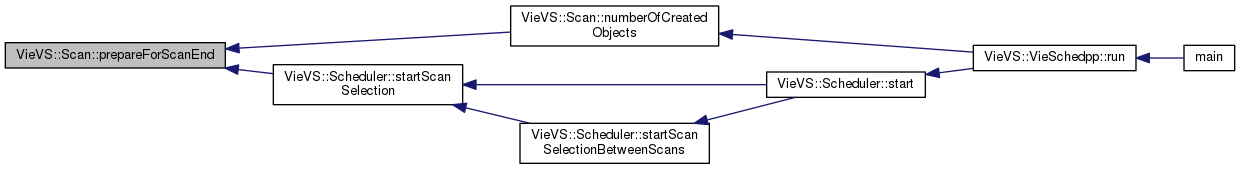

Here is the caller graph for this function:

PointingVector& VieVS::Scan::referencePointingVector	(	int	idx,
		Timestamp	ts = `Timestamp::start`
	)

inlinenoexcept

reference to pointing vector for an index

Author: Matthias Schartner

Parameters

idx	index of required pointing vector
ts	time stamp flag

Returns: pointing vector

Here is the caller graph for this function:

ScanTimes& VieVS::Scan::referenceTime ( )

inlinenoexcept

referenct to all scan times

Author: Matthias Schartner

Returns: all scan times

Observation& VieVS::Scan::refObservation ( int idx )

inlinenoexcept

referemce to a single observations

Author: Matthias Schartner

Parameters

idx	index of observation

Returns: observation

Observation & Scan::refObservation	(	unsigned long	staid1,
		unsigned long	staid2
	)

referemce to a single observations

Author: Matthias Schartner

Parameters

staid1	station id 1
staid2	station id 2

Returns: observation

std::vector<Observation>& VieVS::Scan::refObservations ( )

inline

referemces to all observations

Author: Matthias Schartner

Returns: vector of all observations

void Scan::removeAdditionalObservingTime	(	unsigned int	time,
		const Station &	thisSta,
		const std::shared_ptr< const AbstractSource > &	thisSource,
		std::ofstream &	of,
		Timestamp	ts
	)

remove additional observing time

Author: Matthias Schartner

deprecated! use removeUnnecessaryObservingTime() instead

Parameters

time	time
thisSta	station
thisSource	observed source
of	outfile stream
ts	time stamp flag

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::removeObservation	(	int	iobs,
		const std::shared_ptr< const AbstractSource > &	source
	)

noexcept

delete the observation at position iobs from scan

Author: Matthias Schartner

If a station has no longer any observations it gets removed

Parameters

iobs	index of observation
source	observed source

Returns: true if scan is still valid, false if scan is no longer valid

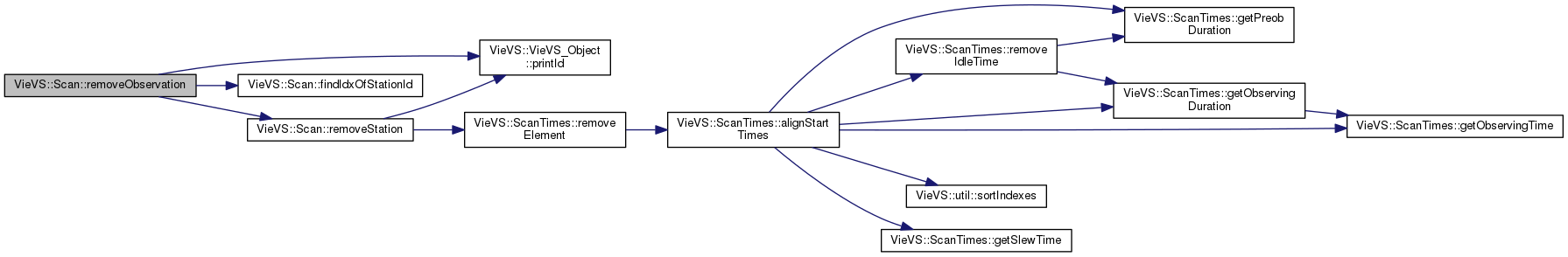

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::removeStation	(	int	idx,
		const std::shared_ptr< const AbstractSource > &	source
	)

noexcept

delete the pointing vector at position idx and all its corresponding times and observations

Author: Matthias Schartner

If a scan no longer has enough stations or the number of baselines will get zero, it gets invalid.

Parameters

idx	index of element to delete
source	observed source

Returns: true if scan is still valid, false if scan is no longer valid

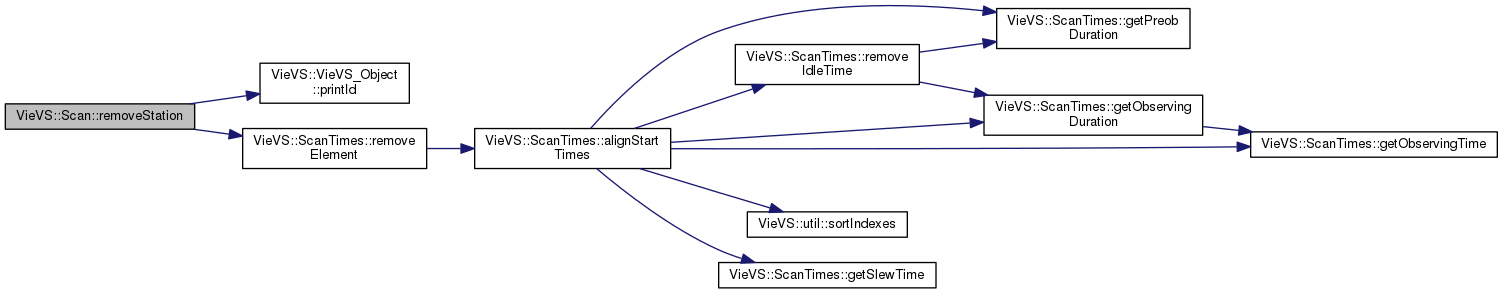

Here is the call graph for this function:

Here is the caller graph for this function:

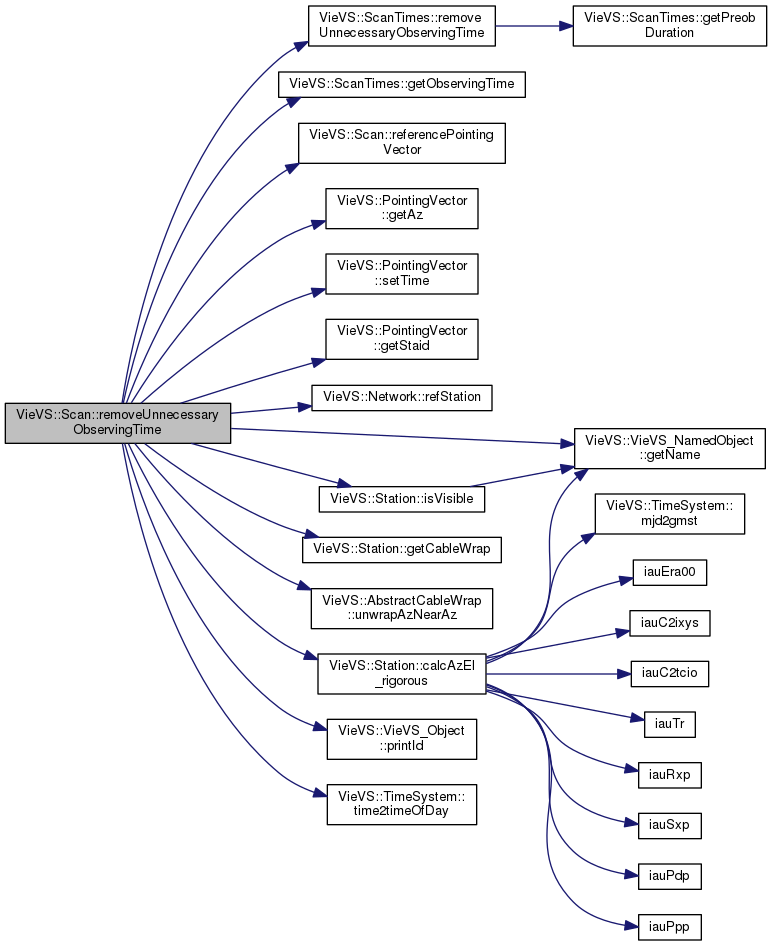

void Scan::removeUnnecessaryObservingTime	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	thisSource,
		std::ofstream &	of,
		Timestamp	ts
	)

remove unnecessary observing time

Author: Matthias Schartner

Parameters

network	station network
thisSource	observed source
of	outfile stream
ts	time stamp flag

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousScanCanReachEndposition	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	thisSource,
		const boost::optional< StationEndposition > &	endposition,
		bool &	stationRemoved
	)

private

rigorous check if scan can reach required endposition

Author: Matthias Schartner

Parameters

network	station network
thisSource	observed source
endposition	required endposition
stationRemoved	flag if a station got removed

Returns: true if scan is still valid, otherwise false

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousScanStartTimeAlignment	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::shared_ptr< const Mode > &	mode
	)

privatenoexcept

rigorous scan alignment

Author: Matthias Schartner

Parameters

network	station network
source	observed source
mode	observing mode

Returns: true if scan is still valid, otherwise false

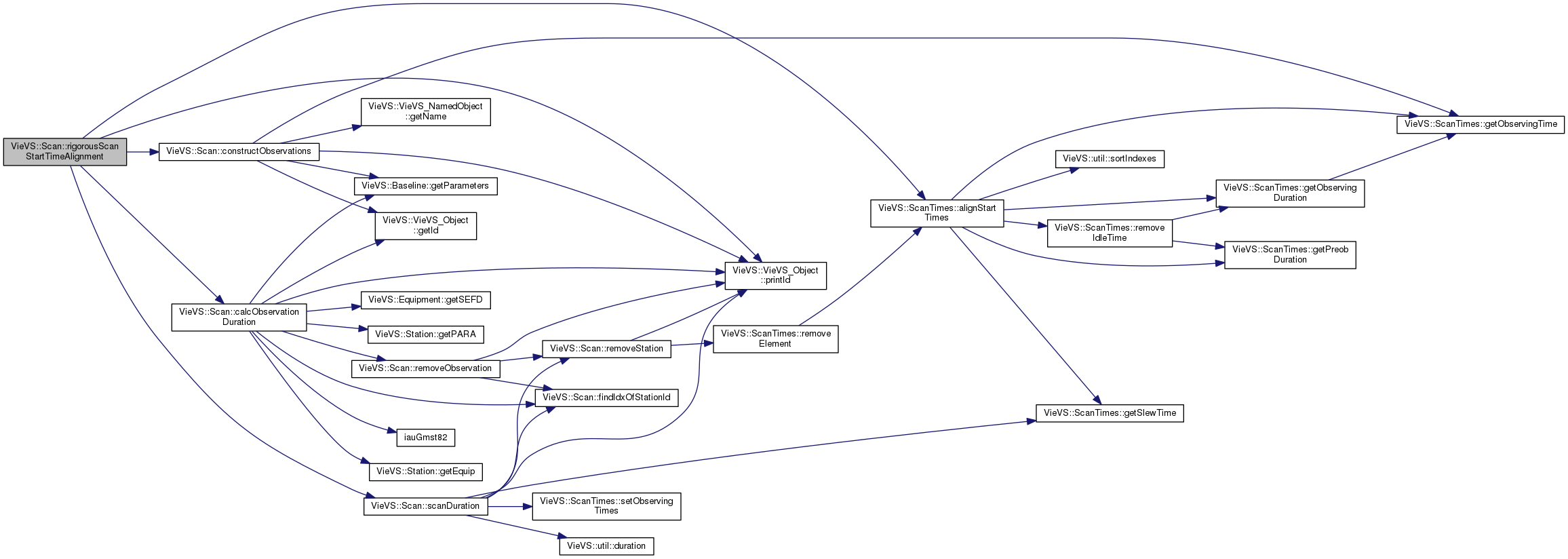

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousScanVisibility	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		bool &	stationRemoved
	)

privatenoexcept

rigorous scan visibility

Author: Matthias Schartner

Parameters

network	station network
source	observed source
stationRemoved	flag if a station got removed

Returns: true if scan is still valid, otherwise false

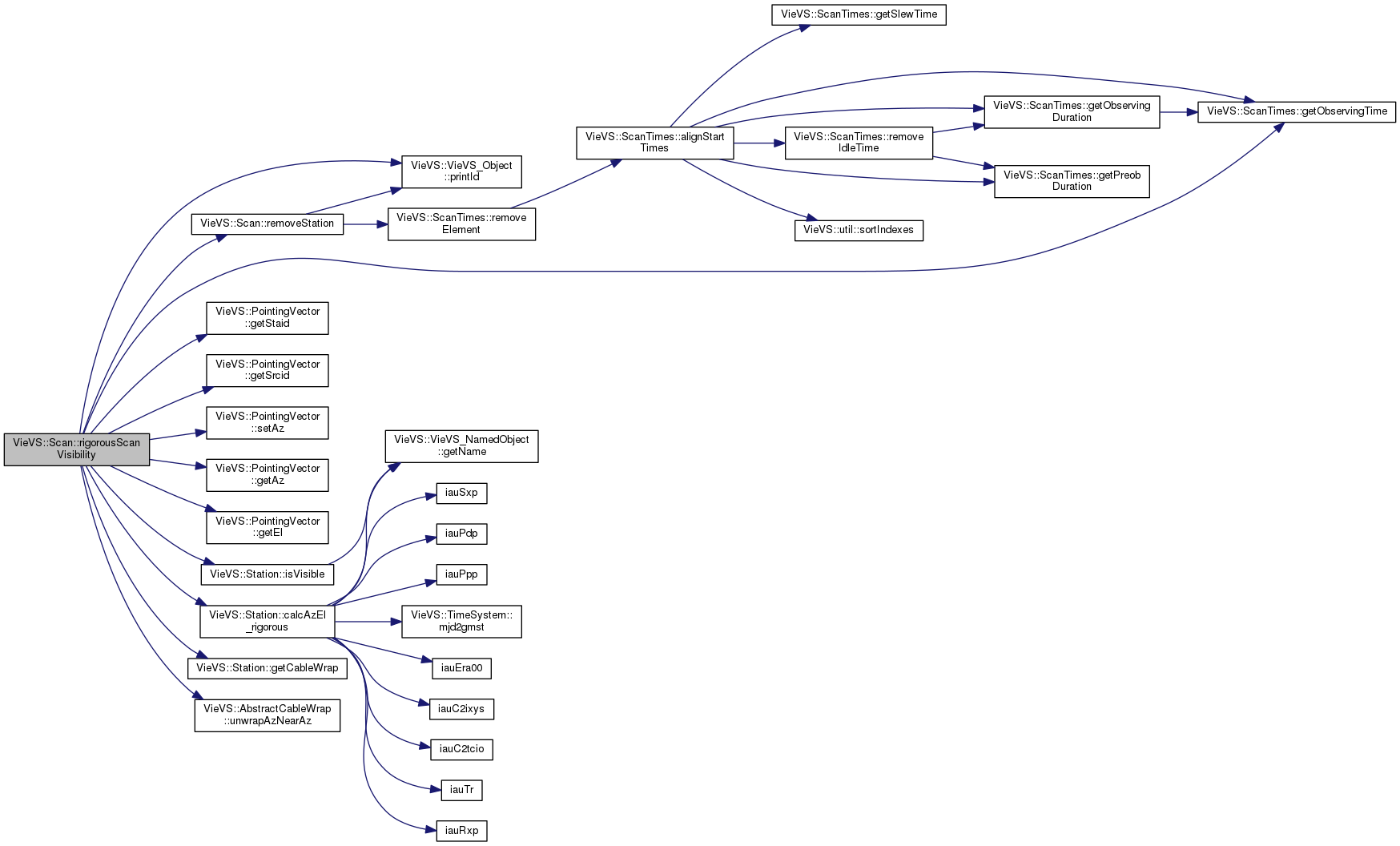

Here is the call graph for this function:

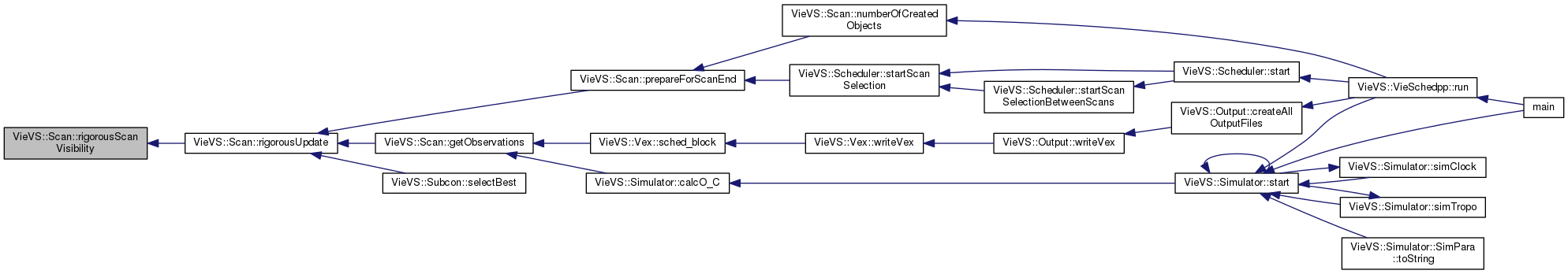

Here is the caller graph for this function:

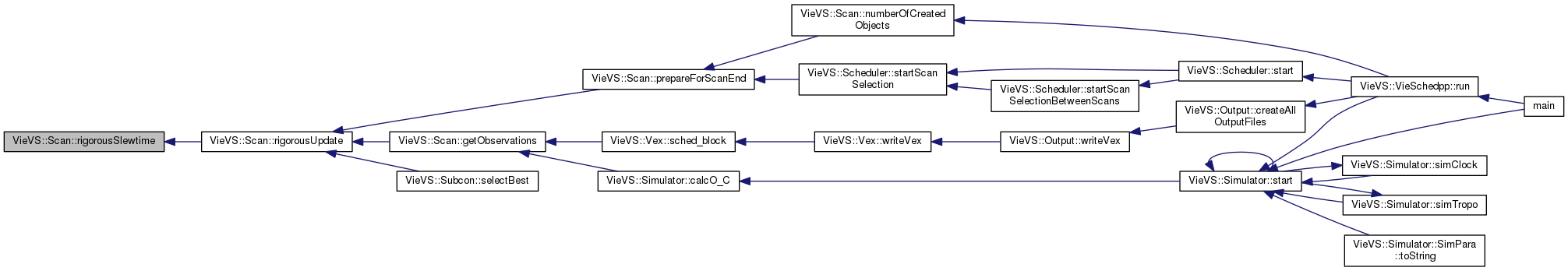

bool Scan::rigorousSlewtime	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source
	)

privatenoexcept

scan constellation type

rigorous slew time calculation

Author: Matthias Schartner

Parameters

network	station network
source	observed source

Returns: true if scan is still valid, otherwise false

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousSourceVelocity	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	thisSource
	)

private

rigorous check that source is not moving faster than antenna slew speed

Author: Matthias Schartner

Parameters

network	station network
thisSource	observed source

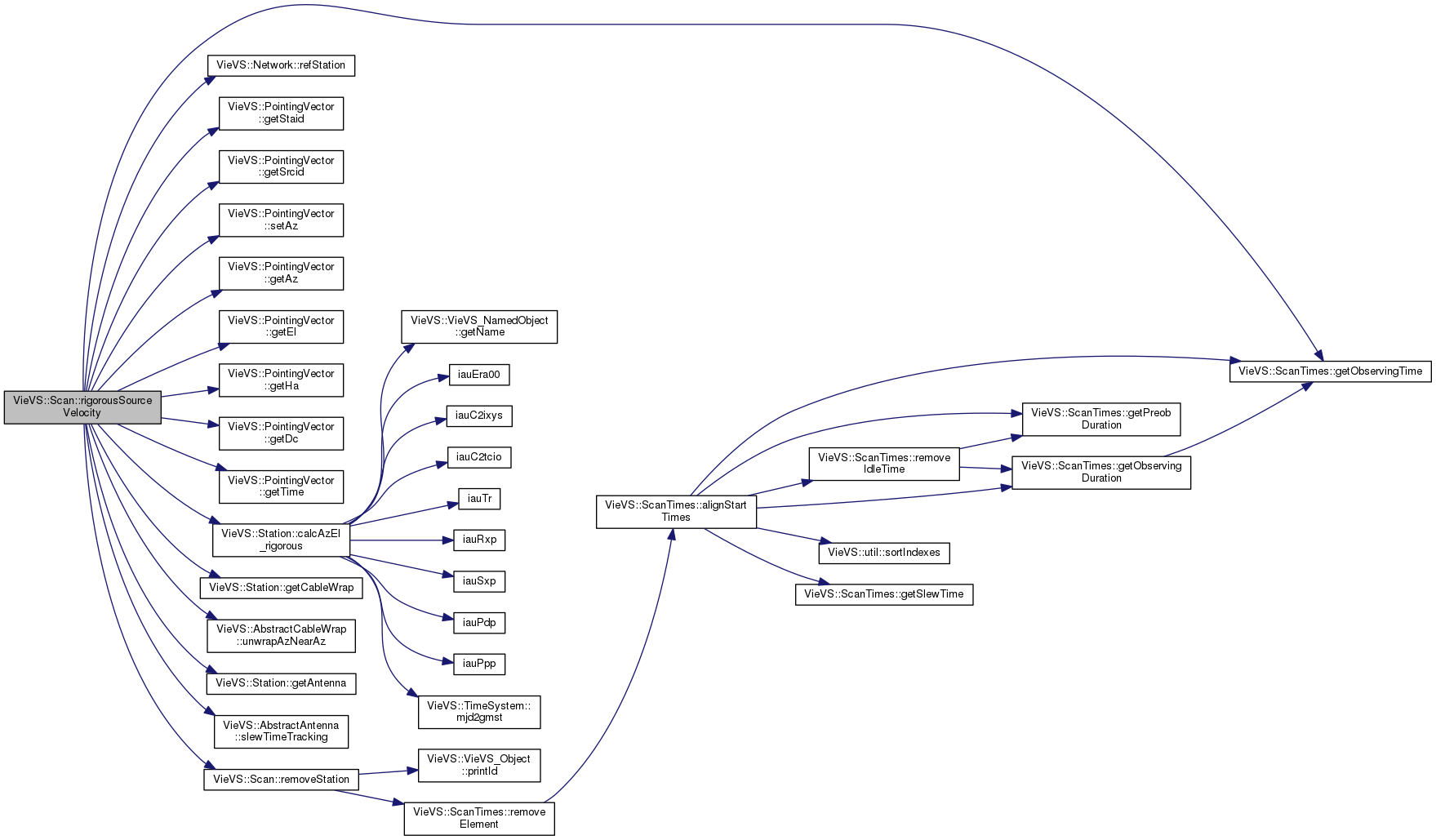

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousSunDistance	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	thisSource
	)

private

rigorous check if sun distance is large enough

Author: Matthias Schartner

Parameters

network	station network
thisSource	observed source

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousTotalObservingDuration	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source
	)

privatenoexcept

rigorous total observing duration calculation

Author: Matthias Schartner

Parameters

network	station network
source	observed source

Returns: true if scan is still valid, otherwise false

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scan::rigorousUpdate	(	Network &	network,
		const std::shared_ptr< const AbstractSource > &	source,
		const std::shared_ptr< const Mode > &	mode,
		const boost::optional< StationEndposition > &	endposition = `boost::none`
	)

noexcept

checks a scan with rigorous models

Author: Matthias Schartner

Parameters

network	station network
source	observed source
mode	observing mode
endposition	required endposition

Returns: true if scan is still valid, false if scan is no longer valid

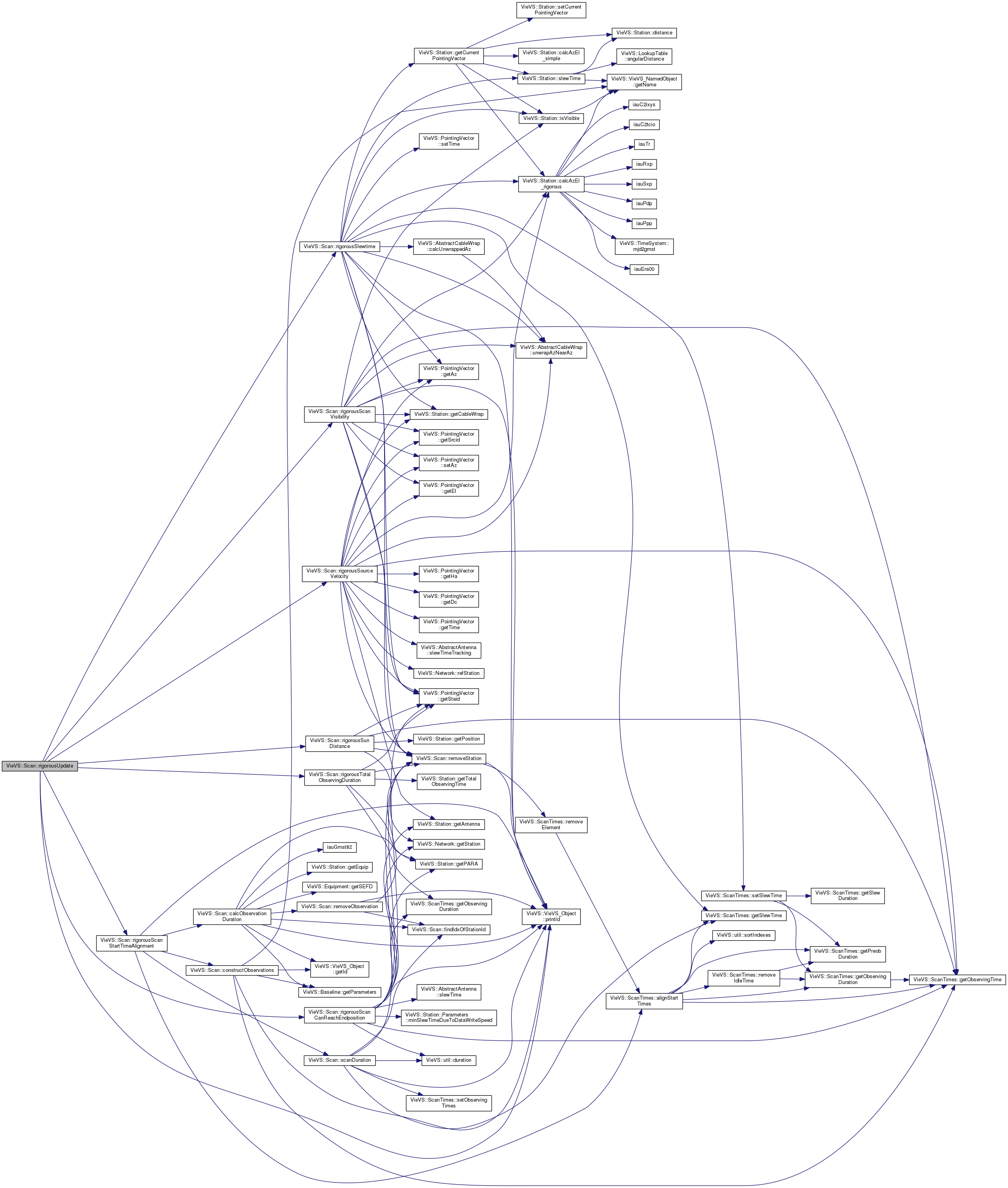

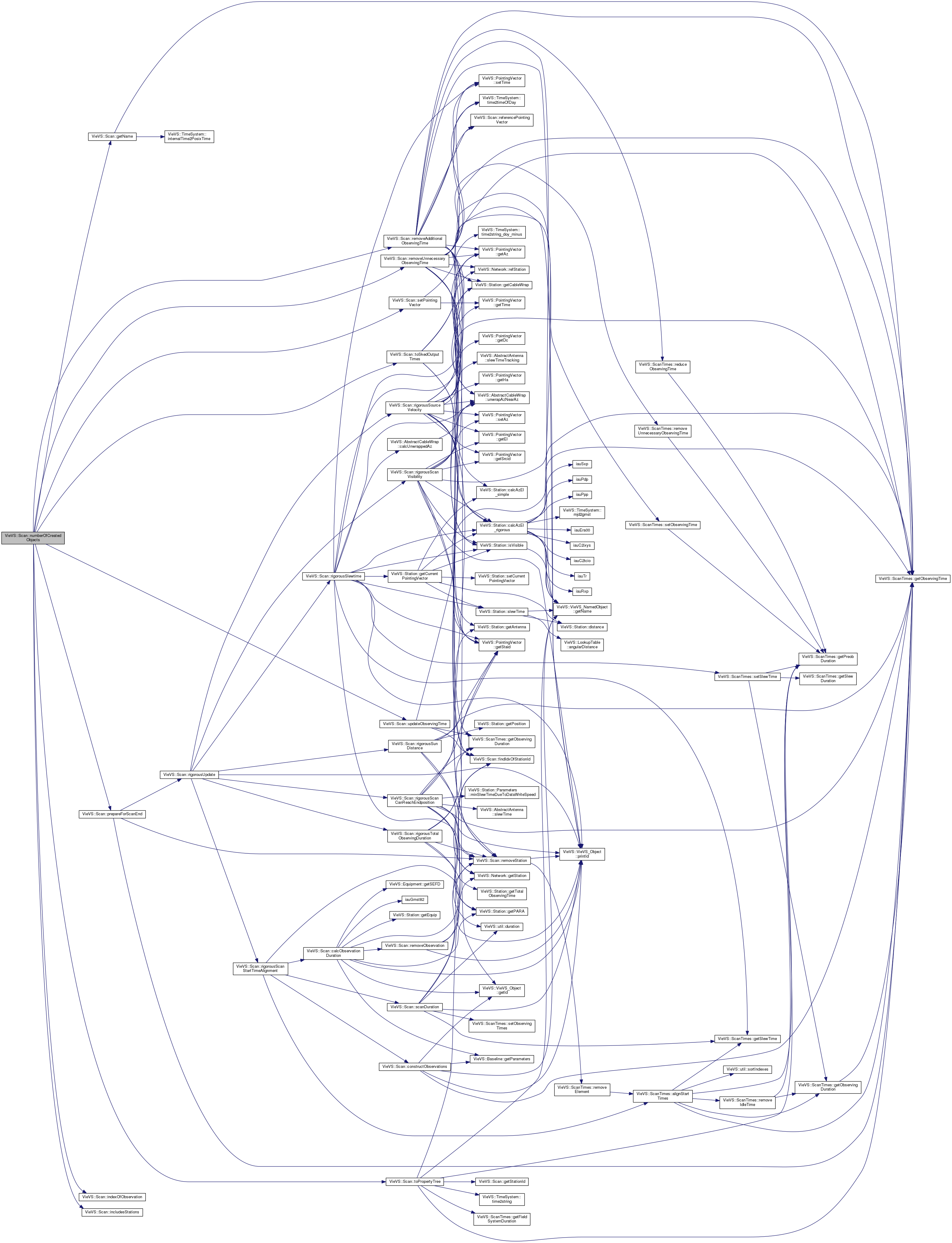

Here is the call graph for this function:

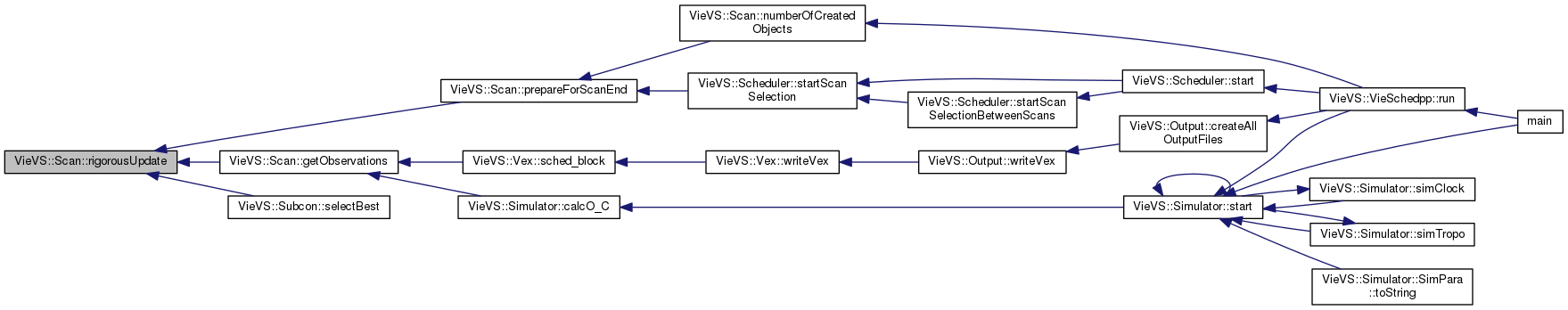

Here is the caller graph for this function:

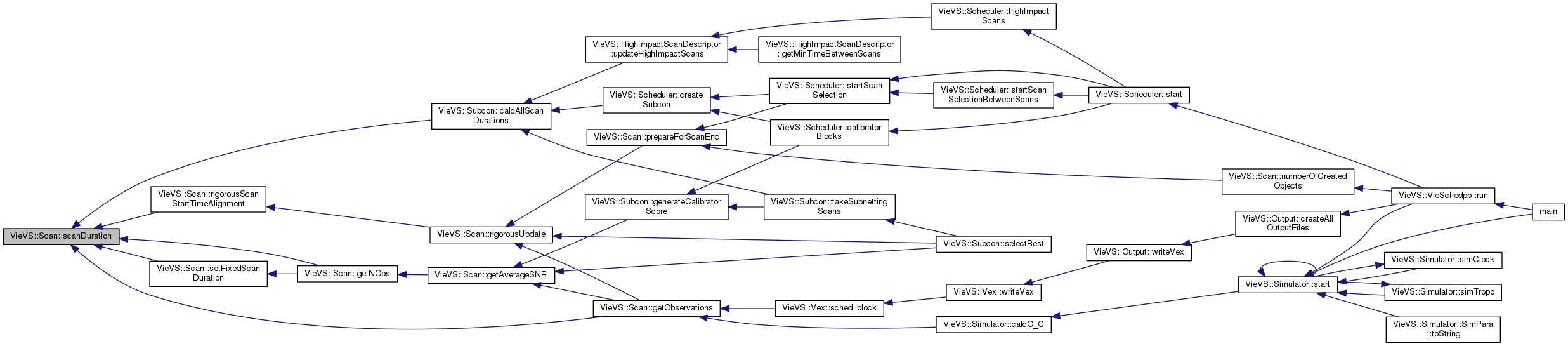

bool Scan::scanDuration	(	const Network &	network,
		const std::shared_ptr< const AbstractSource > &	source
	)

noexcept

calculates the total scan duration per station

Author: Matthias Schartner

removes stations if the scan duration is longer than the maximum allowed scan duration

Parameters

network	station network
source	observed source

Returns: true if scan is still valid, false if scan is no longer valid

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::setFixedScanDuration ( unsigned int scanDuration )

noexcept

set fixed scan duration

Author: Matthias Schartner

Parameters

scanDuration scan duration in seconds

Here is the call graph for this function:

Here is the caller graph for this function:

void VieVS::Scan::setObservations ( std::vector< Observation > obs )

inline

sets observation vector

Author: Helene Wolf

Parameters

obs	observations

Here is the call graph for this function:

void Scan::setPointingVector	(	int	idx,
		PointingVector	pv,
		Timestamp	ts
	)

set pointing vector

Author: Matthias Schartner

Parameters

idx	index of pointing vector
pv	new pointing vector
ts	time stamp flag

Here is the call graph for this function:

Here is the caller graph for this function:

void Scan::setPointingVectorsEndtime ( std::vector< PointingVector > pv_end )

set pointing vector at scan end time

Author: Matthias Schartner

Parameters

pv_end pointing vector at scan end time

Here is the caller graph for this function:

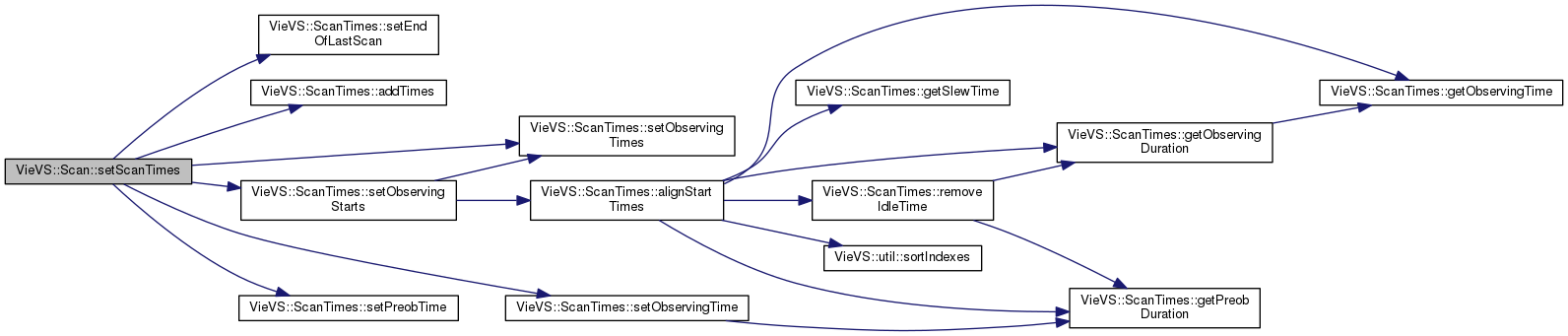

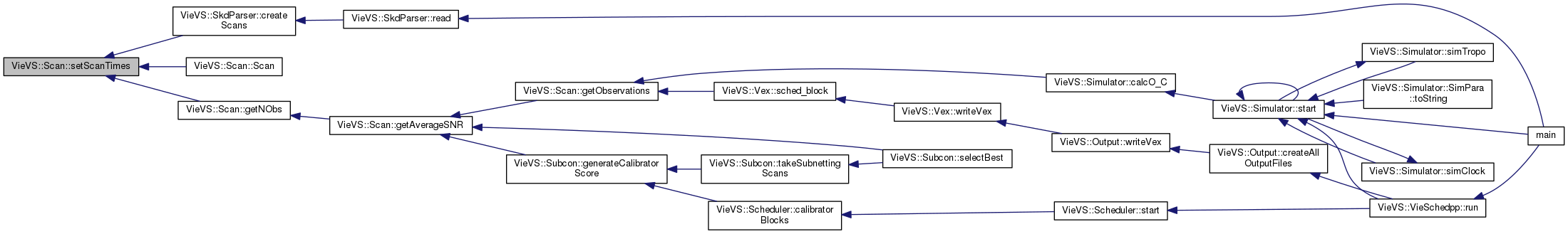

bool Scan::setScanTimes	(	const std::vector< unsigned int > &	eols,
		const std::vector< unsigned int > &	fieldSystemTime,
		const std::vector< unsigned int > &	slewTime,
		const std::vector< unsigned int > &	preob,
		unsigned int	scanStart,
		const std::vector< unsigned int > &	observingTimes
	)

set scan times

Author: Matthias Schartner

Parameters

eols	end of last scan per station
fieldSystemTime	field system time per station
slewTime	slew time per station
preob	calibration time per station
scanStart	scan start time
observingTimes	observing time per station

Returns

Here is the call graph for this function:

Here is the caller graph for this function:

bool VieVS::Scan::setScanTimes	(	const std::vector< unsigned int > &	eols,
		const std::vector< unsigned int > &	fieldSystemTime,
		const std::vector< unsigned int > &	slewTime,
		const std::vector< unsigned int > &	preob,
		const std::vector< unsigned int > &	scanStart,
		const std::vector< unsigned int > &	observingTimes
	)

set scan times

Author: Helene Wolf

Parameters

eols	end of last scan per station
fieldSystemTime	field system time per station
slewTime	slew time per station
preob	calibration time per station
scanStart	scan start time per station
observingTimes	observing time per station

Returns: flag if times are valid

void VieVS::Scan::setType ( ScanType type )

inlinenoexcept

sets the scan type

Author: Matthias Schartner

Parameters

type	new scan type

boost::property_tree::ptree Scan::toPropertyTree	(	const Network &	network,
		const std::string &	sourceName
	)		const

convert scan to property tree

Author: Matthias Schartner

This function is used by the GUI

Parameters

network	station network
sourceName	source name

Returns: property tree of scan

Here is the call graph for this function:

Here is the caller graph for this function:

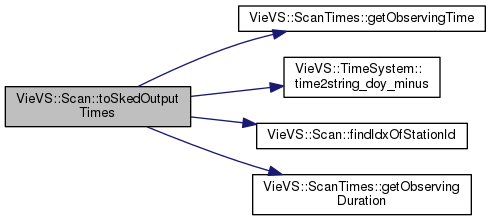

std::string Scan::toSkedOutputTimes	(	const std::shared_ptr< const AbstractSource > &	source,
		unsigned long	nMaxSta
	)		const

output observing duration in sked output format

Author: Matthias Schartner

Parameters

source	observedSource
nMaxSta	maximum number of station

Returns: line output in sked format

Here is the call graph for this function:

Here is the caller graph for this function:

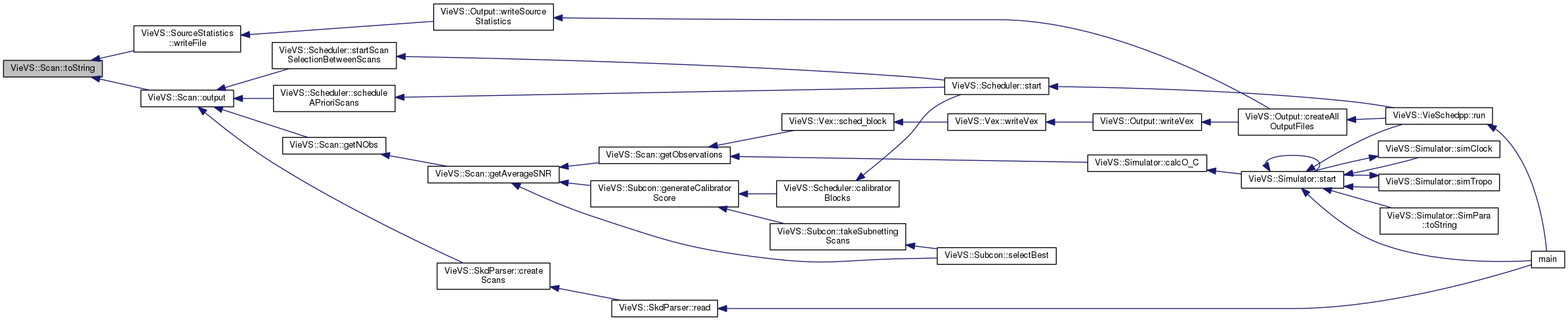

static std::string VieVS::Scan::toString ( ScanType type_ )

inlinestatic

translates ScanType to string

Author: Matthias Schartner

Returns: string of scan type

Here is the caller graph for this function:

static std::string VieVS::Scan::toString ( ScanConstellation type_ )

inlinestatic

translates ScanConstellation to string

Author: Matthias Schartner

Returns: string of scan constellation

void Scan::updateObservingTime ( )

updates the time of each observation according to the observing times of the station

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

double Scan::weight_baselines ( const std::vector< Baseline > & baselines )

private

mean of the weight factors for each participating baselines

Author: Matthias Schartner

Returns: mean of the weight factors

Here is the caller graph for this function:

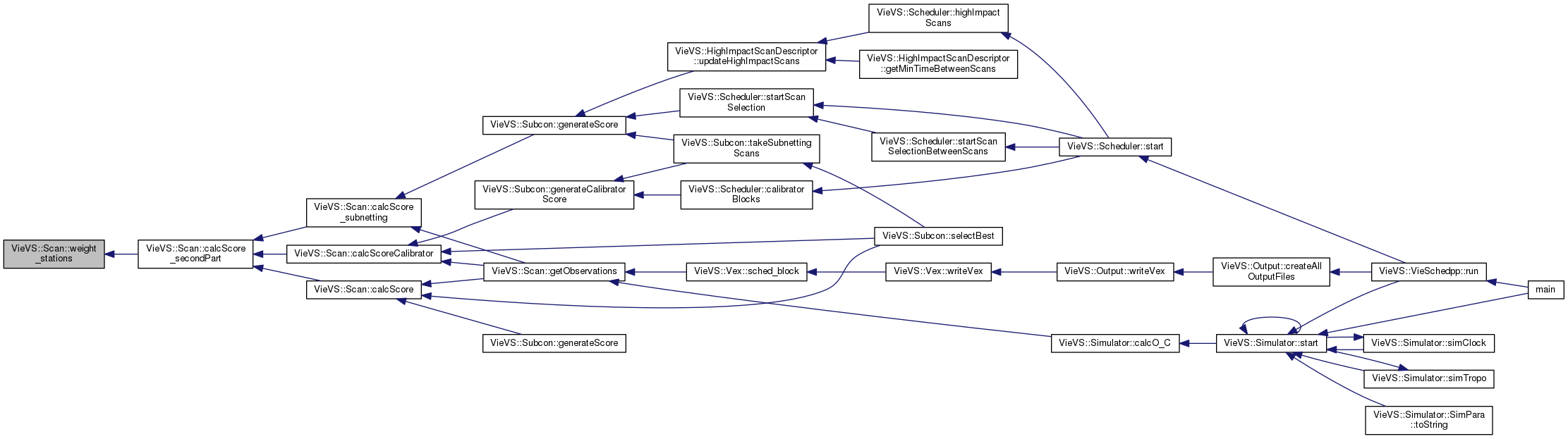

double Scan::weight_stations ( const std::vector< Station > & stations )

private

mean of the weight factors for each participating station

Author: Matthias Schartner

Parameters

stations list of all stations

Returns: mean of weight factors

Here is the caller graph for this function:

Member Data Documentation

ScanConstellation VieVS::Scan::constellation_

private

unsigned long Scan::nextId = 0

staticprivate

next id for this object type

unsigned int Scan::nScanSelections { 0 }

static

number of selected main scans

unsigned long VieVS::Scan::nsta_

private

number of stations in this scan

std::vector<Observation> VieVS::Scan::observations_

private

all observed baselines

std::vector<PointingVector> VieVS::Scan::pointingVectorsEnd_

private

pointing vectors at end of the scan

std::vector<PointingVector> VieVS::Scan::pointingVectorsStart_

private

pointing vectors at start of the scan

Scan::ScanSequence Scan::scanSequence

static

scan sequence rules

double VieVS::Scan::score_

private

total score

unsigned long VieVS::Scan::srcid_

private

observed source id

ScanTimes VieVS::Scan::times_

private

time information

ScanType VieVS::Scan::type_

private

type of the scan

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Scan/Scan.h
/home/travis/build/TUW-VieVS/VieSchedpp/Scan/Scan.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
