this is the VLBI initializer that creats every objects and passes them to the VLBI_scheduler More...

#include <Initializer.h>

Inheritance diagram for VieVS::Initializer:

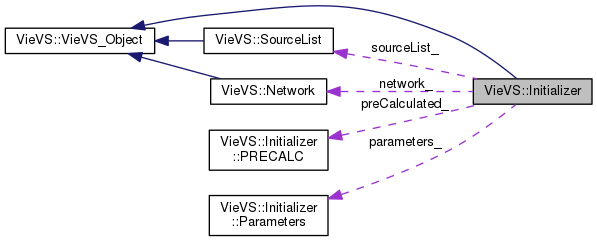

Collaboration diagram for VieVS::Initializer:

[legend]

Classes
struct	Parameters
	Parameters used in VLBI_initializer. More...

struct	PRECALC
	pre calculated values More...

Public Types
enum	MemberType { MemberType::station, MemberType::source, MemberType::satellite, MemberType::spacecraft, MemberType::baseline }
	possible member types More...

Public Member Functions
	Initializer ()

	Initializer (const std::string &path)
	constructor More...

	Initializer (const boost::property_tree::ptree &xml)
	constructor More...

const boost::property_tree::ptree &	getXml () const
	getter for VieSchedpp.xml content More...

void	precalcSubnettingSrcIds () noexcept
	pre calculates all possible second scans used for subnetting More...

void	createStations (const SkdCatalogReader &reader, std::ofstream &of) noexcept
	creates all selected stations from sked catalogs More...

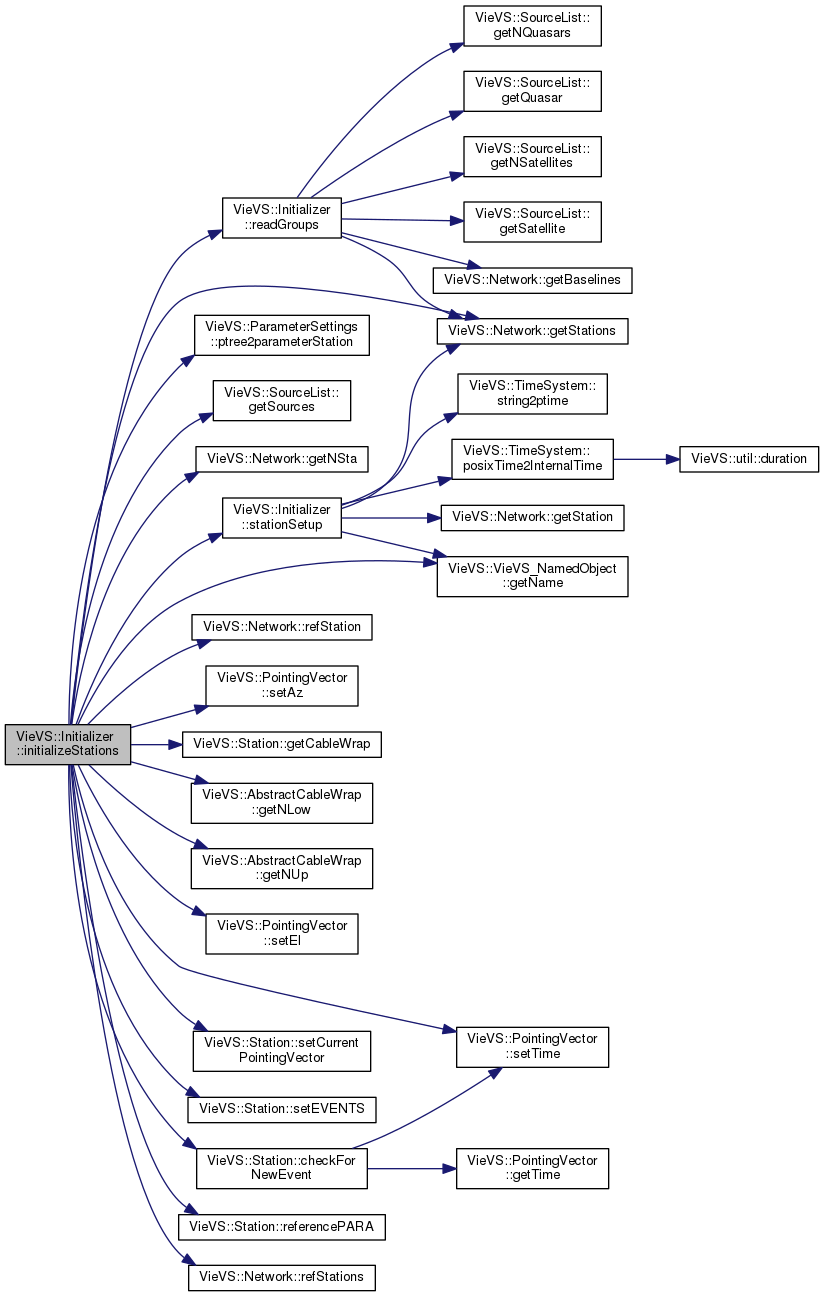

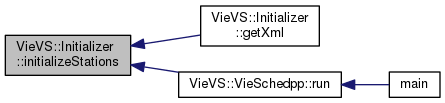

void	initializeStations () noexcept
	initializes all stations with settings from VieSchedpp.xml file More...

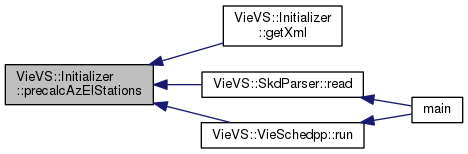

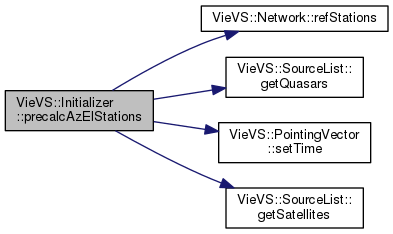

void	precalcAzElStations () noexcept
	precalc azimuth elevations for stations More...

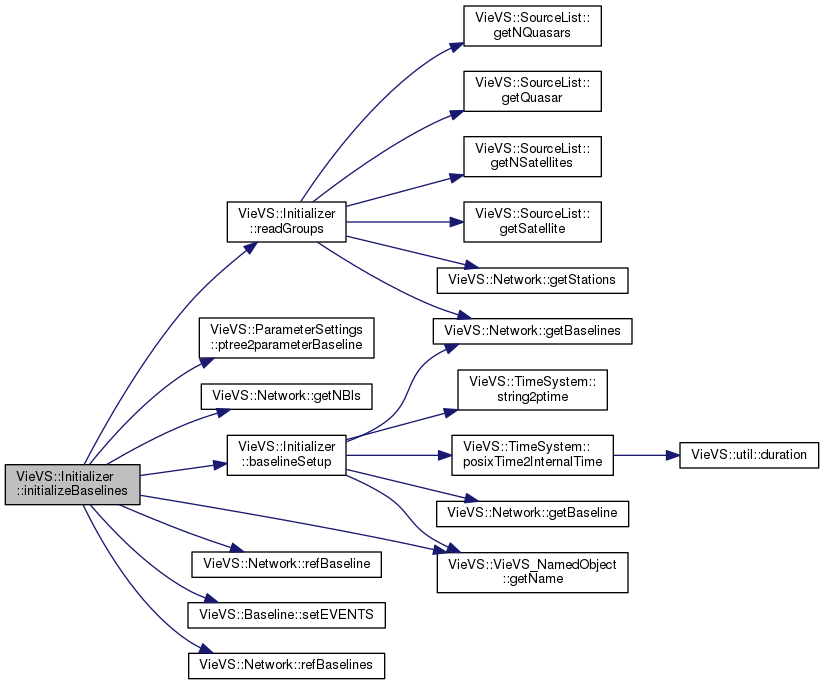

void	initializeBaselines () noexcept
	initializes all baselines with settings from VieSchedpp.xml file More...

void	createSources (const SkdCatalogReader &reader, std::ofstream &of) noexcept
	creates all possible sources from sked catalogs More...

void	createSatellites (const SkdCatalogReader &reader, std::ofstream &of) noexcept
	creates all possible satellites from TLE files More...

void	createSpacecrafts (const SkdCatalogReader &reader, std::ofstream &of) noexcept
	creates all possible spacecrafts More...

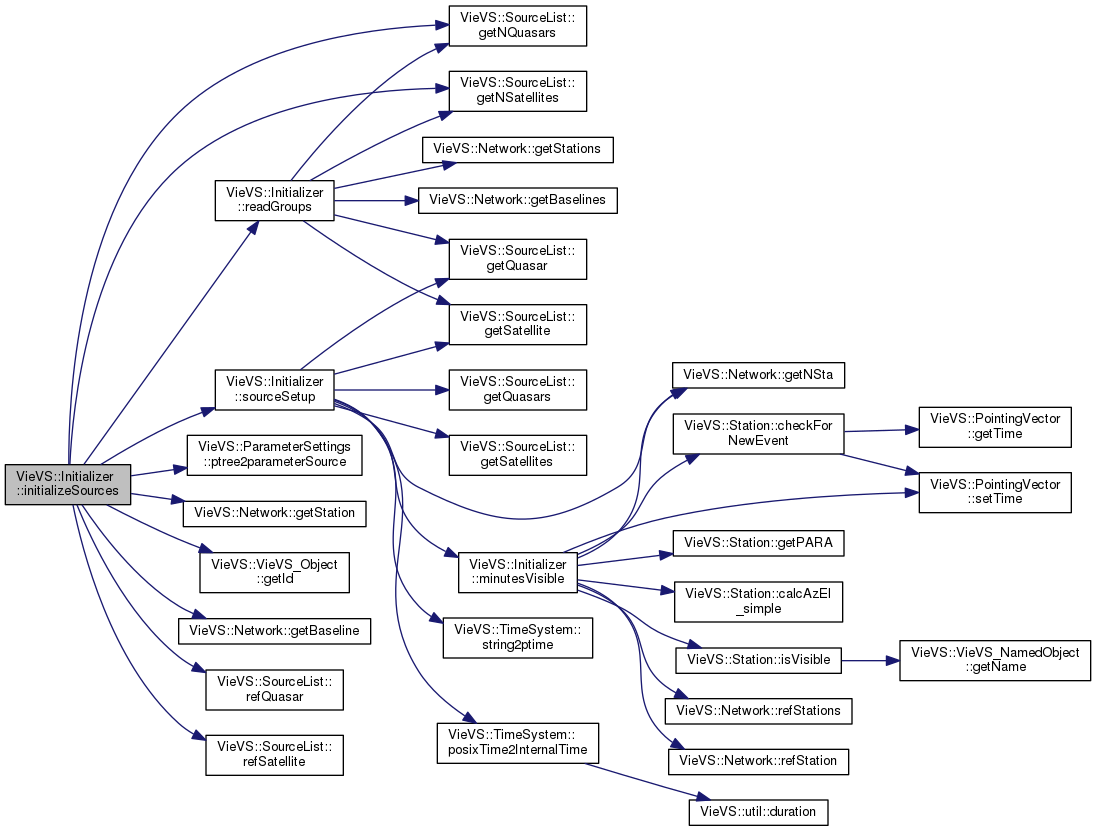

void	initializeSources (MemberType type) noexcept
	initializes all sources with settings from VieSchedpp.xml file More...

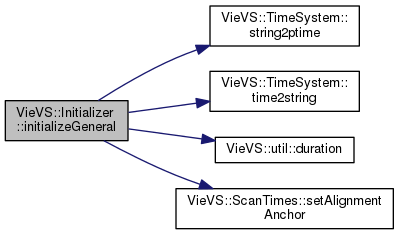

void	initializeGeneral (std::ofstream &of) noexcept
	initializes general block with settings from VieSchedpp.xml file More...

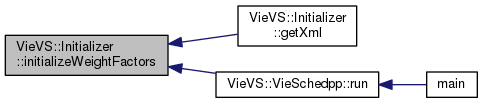

void	initializeWeightFactors () noexcept
	initializes the weight factors More...

void	initializeSkyCoverages () noexcept
	inintializes the sky Coverage lookup table More...

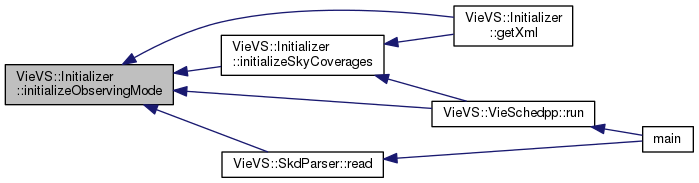

void	initializeObservingMode (const SkdCatalogReader &skdCatalogs, std::ofstream &of) noexcept
	reads the observing mode information from VieSchedpp.xml file More...

void	initializeObservingMode (unsigned long nsta, double samplerate, unsigned int bits, const std::unordered_map< std::string, unsigned int > &band2channel, const std::unordered_map< std::string, double > &band2wavelength, double efficiencyFactor=-1) noexcept
	creates dummy observing modes file More...

void	connectObservingMode (std::ofstream &of) noexcept
	sets station names to observing mode and displays summary More...

void	initializeFocusCornersAlgorithm () noexcept
	initializes focus corner algorithm for intensives if there is one defined in the VieSchedpp.xml file More...

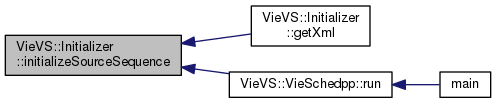

void	initializeSourceSequence () noexcept
	initializes a custom source sequence if there is one defined in the VieSchedpp.xml file More...

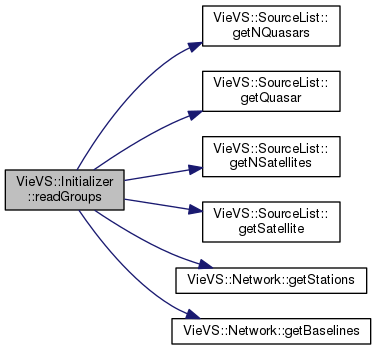

std::unordered_map< std::string, std::vector< std::string > >	readGroups (boost::property_tree::ptree root, MemberType type) noexcept
	reads all groups specified in the root tree More...

void	applyMultiSchedParameters (const VieVS::MultiScheduling::Parameters &parameters, int version)
	applies all multi scheduling parameters to the initializer More...

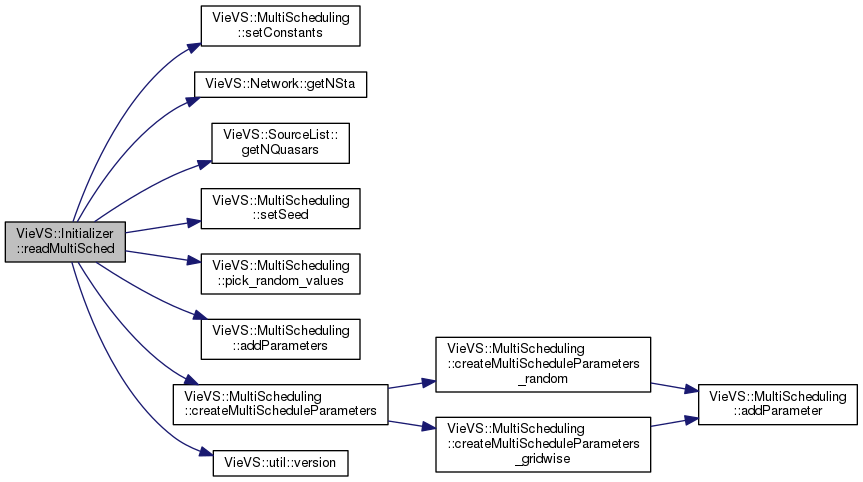

std::vector< MultiScheduling::Parameters >	readMultiSched (std::ostream &out)
	reads multiSched block from VieSchedpp.xml file More...

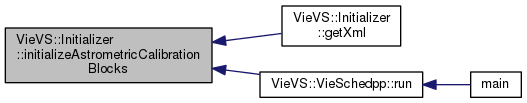

void	initializeAstrometricCalibrationBlocks (std::ofstream &of)
	initializes astrometric calibration block with settings from VieSchedpp.xml file More...

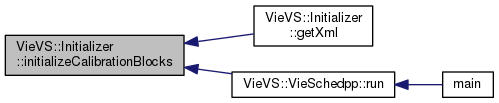

void	initializeCalibrationBlocks ()
	initializes calibration block with settings from VieSchedpp.xml file More...

void	statisticsLogHeader (std::ofstream &of, const std::vector< VieVS::MultiScheduling::Parameters > &ms)
	writes statistics log header More...

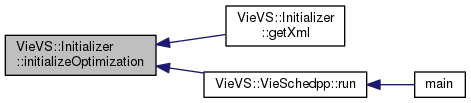

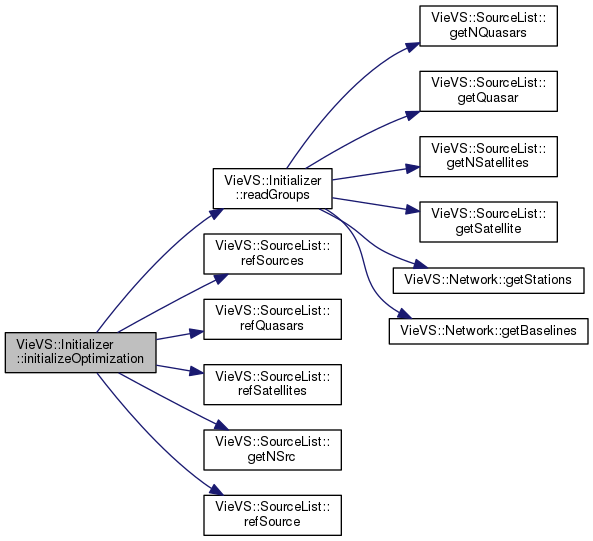

void	initializeOptimization (std::ofstream &of)
	initializes optimization conditions with settings from VieSchedpp.xml file More...

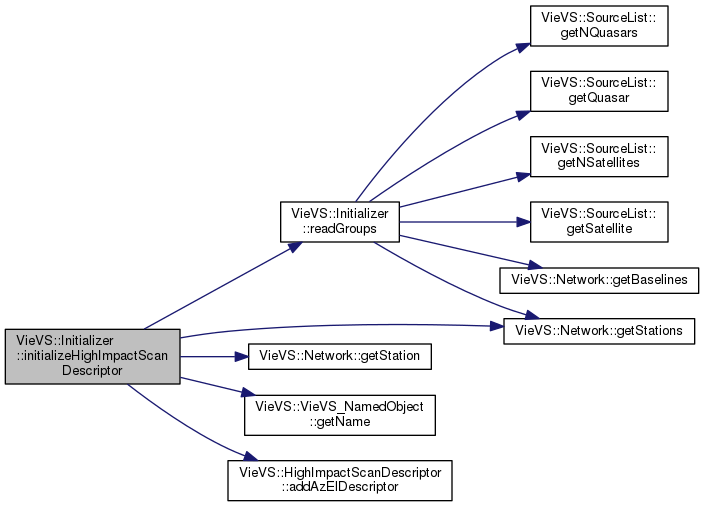

void	initializeHighImpactScanDescriptor (std::ofstream &of)
	initializes high impact scan descriptors with settings from VieSchedpp.xml file More...

const Network &	getNetwork ()
	getter for session network More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Static Public Member Functions
static void	initializeAstronomicalParameteres () noexcept
	initializes astronomical parameters More...

Private Member Functions

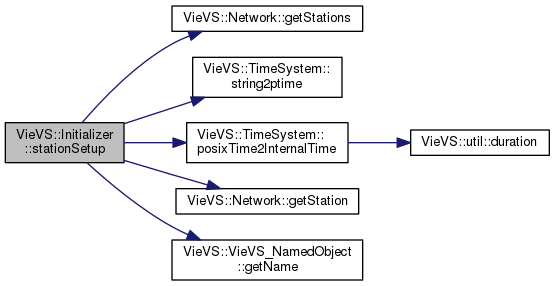

void	stationSetup (std::vector< std::vector< Station::Event >> &events, const boost::property_tree::ptree &tree, const std::unordered_map< std::string, ParameterSettings::ParametersStations > &parameters, const std::unordered_map< std::string, std::vector< std::string >> &groups, const Station::Parameters &parentPARA) noexcept
	station setup function More...

void	sourceSetup (std::vector< std::vector< AbstractSource::Event >> &events, const boost::property_tree::ptree &tree, const std::unordered_map< std::string, ParameterSettings::ParametersSources > &parameters, const std::unordered_map< std::string, std::vector< std::string >> &groups, const AbstractSource::Parameters &parentPARA, MemberType type) noexcept
	source setup function More...

void	baselineSetup (std::vector< std::vector< Baseline::Event >> &events, const boost::property_tree::ptree &tree, const std::unordered_map< std::string, ParameterSettings::ParametersBaselines > &parameters, const std::unordered_map< std::string, std::vector< std::string >> &groups, const Baseline::Parameters &parentPARA) noexcept
	baseline setup function More...

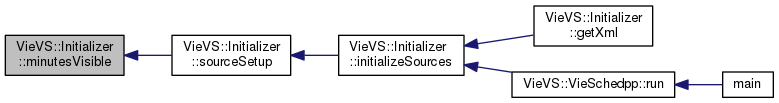

unsigned int	minutesVisible (std::shared_ptr< const AbstractSource > source, const AbstractSource::Parameters &parameters, unsigned int start, unsigned int end)
	number of minutes where source is visible More...

std::vector< unsigned long >	getMembers (const std::string &name, const std::vector< Station > &stations)
	get members of station group More...

std::vector< unsigned long >	getMembers (const std::string &name, const std::vector< Baseline > &baselines)
	get members of baseline group More...

std::vector< unsigned long >	getMembers (const std::string &name, const SourceList &sourceList)
	get members of source group More...

std::unordered_map< std::string, std::unique_ptr< AbstractFlux > >	generateFluxObject (const std::string &name, const std::string &commonname, const std::map< std::string, std::vector< std::string >> &fluxCatalog, bool fluxNecessary, std::ofstream &of)

Private Attributes
int	version_ = 0
	version More...

boost::property_tree::ptree	xml_
	content of VieSchedpp.xml file More...

SourceList	sourceList_
	session source list More...

Network	network_
	station network More...

std::shared_ptr< ObservingMode >	obsModes_ = nullptr
	observing mode More...

Parameters	parameters_
	parameters More...

PRECALC	preCalculated_
	pre calculated values More...

std::unordered_map< std::string, std::vector< std::string > >	staGroups_
	station groups More...

std::unordered_map< std::string, std::vector< std::string > >	srcGroups_
	source groups More...

std::unordered_map< std::string, std::vector< std::string > >	satGroups_
	satellite groups More...

std::unordered_map< std::string, std::vector< std::string > >	spacecraftGroups_
	spacecraft groups More...

std::unordered_map< std::string, std::vector< std::string > >	blGroups_
	baseline groups More...

boost::optional< HighImpactScanDescriptor >	himp_
	high impact scan descriptor More...

std::vector< CalibratorBlock >	calib_
	calibrator impact scan descriptor More...

boost::optional< MultiScheduling::Parameters >	multiSchedulingParameters_
	multi scheduling paramters More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Friends
class	Scheduler

class	SkdParser

Detailed Description

this is the VLBI initializer that creats every objects and passes them to the VLBI_scheduler

Author: Matthias Schartner

Date: 28.06.2017

Member Enumeration Documentation

enum VieVS::Initializer::MemberType

strong

possible member types

Author: Matthias Schartner

Enumerator
station	stations wise group
source	source wise group
satellite	satellite wise group
spacecraft	spacecraft wise group
baseline	baseline wise group

Constructor & Destructor Documentation

Initializer::Initializer ( )

Initializer::Initializer ( const std::string & path )

explicit

constructor

Author: Matthias Schartner

Parameters

path	path to VieSchedpp.xml file

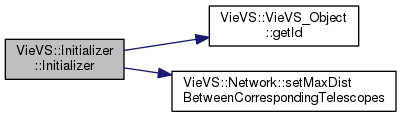

Here is the call graph for this function:

Initializer::Initializer ( const boost::property_tree::ptree & xml )

explicit

constructor

Author: Matthias Schartner

Parameters

xml	VieSchedpp.xml file

Here is the call graph for this function:

Member Function Documentation

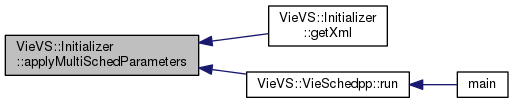

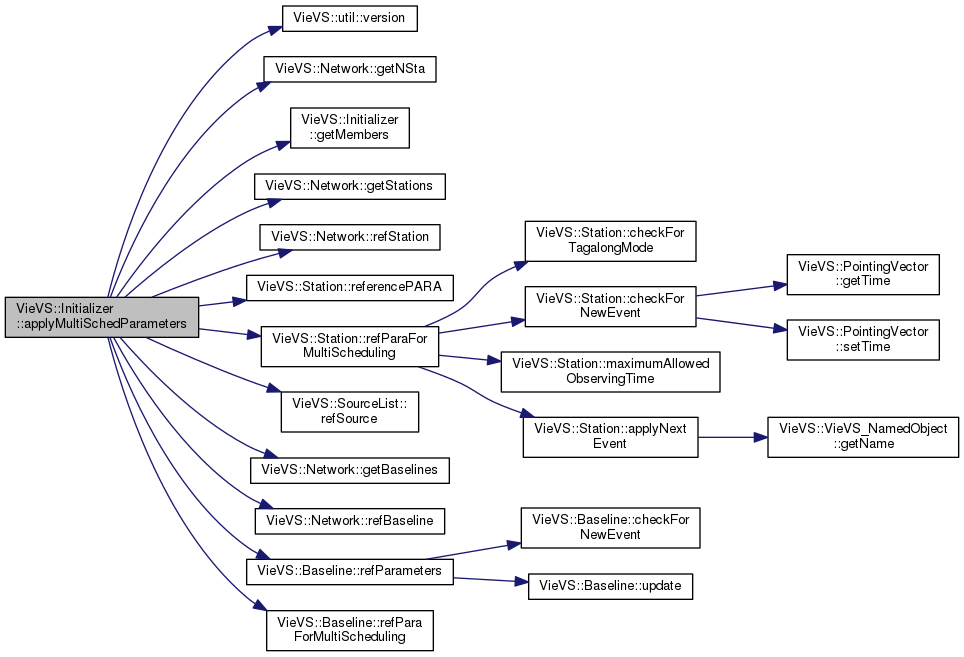

void Initializer::applyMultiSchedParameters	(	const VieVS::MultiScheduling::Parameters &	parameters,
		int	version
	)

applies all multi scheduling parameters to the initializer

Author: Matthias Schartner

Parameters

version	version number
parameters	multi scheduling parameters

Here is the call graph for this function:

Here is the caller graph for this function:

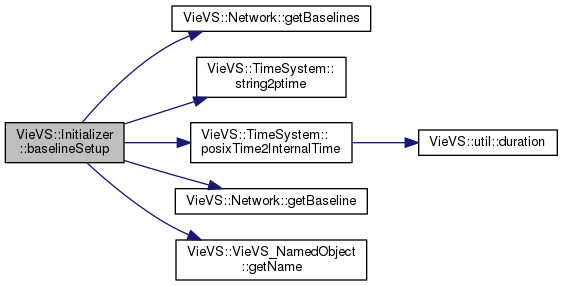

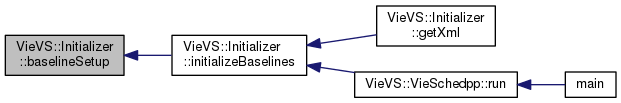

void Initializer::baselineSetup	(	std::vector< std::vector< Baseline::Event >> &	events,
		const boost::property_tree::ptree &	tree,
		const std::unordered_map< std::string, ParameterSettings::ParametersBaselines > &	parameters,
		const std::unordered_map< std::string, std::vector< std::string >> &	groups,
		const Baseline::Parameters &	parentPARA
	)

privatenoexcept

baseline setup function

Author: Matthias Schartner

As a start all parameter form parentPARA are used. If different parameter values are defined in the event these parameters are used instead of the parentPARA parameters.

Parameters

events	list of all events for baseline
tree	property tree that holds baseline setup information
parameters	all defined parameters
groups	all defined groups
parentPARA	previously used parameters which are are use as template

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::connectObservingMode ( std::ofstream & of )

noexcept

sets station names to observing mode and displays summary

Author: Matthias Schartner

Parameters

of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::createSatellites	(	const SkdCatalogReader &	reader,
		std::ofstream &	of
	)

noexcept

creates all possible satellites from TLE files

Author: Matthias Schartner

Parameters

reader	sked catalogs
of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::createSources	(	const SkdCatalogReader &	reader,
		std::ofstream &	of
	)

noexcept

creates all possible sources from sked catalogs

Author: Matthias Schartner

Parameters

reader	sked catalogs
of	outstream to log file

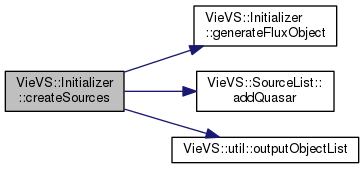

Here is the call graph for this function:

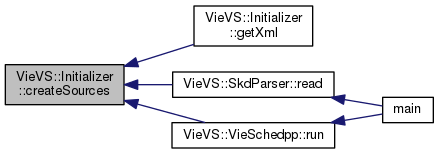

Here is the caller graph for this function:

void Initializer::createSpacecrafts	(	const SkdCatalogReader &	reader,
		std::ofstream &	of
	)

noexcept

creates all possible spacecrafts

Author: Matthias Schartner

Parameters

reader	sked catalogs
of	outstream to log file

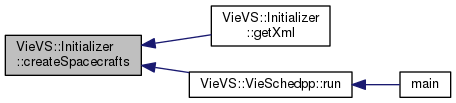

Here is the caller graph for this function:

void Initializer::createStations	(	const SkdCatalogReader &	reader,
		std::ofstream &	of
	)

noexcept

creates all selected stations from sked catalogs

Author: Matthias Schartner

Parameters

reader	sked catalog reader
of	outstream to log file

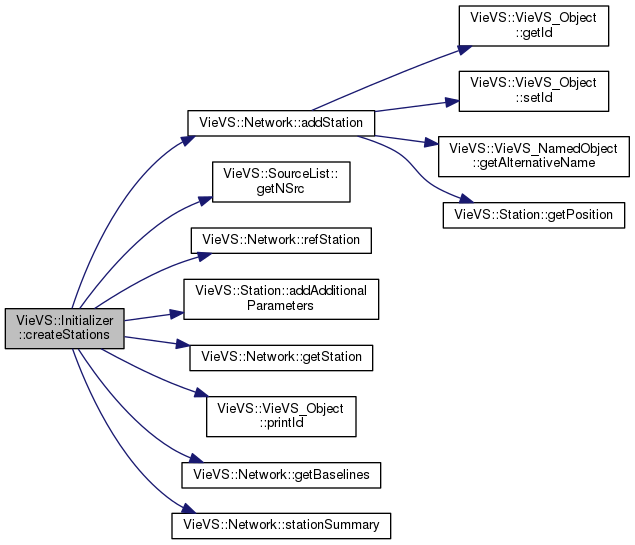

Here is the call graph for this function:

Here is the caller graph for this function:

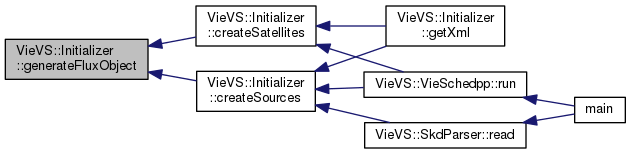

unordered_map< string, unique_ptr< AbstractFlux > > Initializer::generateFluxObject	(	const std::string &	name,
		const std::string &	commonname,
		const std::map< std::string, std::vector< std::string >> &	fluxCatalog,
		bool	fluxNecessary,
		std::ofstream &	of
	)

private

< baseline length of flux information (type B)

< corresponding flux information for baseline length (type B)

Here is the caller graph for this function:

std::vector< unsigned long > Initializer::getMembers	(	const std::string &	name,
		const std::vector< Station > &	stations
	)

private

get members of station group

Author: Matthias Schartner

Parameters

name	group name
stations	list of all available stations

Returns: list of station ids

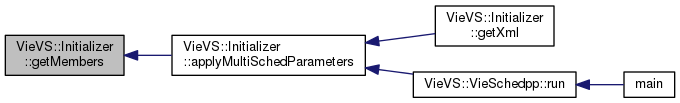

Here is the caller graph for this function:

std::vector< unsigned long > Initializer::getMembers	(	const std::string &	name,
		const std::vector< Baseline > &	baselines
	)

private

get members of baseline group

Author: Matthias Schartner

Parameters

name	group name
baselines	list of all available baselines

Returns: list of baseline ids

std::vector< unsigned long > Initializer::getMembers	(	const std::string &	name,
		const SourceList &	sourceList
	)

private

get members of source group

Author: Matthias Schartner

Parameters

name	group name
sourceList	list of all available sources

Returns: list of source ids

Here is the call graph for this function:

const Network& VieVS::Initializer::getNetwork ( )

inline

getter for session network

Author: Matthias Schartner

This function should only be used for the GUI!

Returns: network object

const boost::property_tree::ptree& VieVS::Initializer::getXml ( ) const

inline

getter for VieSchedpp.xml content

Author: Matthias Schartner

Returns: VieSchedpp.xml content

Here is the call graph for this function:

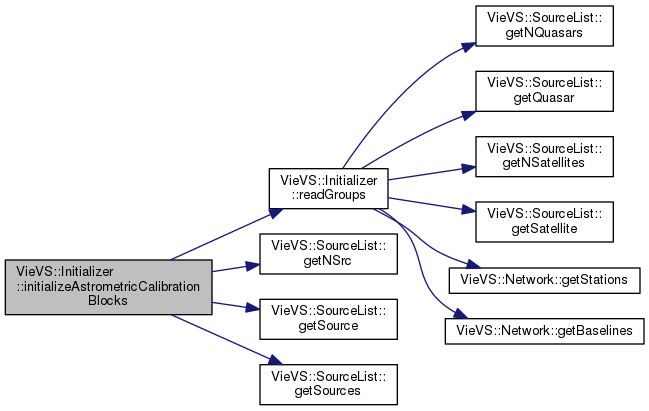

void Initializer::initializeAstrometricCalibrationBlocks ( std::ofstream & of )

initializes astrometric calibration block with settings from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

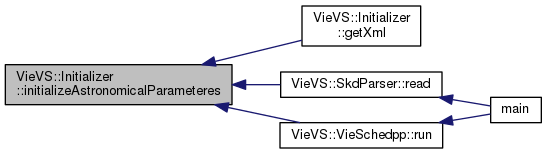

void Initializer::initializeAstronomicalParameteres ( )

staticnoexcept

initializes astronomical parameters

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeBaselines ( )

noexcept

initializes all baselines with settings from VieSchedpp.xml file

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeCalibrationBlocks ( )

initializes calibration block with settings from VieSchedpp.xml file

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeFocusCornersAlgorithm ( )

noexcept

initializes focus corner algorithm for intensives if there is one defined in the VieSchedpp.xml file

Author: Matthias Schartner

Here is the caller graph for this function:

void Initializer::initializeGeneral ( std::ofstream & of )

noexcept

initializes general block with settings from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeHighImpactScanDescriptor ( std::ofstream & of )

initializes high impact scan descriptors with settings from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

void VieVS::Initializer::initializeObservingMode	(	const SkdCatalogReader &	skdCatalogs,
		std::ofstream &	of
	)

noexcept

reads the observing mode information from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

skdCatalogs	sked catalogs
of	outstream to log file

Here is the caller graph for this function:

void Initializer::initializeObservingMode	(	unsigned long	nsta,
		double	samplerate,
		unsigned int	bits,
		const std::unordered_map< std::string, unsigned int > &	band2channel,
		const std::unordered_map< std::string, double > &	band2wavelength,
		double	efficiencyFactor = `-1`
	)

noexcept

creates dummy observing modes file

Author: Matthias Schartner

Parameters

nsta	number of stations
samplerate	sample rate
bits	sampling bits
band2channel	band name to number of channels
band2wavelength	band name to wavelength
efficiencyFactor	recording efficiency factor (use -1 for internal calculation)

void Initializer::initializeOptimization ( std::ofstream & of )

initializes optimization conditions with settings from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

of	outstream to log file

Here is the call graph for this function:

Here is the caller graph for this function:

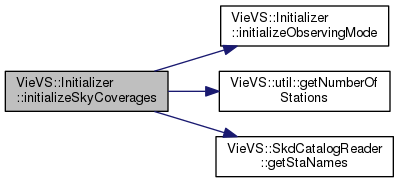

void Initializer::initializeSkyCoverages ( )

noexcept

inintializes the sky Coverage lookup table

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeSources ( MemberType type )

noexcept

initializes all sources with settings from VieSchedpp.xml file

Author: Matthias Schartner

Parameters

type	source member type

Here is the call graph for this function:

Here is the caller graph for this function:

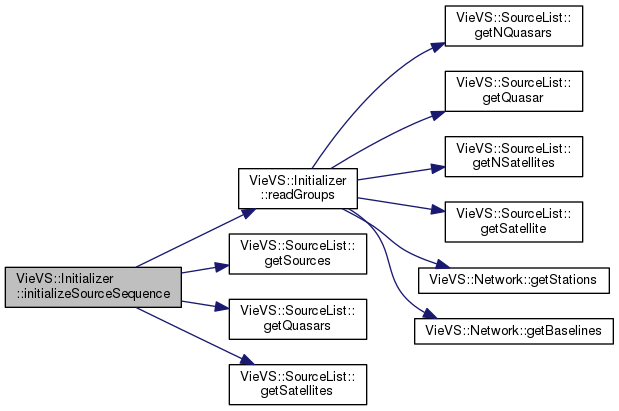

void Initializer::initializeSourceSequence ( )

noexcept

initializes a custom source sequence if there is one defined in the VieSchedpp.xml file

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeStations ( )

noexcept

initializes all stations with settings from VieSchedpp.xml file

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::initializeWeightFactors ( )

noexcept

initializes the weight factors

Author: Matthias Schartner

Here is the caller graph for this function:

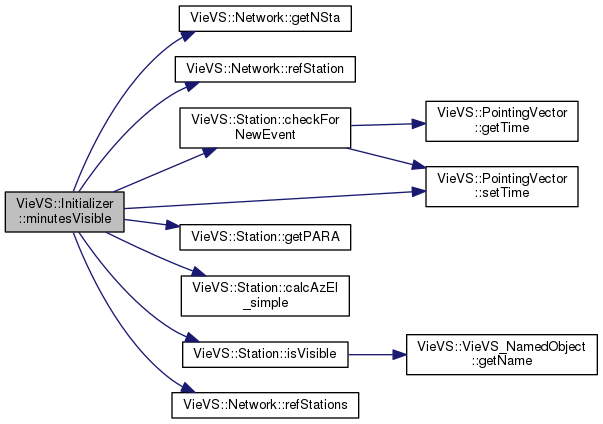

unsigned int Initializer::minutesVisible	(	std::shared_ptr< const AbstractSource >	source,
		const AbstractSource::Parameters &	parameters,
		unsigned int	start,
		unsigned int	end
	)

private

number of minutes where source is visible

Author: Matthias Schartner

Parameters

source	target source
parameters	source parameters
start	start time
end	end time

Returns: number of minutes where source was visible

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::precalcAzElStations ( )

noexcept

precalc azimuth elevations for stations

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::precalcSubnettingSrcIds ( )

noexcept

pre calculates all possible second scans used for subnetting

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

unordered_map< string, vector< string > > Initializer::readGroups	(	boost::property_tree::ptree	root,
		MemberType	type
	)

noexcept

reads all groups specified in the root tree

Author: Matthias Schartner

Parameters

root	tree start point
type	group type

Returns: key is group name, value is list of group members

Here is the call graph for this function:

Here is the caller graph for this function:

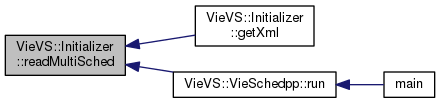

vector< MultiScheduling::Parameters > Initializer::readMultiSched ( std::ostream & out )

reads multiSched block from VieSchedpp.xml file

Author: Matthias Schartner

Returns: vector of all possible multisched parameter combination

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::sourceSetup	(	std::vector< std::vector< AbstractSource::Event >> &	events,
		const boost::property_tree::ptree &	tree,
		const std::unordered_map< std::string, ParameterSettings::ParametersSources > &	parameters,
		const std::unordered_map< std::string, std::vector< std::string >> &	groups,
		const AbstractSource::Parameters &	parentPARA,
		MemberType	type
	)

privatenoexcept

source setup function

Author: Matthias Schartner

As a start all parameter form parentPARA are used. If different parameter values are defined in the event these parameters are used instead of the parentPARA parameters.

Parameters

events	list of all events for sources
tree	property tree that holds source setup information
parameters	all defined parameters
groups	all defined groups
parentPARA	previously used parameters which are are use as template
type	source member type

Here is the call graph for this function:

Here is the caller graph for this function:

void Initializer::stationSetup	(	std::vector< std::vector< Station::Event >> &	events,
		const boost::property_tree::ptree &	tree,
		const std::unordered_map< std::string, ParameterSettings::ParametersStations > &	parameters,
		const std::unordered_map< std::string, std::vector< std::string >> &	groups,
		const Station::Parameters &	parentPARA
	)

privatenoexcept

station setup function

Author: Matthias Schartner

As a start all parameter form parentPARA are used. If different parameter values are defined in the event these parameters are used instead of the parentPARA parameters.

Parameters

events	list of all events for stations
tree	property tree that holds station setup information
parameters	all defined parameters
groups	all defined groups
parentPARA	previously used parameters which are are use as template

Here is the call graph for this function:

Here is the caller graph for this function:

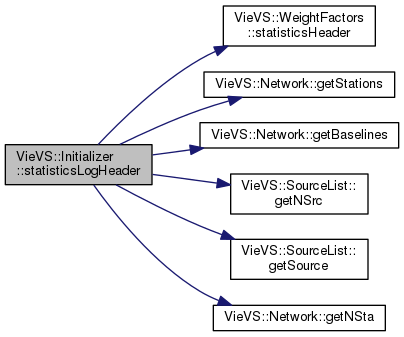

void Initializer::statisticsLogHeader	(	std::ofstream &	of,
		const std::vector< VieVS::MultiScheduling::Parameters > &	ms
	)

writes statistics log header

Author: Matthias Schartner

Parameters

of	outstream to statistics.csv file
ms	vector multi scheduling parameters

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Scheduler

friend

friend class SkdParser

friend

Member Data Documentation

std::unordered_map<std::string, std::vector<std::string> > VieVS::Initializer::blGroups_

private

baseline groups

std::vector<CalibratorBlock> VieVS::Initializer::calib_

private

calibrator impact scan descriptor

boost::optional<HighImpactScanDescriptor> VieVS::Initializer::himp_

private

high impact scan descriptor

boost::optional<MultiScheduling::Parameters> VieVS::Initializer::multiSchedulingParameters_

private

multi scheduling paramters

Network VieVS::Initializer::network_

private

station network

unsigned long Initializer::nextId = 0

staticprivate

next id for this object type

std::shared_ptr<ObservingMode> VieVS::Initializer::obsModes_ = nullptr

private

observing mode

Parameters VieVS::Initializer::parameters_

private

parameters

PRECALC VieVS::Initializer::preCalculated_

private

pre calculated values

std::unordered_map<std::string, std::vector<std::string> > VieVS::Initializer::satGroups_

private

satellite groups

SourceList VieVS::Initializer::sourceList_

private

session source list

std::unordered_map<std::string, std::vector<std::string> > VieVS::Initializer::spacecraftGroups_

private

spacecraft groups

std::unordered_map<std::string, std::vector<std::string> > VieVS::Initializer::srcGroups_

private

source groups

std::unordered_map<std::string, std::vector<std::string> > VieVS::Initializer::staGroups_

private

station groups

int VieVS::Initializer::version_ = 0

private

version

boost::property_tree::ptree VieVS::Initializer::xml_

private

content of VieSchedpp.xml file

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Initializer.h
/home/travis/build/TUW-VieVS/VieSchedpp/Initializer.cpp

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
