this is the VLBI scheduling class which is responsible for the scan selection and the creation of the schedule More...

#include <Scheduler.h>

Inheritance diagram for VieVS::Scheduler:

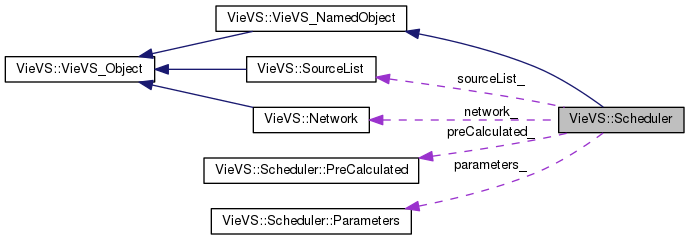

Collaboration diagram for VieVS::Scheduler:

[legend]

Classes
struct	Parameters
	general parameters used for scheduling More...

struct	PreCalculated
	pre calculated values (deprecated) More...

Public Member Functions
	Scheduler (Initializer &init, std::string path, std::string fname)
	constructor More...

	Scheduler (std::string name, std::string path, Network network_, SourceList sourceList, std::vector< Scan > scans, boost::property_tree::ptree xml, std::shared_ptr< ObservingMode > obsModes_=nullptr)
	constructor More...

void	start () noexcept
	main function that starts the scheduling More...

Subcon	createSubcon (const std::shared_ptr< Subnetting > &subnetting, Scan::ScanType type, const boost::optional< StationEndposition > &endposition=boost::none) noexcept
	this function creates a subcon with all scans, times and scores More...

Subcon	allVisibleScans (Scan::ScanType type, const boost::optional< StationEndposition > &endposition=boost::none, bool doNotObserveSourcesWithinMinRepeat=true) noexcept
	constructs all visible scans More...

void	update (Scan &scan, std::ofstream &of) noexcept
	updates the selected next scans to the schedule More...

void	consideredUpdate (unsigned long n1scans, unsigned long n2scans, int depth, std::ofstream &of) noexcept
	updates and prints the number of all considered scans More...

void	statistics (std::ofstream &of)
	statistics output More...

void	highImpactScans (HighImpactScanDescriptor &himp, std::ofstream &of)
	schedule high impact scans More...

void	calibratorBlocks (std::ofstream &of)
	schedule calibrator blocks More...

bool	checkAndStatistics (std::ofstream &of) noexcept
	checks the schedule with an independend methode More...

const SourceList &	getSourceList () const noexcept
	get all sources More...

const Network &	getNetwork () const noexcept
	get station network More...

const std::string &	getPath () const noexcept
	get path More...

const std::shared_ptr< const ObservingMode > &	getObservingMode () const noexcept
	get observing mode network More...

int	getNumberOfObservations () const noexcept
	get number of observations scheduled in this observation More...

const std::vector< Scan > &	getScans () const noexcept
	get all scans More...

Public Member Functions inherited from VieVS::VieVS_NamedObject
	VieVS_NamedObject (std::string name, unsigned long id)
	constructor More...

	VieVS_NamedObject (std::string name, std::string alternativeName, unsigned long id)
	constructor More...

const std::string &	getName () const
	get object name More...

const std::string &	getAlternativeName () const
	get object alternative name More...

bool	hasAlternativeName () const
	check if object has alternative name More...

bool	hasName (const std::string &name) const
	check if object has name More...

void	changeName (const std::string &newName)
	change name of object More...

Public Member Functions inherited from VieVS::VieVS_Object
	VieVS_Object (unsigned long id)
	constructor More...

const unsigned long	getId () const
	get object id More...

bool	hasValidId () const
	check if id is valid More...

bool	hasId (unsigned long id) const
	check if object has specific id More...

void	setId (unsigned long id)
	set object id More...

std::string	printId () const
	object id string More...

Private Member Functions
void	startScanSelection (unsigned int endTime, std::ofstream &of, Scan::ScanType type, boost::optional< StationEndposition > &opt_endposition, boost::optional< Subcon > &subcon, int depth)
	start recursive scan selection More...

bool	checkForNewEvents (unsigned int time, bool output, std::ofstream &of, bool tagalong) noexcept
	checks if some parameters need to be changed More...

void	listSourceOverview (std::ofstream &of) noexcept
	output of source overview More...

void	startTagelongMode (Station &station, SkyCoverage &skyCoverage, std::ofstream &of)
	start tagalong mode More...

bool	checkOptimizationConditions (std::ofstream &of)
	check optimization conditions More...

void	changeStationAvailability (const boost::optional< StationEndposition > &endposition, StationEndposition::change change)
	change station availability More...

void	startScanSelectionBetweenScans (unsigned int duration, std::ofstream &of, Scan::ScanType type, bool output=false, bool ignoreTagalong=false)
	start scan selection between scans More...

void	resetAllEvents (std::ofstream &of, bool resetCurrentPointingVector=true)
	reset all events to time zero More...

void	ignoreTagalongParameter ()
	ignore tagalong parameter More...

void	idleToScanTime (Timestamp ts, std::ofstream &of)
	transform idle time to observing time More...

void	sortSchedule (Timestamp ts=Timestamp::start)
	sort schedule More...

void	sortSchedule (unsigned long staid, Timestamp ts=Timestamp::start)
	sort schedule based on station More...

void	writeCalibratorStatistics (std::ofstream &of, std::vector< double > &highestElevations, std::vector< double > &lowestElevations)
	write astrometric calibrator statistics More...

void	writeCalibratorHeader (std::ofstream &of)
	write astrometric calibrator block header More...

void	updateObservingTimes ()
	updates the time of each observation according to the observing times of the station More...

void	scheduleAPrioriScans (const boost::property_tree::ptree &ptree, std::ofstream &of)
	add a priori scan More...

Static Private Member Functions
static bool	calibratorUpdate (const std::vector< Scan > &bestScans, std::vector< double > &prevHighElevationScores, std::vector< double > &prevLowElevationScores, std::vector< double > &highestElevations, std::vector< double > &lowestElevations)
	astrometric calibrator update More...

Private Attributes
int	version_
	version More...

std::string	path_
	path to VieSchedpp.xml directory More...

boost::property_tree::ptree	xml_
	content of VieSchedpp.xml file More...

SourceList	sourceList_
	session source list More...

Network	network_
	station network More...

std::shared_ptr< const ObservingMode >	obsModes_ = nullptr
	observing modes More...

std::shared_ptr< const Mode >	currentObservingMode_ = nullptr
	current observing mode More...

std::vector< Scan >	scans_
	all scans in schedule More...

Parameters	parameters_
	general scheduling parameters More...

PreCalculated	preCalculated_
	pre calculated values More...

unsigned long	nSingleScansConsidered = 0
	considered single source scans More...

unsigned long	nSubnettingScansConsidered = 0
	considered subnetting scans More...

unsigned long	nObservationsConsidered = 0
	considered baselines More...

boost::optional< HighImpactScanDescriptor >	himp_
	high impact scan descriptor More...

std::vector< CalibratorBlock >	calib_
	calibrator impact scan descriptor More...

boost::optional< MultiScheduling::Parameters >	multiSchedulingParameters_
	multi scheduling paramters More...

Static Private Attributes
static unsigned long	nextId = 0
	next id for this object type More...

Friends
class	Output

Detailed Description

this is the VLBI scheduling class which is responsible for the scan selection and the creation of the schedule

Author: Matthias Schartner

Date: 28.06.2017

Constructor & Destructor Documentation

VieVS::Scheduler::Scheduler	(	Initializer &	init,
		std::string	path,
		std::string	fname
	)

constructor

Author: Matthias Schartner

Parameters

init	initializer
path	path to VieSchedpp.xml file
fname	file name

Scheduler::Scheduler	(	std::string	name,
		std::string	path,
		Network	network_,
		SourceList	sourceList,
		std::vector< Scan >	scans,
		boost::property_tree::ptree	xml,
		std::shared_ptr< ObservingMode >	obsModes_ = `nullptr`
	)

constructor

Author: Matthias Schartner

Parameters

name	session name
path	session path
network_	station network
sourceList	source list
scans	list of scans
xml	VieSchedpp.xml file

Member Function Documentation

Subcon Scheduler::allVisibleScans	(	Scan::ScanType	type,
		const boost::optional< StationEndposition > &	endposition = `boost::none`,
		bool	doNotObserveSourcesWithinMinRepeat = `true`
	)

noexcept

constructs all visible scans

Author: Matthias Schartner

Parameters

type	scan type
endposition	required endposition
doNotObserveSourcesWithinMinRepeat	consider scans (with reduced weight) if they are within min repeat time

Returns: subcon with all visible single source scans

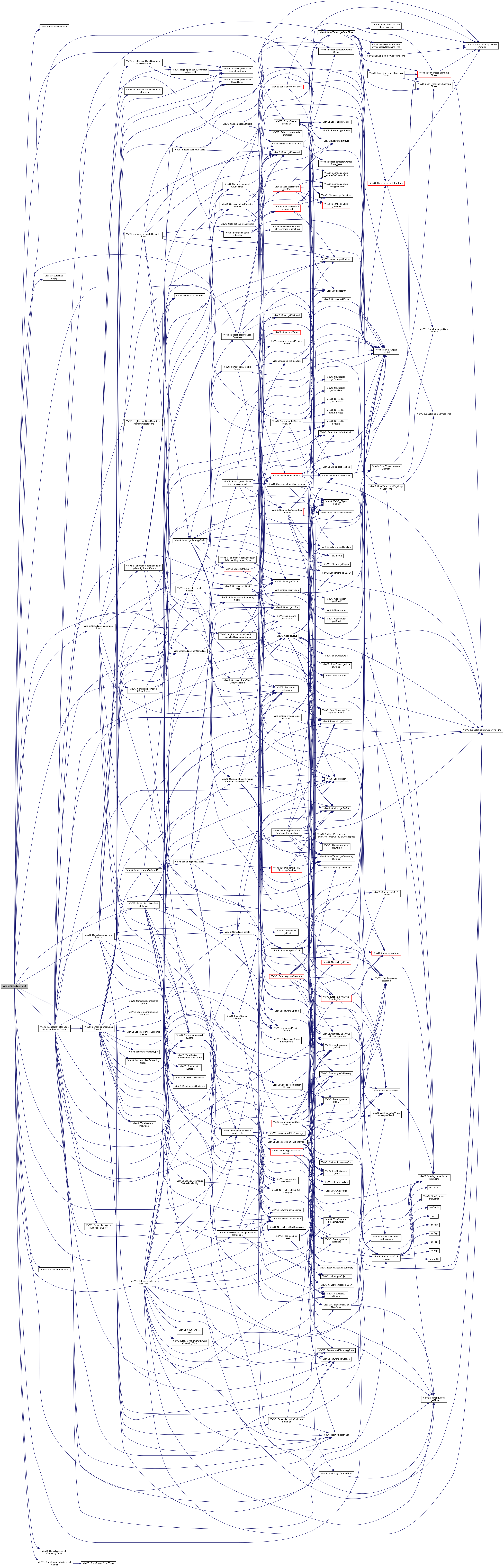

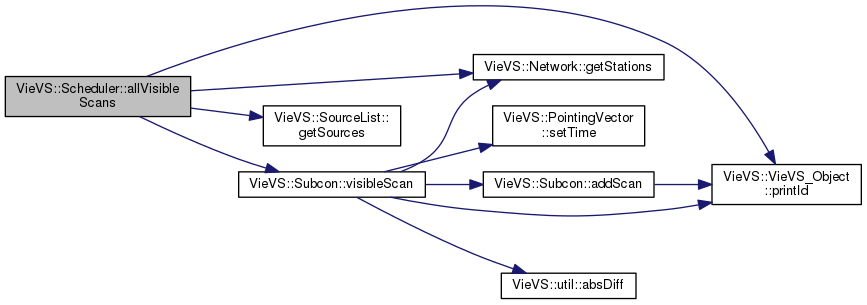

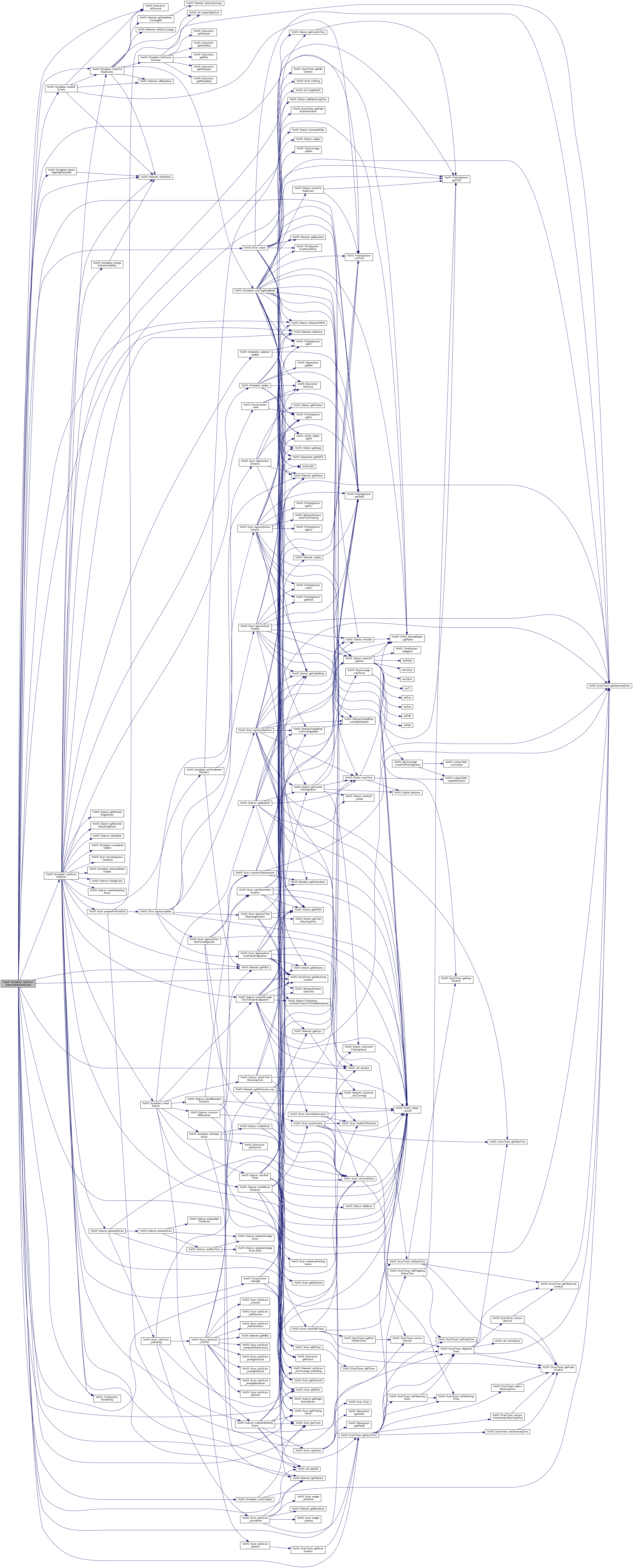

Here is the call graph for this function:

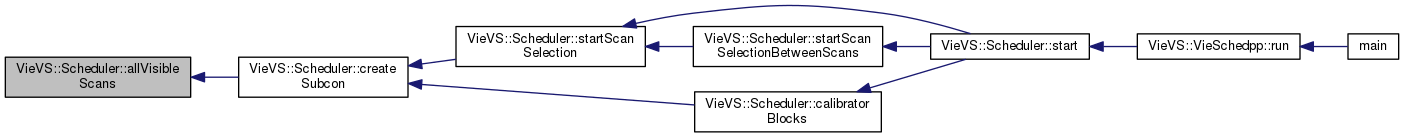

Here is the caller graph for this function:

void Scheduler::calibratorBlocks ( std::ofstream & of )

schedule calibrator blocks

Author: Matthias Schartner

Parameters

of	outstream object

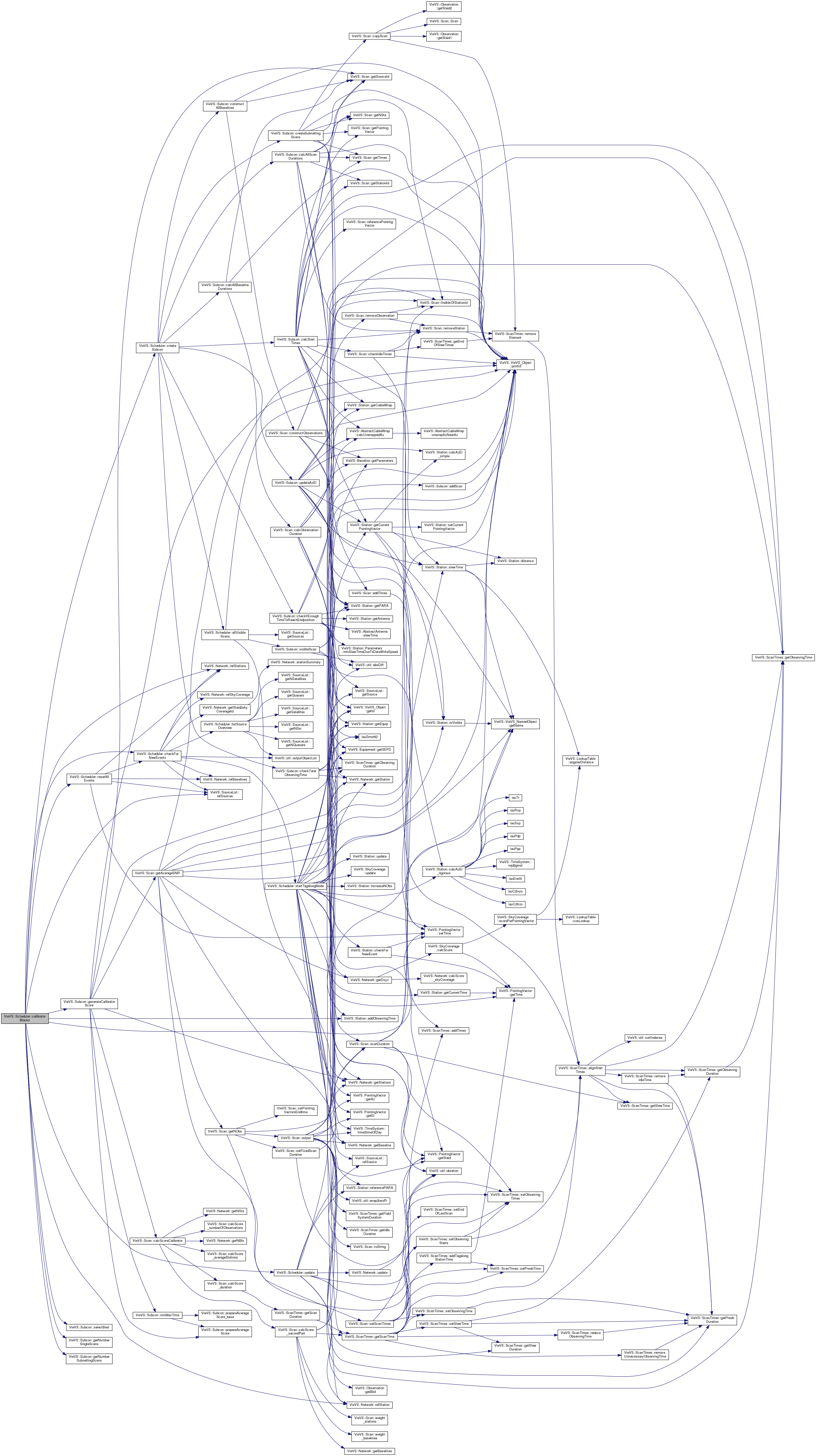

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scheduler::calibratorUpdate	(	const std::vector< Scan > &	bestScans,
		std::vector< double > &	prevHighElevationScores,
		std::vector< double > &	prevLowElevationScores,
		std::vector< double > &	highestElevations,
		std::vector< double > &	lowestElevations
	)

staticprivate

astrometric calibrator update

Author: Matthias Schartner

Parameters

bestScans	scheduled scans
prevHighElevationScores	previouse high elevation scores
prevLowElevationScores	previouse low elevation scores
highestElevations	highest elevation scores
lowestElevations	lowest elevation scores

Returns: true if no more astrometric calibrator scans are needed, otherwise false

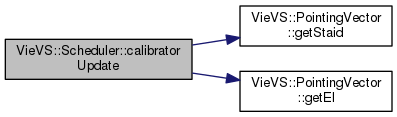

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::changeStationAvailability	(	const boost::optional< StationEndposition > &	endposition,
		StationEndposition::change	change
	)

private

change station availability

Author: Matthias Schartner

Parameters

endposition	required endpositions
change	change type

Here is the call graph for this function:

Here is the caller graph for this function:

bool Scheduler::checkAndStatistics ( std::ofstream & of )

noexcept

checks the schedule with an independend methode

Author: Matthias Schartner

Parameters

of	outstream file object

Here is the call graph for this function:

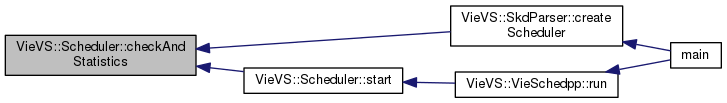

Here is the caller graph for this function:

bool Scheduler::checkForNewEvents	(	unsigned int	time,
		bool	output,
		std::ofstream &	of,
		bool	tagalong
	)

privatenoexcept

checks if some parameters need to be changed

Author: Matthias Schartner

Parameters

time	current time in seconds since start
output	flag if output to log file is required
of	outstream file object
tagalong	schedule tagalong scans

Returns: true if a hard break was found

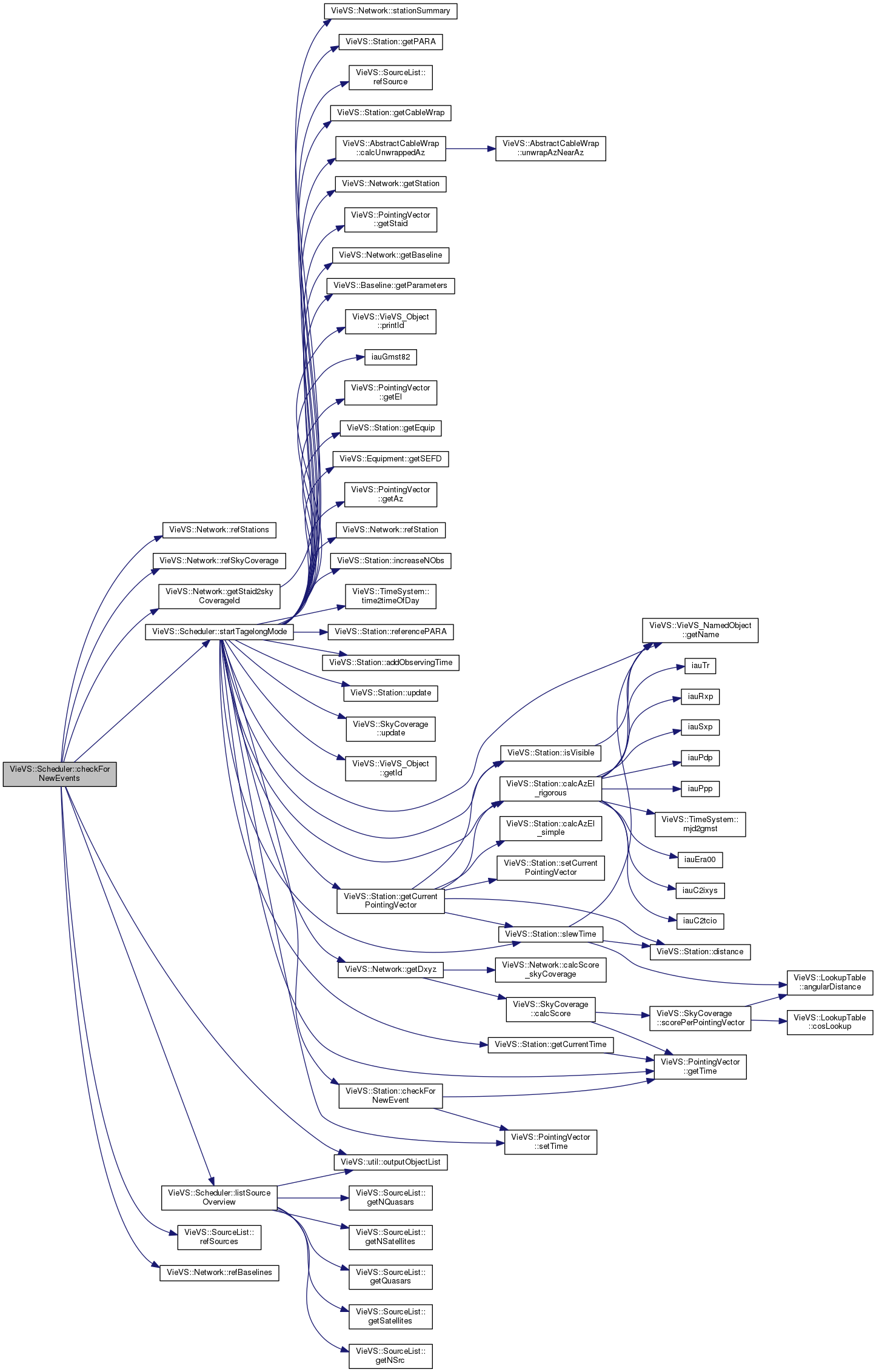

Here is the call graph for this function:

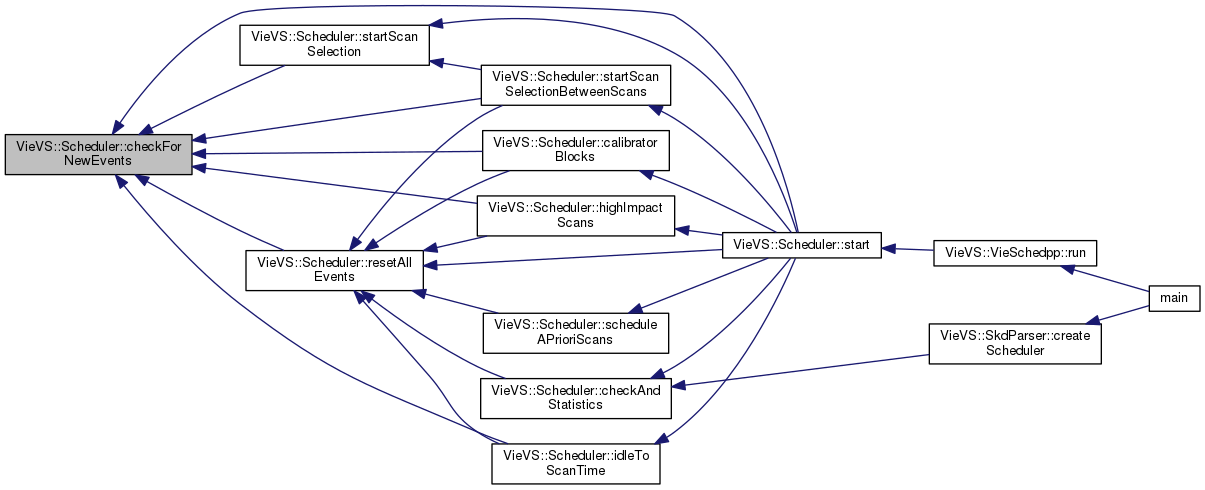

Here is the caller graph for this function:

bool Scheduler::checkOptimizationConditions ( std::ofstream & of )

private

check optimization conditions

Author: Matthias Schartner

Parameters

of	outstream object

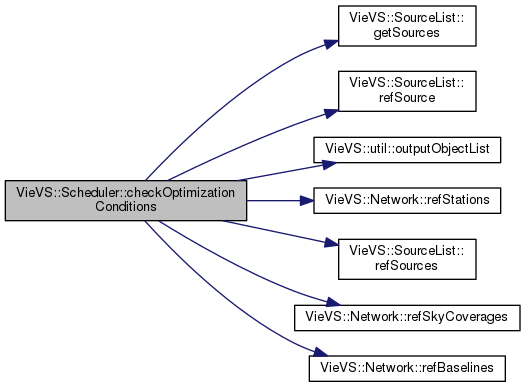

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::consideredUpdate	(	unsigned long	n1scans,
		unsigned long	n2scans,
		int	depth,
		std::ofstream &	of
	)

noexcept

updates and prints the number of all considered scans

Author: Matthias Schartner

Parameters

n1scans	number of single source scans
n2scans	number of subnetting scans
depth	recursion depth
of	outstream file object

Here is the caller graph for this function:

Subcon Scheduler::createSubcon	(	const std::shared_ptr< Subnetting > &	subnetting,
		Scan::ScanType	type,
		const boost::optional< StationEndposition > &	endposition = `boost::none`
	)

noexcept

this function creates a subcon with all scans, times and scores

Author: Matthias Schartner

Parameters

subnetting	true if subnetting is allowed, false otherwise
type	scan type
endposition	required endposition

Returns: subcon with all information

Here is the call graph for this function:

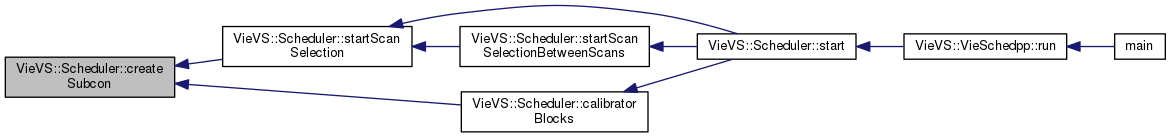

Here is the caller graph for this function:

const Network& VieVS::Scheduler::getNetwork ( ) const

inlinenoexcept

get station network

Author: Matthias Schartner

Returns: station network

int Scheduler::getNumberOfObservations ( ) const

noexcept

get number of observations scheduled in this observation

Author: Matthias Schartner

Returns: number of observations scheduled in this schedule

Here is the caller graph for this function:

const std::shared_ptr<const ObservingMode>& VieVS::Scheduler::getObservingMode ( ) const

inlinenoexcept

get observing mode network

Author: Matthias Schartner

Returns: observing mode

Here is the call graph for this function:

const std::string& VieVS::Scheduler::getPath ( ) const

inlinenoexcept

get path

Author: Matthias Schartner

Returns: path

const std::vector<Scan>& VieVS::Scheduler::getScans ( ) const

inlinenoexcept

get all scans

Author: Matthias Schartner

Returns: all scans

const SourceList& VieVS::Scheduler::getSourceList ( ) const

inlinenoexcept

get all sources

Author: Matthias Schartner

Returns: all sources

void Scheduler::highImpactScans	(	HighImpactScanDescriptor &	himp,
		std::ofstream &	of
	)

schedule high impact scans

Author: Matthias Schartner

Parameters

himp	high impact scan descriptor
of	outstream object

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::idleToScanTime	(	Timestamp	ts,
		std::ofstream &	of
	)

private

transform idle time to observing time

Author: Matthias Schartner

Parameters

ts	time stamp
of	outstrem object

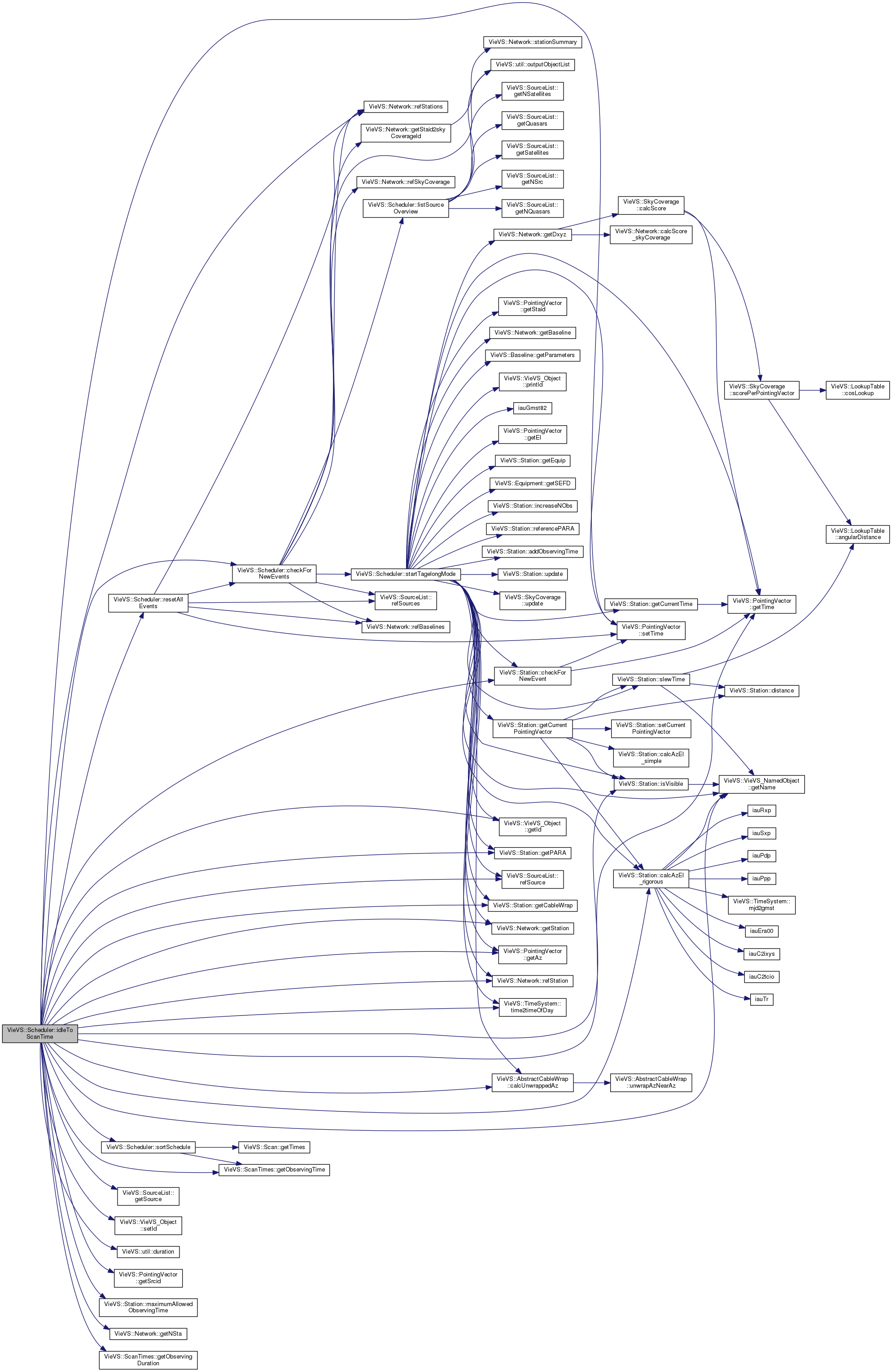

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::ignoreTagalongParameter ( )

private

ignore tagalong parameter

Author: Matthias Schartner

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::listSourceOverview ( std::ofstream & of )

privatenoexcept

output of source overview

Author: Matthias Schartner

Parameters

of object

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::resetAllEvents	(	std::ofstream &	of,
		bool	resetCurrentPointingVector = `true`
	)

private

reset all events to time zero

Author: Matthias Schartner

Parameters

of	outstream object
resetCurrentPointingVector	change the current pointing vector

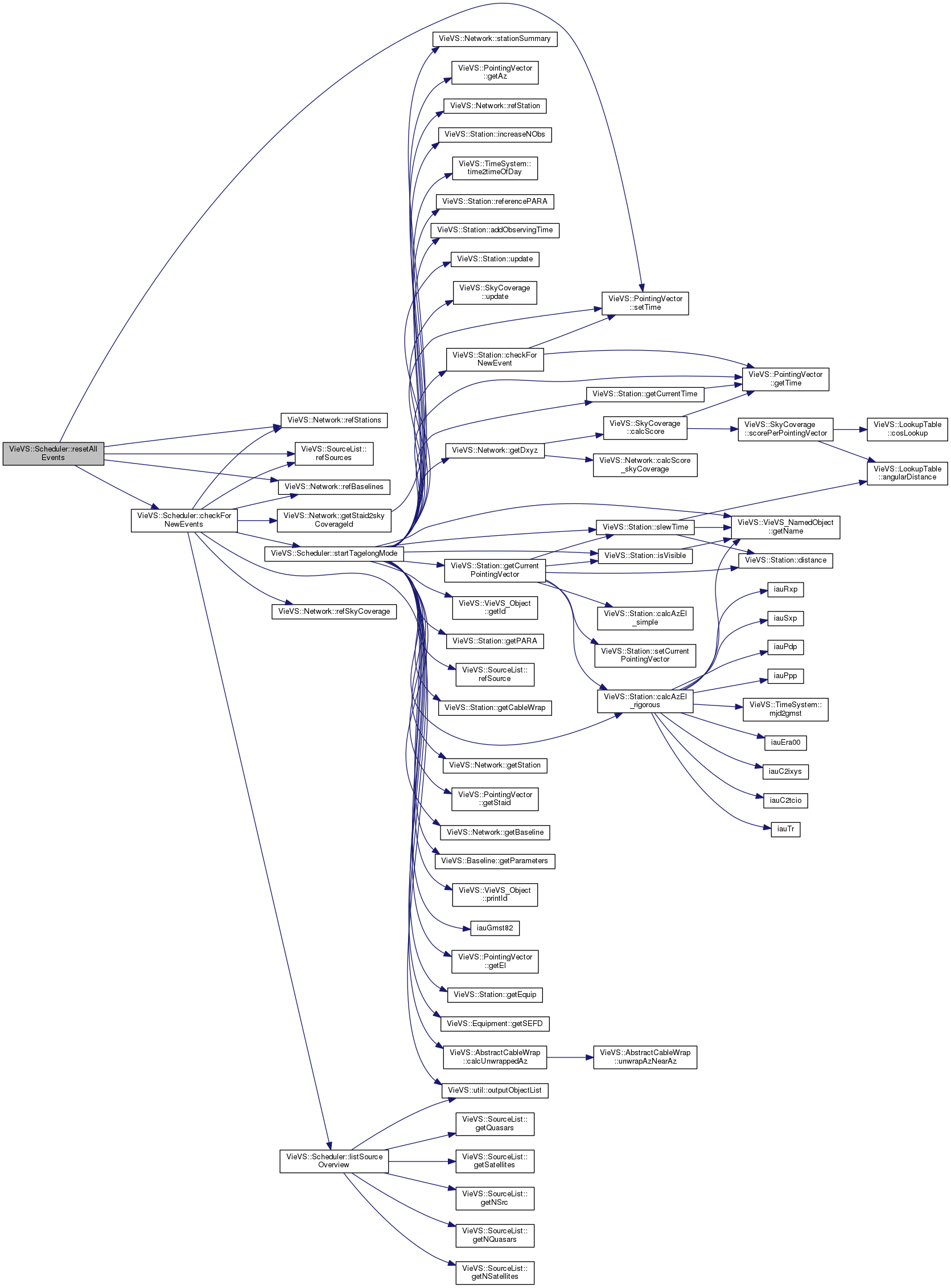

Here is the call graph for this function:

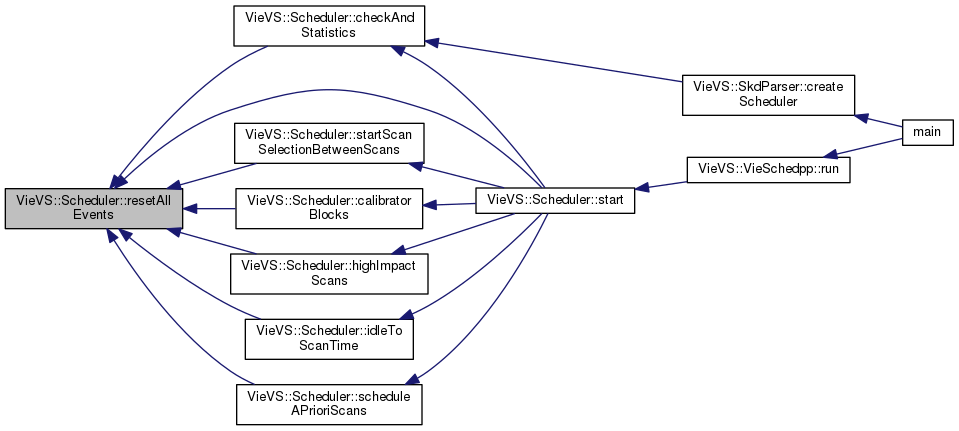

Here is the caller graph for this function:

void Scheduler::scheduleAPrioriScans	(	const boost::property_tree::ptree &	ptree,
		std::ofstream &	of
	)

private

add a priori scan

Author: Matthias Schartner

Parameters

of	outfile stream
ptree	property tree including a priori scans

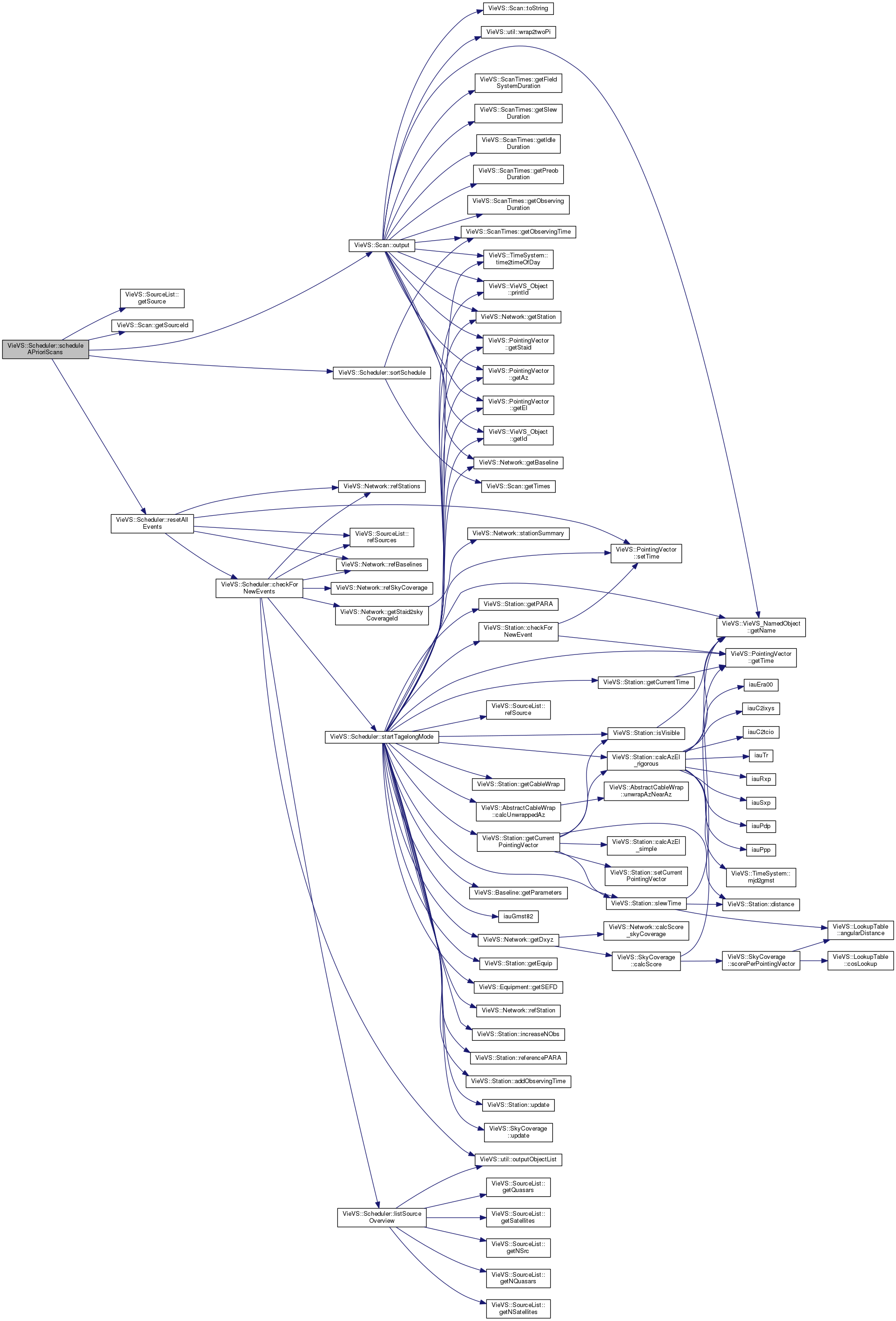

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::sortSchedule ( Timestamp ts = Timestamp::start )

private

sort schedule

Author: Matthias Schartner

Parameters

ts	time stamp

Here is the call graph for this function:

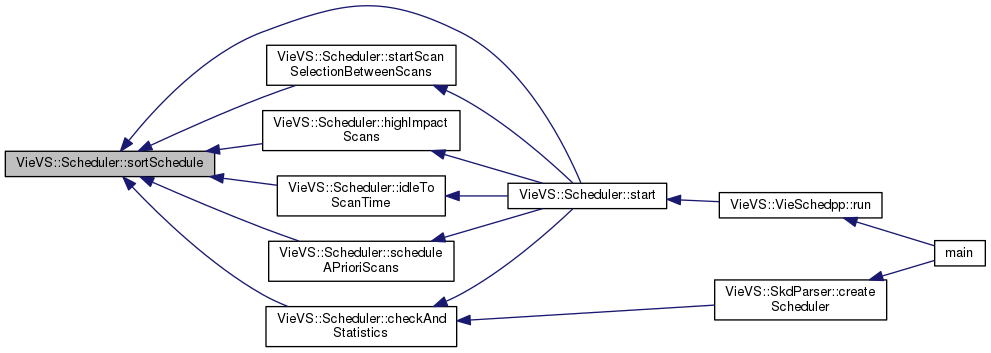

Here is the caller graph for this function:

void Scheduler::sortSchedule	(	unsigned long	staid,
		Timestamp	ts = `Timestamp::start`
	)

private

sort schedule based on station

Author: Matthias Schartner

Parameters

staid	station id
ts	time stamp

void Scheduler::start ( )

noexcept

main function that starts the scheduling

Author: Matthias Schartner

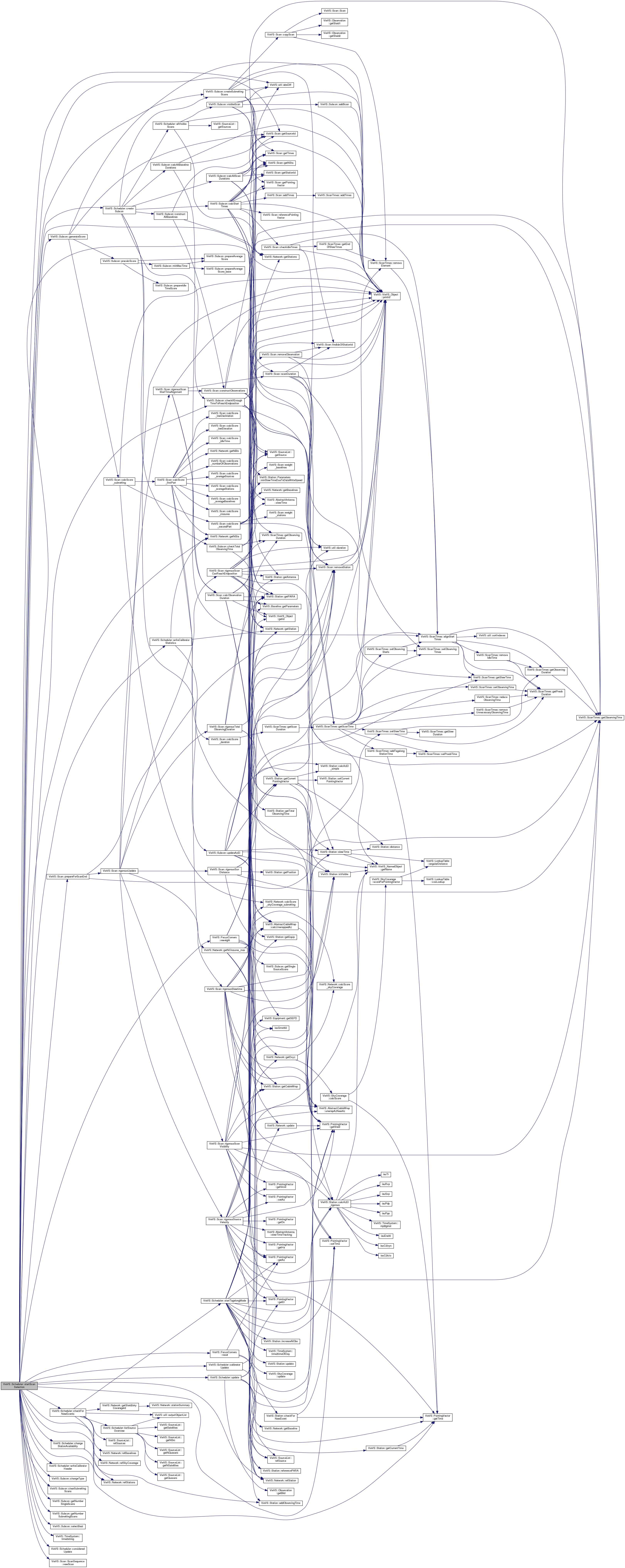

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::startScanSelection	(	unsigned int	endTime,
		std::ofstream &	of,
		Scan::ScanType	type,
		boost::optional< StationEndposition > &	opt_endposition,
		boost::optional< Subcon > &	subcon,
		int	depth
	)

private

start recursive scan selection

Author: Matthias Schartner

Parameters

endTime	end time of this recursion
of	outstream object
type	scan type
opt_endposition	required endposition
subcon	precalculated subcon
depth	recursion depth

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::startScanSelectionBetweenScans	(	unsigned int	duration,
		std::ofstream &	of,
		Scan::ScanType	type,
		bool	output = `false`,
		bool	ignoreTagalong = `false`
	)

private

start scan selection between scans

Author: Matthias Schartner

for example fillin mode a posteriori

Parameters

duration	duration (deprecated?)
of	outstream object
type	scan type
output	output flag
ignoreTagalong	ignore tagalong modes flag

Here is the call graph for this function:

Here is the caller graph for this function:

void Scheduler::startTagelongMode	(	Station &	station,
		SkyCoverage &	skyCoverage,
		std::ofstream &	of
	)

private

start tagalong mode

Author: Matthias Schartner

Parameters

station	tagalong station
skyCoverage	sky coverage of tagalong station
of	outstream object

Here is the call graph for this function:

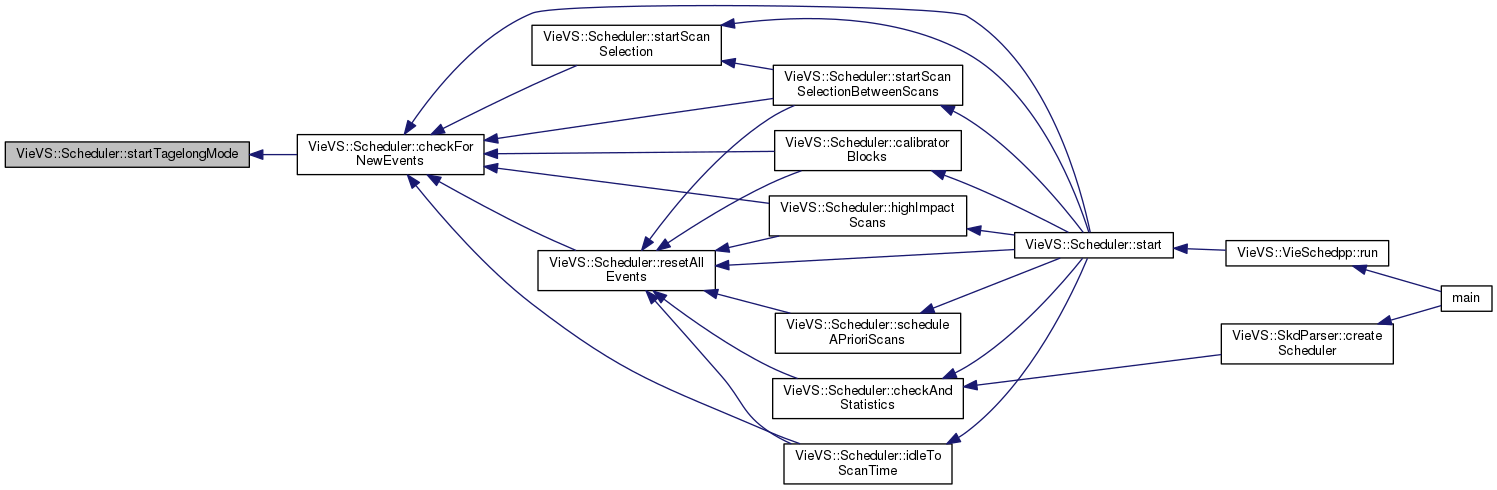

Here is the caller graph for this function:

void Scheduler::statistics ( std::ofstream & of )

statistics output

Author: Matthias Schartner

Parameters

of	output stream

Here is the caller graph for this function:

void Scheduler::update	(	Scan &	scan,
		std::ofstream &	of
	)

noexcept

updates the selected next scans to the schedule

Author: Matthias Schartner

Parameters

scan	best possible next scans
of	outstream file object

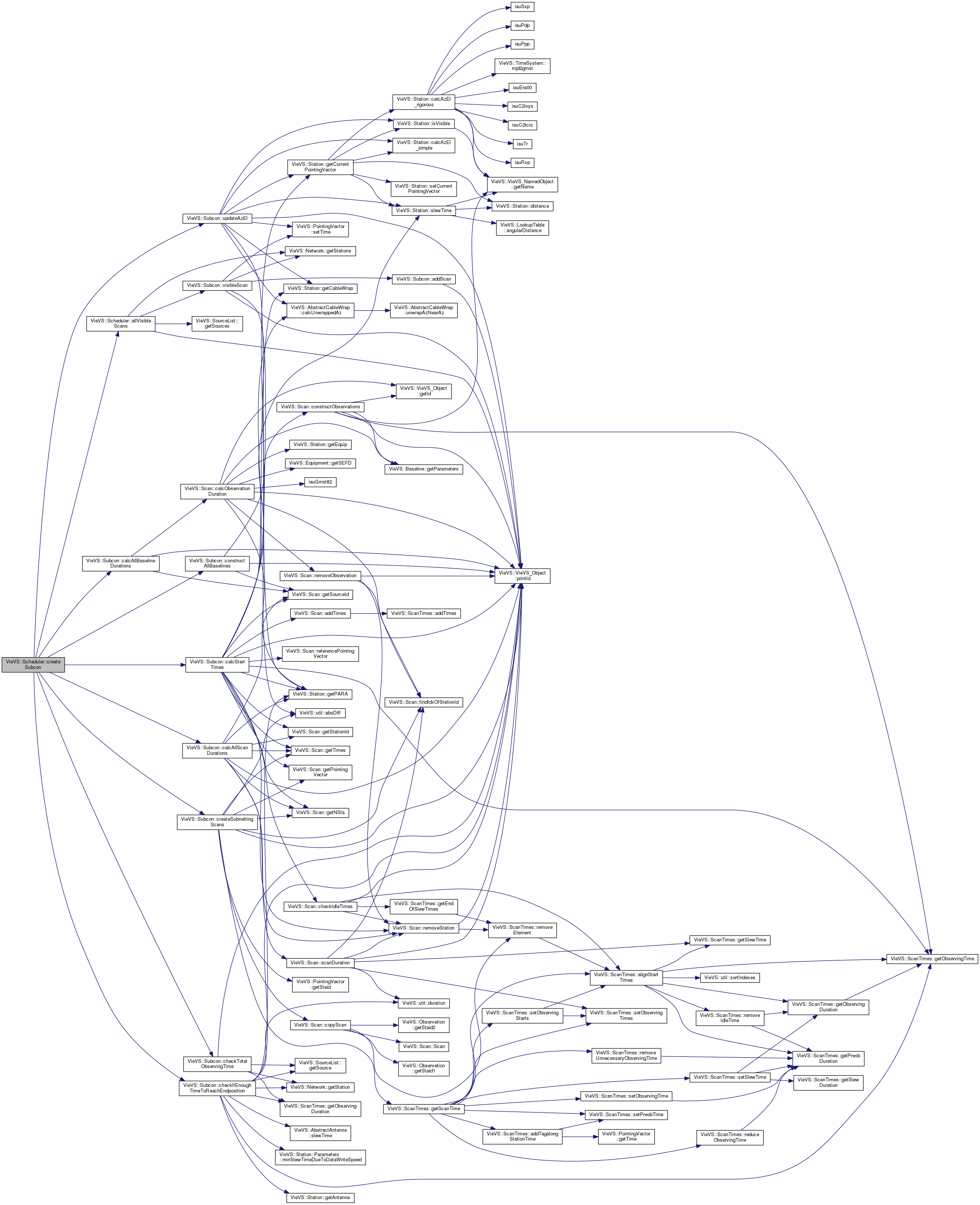

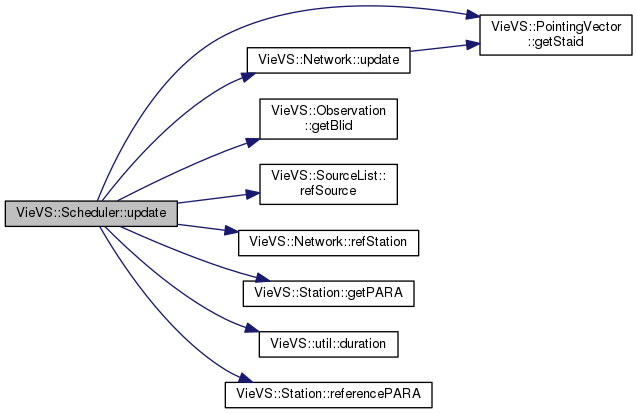

Here is the call graph for this function:

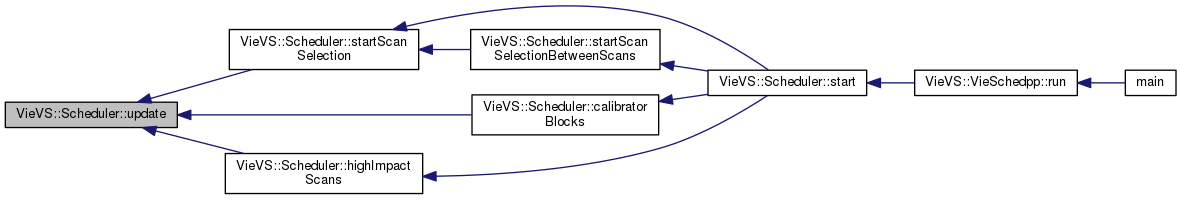

Here is the caller graph for this function:

void Scheduler::updateObservingTimes ( )

private

updates the time of each observation according to the observing times of the station

Author: Matthias Schartner

Here is the caller graph for this function:

void Scheduler::writeCalibratorHeader ( std::ofstream & of )

private

write astrometric calibrator block header

Author: Matthias Schartner

Parameters

of	outstream object

Here is the caller graph for this function:

void Scheduler::writeCalibratorStatistics	(	std::ofstream &	of,
		std::vector< double > &	highestElevations,
		std::vector< double > &	lowestElevations
	)

private

write astrometric calibrator statistics

Author: Matthias Schartner

Parameters

of	output stream object
highestElevations	highest elevations scheduled so far in astrometric calibrator block
lowestElevations	lowest elevations scheduled so far in astrometric calibrator block

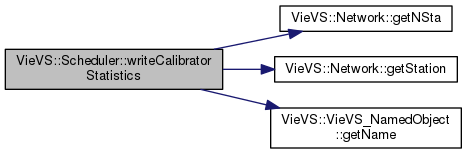

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Output

friend

Member Data Documentation

std::vector<CalibratorBlock> VieVS::Scheduler::calib_

private

calibrator impact scan descriptor

std::shared_ptr<const Mode> VieVS::Scheduler::currentObservingMode_ = nullptr

private

current observing mode

boost::optional<HighImpactScanDescriptor> VieVS::Scheduler::himp_

private

high impact scan descriptor

boost::optional<MultiScheduling::Parameters> VieVS::Scheduler::multiSchedulingParameters_

private

multi scheduling paramters

Network VieVS::Scheduler::network_

private

station network

unsigned long Scheduler::nextId = 0

staticprivate

next id for this object type

unsigned long VieVS::Scheduler::nObservationsConsidered = 0

private

considered baselines

unsigned long VieVS::Scheduler::nSingleScansConsidered = 0

private

considered single source scans

unsigned long VieVS::Scheduler::nSubnettingScansConsidered = 0

private

considered subnetting scans

std::shared_ptr<const ObservingMode> VieVS::Scheduler::obsModes_ = nullptr

private

observing modes

Parameters VieVS::Scheduler::parameters_

private

general scheduling parameters

std::string VieVS::Scheduler::path_

private

path to VieSchedpp.xml directory

PreCalculated VieVS::Scheduler::preCalculated_

private

pre calculated values

std::vector<Scan> VieVS::Scheduler::scans_

private

all scans in schedule

SourceList VieVS::Scheduler::sourceList_

private

session source list

int VieVS::Scheduler::version_

private

version

boost::property_tree::ptree VieVS::Scheduler::xml_

private

content of VieSchedpp.xml file

The documentation for this class was generated from the following files:

/home/travis/build/TUW-VieVS/VieSchedpp/Scheduler.h
/home/travis/build/TUW-VieVS/VieSchedpp/Scheduler.cpp

Classes

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
